Liver and abdominal ultrasound machines for gastroenterology
Nine of the eleven gastroenterology captures below name the Suresult model behind them, from a longitudinal liver to a splenic vein read at 300 mm. The other two come from the Suresult reference library, and entry to the specialty starts at $1,581 with software included and no subscription.
Every scan on this page is unedited footage from this hardware family, with the on-screen headers left in place ·Trusted by 8,717 clinicians →
Respuesta rápida
A liver ultrasound machine is a convex-array scanner that shows the liver, gallbladder and upper abdomen at the bedside.
- A convex head at 3.2/5.0 MHz reaches 300 mm, which covers a deep liver in a large adult.
- Color Doppler, power Doppler, pulsed-wave Doppler and M-mode run on the C5SH, C5SH-Pro, D3Ultra and D3Pro.
- Ultrasound identified moderate-severe fatty liver with 84.8% sensitivity and 93.6% specificity against histology.
- The D3Ultra carries convex, linear and phased formats in one 192-element probe, so abdominal and superficial work share a device.
The capture atlas
Eleven real gastroenterology windows, nine of them on a named Suresult model
Unedited clinical captures · select any image to enlarge
3 windows3 windows

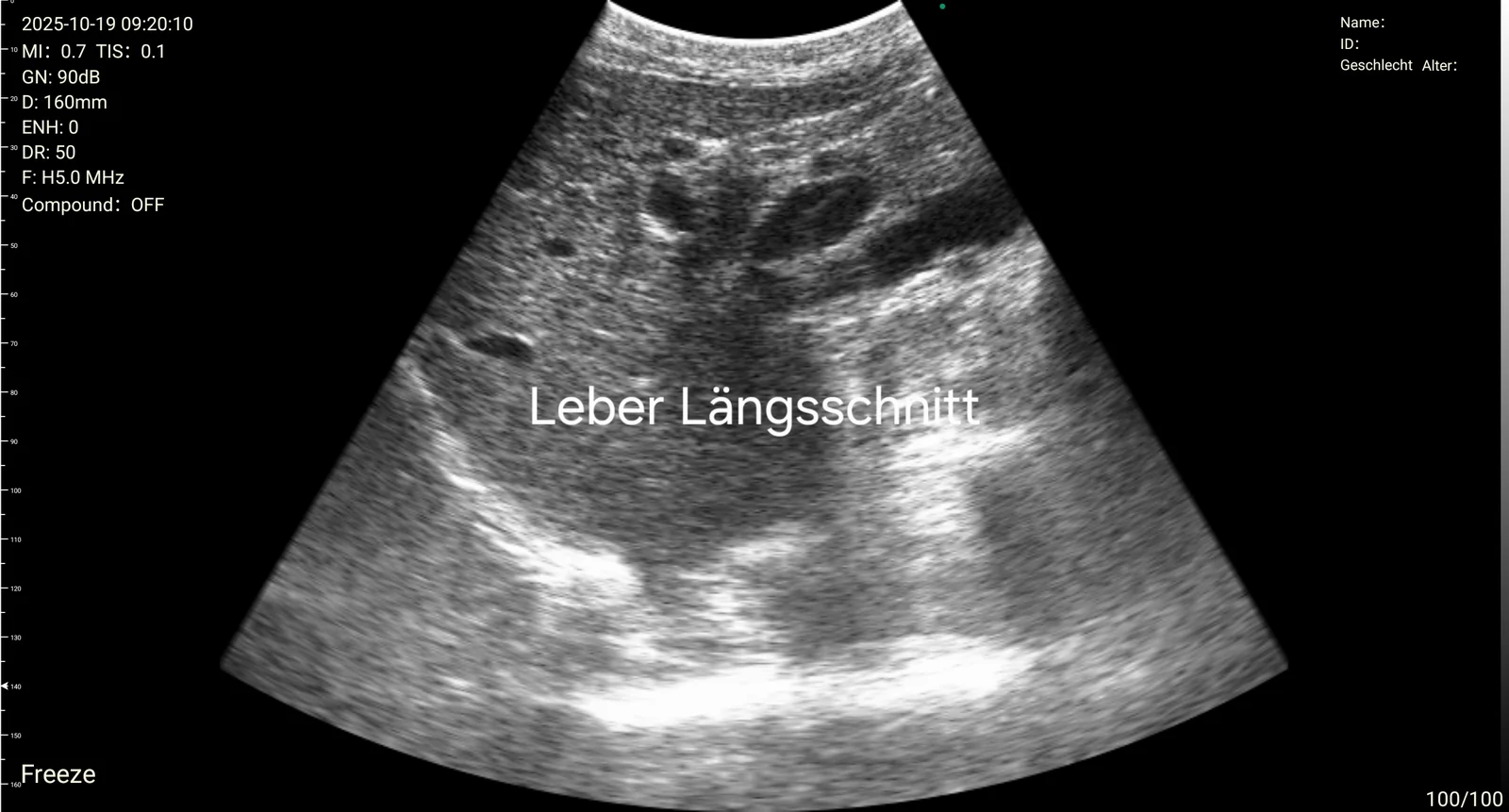

Longitudinal liver on the D3Ultra
The reference hepatic view, labeled on screen in German as a longitudinal liver section. Gain and depth are set on this window before anything else in the exam.
captured on a D3Ultra at 160 mm depth, H5.0 MHz, gain 90 dB, dynamic range 50

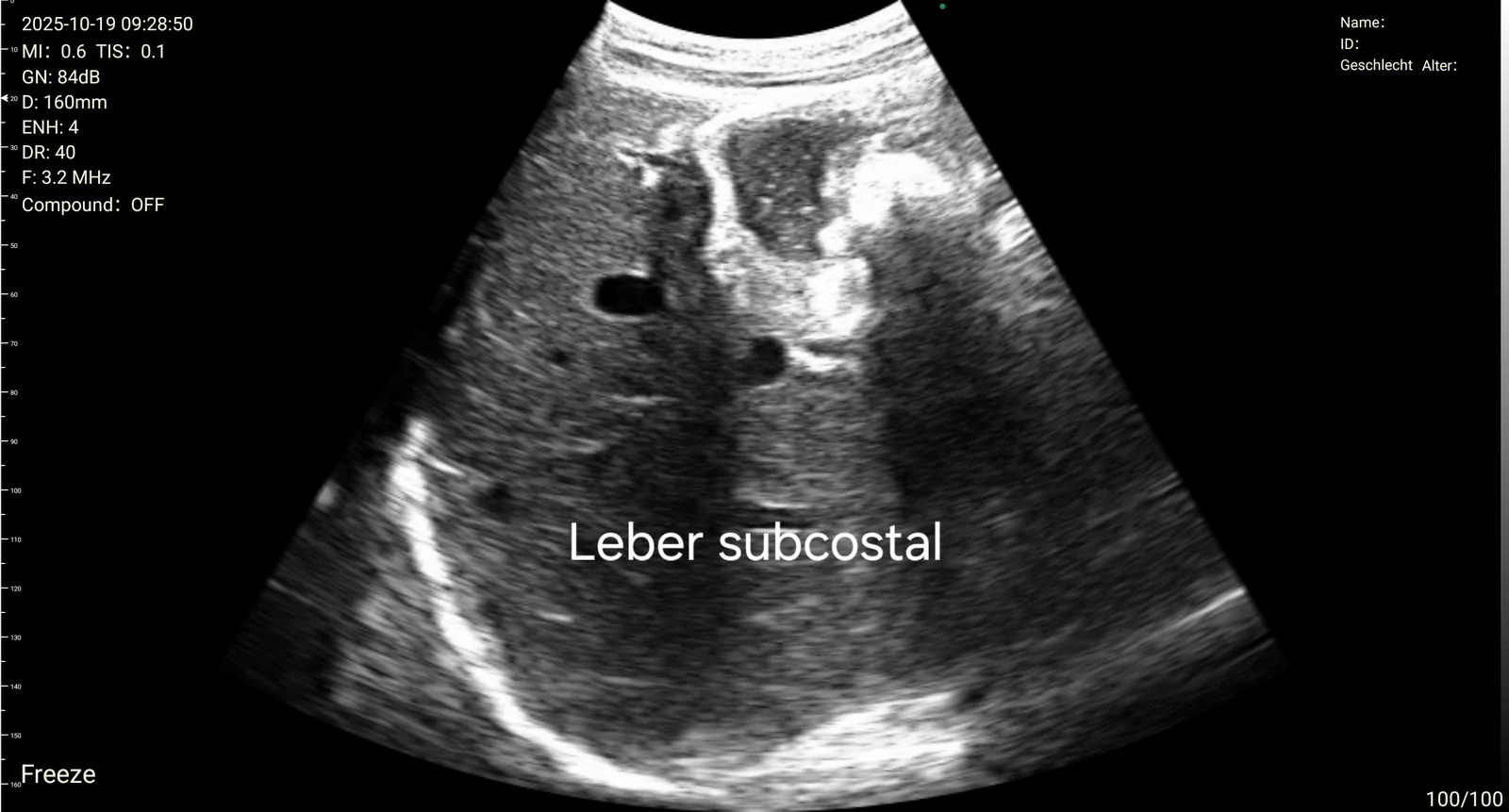

Subcostal liver window on the D3Ultra
The same buyer took the liver from below the costal margin at 3.2 MHz, where portal branches and the hepatic surface come into the sector. A lower transmit frequency buys penetration.
captured on a D3Ultra at 160 mm depth, 3.2 MHz, gain 84 dB, enhancement 4
Left hepatic lobe on the D3Ultra
The screen label reads left hepatic lobe, with the abdominal wall layers stacked above the parenchyma. The left lobe is the window a subxiphoid approach reaches first.
captured on a D3Ultra at 160 mm depth, H5.0 MHz, gain 86 dB, dynamic range 403 windows3 windows

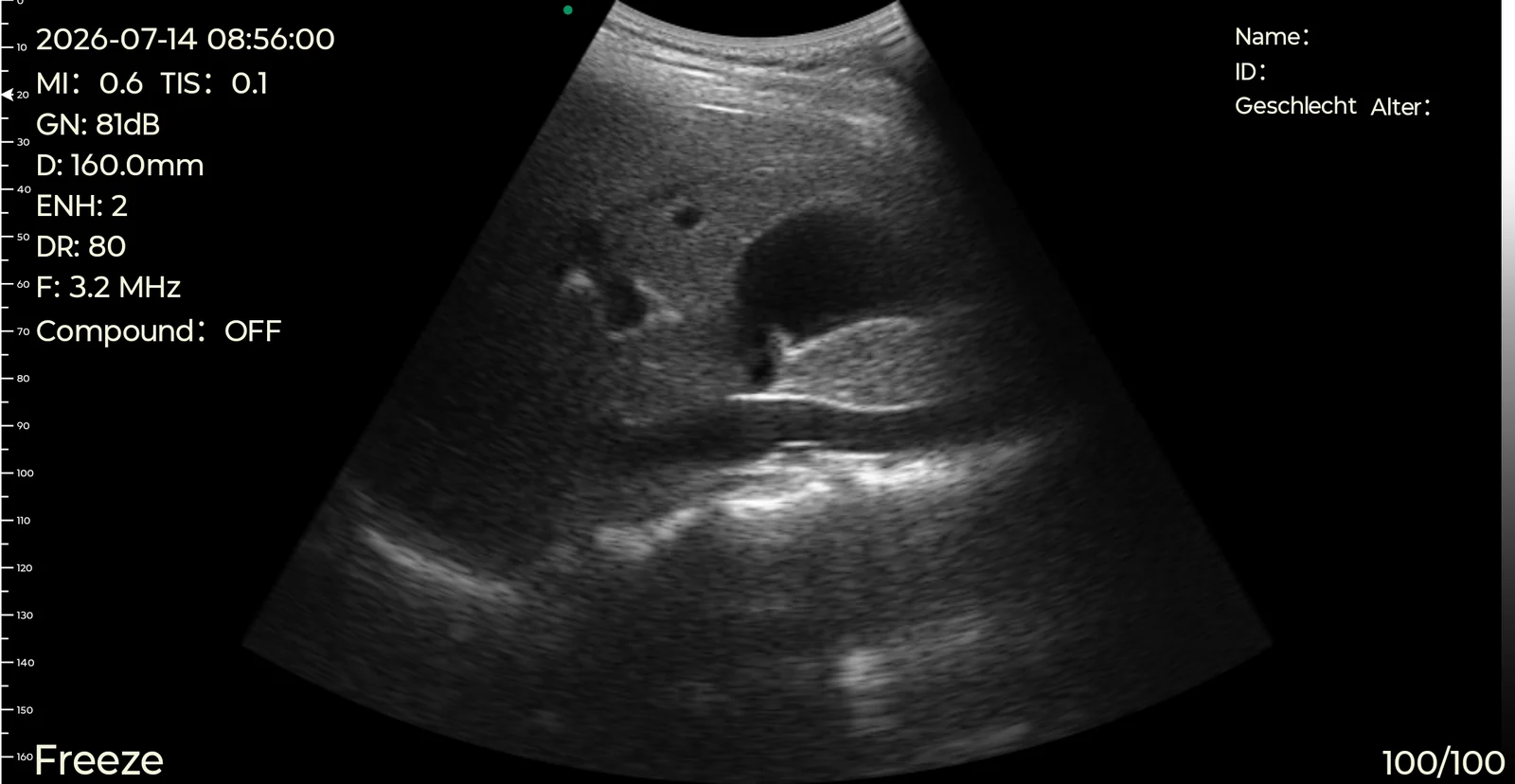

Long-axis gallbladder on the D3Ultra
The gallbladder sits as an anechoic pear against liver parenchyma, taken in long axis by a buyer in July 2026. This is the window that answers most biliary questions.
captured on a D3Ultra at 160 mm depth, 3.2 MHz, gain 81 dB, dynamic range 80

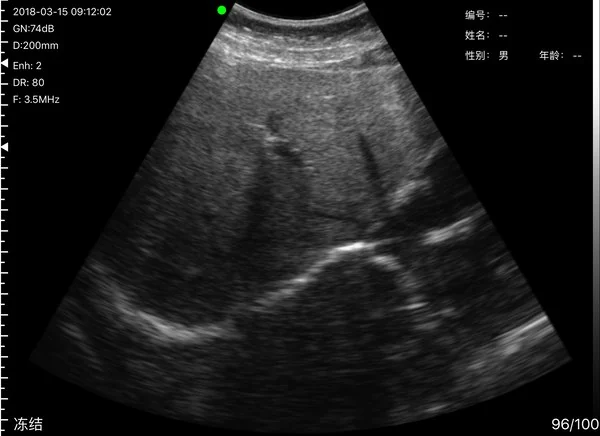

Bright liver recorded as fatty change
Liver parenchyma with portal branches running through it, filed in the library as fatty liver. Steatosis is the highest-volume question a gastroenterology clinic asks a scanner.
reference library still at 200 mm depth, 3.5 MHz, gain 74 dB, dynamic range 80; the exact model is not recorded

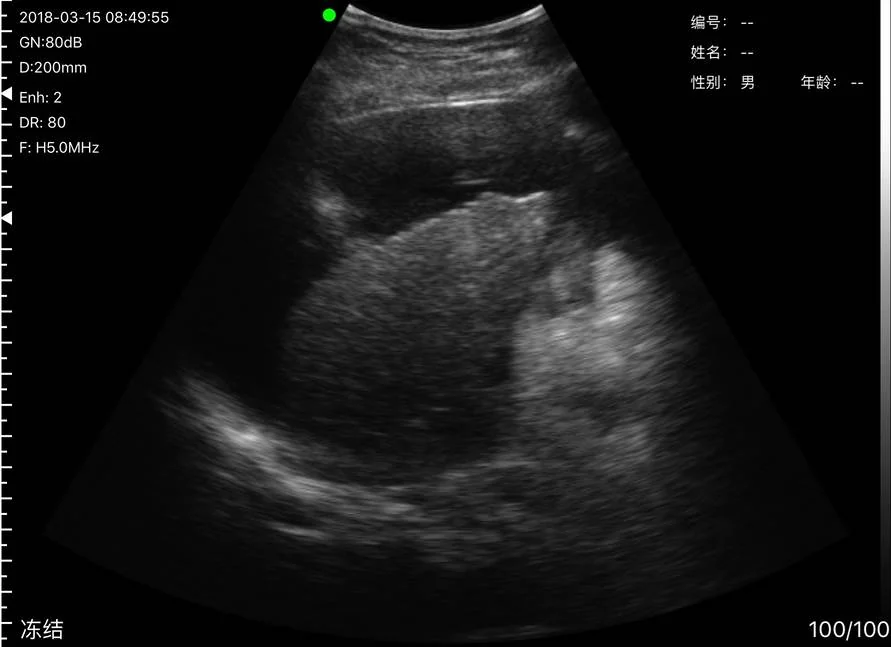

Anechoic rim around the liver
A dark band separates the liver from the structures around it, recorded in the library as perihepatic ascites. The same window is used to choose a puncture site before drainage.
reference library still at 200 mm depth, H5.0 MHz, gain 80 dB, dynamic range 80; the exact model is not recorded3 windows3 windows

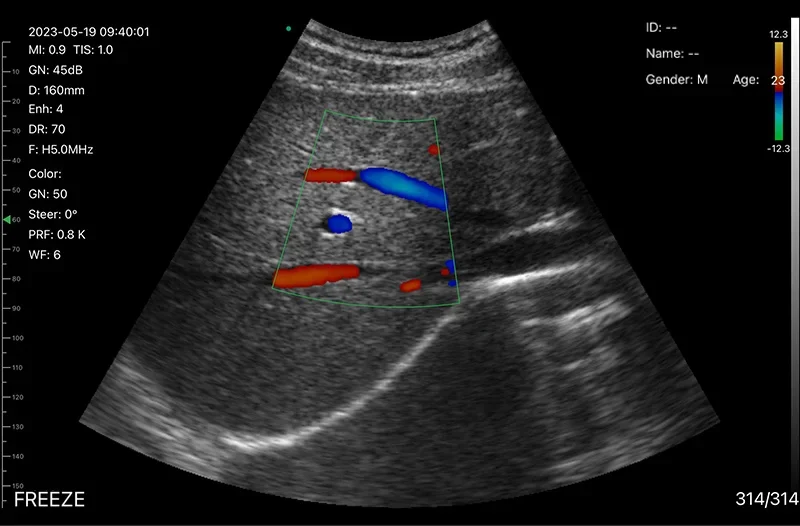

Color Doppler across hepatic vessels
Flow fills the hepatic vessels red and blue inside the color box on a D3Ultra. Direction and patency are answered here before any spectral trace is taken.
captured on a D3Ultra at 160 mm depth, H5.0 MHz, color gain 50, PRF 0.8 kHz, wall filter 6

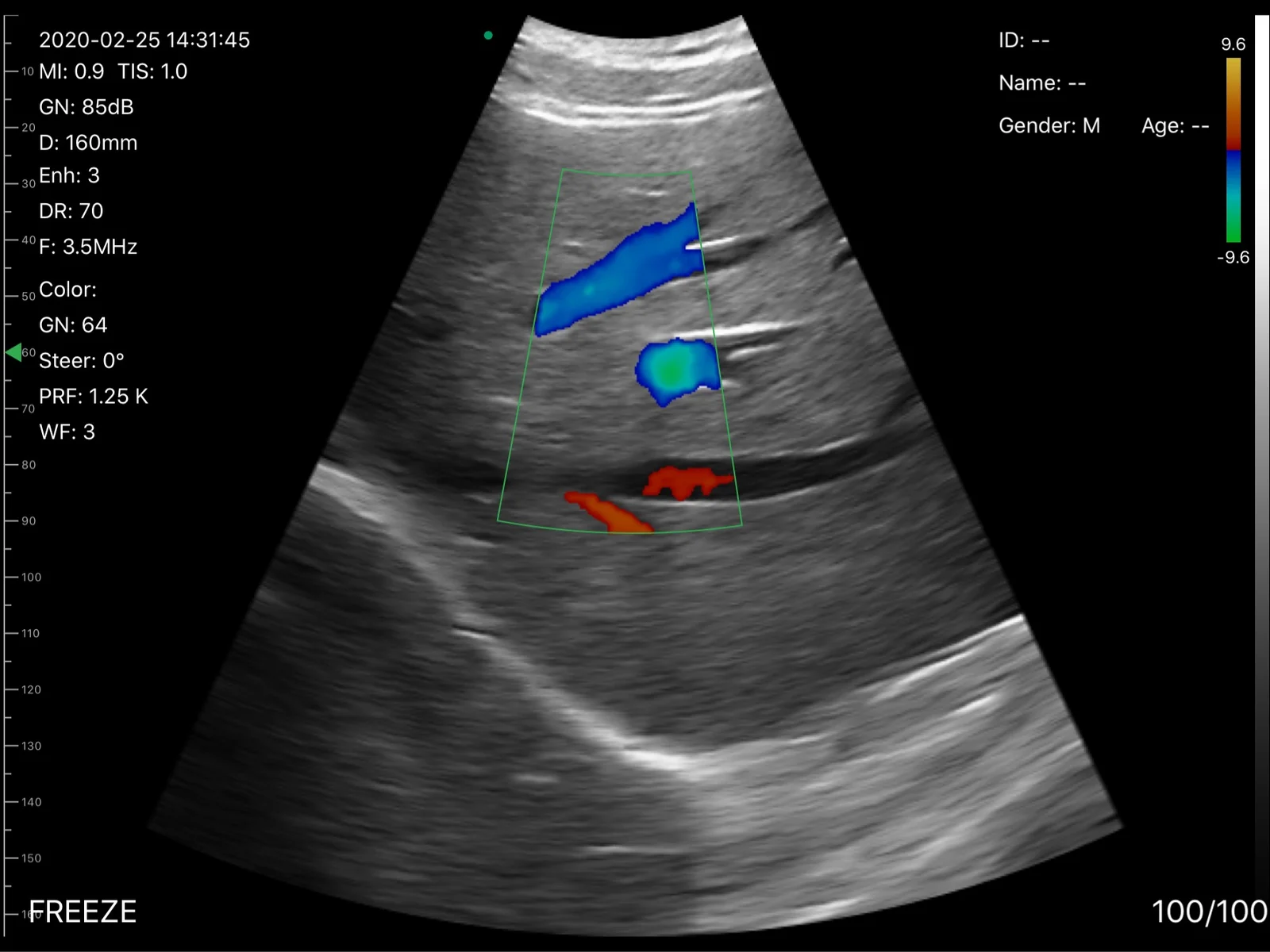

Hepatic color flow on the D3Ultra
Two intrahepatic vessels fill blue inside the color box while a vessel beneath the liver fills orange toward the probe. Flow direction is read from the color map before any velocity is taken.
captured on a D3Ultra at 160 mm depth, gain 85 dB, color gain 64, PRF 1.25 kHz, wall filter 3

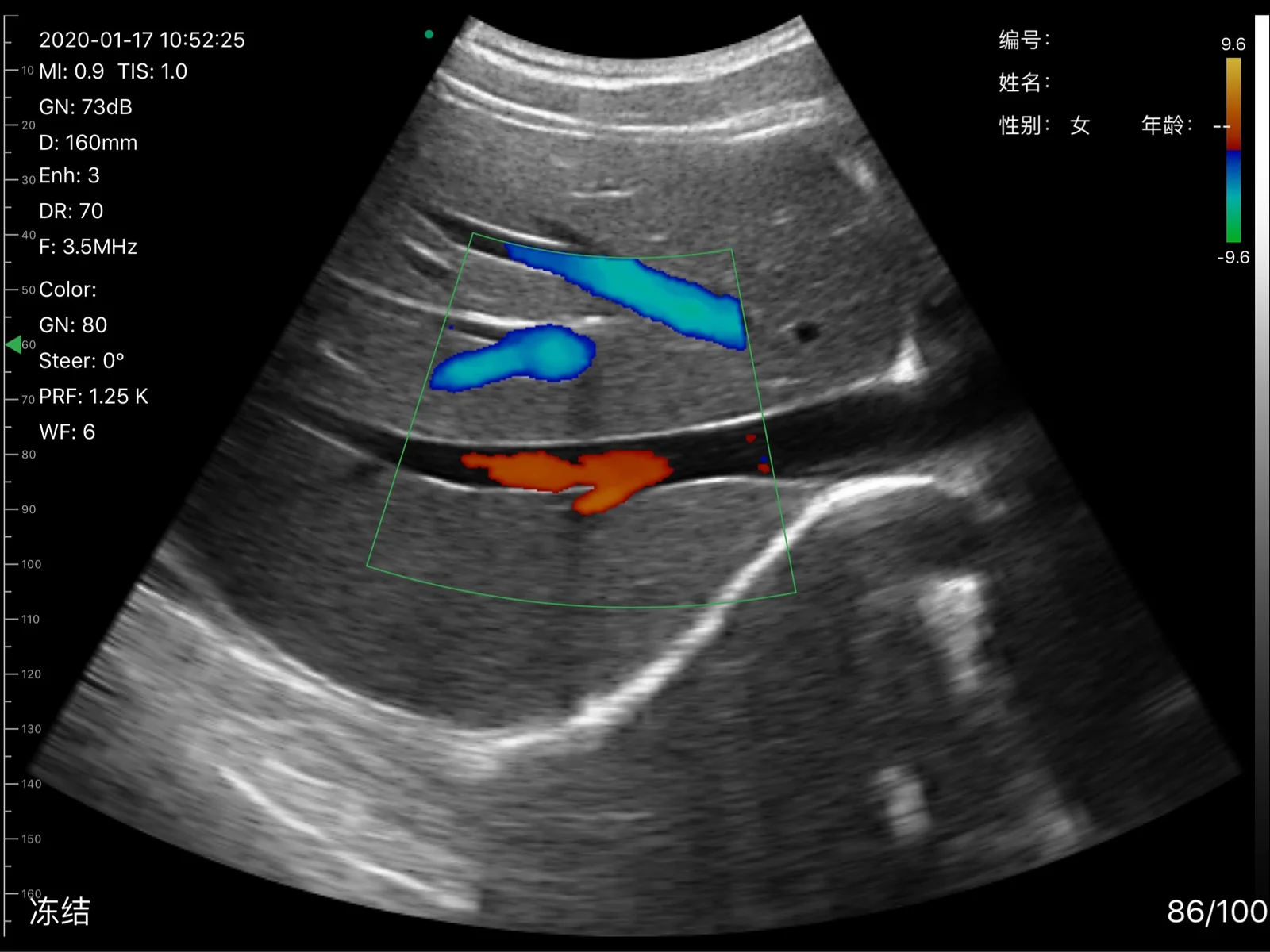

The same color box on the D3Pro
Two intrahepatic vessels fill blue at 160 mm depth, with a third vessel beneath the liver filling orange. The D3Pro held the same 1.25 kHz color PRF at the same depth.
captured on a D3Pro at 160 mm depth, gain 73 dB, color gain 80, PRF 1.25 kHz, wall filter 62 windows2 windows

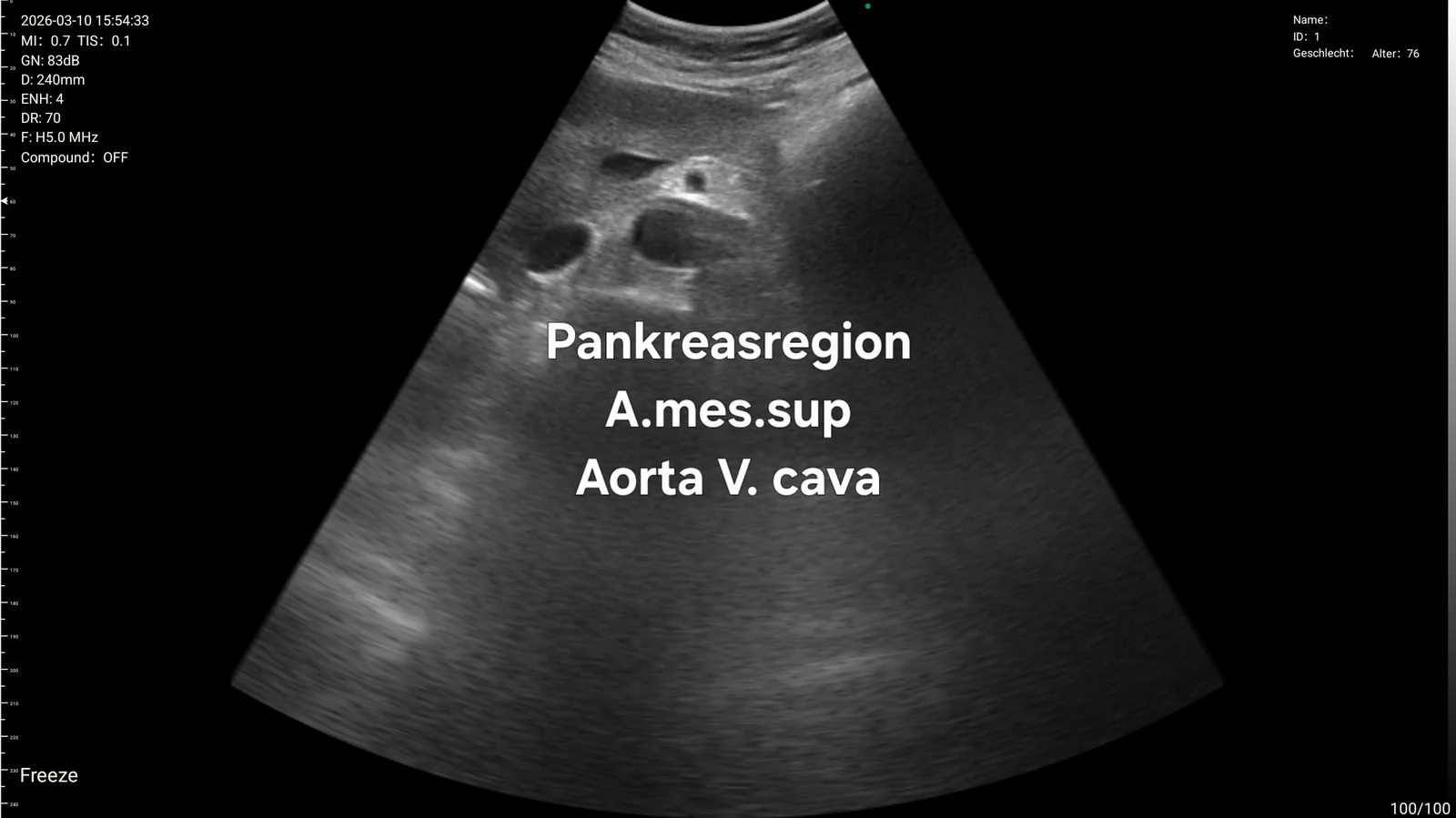

Pancreatic region at 240 mm
The buyer labeled this frame as the pancreatic region and named the superior mesenteric artery, the aorta and the vena cava as landmarks. Those vessels are how the pancreas is found.
captured on a D3Ultra at 240 mm depth, H5.0 MHz, gain 83 dB, dynamic range 70

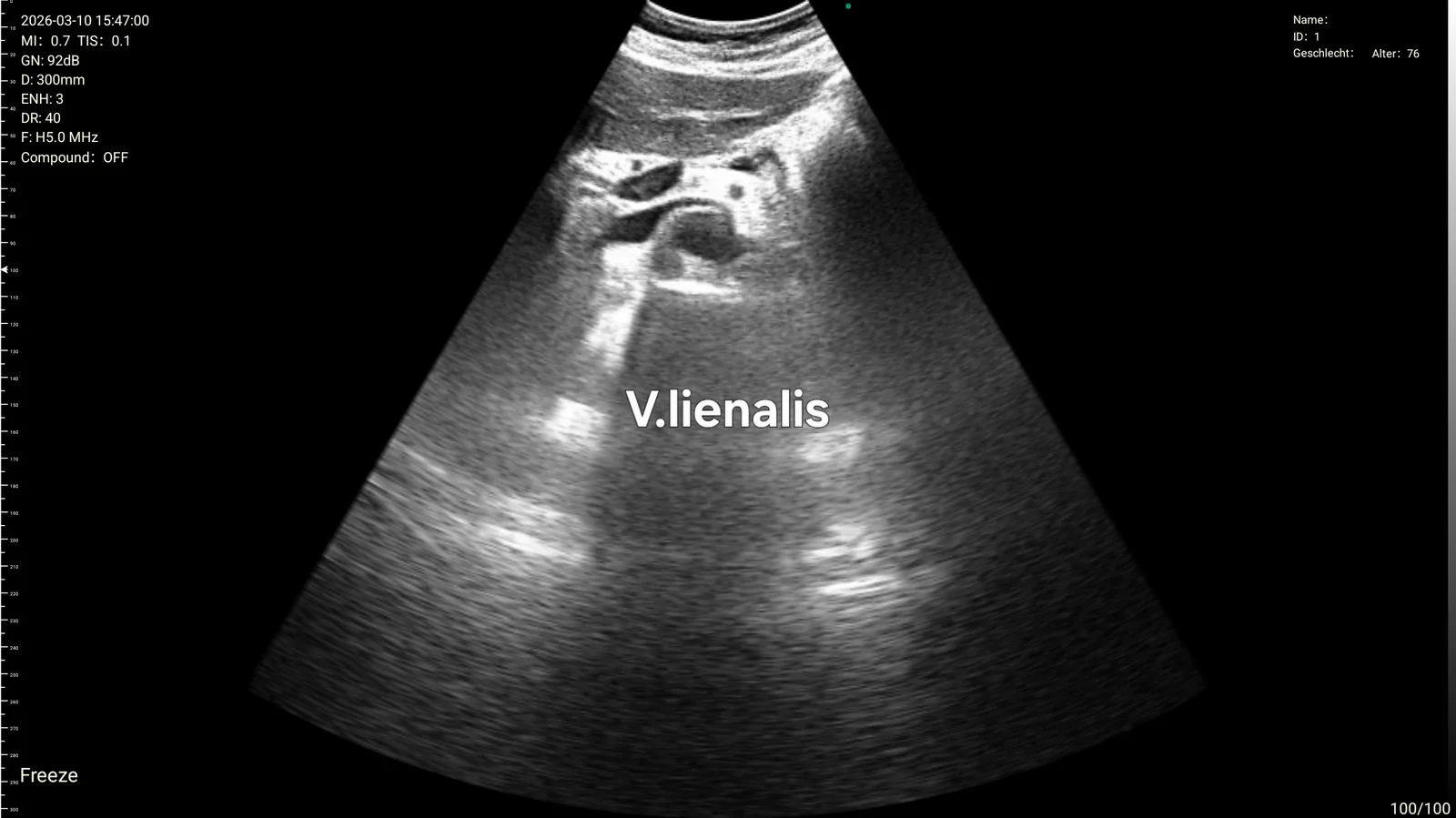

Splenic vein with the depth scale at 300 mm
The same session pushed the convex head to its full depth, with the screen label reading splenic vein. Depth is the specification that decides whether a large abdomen is scannable at all.
captured on a D3Ultra at 300 mm depth, H5.0 MHz, gain 92 dB, dynamic range 40
Select a card to switch capture
Technique basics
How the exam comes together, probe to report
- Start with the convex head.
The liver, gallbladder and upper abdomen all sit deep, so a 3.2/5.0 MHz convex probe is the first choice rather than a linear one.
Convex 3.2/5.0 MHz - Set 160 mm, then go deeper when the liver runs off screen.
Most hepatic views sit inside 160 mm. The C5SH, C5SH-Pro and D3Ultra convex heads are specified to 300 mm, which is what a large abdomen needs.
D: 160 mm, then D: 300 mm on the header - Sweep the liver in two planes, then find the gallbladder.
A longitudinal sweep followed by a subcostal fan covers the parenchyma. The gallbladder is then taken in long axis against the liver.
Two planes, then the gallbladder - Add Doppler where the question needs it.
Color shows whether a hepatic vessel is patent, pulsed-wave Doppler puts a velocity on it, and power Doppler raises sensitivity to slow flow.
Color · PW · power Doppler
What the research says
The evidence, three studies checked
- Ultrasound detects moderate-severe fatty liver against histology.
Across 49 studies and 4,720 participants, ultrasound identified moderate-severe fatty liver with 84.8% sensitivity and 93.6% specificity, compared with histology. The area under the summary ROC curve was 0.93.
Hernaez et al., Hepatology 2011 - Bedside scanning for gallstones held up outside radiology.
In a review of eight studies covering 710 patients, bedside ultrasound performed by emergency physicians detected cholelithiasis with 89.8% sensitivity and 88.0% specificity.
Ross et al., Acad Emerg Med 2011 - A hand-held device changed treatment in one patient in five.
In 86 acute geriatric patients screened with a hand-held device alongside a high-end system, findings with therapeutic consequences appeared in 20 patients, or 23.2%. Gallstones were the most common finding at 32.6% and fatty liver followed at 26.7%.
Weinrebe et al., Z Gerontol Geriatr 2023
Pick your model
Pick the model that fits your day
MOST CHOSEN
Liver and gallbladder clinics, one probeC5SH
Liver and gallbladder clinics, one probeC5SHA 192-element convex head at 3.2/5.0 MHz specified to 300 mm, with color, power and pulsed-wave Doppler on the same probe. It weighs 150 g and charges wirelessly.
specified to 300 mm, one probe
$2,139 C5SH · 64 Channels High-Res Convex Buy nowView C5SH →
Resolution first on the upper abdomenC5SH-ProThe same convex format built on 256 elements across 64 channels, with the same 90-300 mm depth range. Export covers JPEG, PNG, MP4 and DICOM.
256 elements, convex only
$4,185 C5SH-Pro · 64 Channels High-Res Convex Buy nowView C5SH-Pro →
A GI clinic that also scans lung and vesselsD3UltraThree formats sit in one 192-element probe, so the liver, chest and vessels share a device. Most captures in the atlas above came from this model.
Three formats, three heads
$2,976 D3Ultra · Convex Linear Phased MultipuBuy nowVer D3Ultra →
The lowest entry into abdominal scanningC5BAn 80-element convex probe with B-mode and power Doppler, reaching 305 mm, on a 4200 mAh battery rated for 3 hours. Color and pulsed-wave Doppler are not on this model.
reaching 305 mm, entry
$1,581 C5B · Cost Effective Portable B/W Buy nowView C5B →Comparativa de escáneres
Seven Suresult models for liver and abdominal scanning, compared
Swipe to see all columns →
| Modelo | Precio | Frecuencia | Profundidad | Lo mejor para |
|---|---|---|---|---|
| C5SH | $2,139 | Convex 3.2/5.0 MHz | 90-300 mm | Liver, gallbladder and abdominal work with color, power and pulsed-wave Doppler, 192 elements on 64 channels |
| C5SH-Pro | $4,185 | Convex 3.2/5.0 MHz | 90-300 mm | The same convex format with 256 elements on 64 channels |
| C5B | $1,581 | Convex 3.2/5.0 MHz | 90/160/220/305 mm | B-mode and power Doppler only, 80 elements, the entry price into abdominal scanning |
| D3Ultra | $2,976 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex 90-300 mm; linear 20-100 mm | Liver work plus lung, vessels and heart in one 192-element probe |
 D3Pro | $2,697 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex 90-305 mm; linear 20-80 mm | Three formats with a 4200 mAh battery rated for 3 hours of scanning |
 D3L | $2,418 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex 90-305 mm; linear 20-80 mm | Three formats on 128 elements with a 70 degree convex sector |
 D3 | $2,232 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex 90-305 mm; linear 20-100 mm | Entry three-format handheld at 150 g, with cable or Wi-Fi connection |
Against the known brands
Suresult vs Clarius C3 HD3, Butterfly iQ3 and GE Vscan Air CL for liver and abdominal work
Swipe to see all columns →
| Suresult | Clarius C3 HD3 | Mariposa iQ3 | GE Vscan Aire CL | |
|---|---|---|---|---|
| Liver and abdominal imaging | Convex 3.2/5.0 MHz on the C5SH, C5SH-Pro, C5B, D3Ultra, D3Pro, D3L and D3, with color, power and pulsed-wave Doppler on the Doppler models | 2-6 MHz convex scanner, with abdominal listed among its applications | One 1-12 MHz probe covering linear, convex and phased formats | Curved array 2-5 MHz with 128 elements, paired with a 3-12 MHz linear array |
| Published depth | Convex 90-300 mm on the C5SH, C5SH-Pro and D3Ultra; a buyer capture on this page was taken at 300 mm | Max depth 40 cm published | Abdomen preset to 25 cm, Abdomen Deep to 30 cm | Curved array up to 24 cm, linear array up to 8 cm |
| Device price | $1,581 for the C5B, $2,139 for the C5SH, $2,976 for the D3Ultra | $3,795 published | $3,899 published for the iQ3, $2,699 for the iQ+ | Starting at $4,999 published |
| Coste del software | None; imaging modes, measurements, needle guides and DICOM export are included | Essentials at $695 per year, $1,785 for three years, or $2,500 one time | $299 per year for Core or $420 per year for Advanced; $1,500 buys five years of Advanced | Digital Tools for Vscan Air are sold separately from the device |
| Plataformas | iOS, Android and Windows on every abdominal model | iOS y Android | iOS y Android | iOS y Android |
| Landed cost | Duties and shipping included in the checkout price, delivered in 1-7 days | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- The C5SH, C5SH-Pro and D3Ultra convex heads are specified to 300 mm, and a buyer capture on this page was taken at that depth.
- Color Doppler, power Doppler, pulsed-wave Doppler and M-mode ship on the C5SH, C5SH-Pro, D3Ultra, D3Pro, D3L and D3.
- No subscription is required, and JPEG, PNG, MP4 and DICOM export are included on every abdominal model.
- The checkout price is the landed price, with duties and shipping covered and delivery in 1-7 days.
- The same software runs on iOS, Android and Windows, so no tablet purchase is forced.
- A reusable needle guide for convex probes is a listed accessory at $464.
- Cine loops of 100 to 1,000 frames are stored on the connected device, which is how a gallbladder wall is reviewed.
- Nine of the eleven gastroenterology captures on this page name the Suresult model that recorded them, and two come from the Suresult reference library.
The five-year math
Clarius publishes the C3 HD3 at $3,795 and the Essentials membership at $695 a year, which reaches $3,475 in fees alone by year five. A three-year membership is published at $1,785 and a one-time option at $2,500. Suresult abdominal models carry no subscription.
C5SH, paid onceClarius C3 HD3: scanner + membership= $3,475 in fees alone by year five
Three models, one decision
Not sure which model fits your cases?
One conversation gets a direct recommendation: the right Suresult probe, or a straight “neither.”
La mejor elección de ultrasonidos para clínicas gastrointestinales y salas de endoscopia
Desde las clínicas de cirrosis hasta las salas de endoscopia, Suresult agiliza el diagnóstico, la guía de procedimientos y el compromiso con el paciente, al alcance de su mano.
D3Ultra
D3Ultra Ultrasonidos portátiles multifunción de fase lineal convexa
Frecuencia: Sonda convexa / en fase 3,2/5,0MHz Sonda lineal 7,5/10MHz
Profundidad de exploración: Lineal: 20-100mm, Convexa y en fase: 90-300 mm
Gastroenterología
buy scanner
D3Pro
D3Pro Dual-Head 3-in-1 Wireless Ultrasound Scanner
Frecuencia: Sonda convexa/faseada 3,2/5,0MHz, Sonda lineal 7,5/10MHz
Profundidad de exploración: Palpador convexo/faseado: 90-305mm, Sonda lineal: 20-80mm
Gastroenterología
buy scanner
D2T
D2T Ecografía Transvaginal Convexa Inalámbrica - 192 Elementos, Doppler Color
Frecuencia: Sonda convexa 3,2/5,0MHz, sonda endocavitaria 6/8MHz
Profundidad de exploración: Sonda convexa 90/160/220/305mm, Sonda endocavitaria 30/60/90/120mm
Gastroenterología
buy scanner
Qué tener en cuenta antes de comprar un ecógrafo portátil para gastroenterología
Elija el dispositivo ideal para hepatología, endoscopia e intervenciones gastrointestinales con frecuencia de banda ancha, modos Doppler y preajustes intuitivos.
Before you buy
Qué comprobar antes de comprar
What is the best handheld ultrasound machine for liver imaging?
For daily liver and gallbladder work the Suresult C5SH is the strongest fit: a 192-element convex head specified to 300 mm with color Doppler. The C5SH-Pro carries the same format on 256 elements. For a clinic that also scans lungs and vessels, the D3Ultra adds linear and phased formats.
Which ultrasound probe is used for the liver?
The liver is scanned with a convex probe at 3.2/5.0 MHz, which trades resolution for penetration. A linear probe at 7.5/10 MHz is used for the abdominal wall and superficial structures, not for hepatic parenchyma.
Can a handheld ultrasound show fatty liver?
Yes. Hernaez and colleagues reported in Hepatology in 2011 that ultrasound identified moderate-severe fatty liver with 84.8% sensitivity and 93.6% specificity against histology.
Can a handheld ultrasound find gallstones?
Yes. In eight studies covering 710 emergency patients, bedside ultrasound detected cholelithiasis with 89.8% sensitivity and 88.0% specificity. The gallbladder is imaged in long axis against the liver.
How deep does a handheld convex probe reach?
The Suresult C5SH, C5SH-Pro and D3Ultra convex heads are specified to 300 mm. A buyer capture taken on a Suresult D3Ultra carries a 300 mm depth scale on its header.
How much does a liver ultrasound machine cost?
A Suresult abdominal handheld costs between $1,581 and $4,185, with software included. Clarius publishes the C3 HD3 at $3,795, Butterfly publishes the iQ3 at $3,899, and GE lists the Vscan Air CL starting at $4,999.
Does a handheld scanner do color Doppler on hepatic vessels?
Yes. Color Doppler, power Doppler and pulsed-wave Doppler run on the C5SH, C5SH-Pro, D3Ultra, D3Pro, D3L and D3. A Suresult D3Ultra hepatic color-Doppler capture was recorded at a color PRF of 0.8 kHz.
Can a handheld scanner guide a paracentesis?
The Doppler models carry in-plane and out-of-plane puncture guides on screen, and the C5SH, C5SH-Pro and D3Ultra add needle enhancement. A reusable convex needle guide is listed as a separate accessory. Procedure practice stays the clinician's decision.
What is the real five-year cost of a liver scanner?
Add the device price to five years of any membership fee. The Clarius Essentials membership at $695 a year reaches $3,475 by year five, and Butterfly's Core plan adds $1,495. Suresult abdominal models carry no subscription.
Is a handheld device accurate enough for an abdominal screen?
In 86 acute geriatric patients screened with a hand-held device alongside a high-end system, findings with therapeutic consequences appeared in 23.2% of patients. Gallstones were the most common finding at 32.6%.
Should a gastroenterologist replace the cart machine with a handheld?
A handheld answers focused questions: liver texture, gallbladder appearance, free fluid and vessel patency. Elastography, contrast-enhanced studies and endoscopic ultrasound stay on other equipment.
What is the difference between the C5SH and the C5SH-Pro?
The C5SH carries 192 elements and the C5SH-Pro carries 256, both across 64 channels. Frequency, the 90-300 mm depth range, imaging modes and export formats are identical.
Can a handheld ultrasound image the bowel?
The convex head shows bowel gas, distended loops and free fluid between loops at 3.2/5.0 MHz. The Suresult media library holds no bowel capture, so no bowel image accompanies this answer.
Which platforms run the software?
iOS, Android and Windows all run Suresult software over a dual-band 2.4G and 5G Wi-Fi link. An existing phone or tablet works as the display.
Does a Suresult abdominal scanner export into the record?
Yes. Every abdominal model exports JPEG, PNG, MP4 and DICOM, and stores cine loops of 100 to 1,000 frames on the connected device.
Sonda de matriz convexa (2,5-5 MHz)
Para evaluaciones hepáticas, biliares y abdominales profundas en pacientes cirróticos y hepatobiliares.
Sonda de matriz lineal (7-14 MHz)
Para estructuras superficiales, capas de la pared gastrointestinal y guía de procedimientos específicos.
Doppler con modos PW y CW
Evaluar la velocidad de la vena porta, la permeabilidad de la arteria hepática y la dinámica del flujo variceal.
Software de mejora de agujas y composición espacial
Para un drenaje de fluidos o paracentesis seguro y preciso.
Preajustes de IG optimizados
Reducir el tiempo de exploración en consultas externas de hepatología y hospitalización.
Batería compacta de gran capacidad (más de 3 horas)
Para la movilidad por clínicas, salas y pabellones de endoscopia.
Fácil intercambio de imágenes y compatibilidad con DICOM
Para una integración y elaboración de informes EMR sin fisuras.
Software libre,
Escaneados ilimitados
Los ecógrafos portátiles de Suresult incluyen un potente software que le ofrece funciones ilimitadas sin coste adicional. Disfrute de DICOM y doppler de onda pulsada gratuitos, además de una interfaz fácil de usar en iOS, Android y Windows, para que pueda centrarse en ofrecer una atención de máxima calidad sin ningún coste de software.
Compatible con todas las plataformas, de por vida Actualizaciones gratuitas
Capture cada detalle, guíe con precisión y comparta con facilidad
Mejore su flujo de trabajo de ecografía con nuestra solución todo en uno. Experimente la precisión, la sencillez y la eficiencia en cada exploración.
Más de 17 preajustes especializados
Sonda convexa/faseada
Sonda lineal
27 Mediciones automatizadas para diagnósticos precisos
Simplifique su trabajo con un completo conjunto de herramientas para realizar evaluaciones rápidas y en tiempo real.
Modo B
- Longitud, área/circunferencia, ángulo, trazo, distancia
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
Modo B+M
- Frecuencia cardiaca, tiempo, distancia
- Diámetro interno del ventrículo izquierdo (DIVId, DIVIs)
- Fracción de eyección (FE), Volumen sistólico (VS)
Modo B+PW
- Velocidad, frecuencia cardíaca, relación S/D, profundidad
- Medición automática del caudal de los recipientes
- Velocidad sistólica máxima (PS), velocidad diastólica final (ED)
- Velocidad máxima promediada en el tiempo (TAMAX), velocidad media promediada en el tiempo (TAMEAN)
- Índice de Pulsatilidad (PI), Índice de Resistividad (RI)
- Diámetro del vaso (DIAM), Caudal (FL)
Bucle de cine
Graba hasta 1000 fotogramas (≈165 segundos) de movimiento continuo para captar todos los detalles sutiles.
Función de asistencia a la perforación
Disfrute precisa en el plano y guías fuera del plano para aumentar su confianza durante las intervenciones.
Exportación flexible de archivos
Guarda y comparte tus escaneos sin esfuerzo en JPEG, MP4, PNG o DICOM formatos, integrándose perfectamente en su flujo de trabajo.
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- No se requiere ninguna suscripción de software — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
PREGUNTAS FRECUENTES
¿Puede una ecografía manual Suresult sustituir a una ecografía abdominal formal?
Sí. Con una amplia gama frecuencia-profundidad y sondas de al menos 128 elementos para una alta resolución espacial, Suresult ofrece imágenes de calidad diagnóstica. Combinado con herramientas avanzadas como el Doppler color y PW, ofrece un rendimiento comparable al de muchos sistemas basados en carro.
¿Cómo funciona el archivado e intercambio de imágenes?
Las imágenes y los vídeos se almacenan localmente en su dispositivo iOS o Android conectado a través del Wi-Fi integrado. Los archivos están preparados para EMR y son fácilmente exportables a PACS o sistemas en la nube.
¿Puedo utilizar Suresult en entornos docentes o académicos?
Absolutamente. Admite la anotación de imágenes, la captura de vídeo y el uso compartido inalámbrico, lo que resulta ideal para las discusiones de casos, las demostraciones a estudiantes y la documentación clínica.
¿Es lo suficientemente portátil para la práctica diaria de la IG?
Sí. Los dispositivos Suresult son ligeros (menos de 300 g), de bolsillo y funcionan con pilas, lo que facilita su transporte entre consultas, salas o procedimientos.
¿Qué funciones específicas de gastroenterología se incluyen?
Viene con preajustes de un solo toque para la exploración abdominal, hepática y gastrointestinal. La compatibilidad con varias sondas garantiza que lo cubra todo, desde las evaluaciones de ascitis hasta las de rigidez hepática, con una curva de aprendizaje mínima.
¿Cuánto tiempo puede funcionar durante exploraciones gastrointestinales prolongadas?
Battery life ranges from 1.5–3 hours per charge depending on the model. While continuous scanning is possible, it’s advised to take short breaks during scans beyond 10 minutes to optimize device longevity and image quality.
