Vascular access ultrasound, built for first-attempt sticks
Find the vein, watch the needle, confirm the line: bi-plane guidance and 7.5/10 MHz imaging, handheld, from $2,400, with no subscription. Every Suresult model compared so the choice takes minutes.
Every scan on this page is unedited clinical footage from this hardware family ·Trusted by 8,717 clinicians →
Select a card to switch capture
Real clinical footage: the vein checks and needle passes a vascular access team runs daily.
Respuesta rápida
A vascular access ultrasound machine is a high-frequency linear scanner used to find veins, guide the needle in real time, and confirm line placement.
- Short-axis / long-axis switching: vein centred in short axis, needle visible in long
- On-screen needle guides: in-plane and out-of-plane, drawn over live imaging
- Color Doppler: artery and vein settled before the stick
What it does all day
The four sticks, on one handheld
Peripheral IV, difficult veins
When veins can neither be felt nor seen, 7.5/10 MHz shows the forearm's superficial network and the catheter's path into it.
PICC and midline placement
The basilic vein mapped before the stick: diameter, depth and flow checked with Color Doppler, then tracked in real time.
Central lines: IJ access
The internal jugular beside the carotid in one view; Doppler confirms which is which before the needle moves.
Needle visualization
In-plane guidance keeps the tip visible from skin to lumen: the difference between one stick and three.
Technique basics
How an ultrasound-guided IV comes together
- Survey in short axis.
Sweep the forearm; veins compress under light pressure; arteries pulse and stay open.

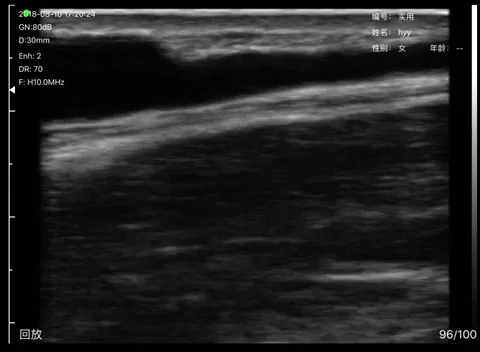

Forearm survey - Confirm flow with color.
A short color Doppler check separates artery from vein before the tourniquet goes on.
Color flow, on the L20Pro - Advance in long axis.
Rotate ninety degrees so the needle tip stays visible from skin to lumen.
Long-axis needle view

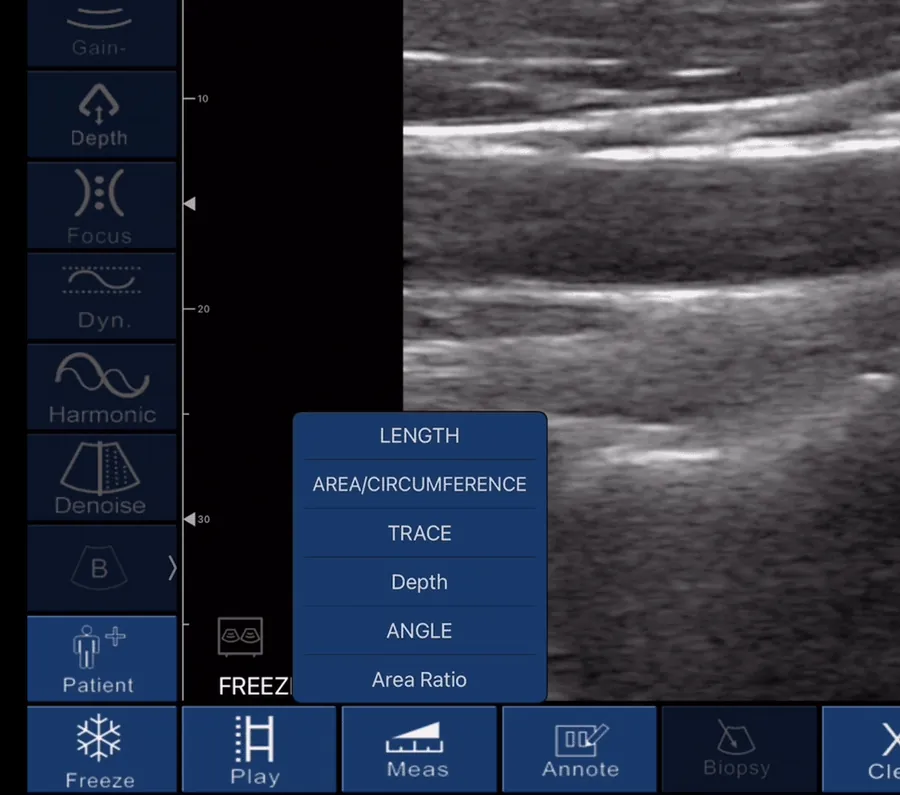

Freeze, measure, document.One-key freeze with depth and diameter calipers records the vessel for the line note.
Calipers, on the app
What the research says
The evidence for ultrasound-guided vascular access
- Recommended by NICE since 2002.
UK national guidance prefers ultrasound for internal jugular central line insertion.
NICE TA49, 2002 - More first-pass success.
Cochrane review: better first-attempt success and fewer complications than landmark technique.
Brass et al., Cochrane 2015 - Wins on difficult IVs.
Meta-analysis: higher peripheral IV success in patients with difficult venous access.
Stolz et al., J Vasc Access 2015
Buyer reports
From the people placing lines
“While our nurses are fantastic at IV sticks, some patients have more difficult to find or stick veins. This ultrasound tool is one that we hope will promote more comfort, ease, and enjoyment for our IV therapy!”
“As a practitioner, this ultrasound has become my preferred device for guiding vascular and joint procedures, and it is also excellent for nerve blocks. The real-time imaging is sharp and precise, which makes these procedures genuinely more efficient. It has also proven very useful for guiding AV fistulas.”
Measured on this hardware
Real buyer captures, with the calipers on screen

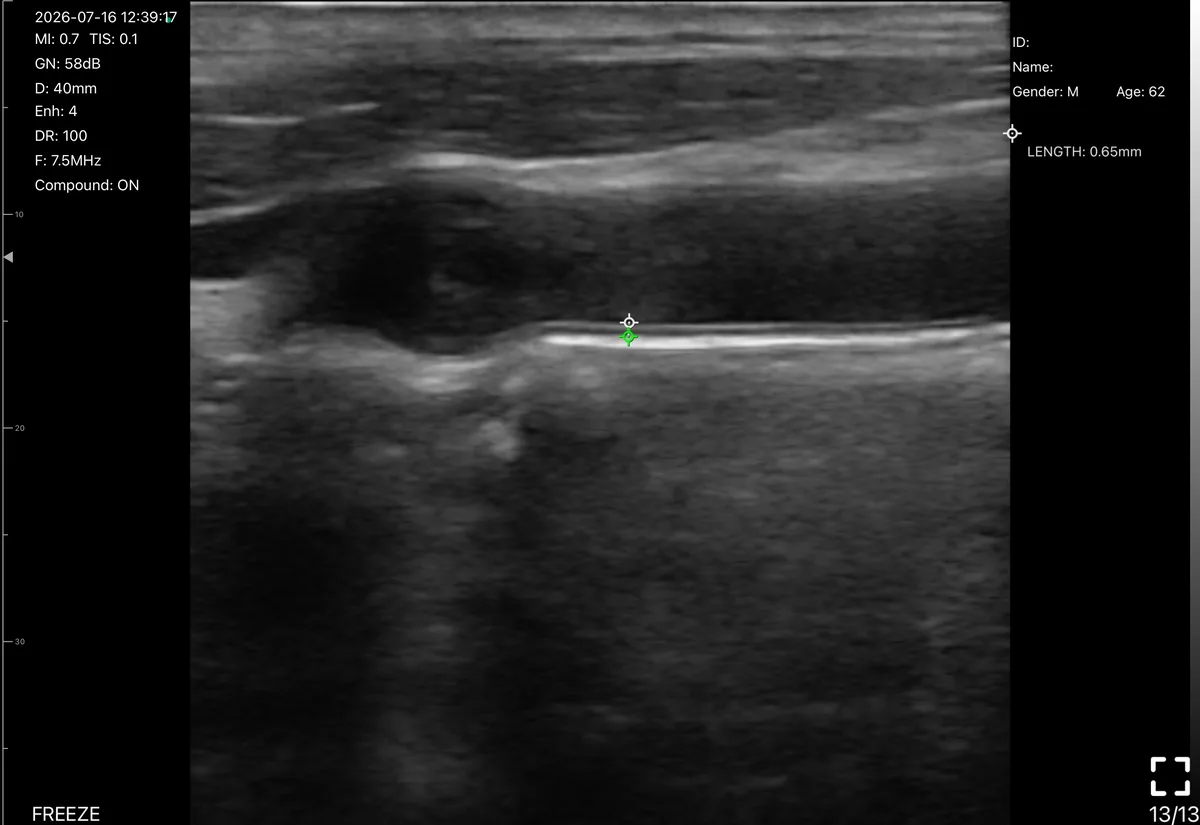

“Intima-media thickness measured at the distal common carotid artery. Median nerve area measured at the wrist.”
— Enrique Botia Paniagua, neurologist · from his buyer report, captured on his D3Ultra
Intima-media thickness, measured
Distal common carotid with on-screen calipers. The follow-up number is saved into the record.

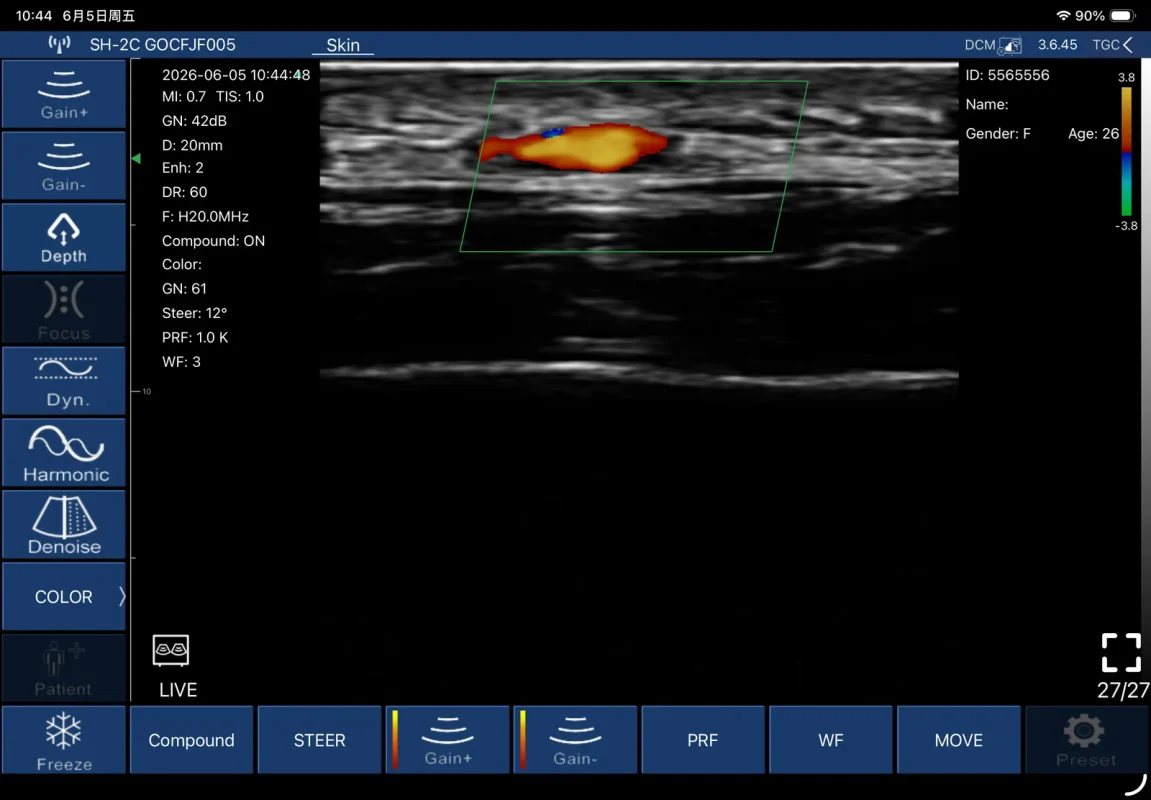

Color flow before the stick
Artery and vein settled in seconds on the L20Pro, the same check as the clinic video above.

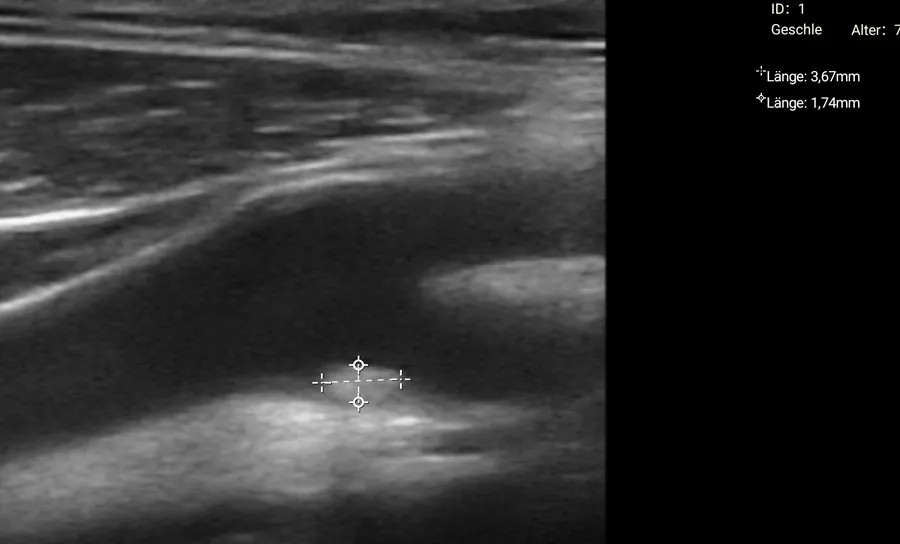

Depth and diameter, documented
One-key freeze with two calipers. The vessel choice is recorded for the line note.
Buyer submissions, unedited. Device attribution as reported by each buyer.
Pick your model
Best vascular access ultrasound machine? It depends on your sticks
MOST CHOSENIV therapy & superficial lines dailyL20Pro
IV therapy & superficial lines dailyL20ProThe probe in the IV clinic video above: 16/20 MHz shows superficial veins in the detail that makes hard sticks routine.
$3,720 L20Pro · 256 elementsBuy nowView L20Pro →
One probe for everythingD3UltraLinear head for lines and IVs, convex for the rest of the ward. The buyer-measured IMT and nerve captures below are from this probe.
$2,976 D3Ultra · dual headBuy nowVer D3Ultra →
Bi-plane needle guidanceL10TShort axis and long axis held on one screen, the specialist model for the hardest central and peripheral sticks.
$2,418 L10T · bi-planeBuy nowView L10T →Comparativa de escáneres
Seven Suresult models for vascular access
Swipe to see all columns →
| Modelo | Precio | Frecuencia | Profundidad | Lo mejor para |
|---|---|---|---|---|
| L10T | $2,418 | 7,5/10 MHz | 20/40/60/100 mm | Bi-plane puncture guidance, difficult IV and central lines |
| L10SH | $3,534 | 7,5/10 MHz | 20/40/60/100 mm | High-definition PICC and midline mapping |
| L10H | $2,325 | 7,5/10 MHz | 20/40/60/100 mm | Standard 192-element vascular model |
| L10W | $2,232 | 7,5/10 MHz | 80 mm footprint | Wide field of view for forearm networks |
| L14Pro | $3,441 | 14/10 MHz | 20/40/60/80 mm | Access plus deeper MSK and shoulder work in one probe |
| L20Pro | $3,720 | 16/20 MHz | 20/30/40 mm | Very superficial veins and pediatric access |
| D3Ultra | $2,976 | 7.5/10 + 3.2/5 MHz | 20–100 mm linear | Access sharing one scanner with broader POCUS |
Against the known brands
Suresult vs Clarius, Butterfly and GE Vscan for vascular access
Swipe to see all columns →
 Suresult model |  Clarius L15 HD3 |  Mariposa iQ3 |  GE Vscan Aire CL | |
|---|---|---|---|---|
| Access imaging | 7.5/10 MHz linear, bi-plane on L10T | 5–15 MHz linear | 1–12 MHz single chip | 3–12 MHz linear side |
| Device price | $2,232–$3,534, published | $3,595 published | $3,899 published | $4,999 published |
| Suscripción | Ninguno — software included | $595/year membership, or $2,500 one-time option | Requerido: $299–$420/year | subscription-enabled Digital Tools |
| Landed cost | Duties + shipping included, 1–7 days | US list, duties extra | US list, duties extra | US list, duties extra |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- Bi-plane needle guidance.Short axis and long axis on one screen — the L10T keeps vein and needle visible together.
- Zero subscription, ever.Color Doppler, puncture guides and vessel calipers ship included on every scanner.
- The checkout price is the landed price.Duties and shipping included, delivered in 1–7 days.
- Registered where you practice.FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada.
The five-year math
Clarius's $595/year membership is $2,975 by year five, more than an entire L10W costs today. Butterfly's required plan adds $1,495–$2,100.
L10W, paid onceClarius L15 HD3: scanner + membership= $2,975 in fees alone by year five
Three models, decided in one line
Not sure which model fits your team?
One conversation gets a direct recommendation: the right Suresult probe, or an honest “neither.”
Los mejores ultrasonidos portátiles para el acceso vascular
Con las sondas de alta definición, el Doppler en tiempo real y el seguimiento de la aguja, incluso las venas profundas o el tejido edematoso dejan de ser barreras para el acceso.
L20Pro
L20Pro: ecógrafo lineal de alta frecuencia (16/20 MHz) para estética, piel y sistema musculoesquelético superficial
Frecuencia: 16/20 MHz
Profundidad de exploración: 20/30/40 mm
Acceso vascular
buy scanner
L24Pro
Sonda de ultrasonidos estética L24Pro de 18/24 MHz y 256 elementos para rellenos
Frecuencia: 18/24 MHz
Profundidad de exploración: 10/15/20/25 mm
Acceso vascular
buy scanner
D3Ultra
D3Ultra Ultrasonidos portátiles multifunción de fase lineal convexa
Frecuencia: Sonda convexa / en fase 3,2/5,0MHz Sonda lineal 7,5/10MHz
Profundidad de exploración: Lineal: 20-100mm, Convexa y en fase: 90-300 mm
Acceso vascular
buy scanner
Qué tener en cuenta antes de comprar un ecógrafo portátil para acceso vascular
Elija el dispositivo ideal para la precisión vascular con imágenes multifrecuencia, movilidad y facilidad de uso sobre el terreno.
Before you buy
What to check before buying a vascular access ultrasound machine
Is ultrasound-guided IV insertion actually worth it?
Whether you call it a vascular access ultrasound system or a handheld vein finder with imaging, the case is the same: seeing the vein and the needle turns multiple attempts into one, especially on patients whose veins can neither be felt nor seen.
Short axis or long axis for IV placement?
Short axis finds the vein and centres it; long axis keeps the whole needle in view during advance. The L10T's bi-plane mode shows both at once, which is exactly why it exists.
What frequency is best for vein imaging?
7.5/10 MHz covers forearm, upper-arm and jugular targets to 100 mm. Very superficial pediatric or hand veins benefit from the 16/20 MHz L20Pro; a clinic that mixes access with deeper MSK work is better served by the L14Pro at 10/14 MHz, or the three-format D3Ultra.
What is the real five-year cost?
Add the device price to five years of any membership fee, then add import duties if the list price is US-only. The comparison table above does that math per brand.
Can nurses use a handheld ultrasound for IV access?
Yes; ultrasound-guided peripheral IV is a nursing skill in many hospitals, and the short-axis technique is teachable in a single session. The on-screen guides are drawn for exactly this use.
Does Color Doppler tell artery from vein?
Yes: pulsatile flow and non-compressibility mark the artery, and Doppler makes the flow direction visible before the needle moves. It ships as standard on every scanner on this page.
Do these scanners work for PICC lines?
The basilic and brachial veins PICC teams target sit within the 7.5/10 MHz depth range; the L10SH's 64-channel imaging is the one line teams choose for daily mapping.
Can it document the line for the record?
Freeze, measure diameter and depth, and export JPEG, MP4, PNG or DICOM. The exam stores locally, with no cloud fee gate, so the line note carries the image.
Keep learning
Reading that answers the next questions
Best handheld ultrasound for vascular access
The full equipment comparison: every model, spec and price in one guide.
Read the guide → Point-of-care ultrasound: uses, devices and trainingThe POCUS primer: where handhelds fit, and how clinics adopt them.
Read the guide → Which handheld ultrasound is the most accurate?The measurement study to read before choosing a probe.
Read the study →
Sonda de matriz lineal (7-15MHz)
Ideal para venas superficiales, líneas medias e inserciones de PICC con alta resolución.
Sonda curvilínea (2-5 MHz)
Útil para accesos centrales más profundos o ventanas cardiacas en entornos traumatológicos complejos.
Doppler con PW/CW
Para confirmar la permeabilidad del vaso y guiar la colocación segura de la aguja, crucial en pacientes de alto riesgo.
Ayuda a la punción o seguimiento de la aguja
Asistencia a la punción en plano/fuera de plano o seguimiento de la aguja para venas más profundas o escenarios de movimiento como las ambulancias.
Diseño compatible con el campo estéril
Cubiertas estériles y aptas para guantes para mantener una técnica aséptica con el manejo con una sola mano.
Portátil e inalámbrico
Fácil de llevar en el bolsillo, desde la cabecera de la cama, a la sala de traumatología o al campo de batalla sin necesidad de cables de alimentación.
Software libre,
Escaneados ilimitados
Los ecógrafos portátiles de Suresult incluyen un potente software que le ofrece funciones ilimitadas sin coste adicional. Disfrute de DICOM y doppler de onda pulsada gratuitos, además de una interfaz fácil de usar en iOS, Android y Windows, para que pueda centrarse en ofrecer una atención de máxima calidad sin ningún coste de software.
Compatible con todas las plataformas, de por vida Actualizaciones gratuitas
Capture cada detalle, guíe con precisión y comparta con facilidad
Mejore su flujo de trabajo de ecografía con nuestra solución todo en uno. Experimente la precisión, la sencillez y la eficiencia en cada exploración.
Más de 17 preajustes especializados
Sonda convexa/faseada
Sonda lineal
27 Mediciones automatizadas para diagnósticos precisos
Simplifique su trabajo con un completo conjunto de herramientas para realizar evaluaciones rápidas y en tiempo real.
Modo B
- Longitud, área/circunferencia, ángulo, trazo, distancia
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
Modo B+M
- Frecuencia cardiaca, tiempo, distancia
- Diámetro interno del ventrículo izquierdo (DIVId, DIVIs)
- Fracción de eyección (FE), Volumen sistólico (VS)
Modo B+PW
- Velocidad, frecuencia cardíaca, relación S/D, profundidad
- Medición automática del caudal de los recipientes
- Velocidad sistólica máxima (PS), velocidad diastólica final (ED)
- Velocidad máxima promediada en el tiempo (TAMAX), velocidad media promediada en el tiempo (TAMEAN)
- Índice de Pulsatilidad (PI), Índice de Resistividad (RI)
- Diámetro del vaso (DIAM), Caudal (FL)
Bucle de cine
Graba hasta 1000 fotogramas (≈165 segundos) de movimiento continuo para captar todos los detalles sutiles.
Función de asistencia a la perforación
Disfrute precisa en el plano y guías fuera del plano para aumentar su confianza durante las intervenciones.
Exportación flexible de archivos
Guarda y comparte tus escaneos sin esfuerzo en JPEG, MP4, PNG o DICOM formatos, integrándose perfectamente en su flujo de trabajo.
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- No se requiere ninguna suscripción de software — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
PREGUNTAS FRECUENTES
¿Cómo funciona el seguimiento magnético de agujas?
Magnetic tracking uses a sensor near the probe. As you insert the needle, the software detects its path and displays a live trajectory overlay, even when the needle isn’t clearly visible on ultrasound. This feature is available on the L10H sonda.
¿Son compatibles los ultrasonidos Suresult con los procedimientos estériles?
Absolutamente. Los dispositivos Suresult tienen una clasificación IP67 o superior, lo que significa que la sonda puede desinfectarse fácilmente con un bastoncillo entre paciente y paciente. Para entornos estériles, puede utilizar fundas de sonda desechables estériles. El pequeño tamaño de la sonda hace que sea fácil cubrirla y mantener la esterilidad durante todo el procedimiento
¿Cómo ayuda el ecógrafo portátil Suresult a reducir las complicaciones durante la colocación de la vía?
La guía en tiempo real permite una orientación precisa de los vasos, reduciendo el riesgo de punción de la pared posterior, hematomas e inserciones fallidas. Con la confirmación de flujo Doppler, la diferenciación de tejidos y el realce de la aguja, Suresult también le ayuda a lograr una colocación precisa a la primera, lo que se traduce en mejores resultados y una mayor seguridad para el paciente.
¿Existe una garantía o un plan de servicio?
Yes. All Suresult devices come with a standard two-year warranty, which covers manufacturing defects, technical support, and software updates. Extended plans are available to three or five years, adding two-way expedited repair shipping, priority support, and an instant loaner or replacement scanner to minimise clinical downtime.
¿Cuánta formación necesito para empezar?
If you're already familiar with basic ultrasound or vascular access, you'll be comfortable with Suresult almost immediately. For new users, a basic ultrasound workshop or online POCUS course provides enough knowledge to begin performing guided line placements. The Suresult support team can also assist with onboarding and tutorials.
¿Puede sobrevivir a caídas o entornos difíciles como ambulancias o entornos de campo?
Sí. Todos los modelos de Suresult están construidos con una carcasa sellada y robusta, resistente a los golpes y con un grado de protección IP67 o superior contra el polvo y el agua. Los dispositivos han sido sometidos a pruebas de resistencia durante el transporte, lo que los hace adecuados para ambulancias, entornos de emergencia o clínicas móviles. Además, cada unidad se entrega en un estuche rígido con cerradura para mayor protección.
