Nerve block ultrasound, proven twelve blocks deep
Interscalene to IPACK: twelve real blocks imaged on one dual-head handheld, with the needle-guide readout on screen. Published pricing, software included, no subscription. Every Suresult model compared so the choice takes minutes.
Every scan on this page is unedited clinical footage from this hardware family ·Trusted by 8,717 clinicians →
Quick answer
A nerve block ultrasound machine is the imaging system that shows the target nerve and guides the needle to it in real time. It also confirms that local anesthetic has spread around the nerve. Dual-head wireless handhelds such as the Suresult D3Ultra now cover superficial plexus blocks and deep windows like the anterior sciatic, work that once needed a cart.
- Two heads: linear for superficial plexus, convex for deep sciatic windows
- On-screen needle guides: in-plane and out-of-plane, with position and angle readouts
- Image quality you can teach from: every block saved as cine loops and DICOM
The block atlas
Twelve nerve blocks, imaged on one handheld
“It is an excellent handheld ultrasound for performing regional anesthesia… I provide regional anesthesia for outpatient surgery, major surgery in hospital, in intensive care unit and in prehospital emergency medicine.”
— David Heimpel, who imaged all twelve blocks below on his D3UltraUnedited clinical captures · needle-guide readout on every frame · select any image to enlarge

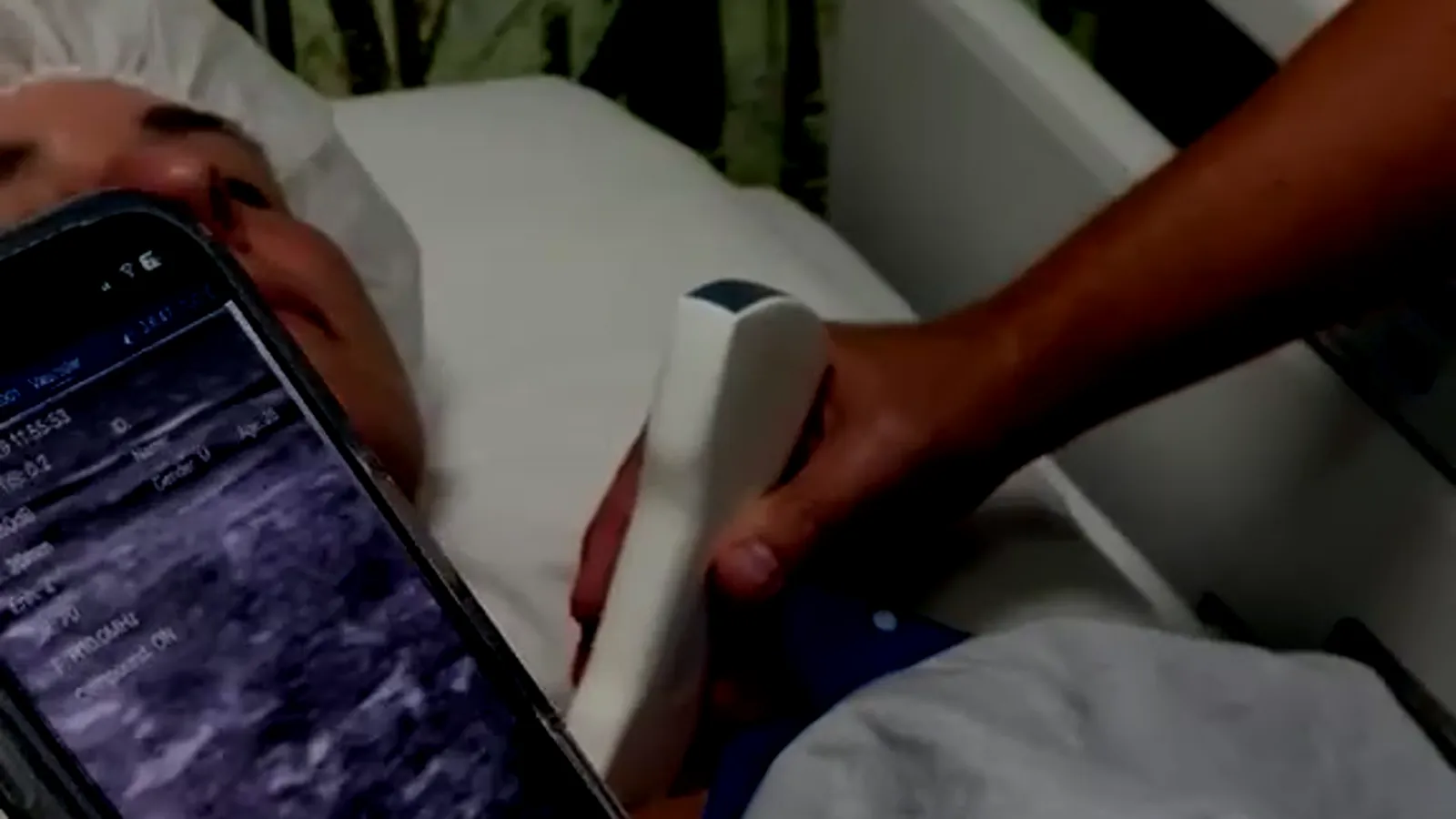

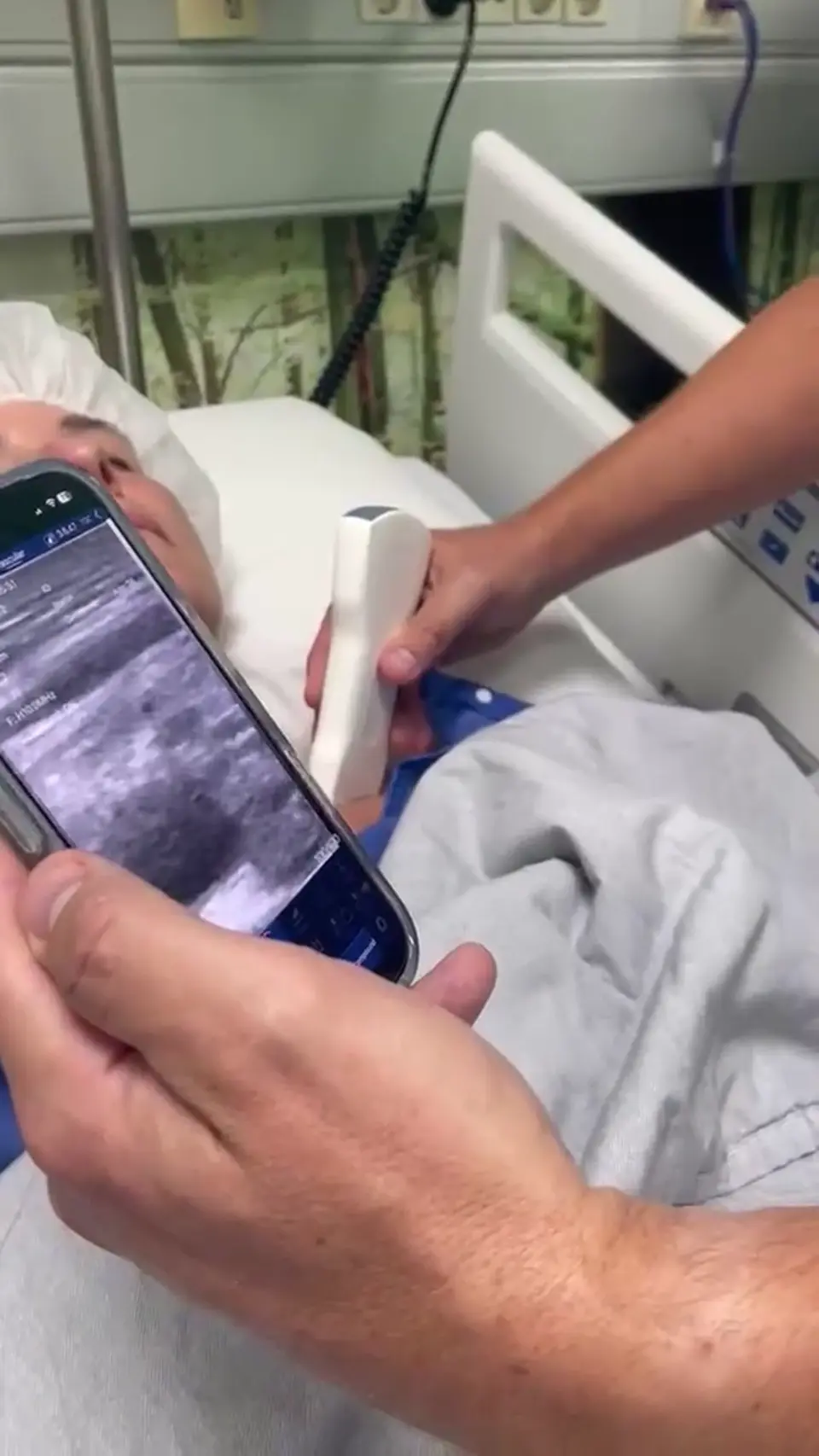

Captured by a German anesthesiologist on his own device. The on-screen labels are German: Winkel = needle angle, Position = needle entry point relative to the probe, in mm.
Shoulder & arm1 block

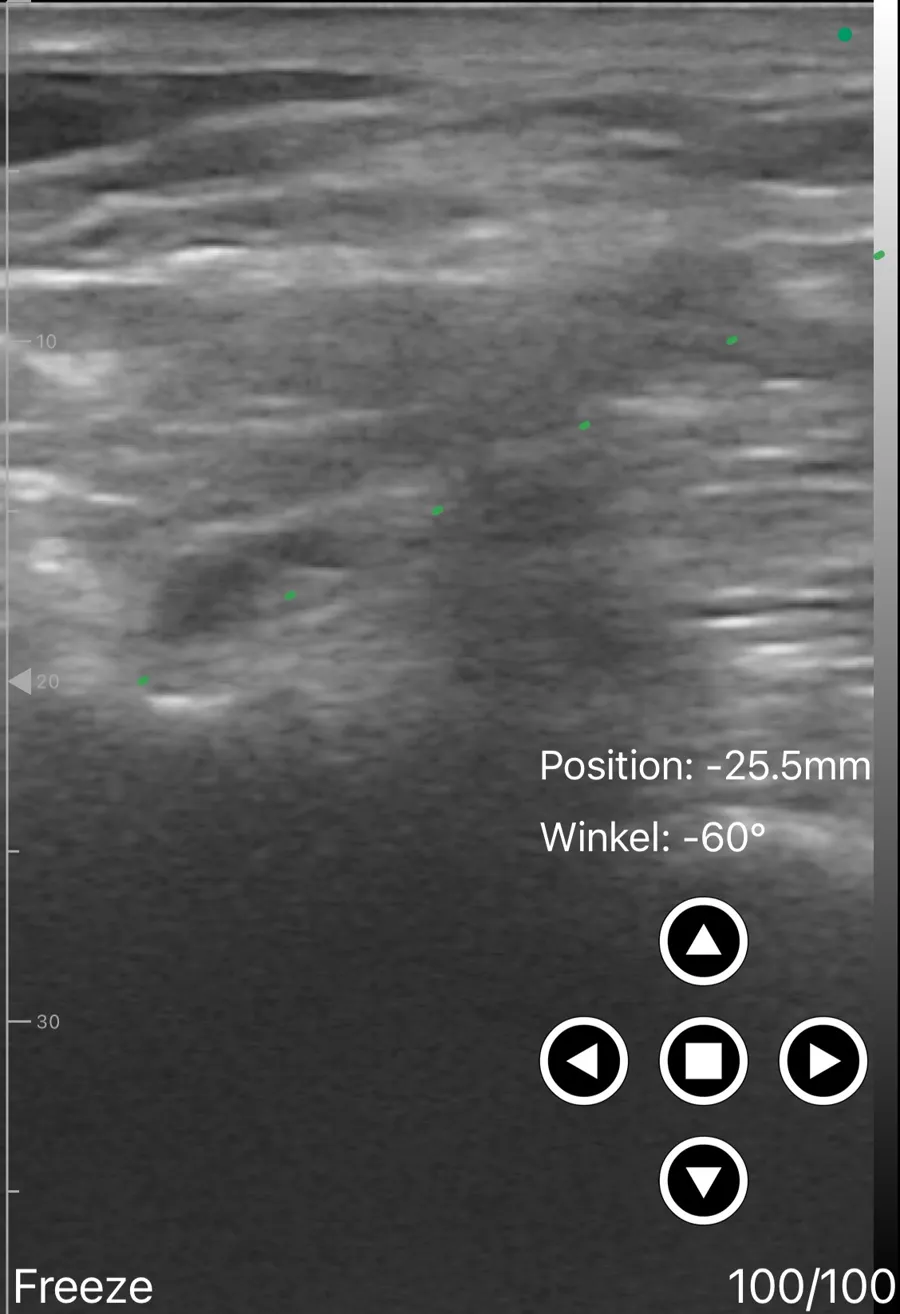

Interscalene brachial plexus block
The roots between the scalenes: shoulder and upper-arm surgery. Superficial at 1–3 cm, a high-frequency linear view.
Chest & trunk4 blocks

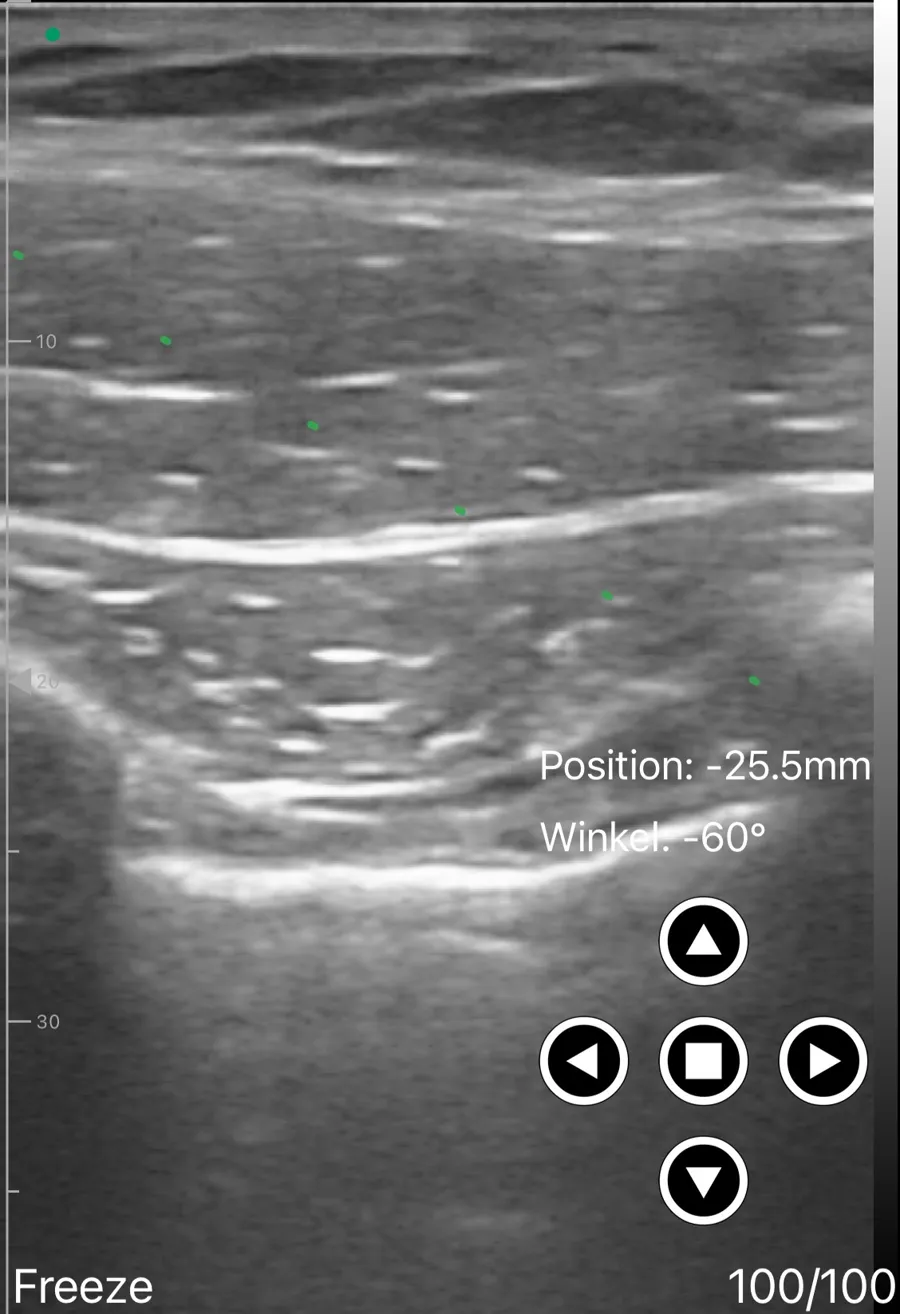

PECS block
Pectoral nerves for breast and anterior chest wall surgery. Fascial planes across pec major, minor and serratus, on the linear head.

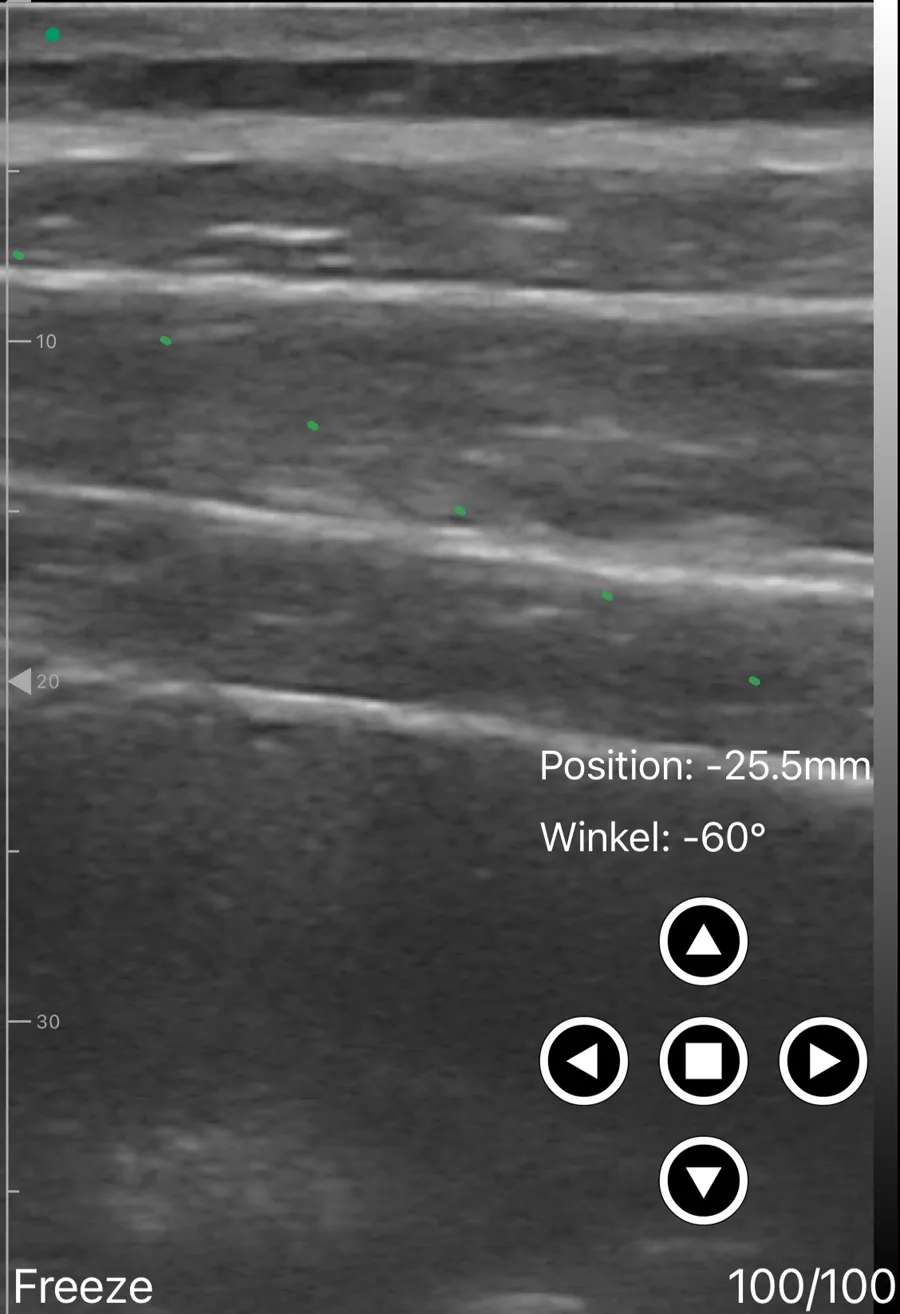

TAP block
Abdominal wall analgesia. The plane between internal oblique and transversus abdominis, on the linear head at the lateral abdomen.

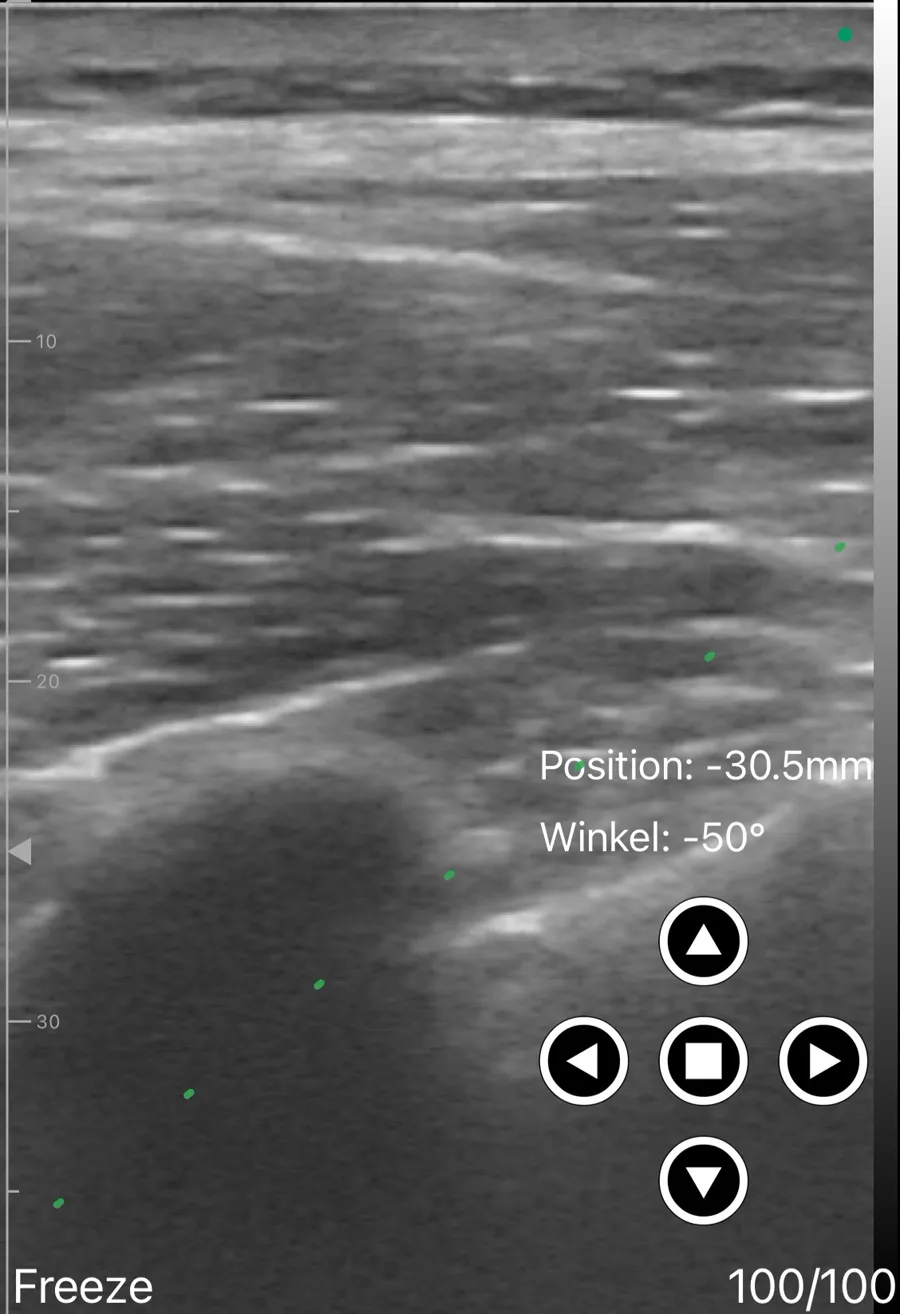

Paravertebral block
Segmental thoracic analgesia beside the spine. The space lies deep to the transverse process and lateral to the vertebral body, within linear reach in most adults.

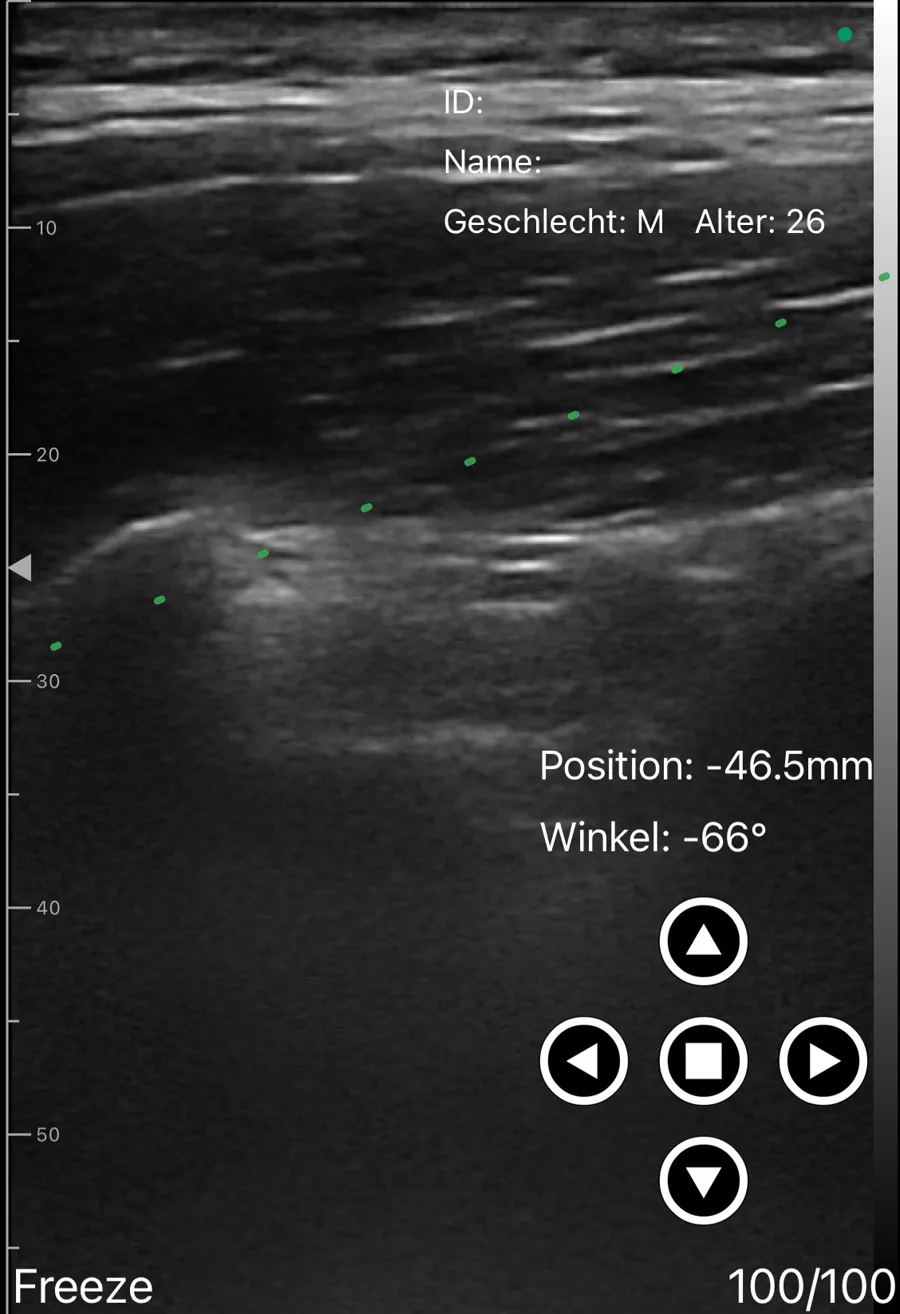

Erector spinae plane block
The ESP fascial plane: one level, wide thoracic spread. Deep to erector spinae at the transverse process. Linear or convex by habitus.
Hip & pelvis3 blocks

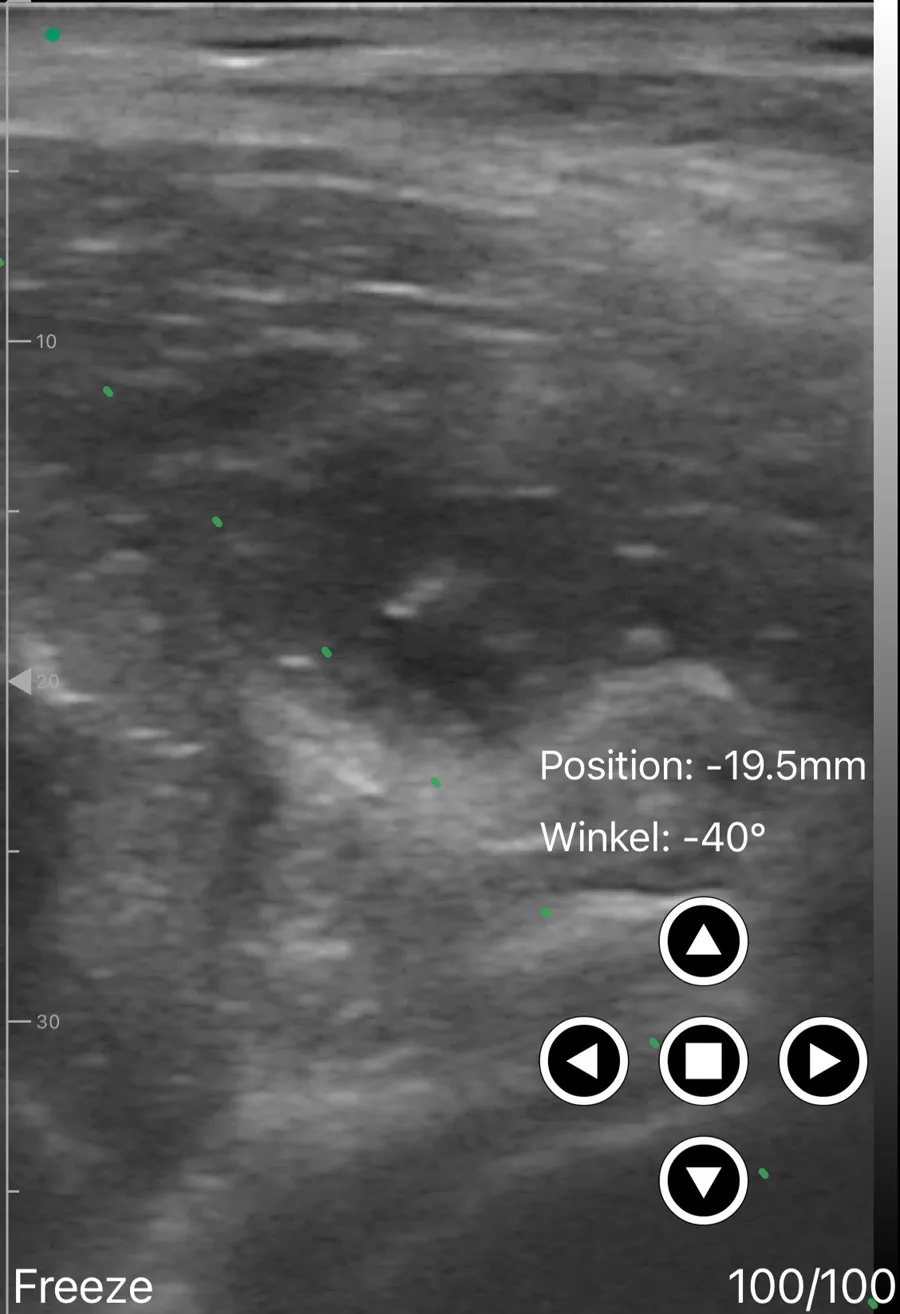

PENG block
Pericapsular nerve group for hip fracture and hip surgery. Between the AIIS and the iliopubic eminence, a deeper window that favors the convex head on larger patients.

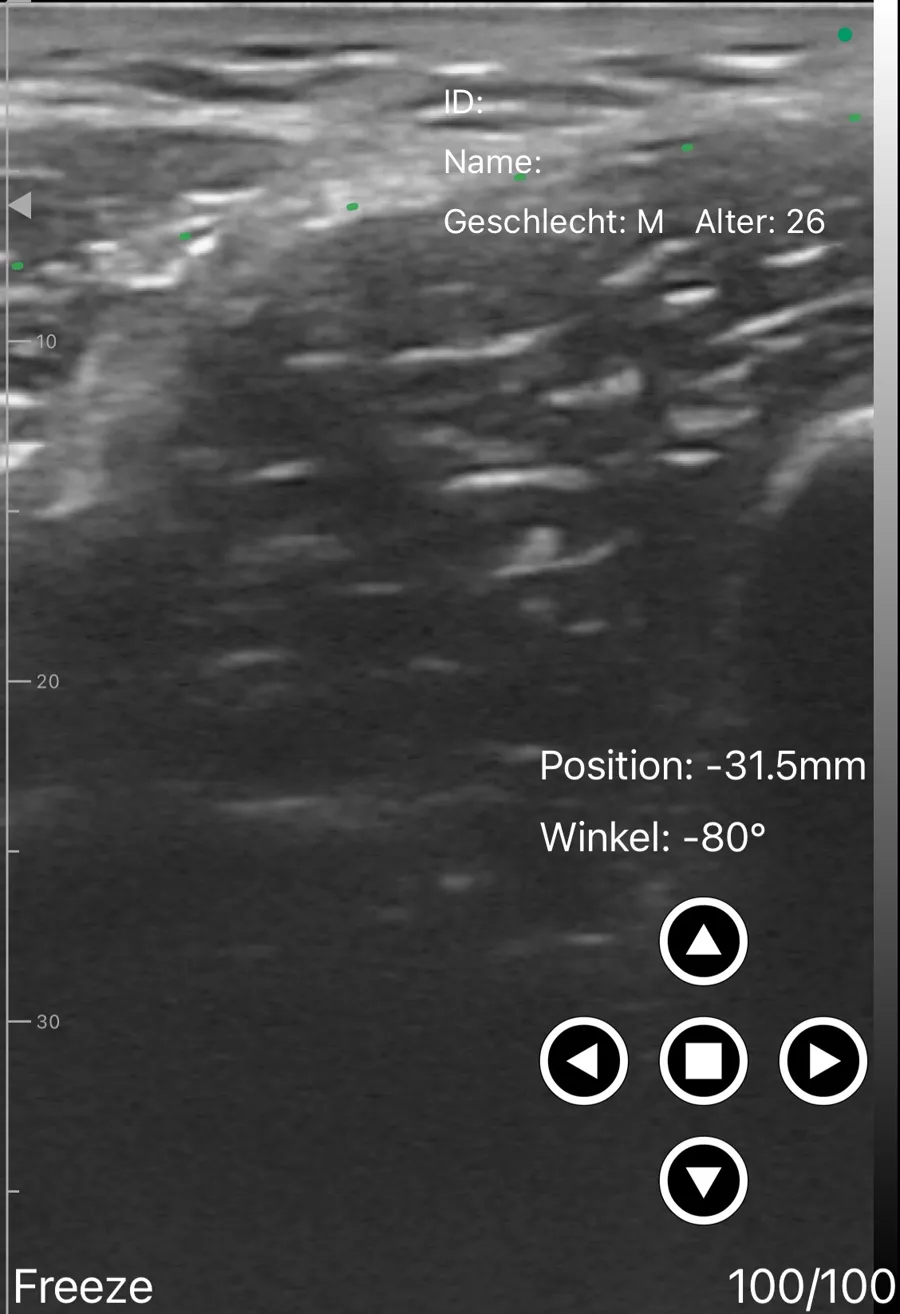

Suprainguinal fascia iliaca block
The high fascia iliaca approach for hip fracture and hip surgery. Above the inguinal ligament, beneath the fascia iliaca in the iliac fossa; linear on most builds.

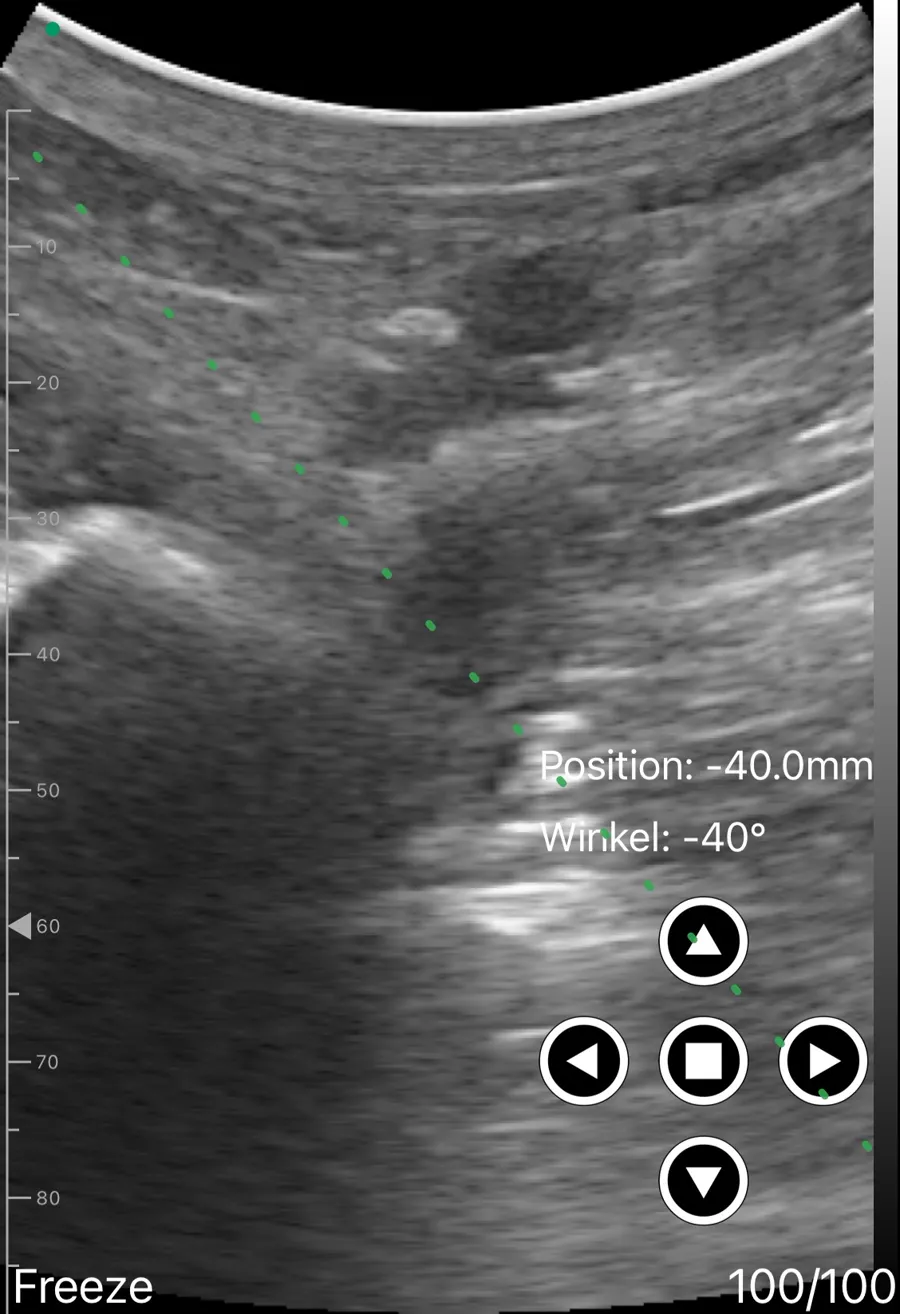

Proximal sciatic block (anterior)
The deep anterior window to the proximal sciatic nerve. The deepest window on this page at 6–10 cm, the convex head’s territory.
Knee & leg4 blocks

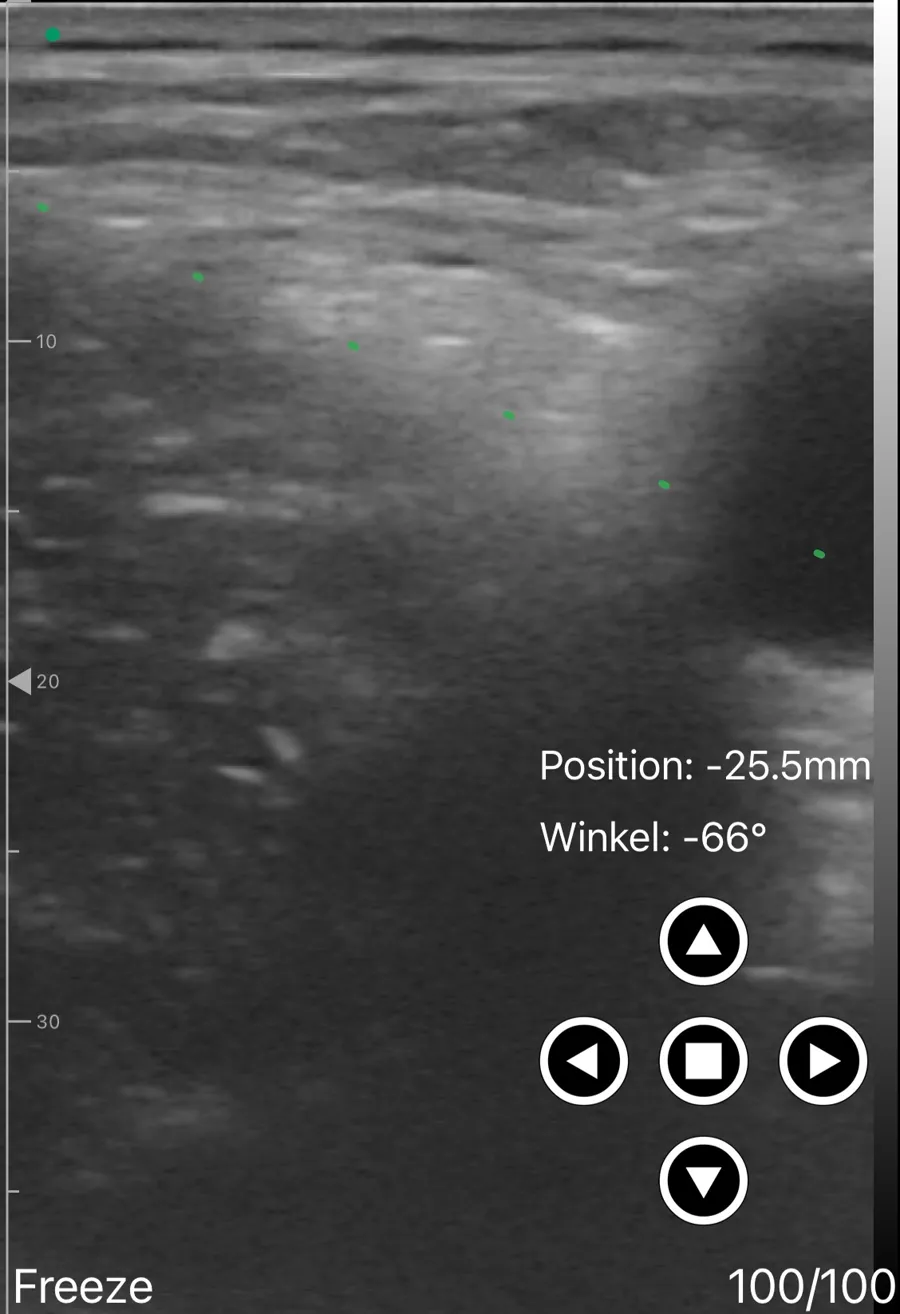

Femoral nerve block
Knee and thigh surgery; the nerve sits lateral to the femoral artery just below the inguinal ligament. Shallow, on the linear head.

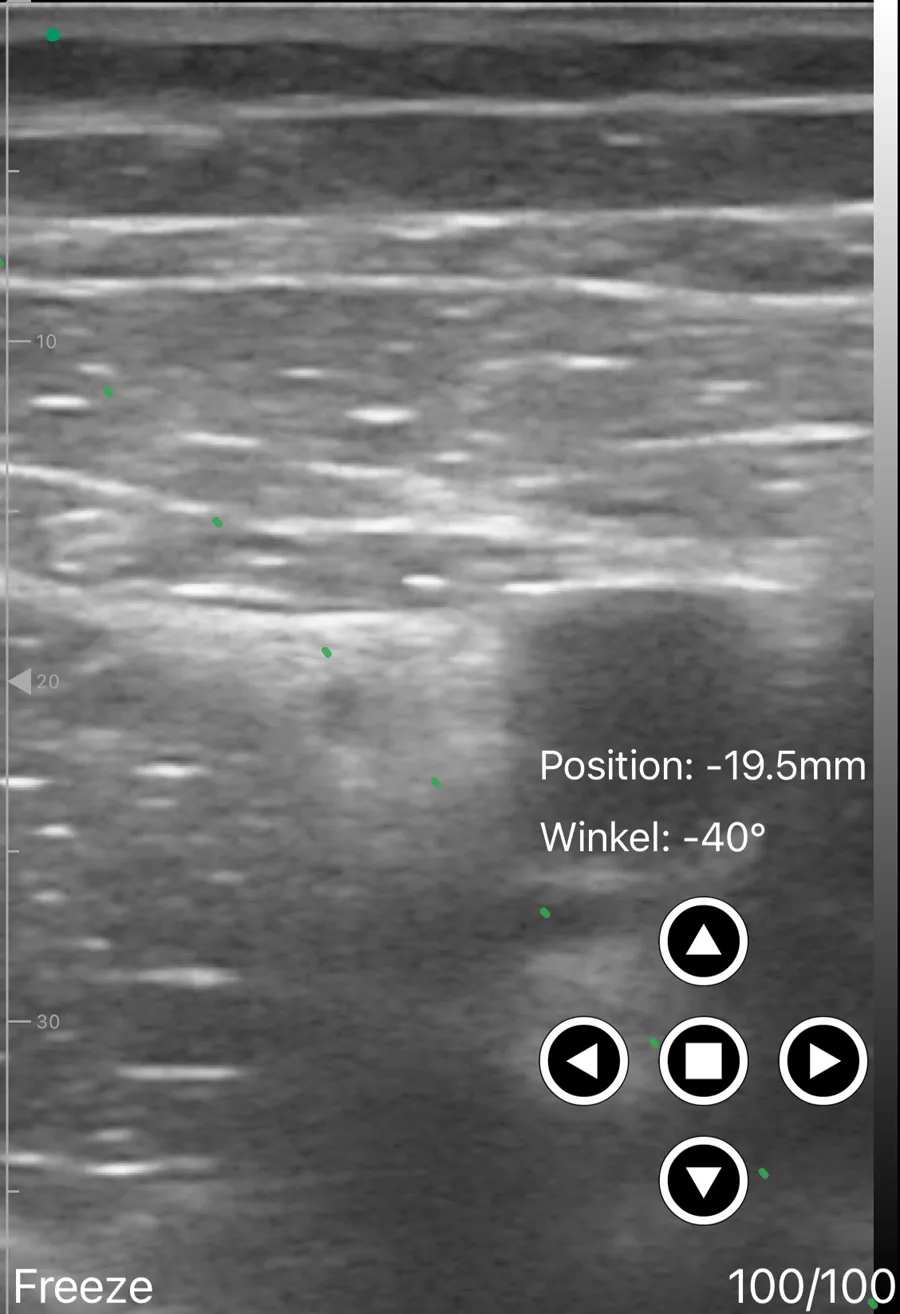

Adductor canal / saphenous block
The saphenous nerve in the adductor canal: motor-sparing analgesia for knee surgery. Mid-thigh under sartorius, beside the femoral vessels, on the linear head.

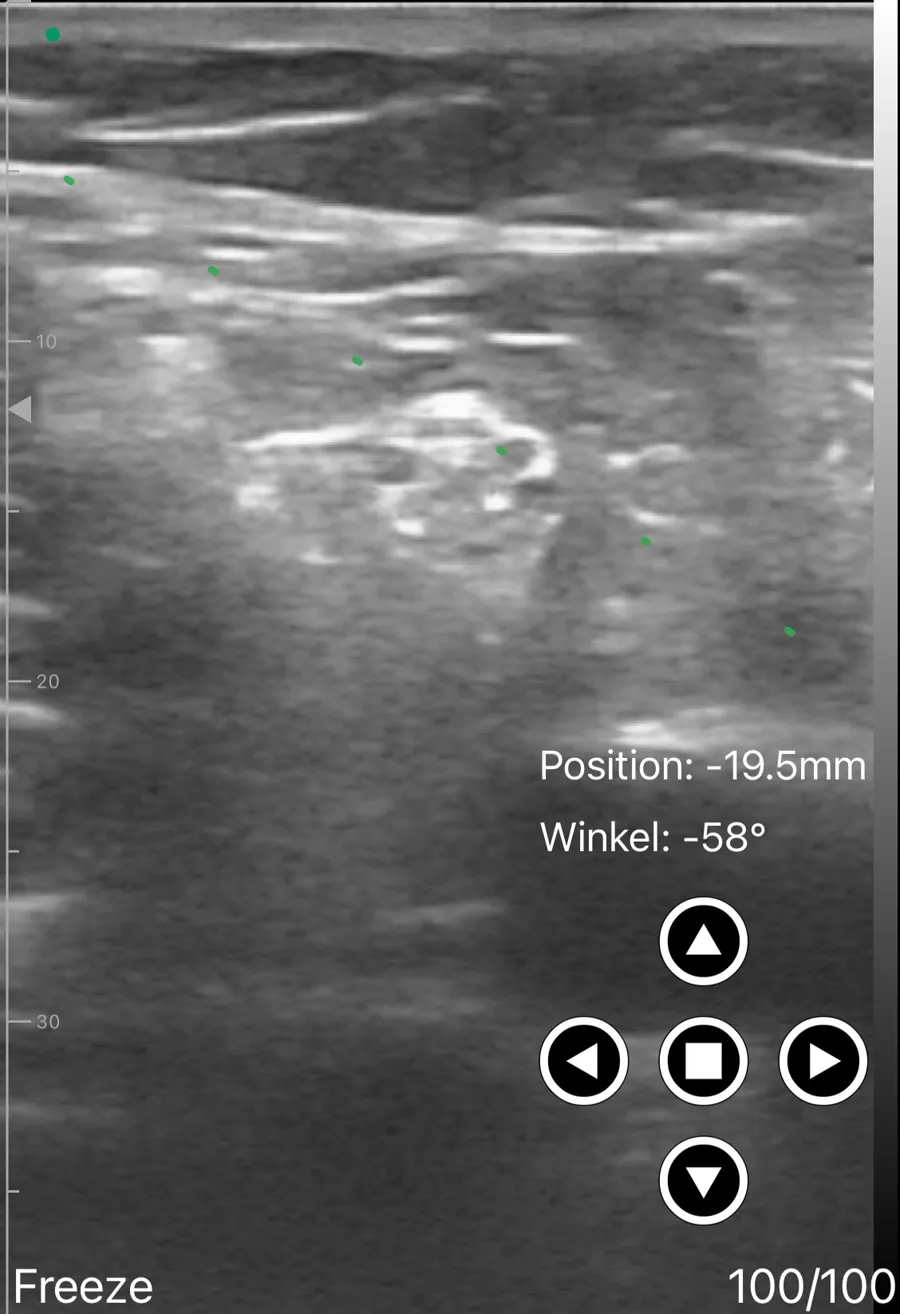

Distal sciatic block
The sciatic nerve just before it splits into tibial and common peroneal, above the popliteal crease. Linear head at moderate depth.

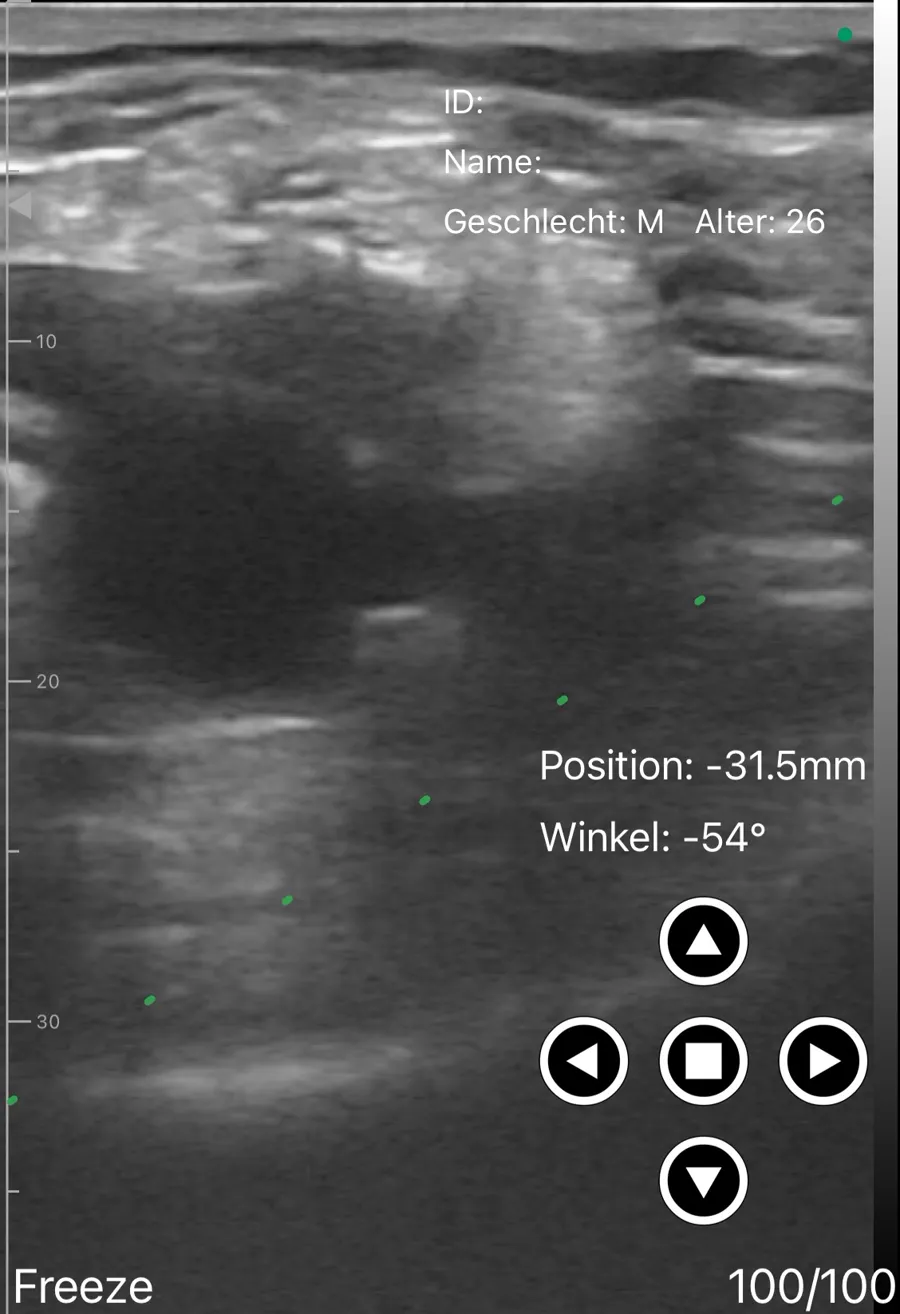

IPACK block
Posterior knee analgesia after knee replacement. Local anesthetic is placed between the popliteal artery and the posterior capsule, at the level of the femoral condyles.
Select a card to switch capture

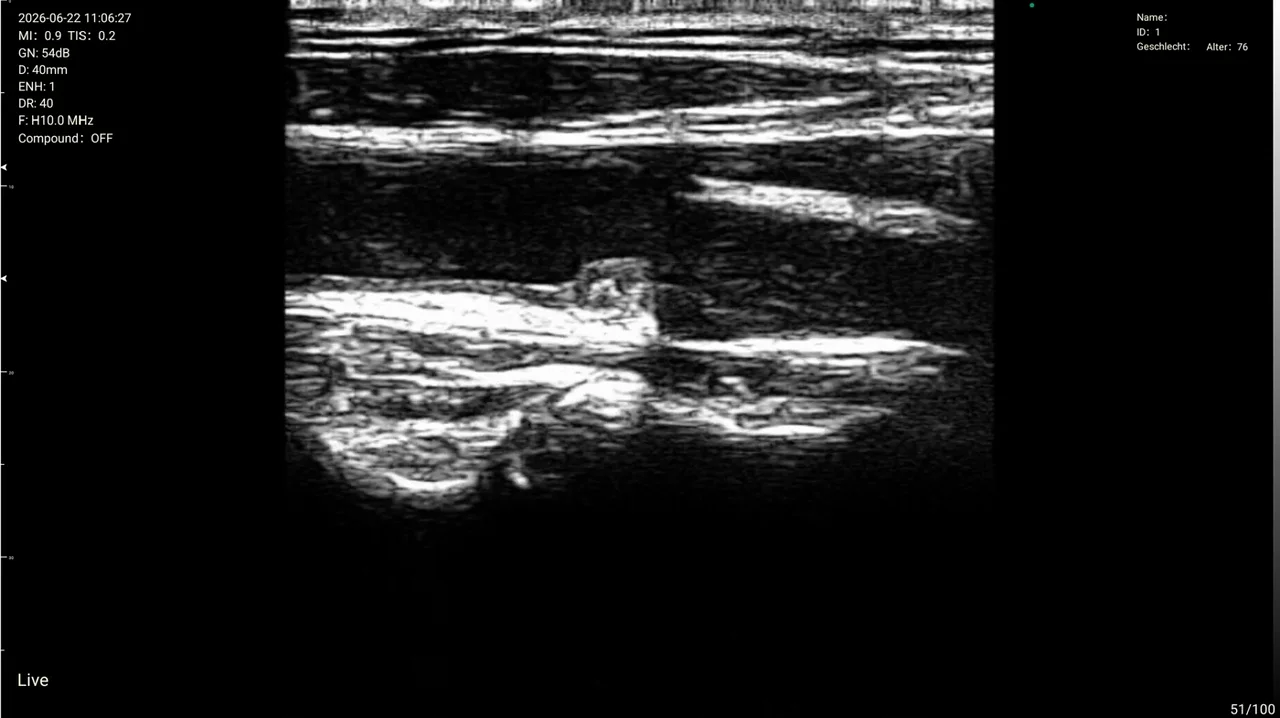

Real clinical footage: the plexus views and needle passes of a full day of regional anesthesia.
Technique basics
How ultrasound-guided nerve blocks come together on a handheld

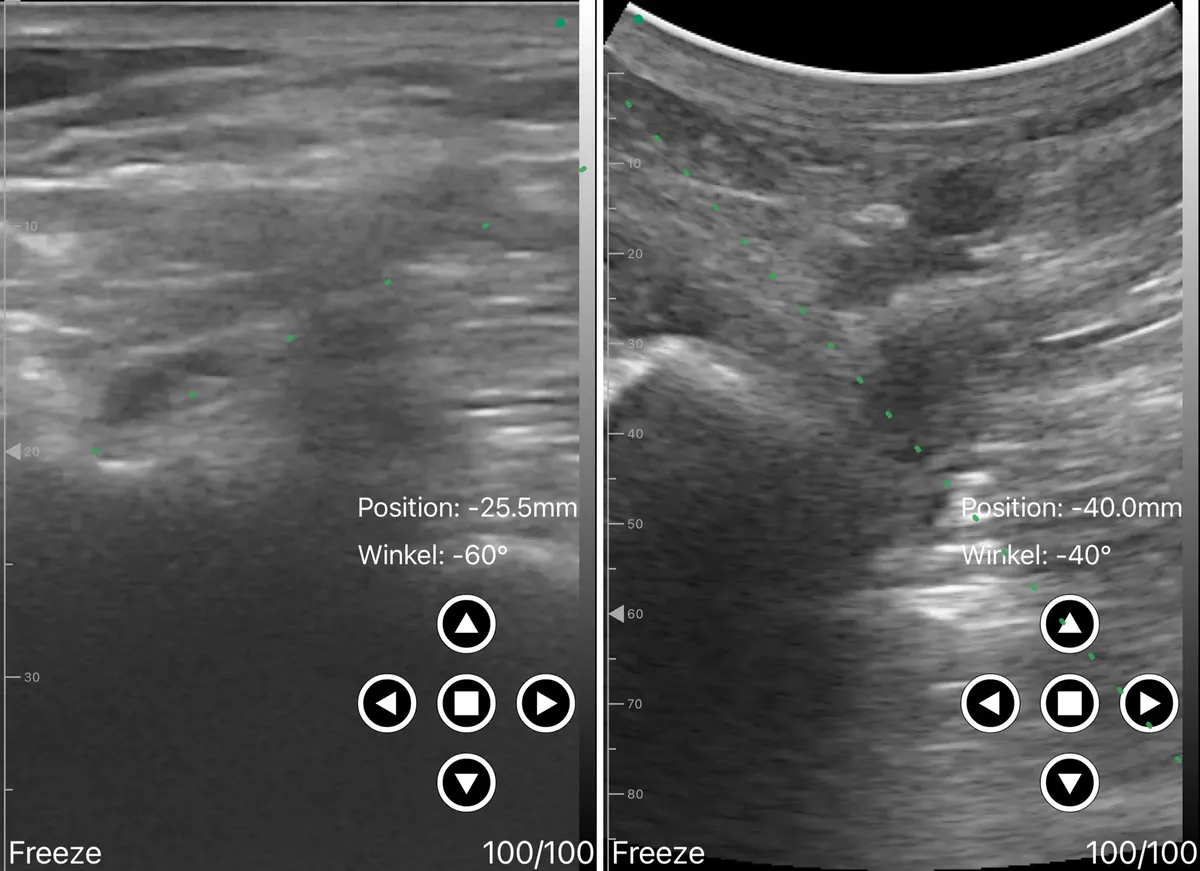

Choose the head for the depth.Superficial plexus blocks live on the linear head; the deep sciatic windows belong to the convex head.
Linear and convex, one D3Ultra

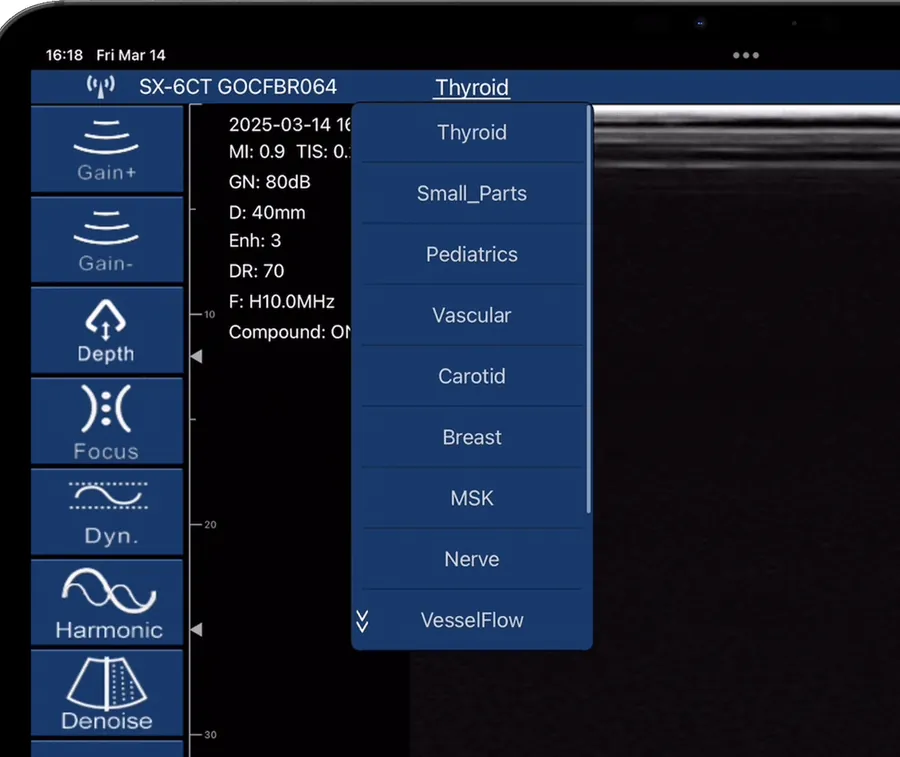

Set depth and preset first.Start from the Nerve preset and set depth just past the target plane before the needle enters.
Preset list, on the app

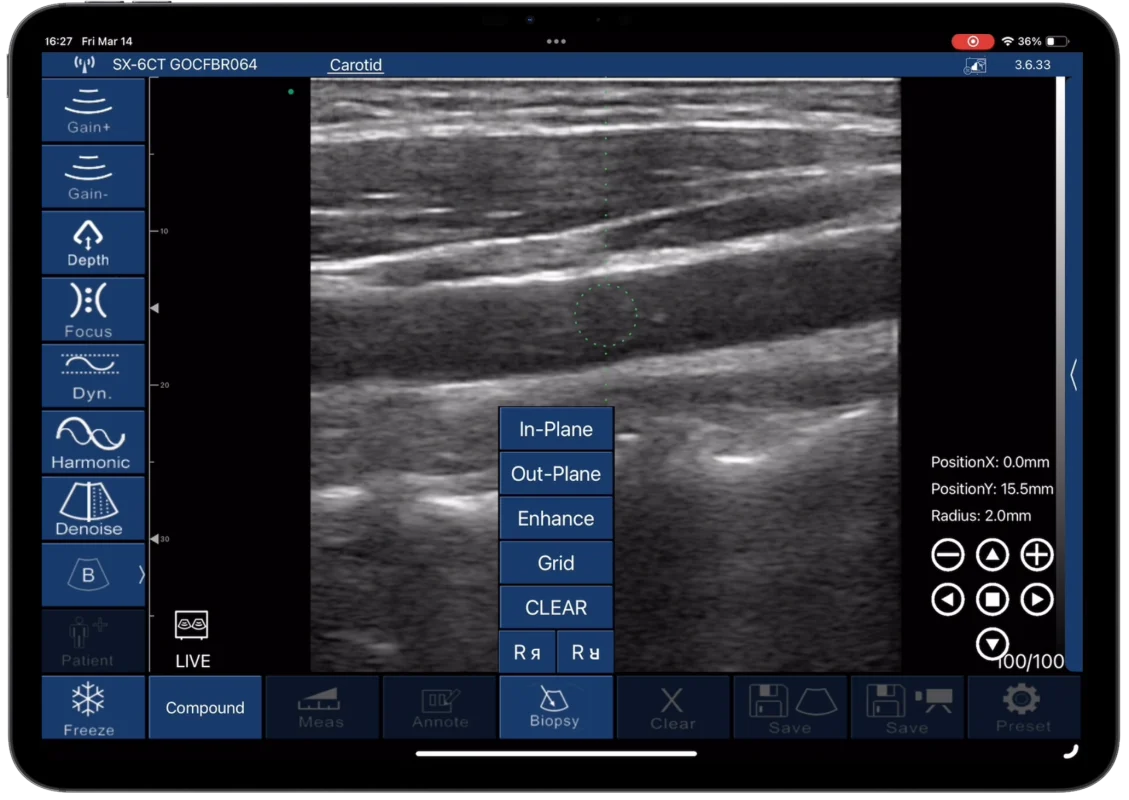

Keep the needle in plane.Advance along the probe’s long axis, keeping the tip in view; the on-screen guide and angle readout show the planned path.
Needle guide readout

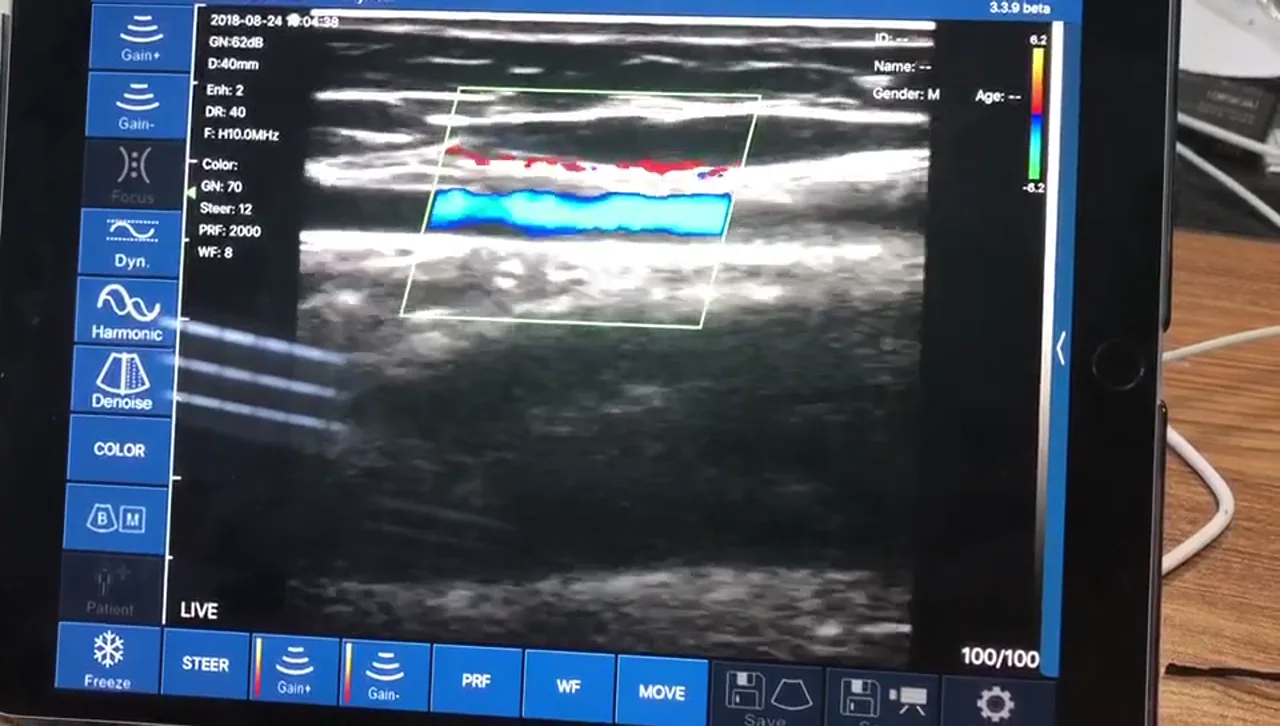

Confirm the spread.Color Doppler before the pass shows any vessel in the needle path; local anesthetic should be seen spreading around the nerve.
Color flow before the pass
What the research says
The evidence for ultrasound-guided nerve blocks
- Higher success, faster onset.
A 2009 British Journal of Anaesthesia meta-analysis found that ultrasound guidance cut block failure by more than half versus nerve stimulation (risk ratio 0.41). Onset was 29% faster and blocks lasted 25% longer.
Abrahams et al., Br J Anaesth 2009 - Fewer vascular punctures.
A 2015 Cochrane review of limb blocks found fewer accidental vascular punctures and less paresthesia with ultrasound guidance.
Lewis et al., Cochrane 2015 - Lower toxicity risk.
A 2013 registry study of 25,336 nerve blocks in Australia and New Zealand linked ultrasound guidance to a lower rate of local anesthetic systemic toxicity (LAST).
Barrington & Kluger, RAPM 2013
Pick your model
The best ultrasound machine for anesthesiologists depends on the blocks you do most
MOST CHOSENRegional anesthesia is your dayD3Ultra
Regional anesthesia is your dayD3UltraThe twelve-block machine above: linear plus convex covers all twelve atlas targets, from interscalene to deep sciatic.
$2,976 D3Ultra · dual headBuy nowView D3Ultra →

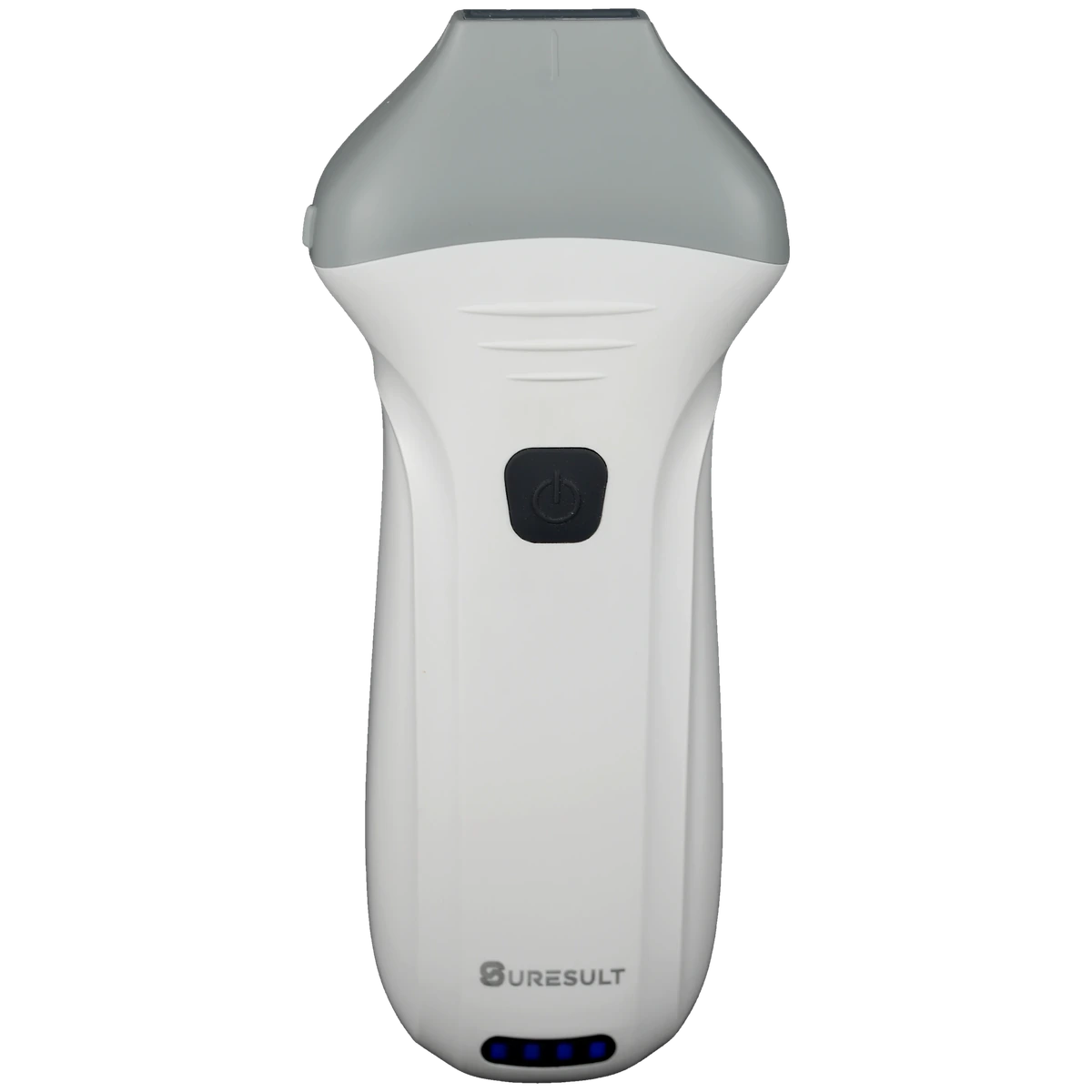

Superficial & pediatric blocksL20Pro16/20 MHz resolves fine superficial nerves and small anatomy where detail decides the block.
$3,720 L20Pro · 256 elementsBuy nowView L20Pro →

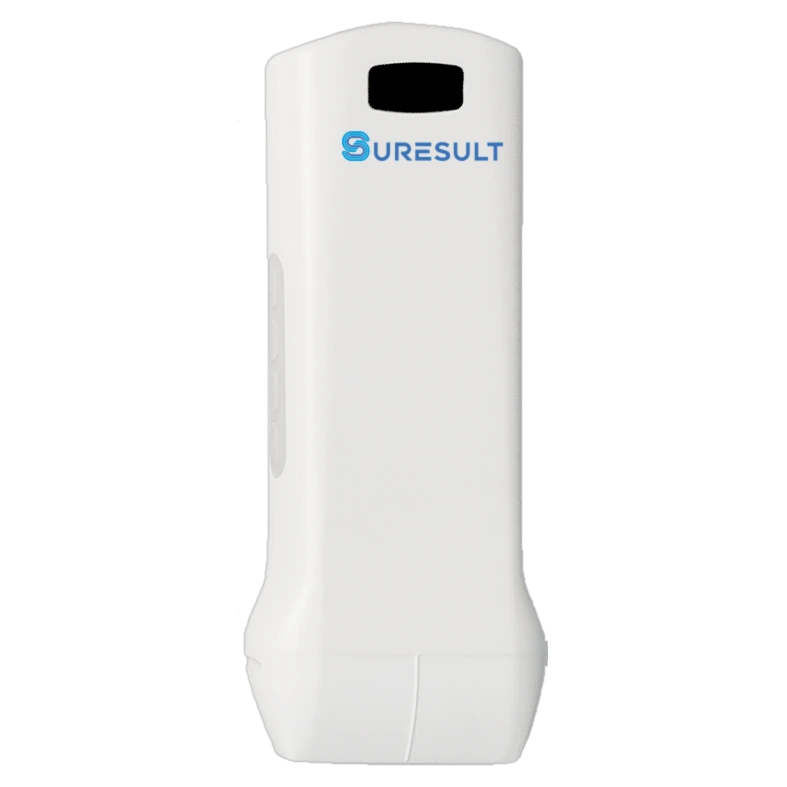

Starting out, budget firstL10HThe 7.5/10 MHz linear model covers most plexus and fascial-plane work at entry pricing.
$2,325 L10H · entry linearBuy nowView L10H →Scanner comparison
Six Suresult nerve block ultrasound machines, compared
Swipe to see all columns →
| Model | Price | Frequency | Depth | Best for |
|---|---|---|---|---|
 D3Ultra | $2,976 | 7.5/10 + 3.2/5 MHz | 20–100 mm linear | The twelve-block atlas machine: superficial to deep sciatic |
 D3Pro | $2,697 | 7.5/10 + 3.2/5 MHz | 20–80 mm linear | Three formats with the 3-hour battery for long block days |
 L20Pro | $3,720 | 16/20 MHz | 10/20/30/40 mm | Finest superficial and pediatric block detail |
 L14Pro | $3,441 | 10/14 MHz | 20/40/60/80 mm | Blocks plus MSK and vascular work in one probe |

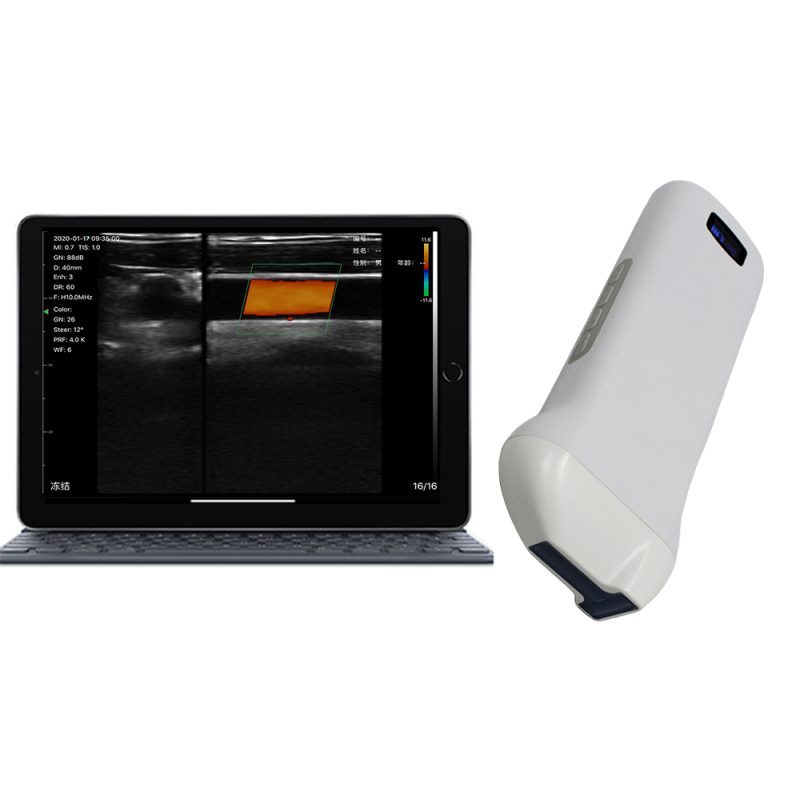

 L10T | $2,418 | 7.5/10 MHz | 20/40/60/100 mm | Bi-plane view: needle and target on one screen |

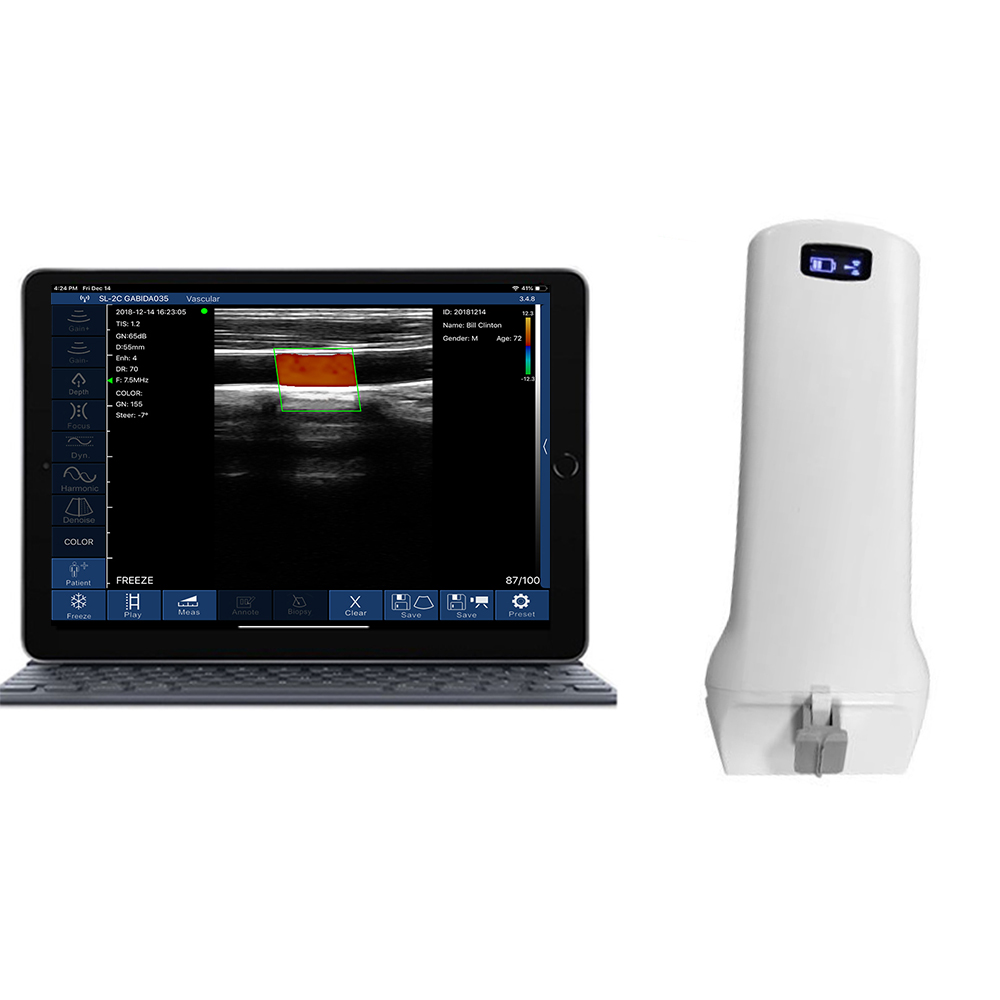

 L10H | $2,325 | 7.5/10 MHz | 20/40/60/100 mm | Entry-price linear for plexus and fascial planes |
Against the known brands
Suresult vs Clarius, Butterfly and GE Vscan for nerve blocks
Swipe to see all columns →
 Suresult |  Clarius L15 HD3 |  Butterfly iQ3 |  GE Vscan Air CL | |
|---|---|---|---|---|
| Block imaging | Dual head: linear + convex on the D3Ultra | 5–15 MHz linear | 1–12 MHz single chip | 3–12 MHz linear side |
| Device price | $2,325–$3,720, published | $3,595 published | $3,899 published | $4,999 published |
| Subscription | None: software included | $595/year membership, or $2,500 one-time option | Required: $299–$420/year | Digital Tools features need a subscription |
| Landed cost | Duties + shipping included, 1–7 days | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- Twelve blocks, documented.Every capture in the atlas above is an unedited buyer scan, grouped by body region, needle-guide readouts on screen.
- No subscription, no software fees.Color Doppler, needle guides, measurements and DICOM export ship included on every scanner.
- The checkout price is the landed price.Duties and shipping included, delivered in 1–7 days.
- Registered where you practice.FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada.
The five-year math
Clarius’s $595/year membership is $2,975 by year five, before the scanner itself is paid for. Butterfly’s required plan adds $1,495–$2,100.
D3Ultra, paid onceClarius L15 HD3: scanner + membership= $2,975 in fees alone by year five
Three models, one decision
Not sure which model fits your cases?
One conversation gets a direct recommendation: the right Suresult probe, or a straight “neither.”
The Top Portable Ultrasounds for Anesthesia
Built-in needle guidance cuts complication risks in peripheral nerve blocks and increases first-pass success rates in central vein punctures.

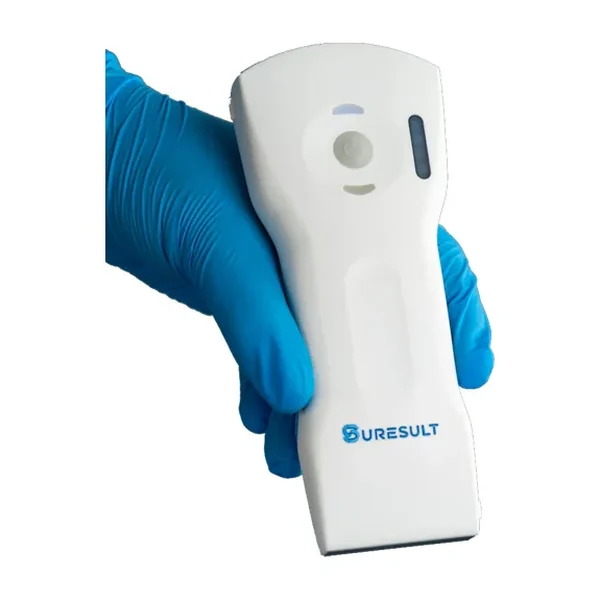

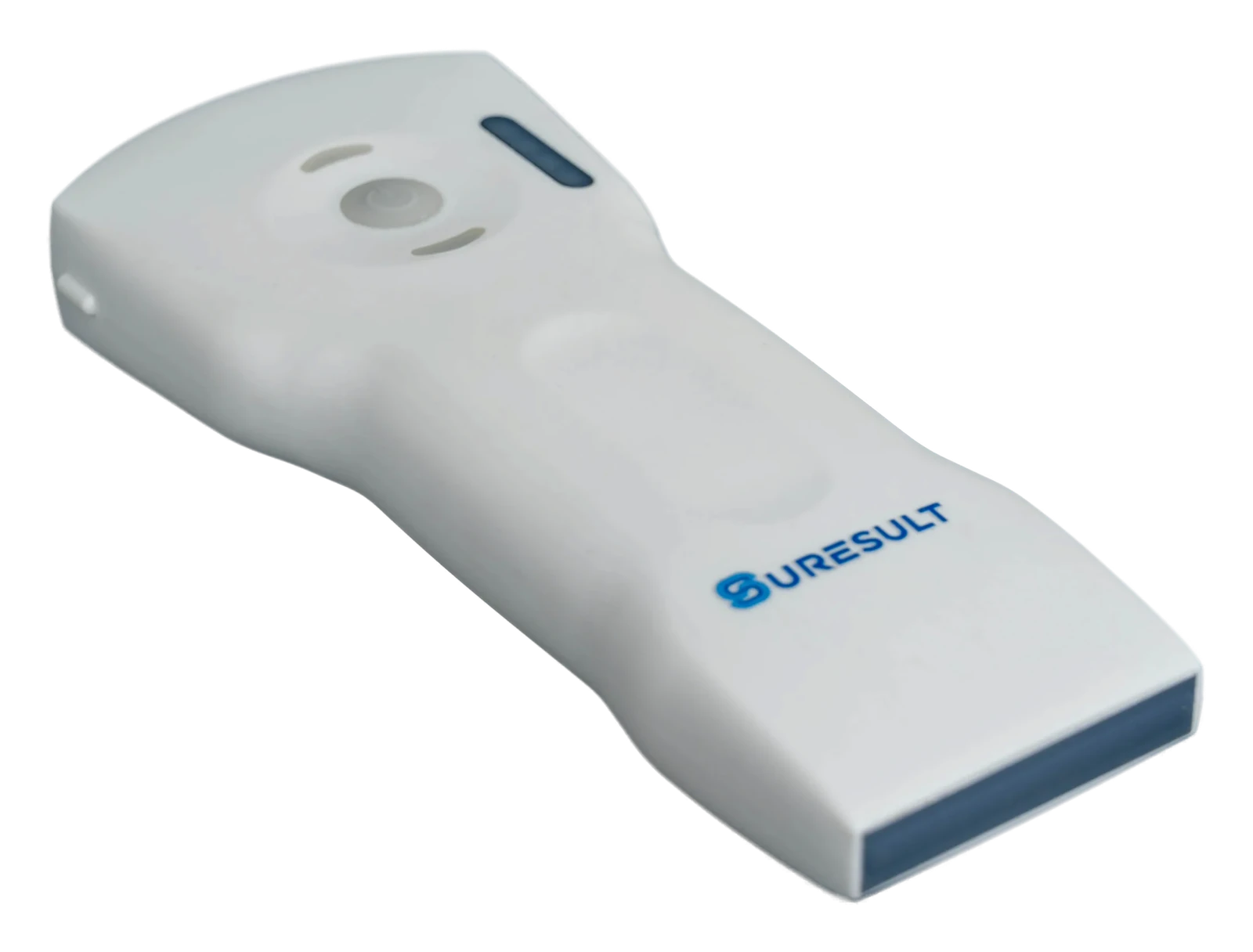

D3Ultra
D3Ultra Convex Linear Phased Multipurpose Handheld Ultrasound
Frequency: Convex / Phased Probe 3.2/5.0MHz Linear probe 7.5/10MHz
Scanning Depth: Linear: 20-100mm, Convex & Phased: 90-300mm
Anesthesiology
buy scanner
L14Pro
L14Pro 10/14 MHz 256-Element Linear Ultrasound Probe for MSK
Frequency: 10/14 MHz
Scanning Depth: 20/40/60/80 mm
Anesthesiology
buy scanner
D3Pro
D3Pro Dual-Head 3-in-1 Wireless Ultrasound Scanner
Frequency: Convex / Phased Probe 3.2/5.0MHz, Linear probe 7.5/10MHz
Scanning Depth: Convex / Phased Probe: 90-305mm, Linear Probe: 20-80mm
Anesthesiology
buy scanner
What to Consider Before Buying a Handheld Ultrasound for Anesthesia Practice
Choose the ideal device for regional anesthesia, vascular access, and airway assessment with optimized probe frequency and guided visualization tools.
Before you buy
What to check before buying a nerve block ultrasound machine
What are the best ultrasound machines for anesthesiologists?
For daily regional anesthesia, the Suresult D3Ultra is the strongest fit. Its linear-plus-convex dual head imaged all twelve blocks in the Suresult atlas, from interscalene to deep sciatic. For superficial-only or pediatric blocks the 16/20 MHz L20Pro resolves finer detail, and the L10H covers standard plexus work at entry price.
Do I need a convex head for nerve blocks?
A convex head is needed for the deep windows: the anterior proximal sciatic sits beyond linear reach in most adults. That is why a dual-head machine matters for a complete block practice.
How much does a nerve block ultrasound machine cost?
A Suresult handheld nerve block ultrasound costs between $2,325 and $3,720, with software included and duties in the checkout price. Competing handhelds list at $3,595–$4,999 before subscription fees.
What is the real five-year cost?
Add the device price to five years of any membership fee, then add import duties if the list price is US-only. Clarius’s $595/year membership is $2,975 by year five; Butterfly’s required plan adds $1,495–$2,100.
Can I see the needle during the block?
Yes, with the needle kept in the probe’s plane. In-plane and out-of-plane guides draw the planned path over the live image, with entry-position and angle readouts. Every capture in the twelve-block atlas carries that overlay and its readout.
Is image quality good enough to teach with?
The twelve-block atlas is unedited. Fascial planes, plexus fascicles and the deep sciatic resolve clearly enough for trainee debriefs, and every image exports as DICOM or MP4 for the logbook.
Does it work for fascial plane blocks like ESP and TAP?
ESP and TAP blocks are both in the Suresult atlas. Fascial planes read best with steady 7.5/10 MHz imaging and a wide view of the muscle layers, which is the linear head’s territory. Larger patients may need the convex head for ESP.
What about blocks in the ICU or prehospital settings?
David Heimpel, who imaged this atlas, uses the same D3Ultra across outpatient surgery, major hospital surgery, intensive care and prehospital emergency medicine. The probe broadcasts its own Wi-Fi, so no clinic network is needed.
What frequency probe do nerve blocks need?
Most peripheral nerve blocks use a high-frequency linear probe: 7.5–10 MHz reaches plexus, fascial-plane and femoral targets at 2–4 cm. Blocks deeper than about 6 cm (the anterior proximal sciatic among them) need a 3.2–5 MHz convex head. That depth logic is why Suresult pairs both heads in the D3Ultra.
Is a handheld good enough for nerve blocks, or do I need a cart system?
For peripheral nerve and fascial plane blocks, a handheld images the same targets a cart does; the twelve-block Suresult atlas shows the D3Ultra doing it. A cart still earns its place for shared OR use, deep windows in large patients and advanced imaging modes. For anesthesiologists and CRNAs building a personal regional anesthesia setup, a dual-head handheld like the D3Ultra covers the daily case load.
Keep learning
Reading that answers the next questions
Point-of-care ultrasound: uses, devices and training
The POCUS primer: where handhelds fit, and how clinics adopt them.
Read the guide → Which handheld ultrasound is the most accurate?The measurement study to read before choosing a probe.
Read the study → Ultrasound for pain managementThe injection-guidance side of the same skill set.
See the specialty →
Broad Frequency Range With Multiple Transducers
7.5/10 MHz linear plus 3.2/5 MHz convex and phased heads for crisp nerve, vascular, and musculoskeletal imaging and cardiac evaluation.
Real-Time Needle Guidance
Built-in trajectory overlays for nerve blocks and central lines to reduce complications by up to 30%.
Color and Power Doppler
To identify arteries and veins, and avoid vascular puncture—especially useful in challenging patient anatomy or low perfusion states.
Procedure-Oriented Presets
Preloaded presets for nerve, MSK, and cardiac assessment to simplify workflow and reduce setup time in busy OR environments.
Compact Design
Ergonomic, wipe-clean design that supports sterile field use and gloved operation, necessary for in-theatre procedures and bedside interventions.
Seamless OR Workflow Integration
Image export, DICOM compatibility, and annotated reporting for record keeping.
Free Software,
Unlimited Scans
Suresult's handheld ultrasounds come with powerful software that gives you unlimited features at no extra cost. Enjoy free DICOM and pulsed wave doppler, plus a user-friendly interface on iOS, Android, and Windows—so you can focus on delivering top-quality care without any software fees.
Full Platform Compatible, Lifetime Free Upgrades
Capture Every Detail, Guide with Precision, and Share with Ease
Improve your ultrasound workflow with our all-in-one solution. Experience precision, simplicity, and efficiency in every scan.
17+ Specialized Presets
Convex / Phased Probe
Linear Probe
27 Automated Measurements for Precise Diagnostics
Simplify your work with a complete set of tools for fast, real-time assessments.
B-Mode
- Length, area/circumference, angle, trace, distance
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
B+M Mode
- Heart rate, time, distance
- Left Ventricular Internal Diameter (LVIDd, LVIDs)
- Ejection Fraction (EF), Stroke Volume (SV)
B+PW Mode
- Velocity, heart rate, S/D ratio, depth
- Automatic vessel flow measurement
- Peak Systolic Velocity (PS), End-Diastolic Velocity (ED)
- Time-Averaged Maximum Velocity (TAMAX), Time-Averaged Mean Velocity (TAMEAN)
- Pulsatility Index (PI), Resistive Index (RI)
- Vessel Diameter (DIAM), Flow (FL)
Cine Loop
Record up to 1000 frames (≈165 seconds) of continuous motion to capture every subtle detail.
Puncture Assist Function
Enjoy precise in-plane and out-of-plane guides to boost your confidence during interventions.
Flexible File Exports
Save and share your scans effortlessly in JPEG, MP4, PNG, or DICOM formats, seamlessly integrating with your workflow.
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- No required software subscription — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
FAQ
Do I need to train for anesthesia-specific applications?
No—our preloaded presets, including nerve imaging, vascular access, and lung scans, simplify anesthesia applications. You can learn more in the quick user guide.
Are Suresult devices sterile-friendly for OR use?
Yes. The seamless, waterproof probe is compatible with sterile probe covers and can be wiped down with hospital-grade disinfectants between cases.
Can I document scans for patient records?
Yes, our HIPAA-compliant app lets you save, annotate, and export DICOM images directly to PACS for seamless documentation.
What is the image storage method on Suresult Ultrasound?
Suresult offers local storage only, with all images saved to your connected phone or tablet. You can share them via email, iMessage, WhatsApp, or any other app.
Can I use Suresult with both iOS and Android?
Yes. The Suresult app is compatible with most current iOS, Android, and Windows devices (check the product guide for specific OS requirements).
