Handheld ultrasound for gynecology, from the transvaginal window out
Eight unedited pelvic and early-pregnancy frames on this page came from one buyer scanning with a Suresult D2T, six of them photographed off the tablet screen. The T8 covers the transvaginal window at $1,953, with the Doppler and the measurement software included.
Every pelvic frame on this page is an unedited buyer capture from a Suresult D2T, with the on-screen header visible wherever the capture kept it. ·Trusted by 8,717 clinicians →
Kurze Antwort
A handheld ultrasound for gynecology is a wireless probe with an endocavity array that streams to a phone, tablet or laptop for pelvic imaging.
- The endocavity head on the T8 and the D2T runs at 6/8 MHz across a 149-degree sector and offers 30, 60, 90 and 120 mm depth settings.
- Color Doppler, pulsed-wave Doppler, M-mode and on-screen calipers ship on the T8 and the D2T with no subscription fee.
- The D2T adds a 3.2/5.0 MHz convex head, so the transabdominal pass and the transvaginal pass run on one device.
- The T8 and the D2T each hold a 4,200 mAh battery rated at 3 Stunden of continuous scanning.
The capture atlas
Eight real gynecology and early-pregnancy windows, captured by a buyer on a Suresult D2T
Unedited clinical captures · select any image to enlarge
Transvaginal uterus2 windows
Anechoic adnexal structure measured at 16.61 mm
A single round anechoic structure sits inside the endocavity sector, with one caliper across it reading 16.61 mm. This is the frame a clinician freezes to decide whether a follicle or a cyst needs a follow-up scan.
captured on a D2T endocavity head at 6.0 MHz, 60 mm depth, gain 100 dB, 2023-08-10
Four calipers on one frozen transvaginal frame
The gynecology preset holds four length measurements on the same frozen image: 24.84 mm, 57.06 mm, 41.55 mm and 15.90 mm. All four readouts sit in the right-hand column at once, so nothing is remeasured after the frame is released.
captured on a D2T endocavity head at 6.0 MHz, 60 mm depth, dynamic range 110, 2023-08-07Adnexal region2 windows
Two length calipers at 39.91 mm and 23.32 mm
Two length calipers cross the adnexal region on this gynecology-preset endocavity frame, reading 39.91 mm and 23.32 mm. Repeating a length like that across a cycle is how follicle tracking works in a fertility clinic.
captured on a D2T endocavity head at 6.0 MHz, 60 mm depth, gain 100 dB, dynamic range 60, gynecology preset, 2023-08-07 11:50:20
The same region 88 seconds later, at 27.62 mm and 23.06 mm
The 11:51:48 frame reads 27.62 mm and 23.06 mm, 88 seconds after the 11:50:20 frame beside it. Two passes that close together show how much a length depends on the plane the operator holds.
captured on a D2T endocavity head at 6.0 MHz, 60 mm depth, gain 100 dB, dynamic range 60, gynecology preset, 2023-08-07 11:51:48Transabdominal pelvis2 windows
Transabdominal pelvic overview, 38.17 mm and 94.52 mm
The convex head opens a wide pelvic field through the abdominal wall, with two calipers reading 38.17 mm and 94.52 mm at 90 mm depth. This is the first pass before the endocavity head goes on.
captured on a D2T convex head at harmonic 5.0 MHz, 90 mm depth, gain 83 dB, 2023-08-07
Second transabdominal plane, 39.38 mm and 47.92 mm
A second convex plane through the pelvis carries calipers at 39.38 mm and 47.92 mm, 91 seconds after the pass above by the on-screen clock. Two lengths on crossing axes come off one frozen frame.
captured on a D2T convex head; the photograph crops the left header block, so only the 10:30:47 clock and the two length readouts stay legibleEarly pregnancy2 windows
The full app interface during a transvaginal scan at 8 weeks
The whole software interface is visible here: gain, depth, focus, harmonic, denoise, color, freeze, measure, annotate and biopsy guide down the sides of the image. The obstetric preset reports a gestational age of 8 weeks 3 days.
captured on a D2T endocavity head at harmonic 8.0 MHz, 120 mm depth, 2023-08-07 16:14
Femur length 15.39 mm at 14 weeks on the convex head
The on-screen header reads FL 15.39 mm and a gestational age of 14 weeks 0 days, measured transabdominally at 90 mm depth. Dating that has moved past the endocavity window continues on the same probe.
captured on a D2T convex head at harmonic 5.0 MHz, 90 mm depth, gain 105 dB, 2023-08-17
Select a card to switch capture
Technique basics
How the exam comes together, probe to report
- Open with the convex head and a full bladder.
The transabdominal pass sets the field: uterine position, any large mass, and free fluid. On the D2T this is the 3.2/5.0 MHz convex head at 90 mm.
D: 90 mm, harmonic 5.0 MHz on the D2T header - Switch to the endocavity head for the endometrium.
The 6/8 MHz array with a 149-degree sector resolves the endometrial stripe and the ovaries that the convex head only suggests. Depth drops to 60 mm for most gynecology work.
Gynecology preset, 6.0 MHz, D: 60 mm - Freeze once, then measure everything in that frame.
The app holds several calipers on one frozen image, so a uterine length and an endometrial thickness come off the same plane. This capture carries four lengths at once: 24.84 mm, 57.06 mm, 41.55 mm and 15.90 mm.
Cine loop up to 1,000 frames, so a better plane can be recovered - Add color where the question is flow, then export.
Color Doppler and power Doppler sit on the same toolbar as freeze and measure, and pulsed-wave Doppler puts a velocity on a vessel. Frames leave as DICOM, JPEG, PNG or MP4.
COLOR, Meas, Annote and Save are on screen in this capture
What the research says
The evidence, three studies checked
- Ten B-mode and color Doppler features classified most adnexal masses correctly.
In 1,938 women with an adnexal mass, simple ultrasound rules gave a conclusive result in 1,501 masses, with 92% sensitivity and 96% specificity against histology.
Timmerman et al., BMJ 2010 - Transvaginal ultrasound matched MRI for rectosigmoid deep endometriosis.
Across six studies of 424 women, transvaginal ultrasound detected rectosigmoid deep infiltrating endometriosis with a pooled sensitivity of 0.85 and a specificity of 0.96.
Guerriero et al., Ultrasound Obstet Gynecol 2018 - The authors advise a 3 mm endometrial cutoff to exclude cancer in postmenopausal bleeding.
In pooled individual data on 2,896 women with postmenopausal bleeding, 259 of whom had carcinoma, endometrial thickness produced ROC curves with areas of 0.82 to 0.84.
Timmermans et al., Obstet Gynecol 2010
Pick your model
Pick the model that fits your day
MOST CHOSEN

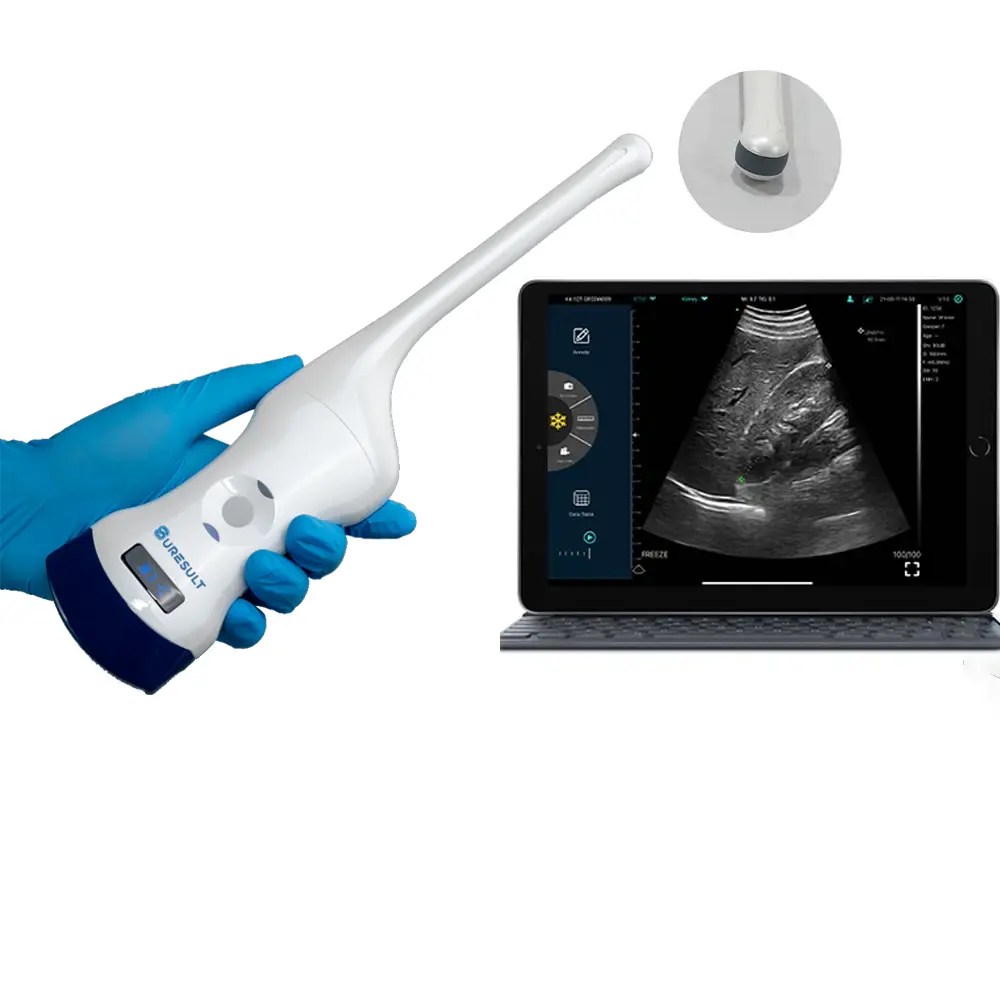

A gynecology clinic that scans both windowsD2T
A gynecology clinic that scans both windowsD2TTwo heads sit on one 305 g body: a 3.2/5.0 MHz convex array and a 6/8 MHz endocavity array, both on 192 elements. Every frame in the atlas on this page came off this model.
Two heads, one body
$2,372 D2T · Convex-Transvaginal WirelessBuy nowView D2T →
Fertility work through the vaginal windowT8The T8 is the endocavity array alone: 6/8 MHz, a 149-degree sector, and 30, 60, 90 and 120 mm depth settings. A 4,200 mAh 3-hour battery runs follicle tracking all morning on one charge.
3-hour battery, one probe
$1,953 T8 · Portable Handheld UltrasoundBuy nowView T8 →
Pelvic scanning through the abdominal wallC5SHA 192-element convex head on 64 channels reaches 90 to 300 mm at 150 g, with needle enhance for aspiration guidance. Nothing endocavity, and nothing spent on it.
64 channels, convex only
$2,139 C5SH · 64 Channels High-Res Convex Buy nowView C5SH →Scanner-Vergleich
Suresult models a gynecology buyer actually shortlists
Swipe to see all columns →
| Modell | Preis | Frequenz | Tiefe | Am besten für |
|---|---|---|---|---|
| T8 | $1,953 | Endocavity 6/8 MHz, 149-degree sector | 30 / 60 / 90 / 120 mm | The transvaginal window on its own, with a 3-hour battery |
| D2T | $2,372 | Convex 3.2/5.0 MHz and endocavity 6/8 MHz | Convex 90 / 160 / 220 / 305 mm, endocavity 30 / 60 / 90 / 120 mm | Transabdominal and transvaginal scanning on one 192-element probe |
| C5SH | $2,139 | Convex 3.2/5.0 MHz, 60-degree field | 90 to 300 mm | Transabdominal pelvic depth at 150 g, 64 channels, needle enhance |
 C5SH-Pro | $4,185 | Convex 3.2/5.0 MHz, 60-degree field | 90 to 300 mm | 256 elements on the convex head for a bulky uterus or a large mass |
 C5B | $1,581 | Convex 3.2/5.0 MHz | 90 / 160 / 220 / 305 mm | B-mode and power Doppler pelvic overview on 80 elements |
 D3Ultra | $2,976 | Convex 3.2/5.0, linear 7.5/10 and phased 3.2/5.0 MHz | Convex 90 to 300 mm, linear 20 to 100 mm | Pelvis alongside abdomen, vessels and lung on 64 channels |
 D3Pro | $2,697 | Convex 3.2/5.0, linear 7.5/10 and phased 3.2/5.0 MHz | Convex 90 to 305 mm, linear 20 to 80 mm | Three formats with a 4,200 mAh battery rated at 3 hours |
Against the known brands
Suresult vs Clarius EC7 HD3, Butterfly iQ3 and GE Vscan Air CL for gynecology
Swipe to see all columns →
| Suresult | Clarius EC7 HD3 | Schmetterling iQ3 | GE Vscan Air CL | |
|---|---|---|---|---|
| Transvaginal imaging | Endocavity 6/8 MHz on the T8 and the D2T, 149-degree sector, 30 / 60 / 90 / 120 mm | Endocavity 3 to 10 MHz, 15 cm maximum depth | No endocavity probe in the published specifications | No endocavity probe in the published specifications |
| Transabdominal pelvis included | Convex 3.2/5.0 MHz on the D2T, 90 to 305 mm, same body as the endocavity head | Requires the C3 HD3 as a second scanner, published at $3,795, convex 2 to 6 MHz to 40 cm | Semiconductor chip array, 1 to 12 MHz, abdomen preset to 30 cm | Curved array 2 to 5 MHz to 24 cm and linear 3 to 12 MHz to 8 cm |
| Device price | Published on each model page: T8 $1,953, D2T $2,372 | $5,395 published | $3,899 published | Starting at $4,999 published |
| Software and subscription | Color Doppler, pulsed-wave Doppler, M-mode, calipers and DICOM export included, no subscription | Clarius Essentials at $695 per year, or a $2,500 one-time license | $299 per year Core or $420 per year Advanced, or $1,500 for five years of Advanced | Digital Tools for Vscan Air is sold as a separate software package from the scanner |
| Continuous scan time | 3 hours on the T8 and the D2T, 4,200 mAh | About 60 minutes | Up to 2 hours | 50 minutes at 80% B-mode and 20% color |
| Gewicht | 200 g on the T8, 305 g on the D2T | 326 g | 300 g | 205 g |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- Suresult puts the endocavity array and the transabdominal convex array in one D2T body, so a gynecology clinic buys one scanner instead of two.
- The endocavity head opens a 149-degree sector and reaches 120 mm, which covers a bulky uterus from the vaginal window.
- Color Doppler, pulsed-wave Doppler, M-mode, calipers and DICOM export are included on the T8 and the D2T, with no membership required to scan.
- The T8 and the D2T each hold a 4,200 mAh battery rated at 3 hours of continuous scanning.
- The software runs on iOS, Android and Windows, so an existing clinic tablet or laptop is the display.
- Frames and cine loops export as DICOM, JPEG, PNG or MP4, with a cine buffer of up to 1,000 frames.
- A biopsy needle guide for endocavity probes is published as a separate accessory at $464.
- Eight of the pelvic and early-pregnancy frames on this page came from one buyer's own D2T, unedited, with the on-screen header visible on all but one cropped photograph.
The five-year math
Clarius Essentials at $695 a year reaches $3,475 by year five, on top of the $5,395 EC7 HD3. A one-time Essentials license is published at $2,500. A Clarius buyer who also wants the transabdominal window adds the C3 HD3 at $3,795, because the EC7 HD3 is endocavity only.
D2T, paid onceClarius EC7 HD3: scanner + membership= $3,475 in fees alone by year five
Three models, one decision
Not sure which model fits your cases?
One conversation gets a direct recommendation: the right Suresult probe, or a straight “neither.”
Top Handheld-Ultraschall für gynäkologische Point-of-Care-Bildgebung
Die auf Schnelligkeit und Präzision ausgelegten tragbaren Suresult-Ultraschallgeräte vereinfachen das Scannen des Beckens und passen perfekt in die Gynäkologie mit hohem Durchsatz.
D3Ultra
D3Ultra Convex Linear Phased Mehrzweck-Hand-Ultraschallgerät
Frequenz: Konvexer / phasengesteuerter Tastkopf 3.2/5.0MHz Linearer Tastkopf 7.5/10MHz
Scanning-Tiefe: Linear: 20-100mm, konvex & phasengesteuert: 90-300mm
Gynäkologie
buy scanner
D3Pro
D3Pro Dual-Head 3-in-1 Wireless Ultrasound Scanner
Frequenz: Konvexer / phasengesteuerter Tastkopf 3.2/5.0MHz, linearer Tastkopf 7.5/10MHz
Scanning-Tiefe: Konvexer / phasengesteuerter Tastkopf: 90-305mm, Lineare Sonde: 20-80mm
Gynäkologie
buy scanner

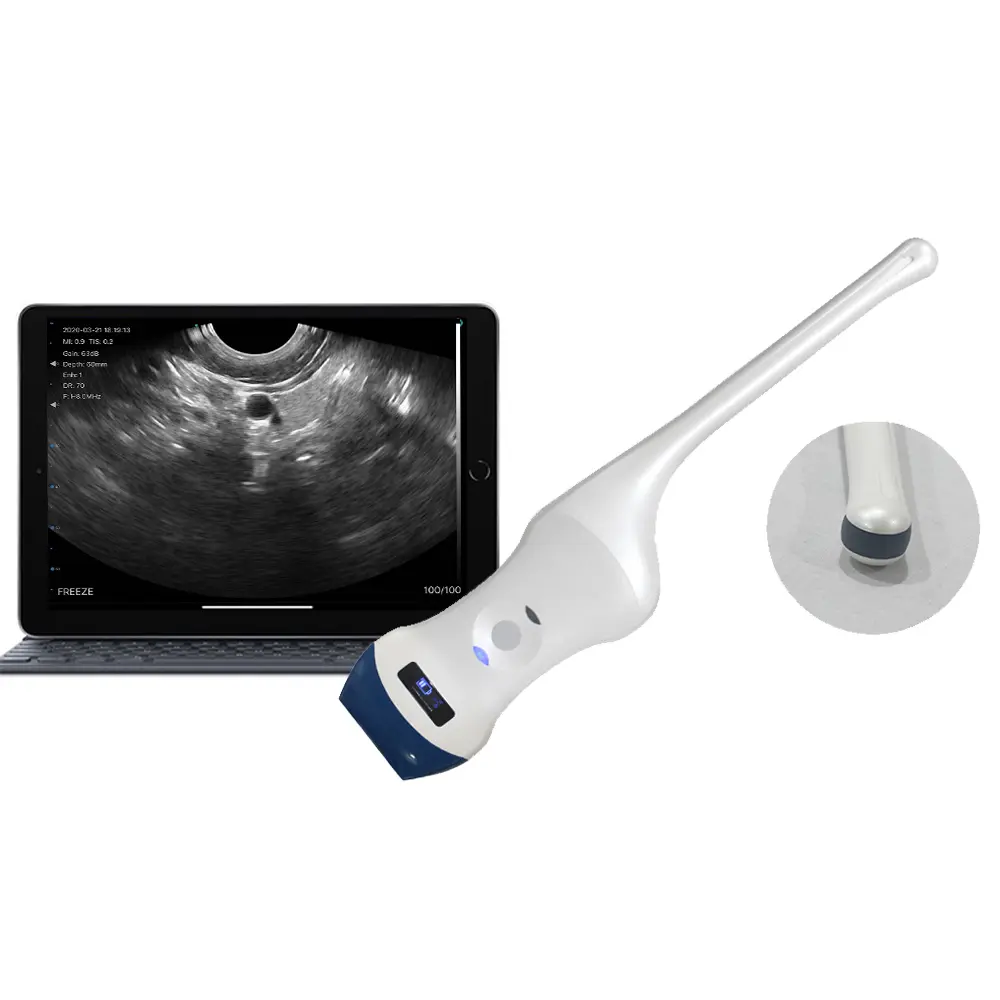

D2T
D2T Convex-Transvaginaler Drahtloser Ultraschall - 192 Elemente, Farbdoppler
Frequenz: Konvexe Sonde 3.2/5.0MHz, Endokavitätssonde 6/8MHz
Scanning-Tiefe: Konvexe Sonde 90/160/220/305mm, Endokavitätssonde 30/60/90/120mm
Gynäkologie
buy scanner
Was Sie vor dem Kauf eines tragbaren Ultraschallgeräts für die Gynäkologie beachten sollten
Wählen Sie das ideale Gerät für die Bildgebung des Beckens mit einer großen Frequenzvielfalt und einem einfachen Bildgebungsverfahren.
Before you buy
Was Sie vor dem Kauf beachten sollten
What is the best handheld ultrasound for gynecology?
For most gynecology practices the Suresult D2T is the strongest fit. It carries a 6/8 MHz endocavity head and a 3.2/5.0 MHz convex head in one body. A practice that only scans transvaginally can take the T8 instead.
Do handheld ultrasound scanners come with a transvaginal probe?
Most do not. Suresult publishes three models with an endocavity array: the T8, the D2T and the D2LT. Butterfly and GE do not list an endocavity probe in their published specifications.
How much does a gynecology ultrasound machine cost?
A Suresult transvaginal handheld is published at $1,953 for the T8 and $2,372 for the D2T. The Clarius EC7 HD3 is published at $5,395, before Clarius Essentials at $695 a year.
How deep does a handheld transvaginal probe reach?
The endocavity head on the T8 and the D2T offers 30, 60, 90 and 120 mm depth settings. Gynecology scanning usually sits at 60 mm, and 120 mm is there for an enlarged uterus.
Can a handheld ultrasound measure endometrial thickness?
The Suresult T8 and D2T measure endometrial thickness with on-screen calipers on a 6/8 MHz endocavity array, holding several length measurements on one frozen frame. A capture in the atlas above shows four lengths read from a single frozen image.
Which Suresult model scans both transabdominally and transvaginally?
The Suresult D2T scans both transabdominally and transvaginally. It is a dual-head probe with a 192-element convex array at 3.2/5.0 MHz reaching 90, 160, 220 and 305 mm. The endocavity array runs 6/8 MHz at 30, 60, 90 and 120 mm.
Does the transvaginal model have color Doppler?
Yes. The T8 and the D2T both run B-mode, color Doppler, power Doppler, pulsed-wave Doppler and M-mode. No membership or license is needed to turn Doppler on.
How large is the transvaginal probe body?
Suresult publishes the T8 at 336 x 35 x 28 mm and 200 g, and the D2T at 350 x 65 x 20 mm and 305 g. Those are whole-device figures, not the insertion tip alone.
Can a handheld ultrasound assess an adnexal mass?
The features used to classify adnexal masses are B-mode shape, size and solidity plus color Doppler, all of which the T8 and the D2T provide. A validation study of 1,938 women reported 92% sensitivity and 96% specificity for those rules.
Does a gynecology handheld need a software subscription?
Suresult handheld scanners require no software subscription, and color Doppler, pulsed-wave Doppler, M-mode, calipers and DICOM export are included with the device. Clarius Essentials is published at $695 a year or $2,500 one-time, and Butterfly publishes $299 a year, $420 a year, or $1,500 for five years.
Can these scanners date an early pregnancy?
Yes. The obstetric preset reports gestational age and estimated due date from the measurement on screen. Captures on this page show 8 weeks 3 days transvaginally and 14 weeks 0 days transabdominally.
What tablet or phone runs the software?
Suresult software runs on iOS, Android and Windows, and the probe connects over its own dual-band Wi-Fi. An existing clinic tablet or laptop can be the display.
Can a needle guide be fitted to the endocavity probe?
Yes. Suresult publishes a biopsy needle guide for endocavity probes at $464 as a separate accessory. In-plane and out-of-plane puncture guides are drawn in the software.
Does a handheld replace a cart ultrasound in a gynecology clinic?
A handheld covers the focused pelvic exam: uterine and endometrial measurement, adnexal survey, IUD checks and early dating. Full anomaly scanning, three-dimensional imaging and saline infusion protocols stay on a cart system.
How does the scan get into the patient record?
Frames and cine loops export from the app as DICOM, JPEG, PNG or MP4. The cine buffer holds up to 1,000 frames, so a better plane can be pulled after the probe is out.
Transabdominale (konvexe) Array-Sonde: 3-5 MHz
Am besten geeignet für die Darstellung der Gebärmutterposition, von Myomen und großen Adnexen.
Transvaginal Micro Convex Probe: 6–8 MHz
Am besten geeignet für Endometriumstreifen, frühe Schwangerschaft und Follikelsuche.
Farb- und Spektraldoppler mit hoher Empfindlichkeit
Um den Blutfluss in der Gebärmutter zu beurteilen oder eine Adnex-Torsion auszuschließen.
Kalibrierte OB/GYN-Messgeräte
Wie die Dicke der Gebärmutterschleimhaut, die Größe der Follikel und die Datierung der Fruchtblase.
Einfacher DICOM-Export und Wi-Fi-Synchronisation
Zum sofortigen Senden, Prüfen oder Archivieren gynäkologischer Bilder.
Freie Software,
Unbegrenzte Scans
Die tragbaren Ultraschallgeräte von Suresult werden mit einer leistungsstarken Software geliefert, die Ihnen unbegrenzte Funktionen ohne zusätzliche Kosten bietet. Genießen Sie kostenlos DICOM und Pulswellen-Doppler sowie eine benutzerfreundliche Oberfläche auf iOS, Android und Windows - so können Sie sich ganz ohne Softwarekosten auf die Bereitstellung einer erstklassigen Versorgung konzentrieren.
Kompatibel mit allen Plattformen, lebenslang Kostenlose Upgrades
Erfassen Sie jedes Detail, führen Sie mit Präzision und teilen Sie mühelos
Verbessern Sie Ihren Ultraschall-Workflow mit unserer All-in-One-Lösung. Erleben Sie Präzision, Einfachheit und Effizienz bei jedem Scan.
17+ Spezialisierte Voreinstellungen
Konvexer / phasengesteuerter Tastkopf
Lineare Sonde
27 Automatisierte Messungen für präzise Diagnosen
Vereinfachen Sie Ihre Arbeit mit einem kompletten Satz von Tools für schnelle Echtzeitbewertungen.
B-Mode
- Länge, Fläche/Umfang, Winkel, Spur, Entfernung
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
B+M Modus
- Herzfrequenz, Zeit, Entfernung
- Linksventrikulärer Innendurchmesser (LVIDd, LVIDs)
- Auswurffraktion (EF), Schlagvolumen (SV)
B+PW Modus
- Geschwindigkeit, Herzfrequenz, S/D-Verhältnis, Tiefe
- Automatische Gefäßdurchflussmessung
- Systolische Spitzengeschwindigkeit (PS), enddiastolische Geschwindigkeit (ED)
- Zeitgemittelte maximale Geschwindigkeit (TAMAX), Zeitgemittelte mittlere Geschwindigkeit (TAMEAN)
- Pulsatilitätsindex (PI), Resistiver Index (RI)
- Gefäßdurchmesser (DIAM), Durchfluss (FL)
Cine Loop
Aufnehmen bis zu 1000 Bilder (≈165 Sekunden) der kontinuierlichen Bewegung, um jedes noch so kleine Detail einzufangen.
Pannenhilfe-Funktion
Genießen Sie präzise in-plane und Out-of-Plane-Führungen um Ihr Selbstvertrauen bei Interventionen zu stärken.
Flexible Dateiexporte
Speichern und teilen Sie Ihre Scans mühelos in JPEG, MP4, PNG oder DICOM Formate, die sich nahtlos in Ihren Arbeitsablauf einfügen.
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- Kein Software-Abonnement erforderlich — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
FAQ
Sind Suresult-Ultraschallgeräte für Fruchtbarkeitskliniken geeignet?
Unbedingt. Sowohl die transabdominalen (konvexen) als auch die endokavitären (transvaginalen) Sonden von Suresult sind in der Lage, die Follikel zu überwachen, die Gebärmutterschleimhaut zu messen und eine frühe Schwangerschaft festzustellen, wodurch sie ideal für IVF-Zyklen und IUI-Verfahren sind.
Können tragbare Ultraschallgeräte herkömmliche Ultraschallgeräte in gynäkologischen Kliniken ersetzen?
Mit 192+ Element-Sonden, Doppler-Modi und hochauflösender Bildgebung können die Suresult-Geräte die meisten Routine-Scans in der Gynäkologie und Fruchtbarkeit durchführen. Für fortgeschrittene Anforderungen wie 3D/4D-Bildgebung, Elastographie oder Scans mit hohem Volumen werden jedoch weiterhin vollständige Systeme bevorzugt.
Welche gynäkologiespezifischen Funktionen sind in Suresult enthalten?
Along with the adjustable depth and gain, Suresult comes preloaded with one-touch tools for key measurements such as follicle diameter, endometrial thickness, gestational sac, crown-rump length, and fetal heart rate.
How much training does a gynecologist need to operate it?
The interface of Suresult's ultrasound app mimics conventional ultrasound systems with clearly labeled menus. Most gynecologists and residents can begin scanning confidently with basic ultrasound knowledge, and the learning curve is particularly manageable for those familiar with standard OB-GYN protocols.
Wie funktioniert die Bildarchivierung und -freigabe mit Suresult?
Alle Scans - Bilder oder Videoclips - werden über das sichere integrierte Wi-Fi direkt auf Ihrem angeschlossenen iOS- oder Android-Gerät gespeichert. Die Dateien sind EMR-fähig und können leicht in PACS, DICOM-Netzwerke oder Cloud-Plattformen exportiert werden, was eine nahtlose Integration in Ihren klinischen Workflow ermöglicht.
Fallen Abonnementgebühren an?
Überhaupt nicht. Mit dem Kauf des Suresult erhalten Sie lebenslangen Zugang zu allen Bildgebungsmodi, gynäkologischen Voreinstellungen, Software-Updates und Speicherfunktionen.
