Handheld ultrasound for pediatrics, from the infant hip to the lung field
Two pediatric captures on this page were recorded on a D3Ultra: a Graf-method infant hip and a six-month-old calf read at 10 MHz. Pediatric coverage starts at $1,767, with software included and no yearly fee.
Every scan on this page was recorded on this Suresult hardware family, by clinicians who bought it and by a clinical trainer who scans with it. Each clip is trimmed to the scan itself. ·Trusted by 8,717 clinicians →
Kurze Antwort
A handheld ultrasound for pediatrics is a wireless probe that pairs with a phone or tablet and images a child without radiation. The probe format decides the exam, and pediatric work usually starts with a linear head like the Suresult L14, at 10/14 MHz across a 25 mm footprint.
- A 10/14 MHz linear head over a 25 mm footprint covers an infant hip, a forearm bone and a lung field.
- The E11 weighs 103 g and images from 30 to 80 mm, the depth a newborn abdomen actually needs.
- Color Doppler, power Doppler, pulsed-wave Doppler, M-mode and DICOM export ship on every model on this page.
- The D3Ultra carries convex, linear and phased heads in one 263 g probe.
The capture atlas
Two pediatric captures on a D3Ultra, with four more windows from the same hardware
Unedited clinical captures · select any image to enlarge
2 captures on children2 windows
Six-month-old calf against an adult on the D3Ultra
One 10 MHz linear head images the calf and Achilles of a six-month-old, then the same structures on an adult. The app holds both frames side by side, and the header reads 60 mm depth, 105 dB gain and compounding on.
captured on a D3Ultra linear head, F H10.0 MHz, D 60 mm, MSK preset, 2025-10-04

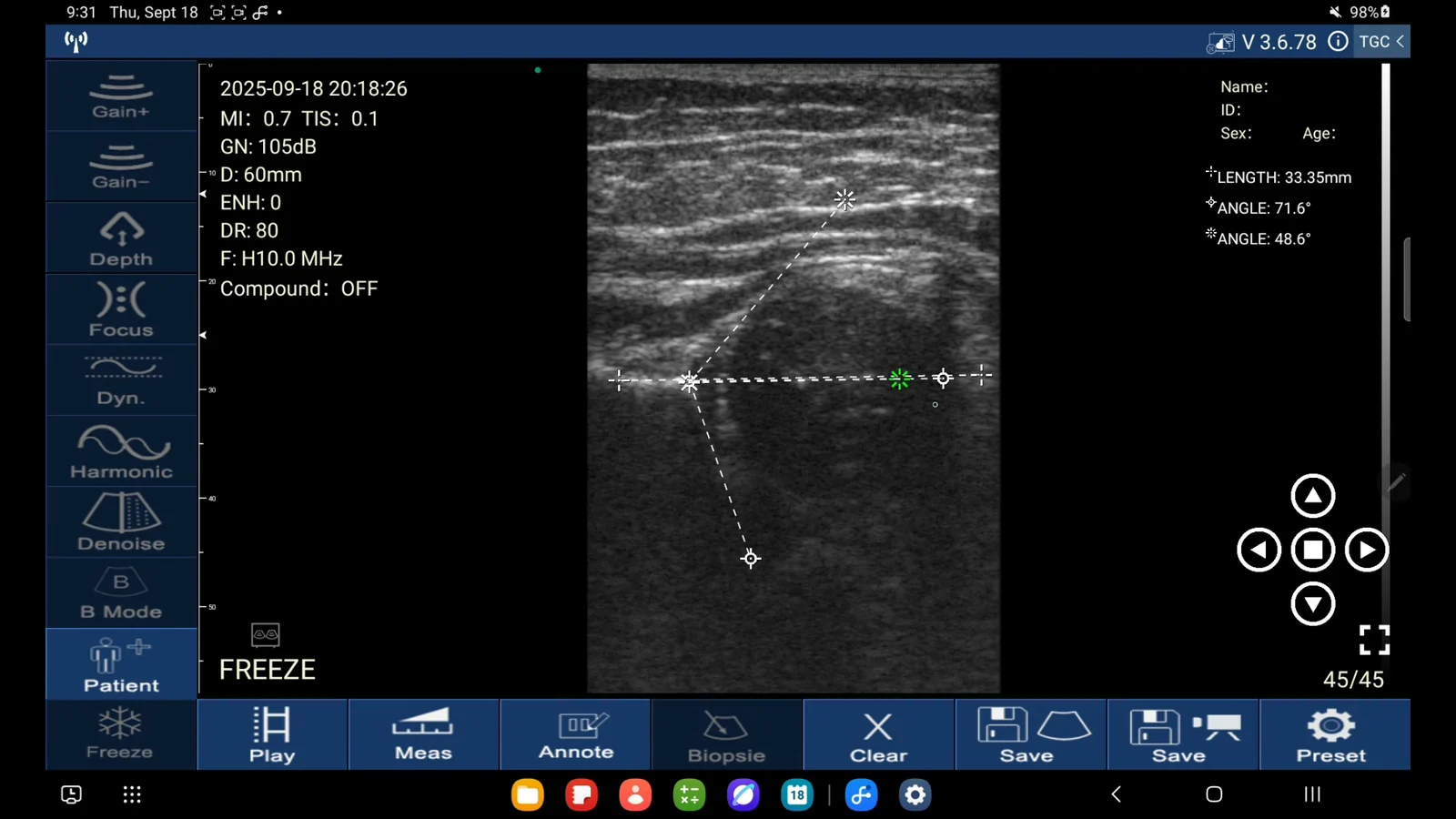

Graf-method infant hip on the D3Ultra
A coronal infant hip window with the measurement lines drawn on the frozen frame. The panel reads a 33.35 mm baseline and two angles, 71.6 and 48.6 degrees, the pair a Graf screen reports.
frame extracted from the D3Ultra infant hip video in the media library, header 2025-09-18 20:18:26, GN 105 dB, D 60 mm, F H10.0 MHz, Compound OFF4 windows from the same hardware family4 windows

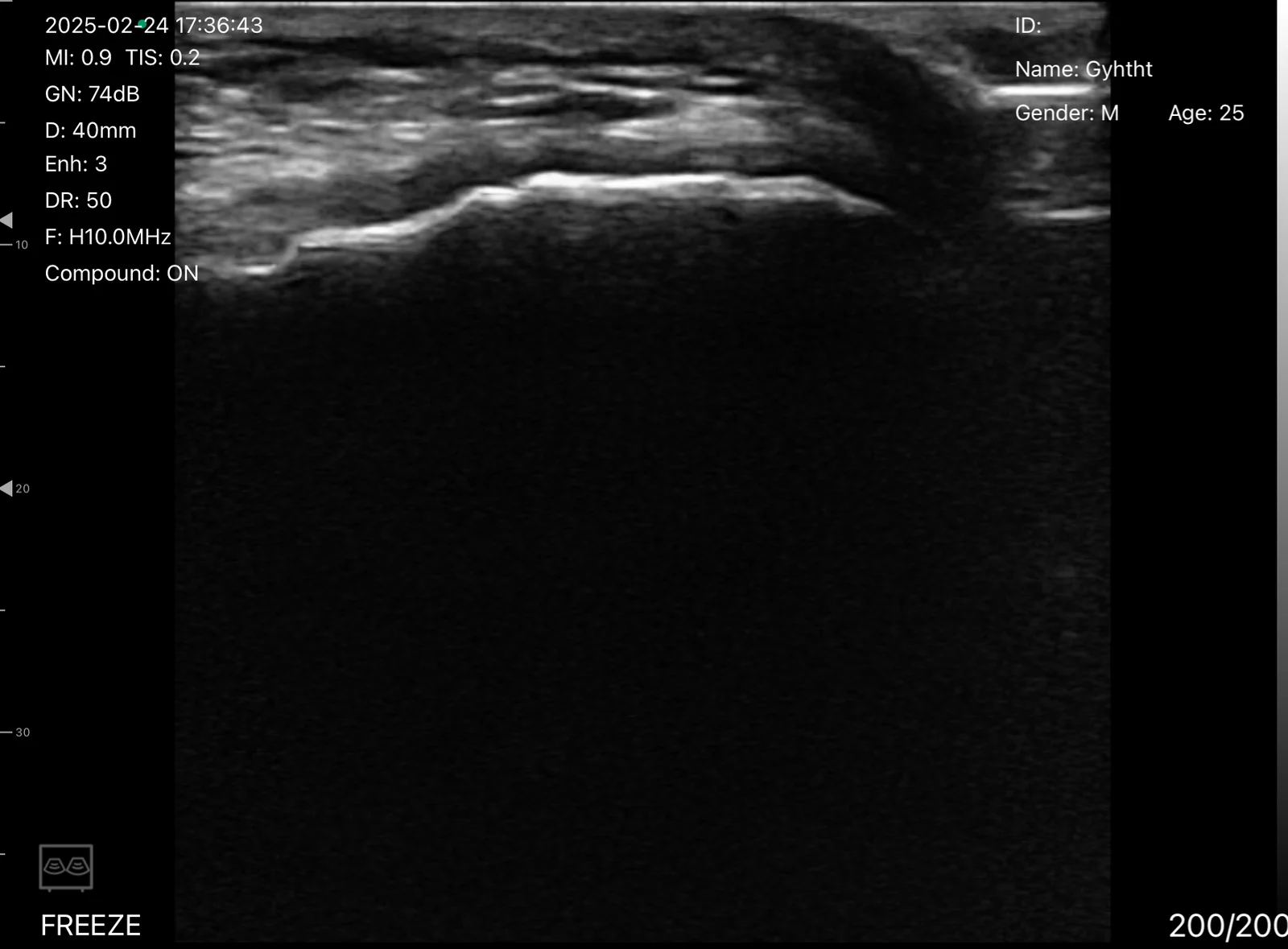

Bone cortex and acoustic shadow at 10 MHz
A bright cortical line with a clean shadow under it, imaged at 40 mm depth on a linear head. This is the view a clinician reads when checking a bone for a step or a break.
captured on a D3Ultra linear head, F H10.0 MHz, D 40 mm, 2025-02-24

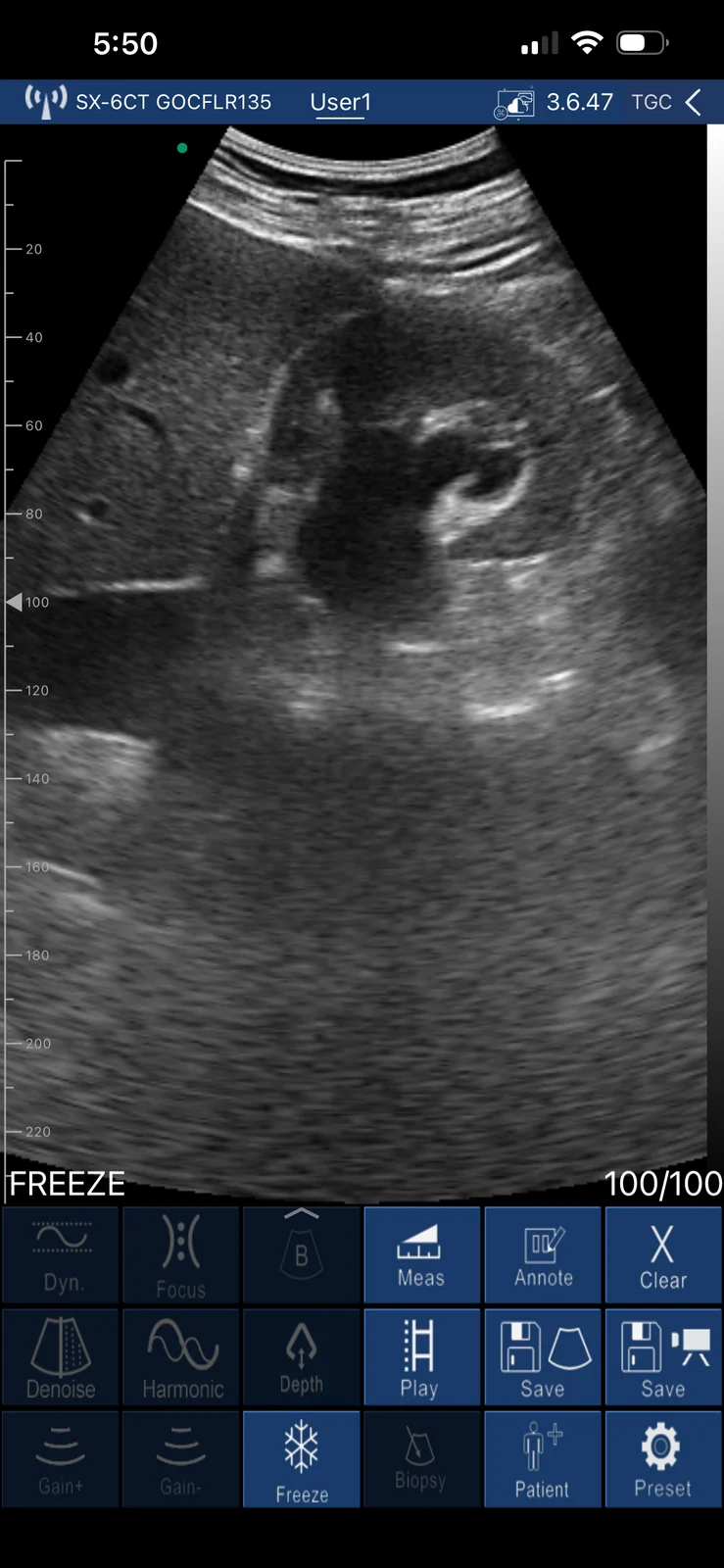

Dilated renal collecting system on the D3Ultra
A buyer sent this longitudinal right kidney with a dilated pelvis and calyces, later confirmed as an obstructing stone. Hydronephrosis reads the same way in a child with flank pain.
buyer capture on a D3Ultra convex head, submitted 2026-06-19

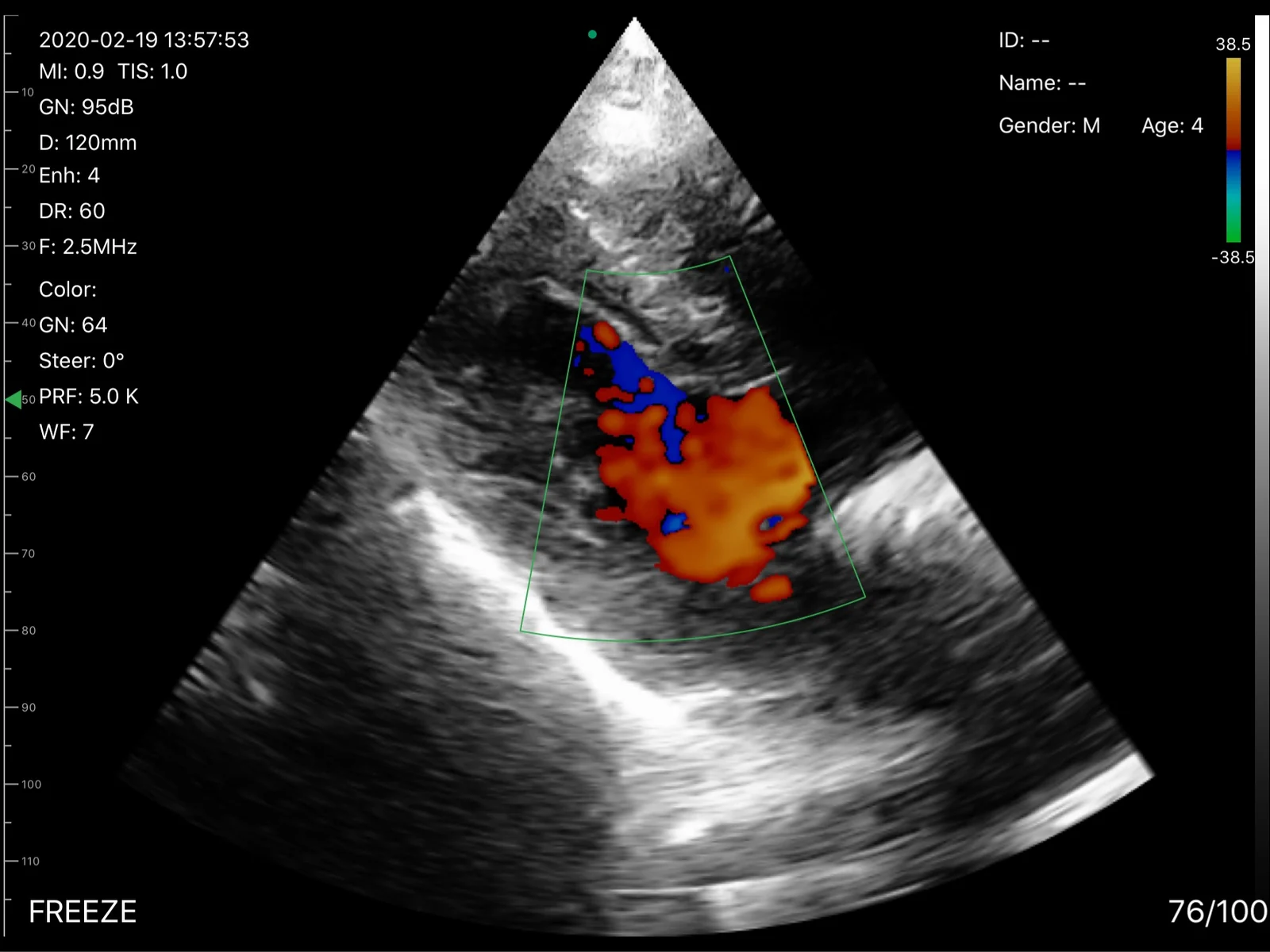

Color flow inside a cardiac sector
A phased sector with the color box over the inflow, recorded at 120 mm depth and PRF 5.0 kHz. Pediatric echo uses the same sector head at a shallower depth.
captured on a D3Ultra phased head, D 120 mm, PRF 5.0 kHz; the on-screen name and age fields are demo entries

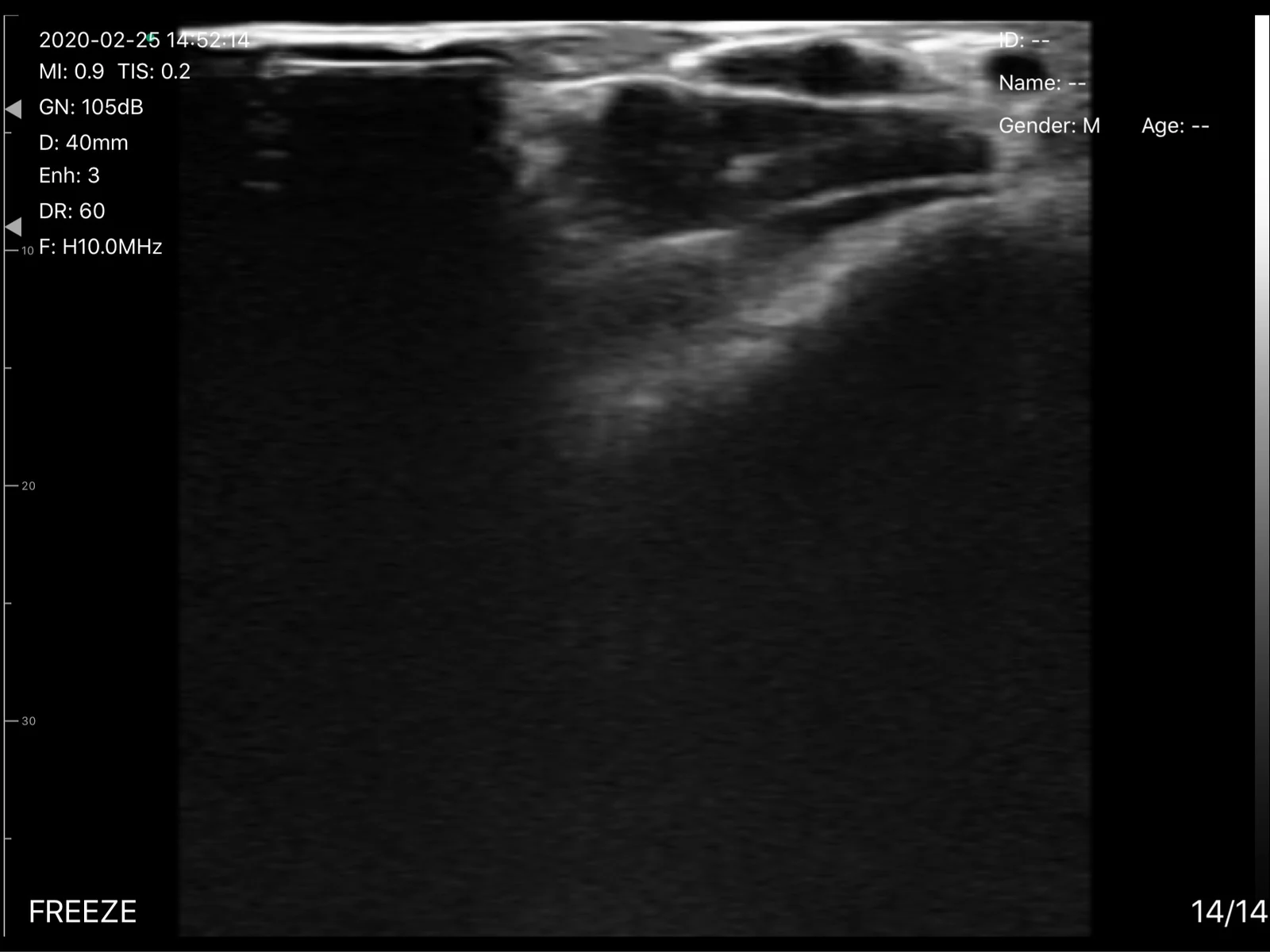

Wrist and hand soft tissue at 10 MHz
Superficial layers of the wrist at 40 mm depth on a linear head, with the bony surfaces bright at the top of the field. The same setting looks for a foreign body in a hand.
captured on a D3Ultra linear head, F H10.0 MHz, D 40 mm, 2020-02-25
Select a card to switch capture
Technique basics
How the exam comes together, probe to report
- Pick the head by the depth the child needs
A hip, a lung field and most soft tissue in a child sit inside 80 mm, which is linear territory at 10 to 14 MHz. A school-age abdomen needs a micro-convex or convex head to reach 160 mm and beyond.
Linear 20 to 80 mm · micro-convex 60 to 160 mm - Set depth first, gain second
Start near 40 mm and let the structure fill the top half of the screen before touching gain. A shallow field needs less gain, and over-gaining an infant hip buries the cartilage.
D: 40 mm on the header

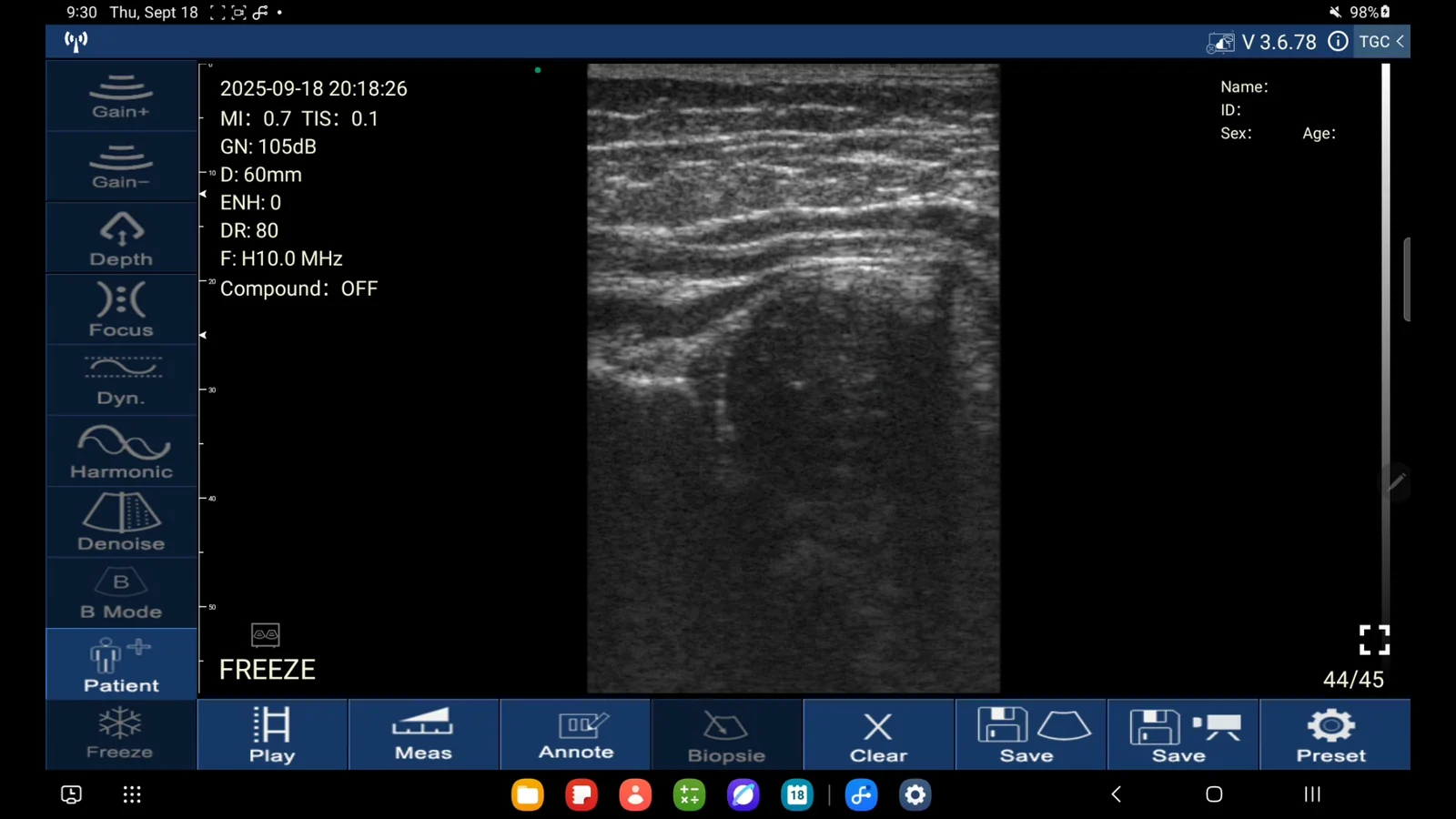

Hold the hip in a true coronal planeAn infant hip screen is read in the coronal plane with the iliac wing straight along the top of the image. A tilted plane changes what the angle measures, so the plane is checked before any caliper is placed.
Graf method, coronal plane- Record a loop, then export it
Every model on this page stores cine loops of 100 to 1,000 frames and exports JPEG, PNG, MP4 or DICOM. A child rarely holds still, so a loop scrubbed afterwards beats a single frozen frame.
100 to 1,000 frames · DICOM export
What the research says
The evidence, three studies checked
- Lung ultrasound was more sensitive than chest radiography in children.
Across 30 studies and 4,546 children, lung ultrasound reached 0.940 sensitivity and 0.855 specificity for childhood community-acquired pneumonia.
Shi et al., Pediatr Pulmonol 2024 - Bedside ultrasound was the strongest test for intussusception.
A systematic review of 13 studies in children under 18 reported that point-of-care ultrasound had a positive likelihood ratio of 19.7 and a negative likelihood ratio of 0.10 for intussusception.
Hom et al., Pediatr Emerg Care 2022 - Bedside ultrasound found skull fractures after blunt head injury.
Pooled data from seven studies and 925 children gave 91% sensitivity and 96% specificity for skull fracture on point-of-care ultrasound, with a negative predictive value of 97%.
Alexandridis et al., Emerg Med J 2022
Pick your model
Pick the model that fits your day
MOST CHOSEN
A pediatric practice that wants one deviceD3Ultra
A pediatric practice that wants one deviceD3UltraThe D3Ultra carries convex, linear and phased heads in one 263 g probe, so lung, abdomen, hip and heart come off the same scanner. Both pediatric captures on this page were recorded on it.
three heads, one probe
$2,976 D3Ultra · Convex Linear Phased MultipuBuy nowD3Ultra anzeigen →
Neonatal and infant scanningE11The E11 is a 103 g micro-convex probe with an R13 head and an 8/11 MHz range. Its 30 to 80 mm window matches the depth a newborn abdomen sits at.
103 g, smallest head
$1,767 E11 · Micro-Convex Portable UltrasBuy nowView E11 →
Hip screening and superficial workL14The L14 runs 10/14 MHz across a 25 mm footprint, which keeps the contact area small on an infant hip. Depth covers 20 to 80 mm, where a hip, a forearm bone and a lung line all sit.
25 mm footprint, high frequency
$2,139 L14 · Linear Wireless Ultrasound -Buy nowView L14 →
Long clinic days on one chargeL14ProThe L14Pro holds the same 10/14 MHz range on 256 elements and 64 channels, at 145 g. Its 4,400 mAh battery scans for 4 hours, which covers a full pediatric list.
4 hours, 256 elements
$3,441 L14Pro · 10/14 MHz 256-Element LinearBuy nowView L14Pro →
Pediatric emergency and ward callsCD2The CD2 pairs a 2.2/3.6 MHz phased head with a 7.5/10 MHz linear head across 192 elements, in a 150 g body. Heart, lung and vascular access come off one probe on a night shift.
150 g, phased + linear
$2,697 CD2 · Phased Linear Dual-Head UltrBuy nowView CD2 →
Small abdomen plus small partsD2LMThe D2LM puts a 10/12 MHz linear head and a 5/7 MHz micro-convex head on one body. The micro-convex side reaches 160 mm, which covers a school-age abdomen.
two heads, dual head
$2,418 D2LM · Handheld Ultrasound - Micro-Buy nowView D2LM →Scanner-Vergleich
Eight Suresult models a pediatric buyer should compare
Swipe to see all columns →
| Modell | Preis | Frequenz | Tiefe | Am besten für |
|---|---|---|---|---|
| D3Ultra | $2,976 | Convex 3.2/5.0 · linear 7.5/10 · phased 3.2/5.0 MHz | Linear 20-100 mm; convex and phased 90-300 mm | Lung, abdomen, hip and heart on one 192-element probe |
 D3Pro | $2,697 | Convex 3.2/5.0 · linear 7.5/10 · phased 3.2/5.0 MHz | Linear 20-80 mm; convex and phased 90-305 mm | Three heads with a 3-hour battery for long rounds |
| E11 | $1,767 | Micro-convex 8/11 MHz | 30-80 mm | Neonatal and infant abdomen on an R13 head at 103 g |
| D2LM | $2,418 | Linear 10/12 MHz · micro-convex 5/7 MHz | Linear 20-80 mm; micro-convex 60-160 mm | Superficial and abdominal work on one body |
| L14 | $2,139 | Linear 10/14 MHz | 20-80 mm | Infant hip and bone detail at a 25 mm footprint |
| L14Pro | $3,441 | Linear 10/14 MHz, 256 elements | 20/40/60/80 mm | The 4-hour battery and 145 g body for a full clinic list |
| CD2 | $2,697 | Phased 2.2/3.6 MHz · linear 7.5/10 MHz | Phased 90-190 mm; linear 20-100 mm | Heart, lung and vascular access at 150 g |
 PD1 | $2,139 | Phased 2.5/2.8/3.6 MHz | 90-190 mm | A dedicated cardiac head on 128 elements |
Against the known brands
Suresult vs Butterfly iQ3, Clarius L15 HD3 and GE Vscan Air CL for pediatrics
Swipe to see all columns →
| Suresult | Schmetterling iQ3 | Clarius L15 HD3 | GE Vscan Air CL | |
|---|---|---|---|---|
| Probe choice for a child | A 10/14 MHz linear head, a 103 g micro-convex head and a phased head, each sold on its own | A single wideband array probe | A single linear scanner, maximum depth 7 cm | A curved array and a linear array in one dual-probe body |
| Device price | $1,767 for the E11, $2,139 for the L14, $2,976 for the D3Ultra | $3,899 published | $3,795 published | Starting at $4,999 published |
| Softwarekosten | None; imaging modes, measurements, needle guides and DICOM export are included | $299/year Core or $420/year Advanced; $1,500 buys five years of Advanced | Essentials membership at $695/year, $1,785 for three years, or $2,500 one-time | Digital Tools are sold separately from the device |
| Gewicht | 103 g on the E11, 145 g on the L14Pro, 150 g on the CD2 | 300 grams | 290 g | 205 +/- 3 grams |
| Continuous scan time | 4 hours on the L14Pro, 3 hours on the D3Pro, 2 hours on the D3Ultra | Up to 2 hours | About 60 minutes | 50 minutes continuous scan time |
| Platforms | iOS, Android and Windows on every model on this page | iOS und Android | iOS und Android | iOS und Android |
| Landed cost | Duties and shipping included in the checkout price, delivered in 1-7 days | Listed as a US price, before shipping and tax | US pricing only; international pricing varies by region and distributor | Listed as a US starting price |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- The two pediatric captures on this page were recorded on a D3Ultra, not on a phantom or a stock image.
- Color Doppler, power Doppler, pulsed-wave Doppler, M-mode and needle guides ship on every model listed here.
- The E11 weighs 103 g, the lightest probe in this pediatric set.
- The L14Pro scans for 4 hours on one charge, from a 4,400 mAh battery.
- Every model on this page runs on iOS, Android and Windows, so an existing tablet or laptop can drive the probe.
- Every model on this page exports DICOM, MP4, JPEG and PNG, so a bedside scan reaches the record.
- No Suresult model on this page carries a yearly software fee.
- Duties and shipping sit inside the checkout price, with delivery in 1 to 7 days.
The five-year math
The Clarius L15 HD3 is published at $3,795 with an Essentials membership at $695 a year, which is $3,475 of membership by year five. Suresult scanners carry no software fee, so year five costs what year one costs.
L14, paid onceClarius L15 HD3: scanner + membership= $3,475 in fees alone by year five
Three models, one decision
Not sure which model fits your cases?
One conversation gets a direct recommendation: the right Suresult probe, or a straight “neither.”
Die beste Wahl für pädiatrische Ultraschalluntersuchungen
Treffen Sie sofort sichere Entscheidungen mit einem tragbaren Ultraschallgerät, das für die Anforderungen der pädiatrischen Praxis entwickelt wurde.
D3Ultra
D3Ultra Convex Linear Phased Mehrzweck-Hand-Ultraschallgerät
Frequenz: Konvexer / phasengesteuerter Tastkopf 3.2/5.0MHz Linearer Tastkopf 7.5/10MHz
Scanning-Tiefe: Linear: 20-100mm, konvex & phasengesteuert: 90-300mm
Pädiatrie
buy scanner
D3Pro
D3Pro Dual-Head 3-in-1 Wireless Ultrasound Scanner
Frequenz: Konvexer / phasengesteuerter Tastkopf 3.2/5.0MHz, linearer Tastkopf 7.5/10MHz
Scanning-Tiefe: Konvexer / phasengesteuerter Tastkopf: 90-305mm, Lineare Sonde: 20-80mm
Pädiatrie
buy scanner
D3L
D3L Ultraschall-Diagnosesonde 128 Elemente, konvex linear gephast 3 Modi
Frequenz: Konvexer / phasengesteuerter Tastkopf 3.2/5.0MHz Linearer Tastkopf 7.5/10MHz
Scanning-Tiefe: Konvexer / phasengesteuerter Tastkopf: 90-305mm, Lineare Sonde: 20-80mm
Pädiatrie
buy scanner
Was Sie vor dem Kauf eines tragbaren Ultraschallgeräts für die Pädiatrie beachten sollten
Wählen Sie die idealen Geräte für pädiatrische Untersuchungen mit Multifrequenz-Bildgebung und vielseitigen Sonden, die für jedes Alter und jede Körpergröße geeignet sind.
Before you buy
Was Sie vor dem Kauf beachten sollten
What is the best handheld ultrasound for pediatrics?
The Suresult D3Ultra suits most pediatric practices, because convex, linear and phased heads sit in one 263 g probe. The Suresult E11 suits newborn scanning, because its micro-convex head is 103 g and images from 30 to 80 mm.
Which probe do I need for an infant hip screen?
An infant hip screen needs a high-frequency linear probe. The Suresult L14 and L14Pro run 10/14 MHz across a 25 mm footprint, and the D3Ultra linear head runs 7.5/10 MHz.
Can a handheld ultrasound scan a newborn abdomen?
Yes. The Suresult E11 is a micro-convex probe with an R13 head, an 8/11 MHz range and a 30 to 80 mm depth window, which covers newborn abdominal organs.
Is lung ultrasound reliable in children?
A 2024 meta-analysis of 30 studies and 4,546 children reported 0.940 sensitivity and 0.855 specificity for lung ultrasound in childhood pneumonia, with higher sensitivity than chest radiography.
Can a bedside scan pick up intussusception?
A 2022 systematic review covered 13 studies of children under 18 with suspected intussusception. It reported a positive likelihood ratio of 19.7 and a negative likelihood ratio of 0.10 for point-of-care ultrasound.
Can ultrasound show a skull fracture in a child?
Pooled data from seven studies and 925 children gave 91% sensitivity and 96% specificity for skull fracture on point-of-care ultrasound after blunt head injury.
How much does a pediatric handheld ultrasound cost?
Suresult pediatric models run from $1,767 for the E11 to $3,441 for the L14Pro. Butterfly publishes $3,899 for the iQ3 and Clarius publishes $3,795 for the L15 HD3.
Do Suresult scanners require a software subscription?
No. Imaging modes, measurements, needle guides and DICOM export are included with the scanner. Butterfly lists $299 to $420 a year and Clarius lists $695 a year for their memberships.
Which model covers the heart and the lungs in a child?
The Suresult CD2 carries a 2.2/3.6 MHz phased head and a 7.5/10 MHz linear head on a 192-element, 150 g body. The D3Ultra covers the same two windows and adds a convex head.
Does the probe work with an iPhone or an Android tablet?
Yes. Every Suresult model on this page runs on iOS, Android and Windows over a dual-band 802.11n Wi-Fi connection, so an existing device can drive the probe.
Can I measure and export what I find?
Yes. Measurements run in B-mode, B+M and B+PW, cine loops store 100 to 1,000 frames, and files export as JPEG, PNG, MP4 or DICOM.
Is a handheld enough, or does a pediatric clinic need a cart system?
A handheld ultrasound answers focused pediatric questions about the hip, the lung field, the abdomen and gross cardiac function. A comprehensive pediatric echocardiogram or a detailed radiology study stays on a cart system.
Lineare Array-Sonde (5-14 MHz)
Ideal für vaskuläre Zugänge, Weichgewebe und muskuloskelettale Aufnahmen bei Säuglingen und älteren Kindern.
Mikro-gekrümmte Array-Sonde (3-9 MHz)
Perfekt für neonatale Schädelaufnahmen, Säuglingshüften oder fokussierte Abdominalaufnahmen bei kleineren Kindern.
Gebogene Array-Sonde (2-5 MHz)
Tieferes Eindringen für abdominale Untersuchungen wie Appendizitis, Pylorusstenose oder Hydronephrose bei Teenagern und Vorschulkindern.
Phased Array-Sonde (1-5 MHz)
Zur Unterstützung von Herz- und Thoraxuntersuchungen bei fiebrigen oder dyspnoischen Kindern mit schneller Erfassung.
PW/CW-Doppler-Funktionen
Zur Beurteilung des pädiatrischen Blutflusses bei kongenitalen Herzerkrankungen oder zur Überwachung des venösen/arteriellen Blutflusses für den Gefäßzugang.
Einstichhilfe (innerhalb/außerhalb der Ebene)
Erhöht die Sicherheit und Präzision bei der Platzierung von Leitungen, Gelenkaspirationen oder Abszessdrainagen.
Einstellbare Tiefe & Frequenz
Optimieren Sie die Bildgebung für Neugeborene und ältere Kinder mit nur wenigen Klicks.
Kabellos und batteriebetrieben
Dank des nahtlosen Gerätewechsels können Sie den ganzen Tag über Visiten, Schulbesuche oder mobile Einsätze durchführen.
Freie Software,
Unbegrenzte Scans
Die tragbaren Ultraschallgeräte von Suresult werden mit einer leistungsstarken Software geliefert, die Ihnen unbegrenzte Funktionen ohne zusätzliche Kosten bietet. Genießen Sie kostenlos DICOM und Pulswellen-Doppler sowie eine benutzerfreundliche Oberfläche auf iOS, Android und Windows - so können Sie sich ganz ohne Softwarekosten auf die Bereitstellung einer erstklassigen Versorgung konzentrieren.
Kompatibel mit allen Plattformen, lebenslang Kostenlose Upgrades
Erfassen Sie jedes Detail, führen Sie mit Präzision und teilen Sie mühelos
Verbessern Sie Ihren Ultraschall-Workflow mit unserer All-in-One-Lösung. Erleben Sie Präzision, Einfachheit und Effizienz bei jedem Scan.
17+ Spezialisierte Voreinstellungen
Konvexer / phasengesteuerter Tastkopf
Lineare Sonde
27 Automatisierte Messungen für präzise Diagnosen
Vereinfachen Sie Ihre Arbeit mit einem kompletten Satz von Tools für schnelle Echtzeitbewertungen.
B-Mode
- Länge, Fläche/Umfang, Winkel, Spur, Entfernung
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
B+M Modus
- Herzfrequenz, Zeit, Entfernung
- Linksventrikulärer Innendurchmesser (LVIDd, LVIDs)
- Auswurffraktion (EF), Schlagvolumen (SV)
B+PW Modus
- Geschwindigkeit, Herzfrequenz, S/D-Verhältnis, Tiefe
- Automatische Gefäßdurchflussmessung
- Systolische Spitzengeschwindigkeit (PS), enddiastolische Geschwindigkeit (ED)
- Zeitgemittelte maximale Geschwindigkeit (TAMAX), Zeitgemittelte mittlere Geschwindigkeit (TAMEAN)
- Pulsatilitätsindex (PI), Resistiver Index (RI)
- Gefäßdurchmesser (DIAM), Durchfluss (FL)
Cine Loop
Aufnehmen bis zu 1000 Bilder (≈165 Sekunden) der kontinuierlichen Bewegung, um jedes noch so kleine Detail einzufangen.
Pannenhilfe-Funktion
Genießen Sie präzise in-plane und Out-of-Plane-Führungen um Ihr Selbstvertrauen bei Interventionen zu stärken.
Flexible Dateiexporte
Speichern und teilen Sie Ihre Scans mühelos in JPEG, MP4, PNG oder DICOM Formate, die sich nahtlos in Ihren Arbeitsablauf einfügen.
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- Kein Software-Abonnement erforderlich — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
FAQ
Kann ich mit dem Suresult-Handultraschall eine Blinddarmentzündung oder Lungenentzündung bei Kindern diagnostizieren?
Ja. Die Suresult-Geräte sind mit hochauflösenden Voreinstellungen für Bauch und Lunge ausgestattet, die Ihnen helfen, Flüssigkeitsansammlungen, entzündete Organe oder Darmwandverdickungen zu erkennen - alles unerlässlich für die bettseitige Diagnose von Lungenentzündung oder Blinddarmentzündung bei Kindern.
Unterstützen Suresult-Ultraschallgeräte die Platzierung von Leitungen bei Säuglingen?
Unbedingt. Jedes Modell bietet einen Punktionshilfemodus (in-plane und out-of-plane), der eine präzise Führung bei der Platzierung der Linie gewährleistet. Die L10-Führer Das Modell verfügt sogar über eine magnetische Nadelverstärkung für zusätzliche Genauigkeit und Sicherheit bei heiklen Eingriffen.
Gibt es unterschiedliche Sonden für verschiedene Altersgruppen?
Yes. Suresult systems include linear, curved, micro-curved, and phased array probes to accommodate everyone from neonates to teens. In particular, the micro-curved probe excels at deep imaging in the small bodies of children.
Unterstützen die Suresult-Geräte die Doppler-Bildgebung bei pädiatrischen Herzerkrankungen?
Ja. Alle Geräte verfügen über PW-, CW- und Spektraldoppler-Modi, die eine genaue Echtzeitbewertung des Blutflusses und struktureller Herzanomalien ermöglichen, was für die Beurteilung angeborener Herzerkrankungen in der Pädiatrie entscheidend ist.
How long does a full charge last on a Suresult ultrasound?
Die meisten Suresult Handgeräte bieten 1,5 bis 3 Stunden ununterbrochene Nutzung mit einer vollen Ladung. Das ist in der Regel genug, um eine anstrengende Kliniksitzung zu überstehen, einschließlich mobiler oder schulischer Besuche.
Wie schnell kann ich den Umgang mit dem tragbaren Ultraschallgerät erlernen?
Wenn Sie bereits über grundlegende POCUS-Erfahrung verfügen oder mit herkömmlichem Ultraschall gearbeitet haben, werden Sie sich schnell zurechtfinden. Anfängern hilft ein kurzer Einführungskurs oder unsere mitgelieferten Tutorials, damit Sie mit Sicherheit scannen können.
