Neonatal ultrasound probes, chosen by what a newborn unit actually scans
Two unedited infant captures show what a handheld reads on a small patient, from a Graf-method hip plane to an infant tendon set beside an adult’s. Published pricing, software included, no subscription.
Every clinical scan on this page is an unedited capture from Suresult handheld hardware ·Trusted by 8,717 clinicians →
Réponse rapide
A neonatal ultrasound probe is a small-faced handheld scanner running 5 to 14 MHz, used to image a newborn's lung and hip at the incubator.
- The D2LM carries a 10/12 MHz linear head and a 5/7 MHz micro-convex head with an R20, 88 degree face in one 237 g body.
- The E11 weighs 103 g, images from 30 to 80 mm on an R13 micro-convex head, and scans for three hours on one charge.
- Color Doppler, pulsed-wave Doppler, M-mode and power Doppler ship on every scanner on this page, with no membership to unlock them.
- Stills and cine loops export from the app as DICOM, JPEG, PNG or MP4, so a cot-side study reaches the chart without a cart.
The capture atlas
A real infant scan, captured on Suresult handheld hardware
Unedited clinical captures · select any image to enlarge
Infant hip1 window

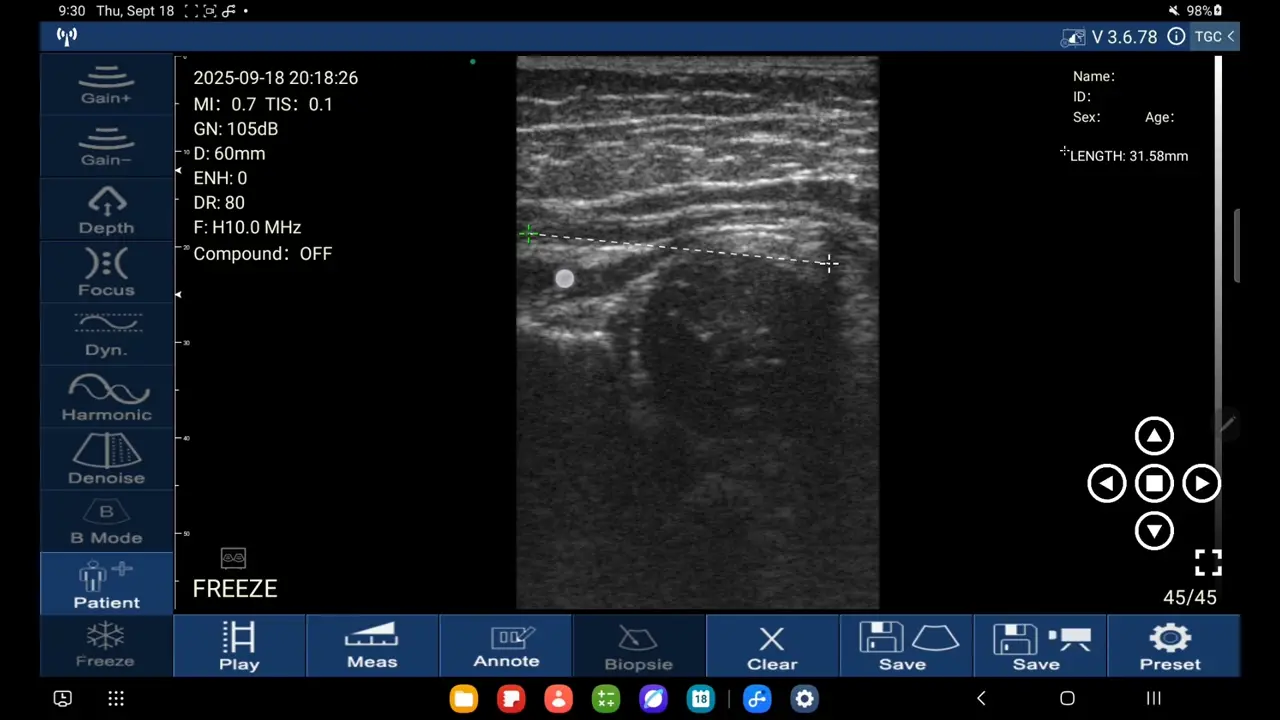

Infant hip, Graf method
A developmental hip dysplasia sweep on an infant, with the on-screen calipers set for the alpha angle. The small footprint reaches the joint without displacing the leg.
recorded on a Suresult handheld during a developmental hip screen
Select a card to switch capture
Technique basics
How the exam comes together, probe to report

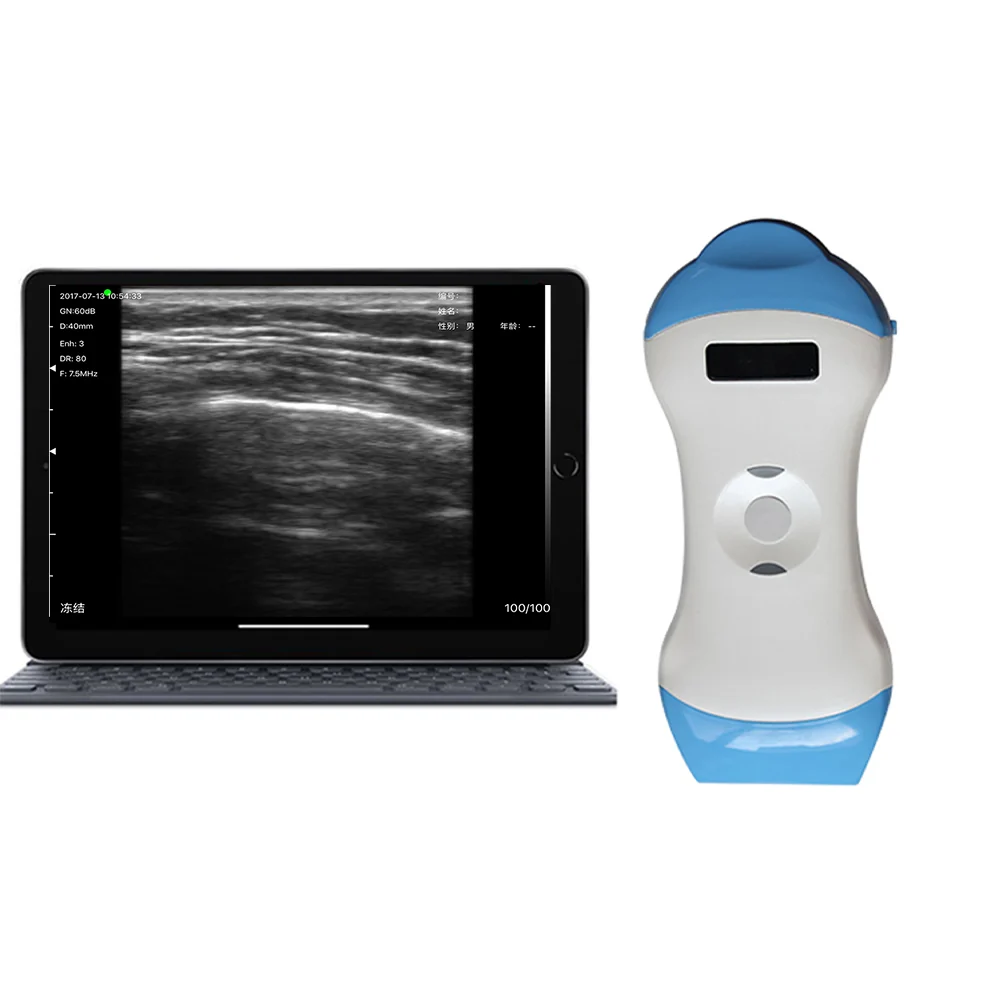

Match the head to the patient, not to the room.A newborn chest wall, hip, abdomen or vessel sits within about 8 cm of the skin. A high-frequency linear head and a small micro-convex head cover most of that work. The D2LM carries both faces in one body.
Linear 10/12 MHz, micro-convex 5/7 MHz

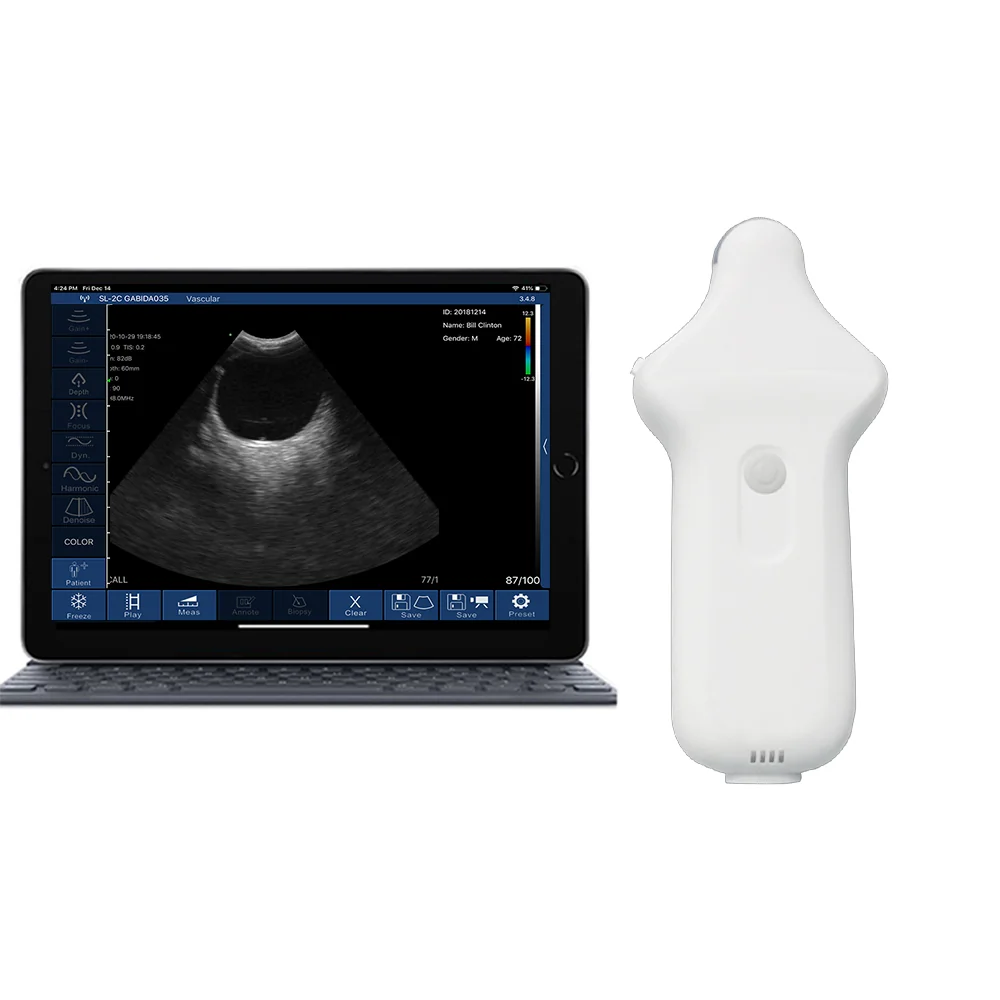

Use the micro-convex face where a flat head will not sit.The E11 presents an R13 micro-convex face on a 103 g body and images from 30 to 80 mm. That geometry gets between small ribs and under a costal margin.
R13 face, 103 g, 3-hour battery

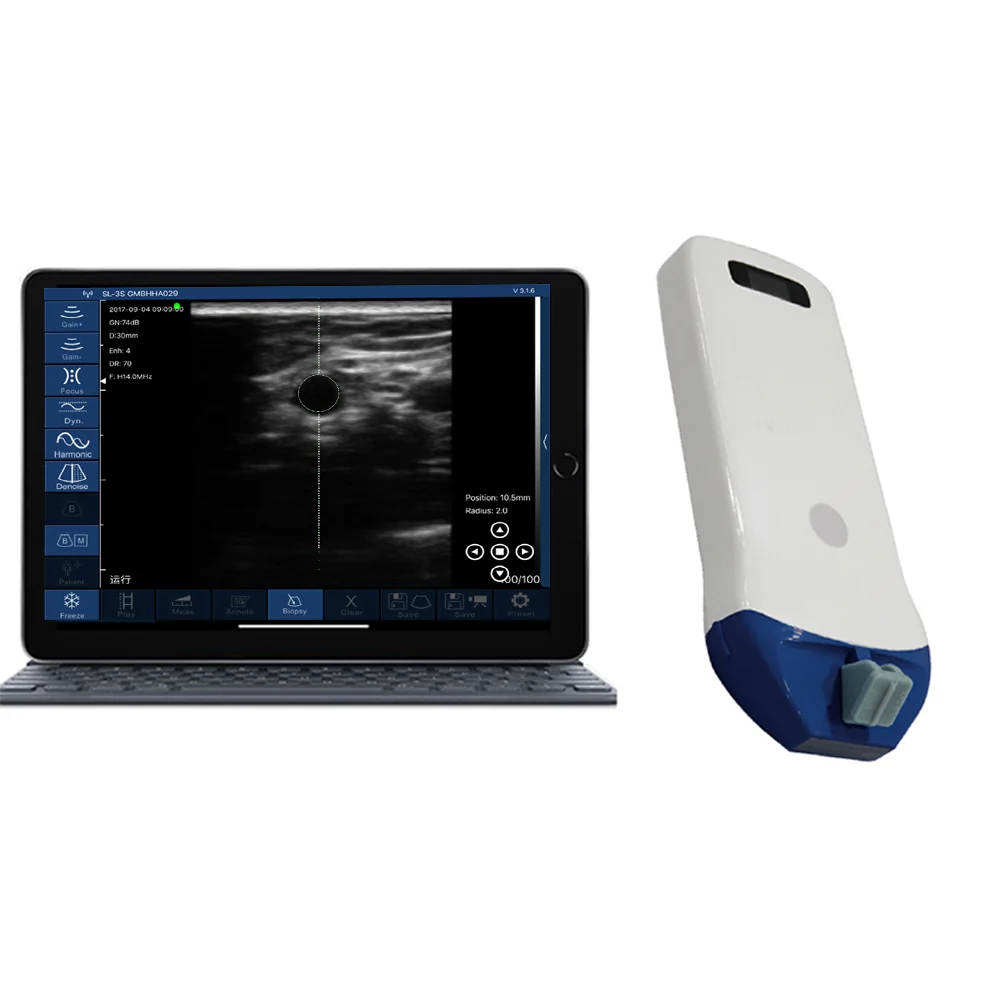

Keep depth shallow and let the linear head carry the detail.The L14 runs 10/14 MHz across a 25 mm face with 192 elements and images from 20 to 80 mm. On-screen puncture guides put a target position and radius over the live image.
20 to 80 mm, 192 elements

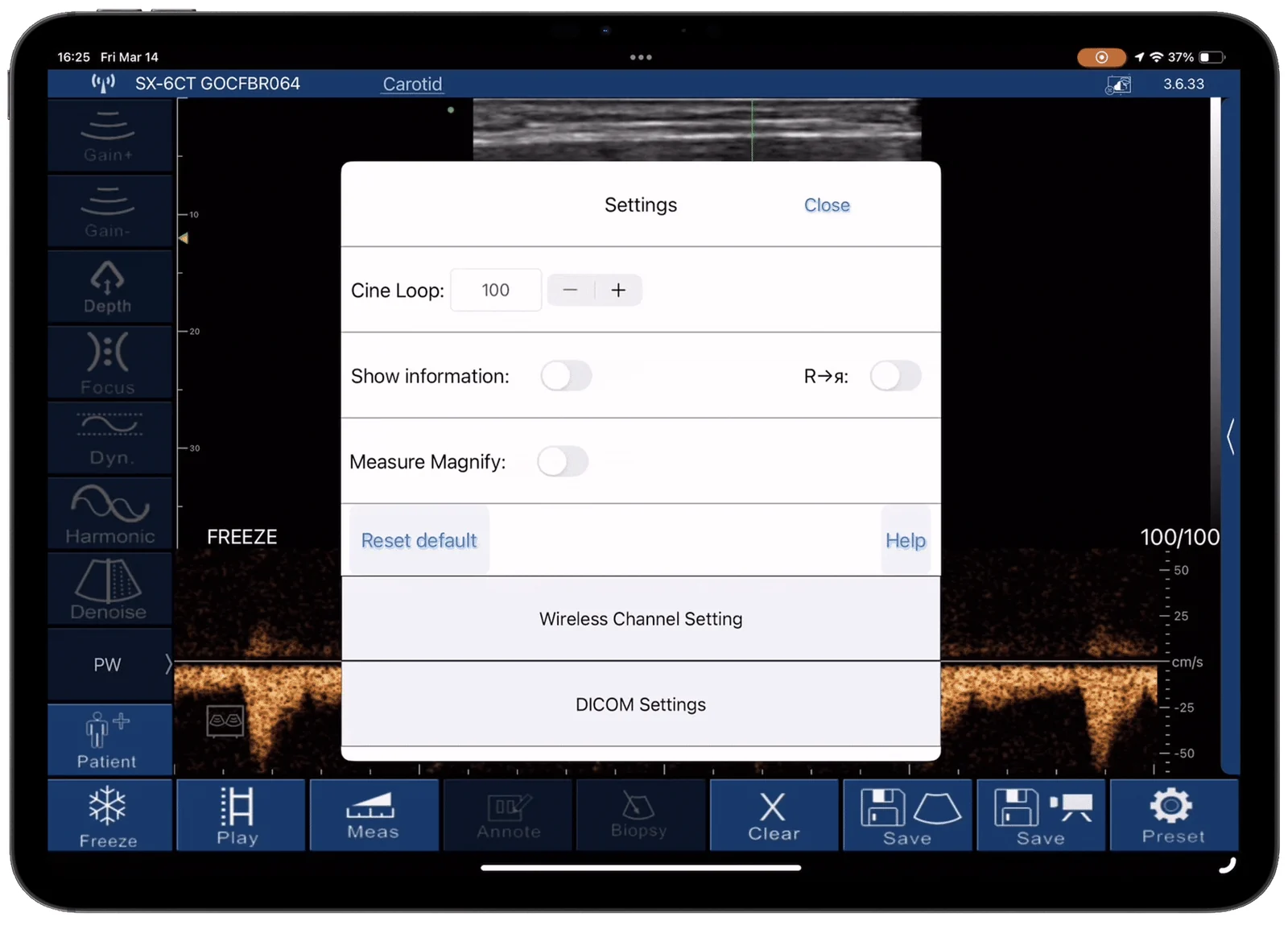

Save the study before you leave the cot.Every scanner on this page writes stills and cine loops to the tablet and exports DICOM, JPEG, PNG or MP4. Storage is local and no membership gates it.
DICOM export, no membership
What the research says
The evidence, three studies checked
- A lung ultrasound score predicted which preterm babies needed surfactant.
In 130 neonates on continuous positive airway pressure, the lung ultrasonography score predicted surfactant need with an area under the curve of 0.93 below 34 weeks' gestation.
Brat et al., JAMA Pediatr 2015 - Lung ultrasound found every pneumothorax in decompensating newborns.
Among 42 infants who suddenly decompensated, lung ultrasound diagnosed pneumothorax with 100% sensitivity and 100% specificity, against 84% and 56% for clinical evaluation.
Raimondi et al., J Pediatr 2016 - Ultrasound guidance cut umbilical catheter tip malposition in a randomized trial.
In 53 randomized neonates, tip malposition occurred in 42.3% of ultrasound-guided umbilical venous catheters against 74% with the standard insertion method.
Kaur et al., Indian J Pediatr 2022
Pick your model
Pick the model that fits your day
MOST CHOSENA newborn unit buying one scannerD2LM
A newborn unit buying one scannerD2LMThe D2LM puts a 10/12 MHz linear face and a 5/7 MHz micro-convex face on one 237 g body. That pairing covers the chest wall, the hip, the abdomen and a line site without swapping hardware.
two faces, one body, dual head
$2,418 D2LM · Handheld Ultrasound - Micro-Buy nowView D2LM →
The smallest patients, the tightest windowsE11The E11 is the lightest scanner here at 103 g, with an R13 micro-convex face and 30 to 80 mm of depth. Its battery runs three hours of continuous scanning between charges.
103 g, R13 face, micro-convex
$1,767 E11 · Micro-Convex Portable UltrasBuy nowView E11 →
A unit that also scans adultsD3UltraThe D3Ultra carries convex, linear and phased formats on 192 elements and 64 channels, reaching 300 mm on the convex and phased faces. It is the handheld behind the infant hip capture in the atlas.
three formats, three heads
$2,976 D3Ultra · Convex Linear Phased MultipuBuy nowVoir D3Ultra →Scanner comparison
Seven Suresult handhelds a neonatal unit can actually use, compared
Swipe to see all columns →
| Modèle | Prix | Fréquence | Profondeur | Meilleur pour |
|---|---|---|---|---|
| D2LM | $2,418 | Linear 10/12 MHz, micro-convex 5/7 MHz | Linear 20 to 80 mm, micro-convex 60 to 160 mm | Two faces for a newborn: superficial linear plus an R20, 88 degree micro-convex |
| E11 | $1,767 | Micro-convex 8/11 MHz | 30 to 80 mm | The smallest face here at R13, on the lightest body at 103 g |
 L14 | $2,139 | Linear 10/14 MHz | 20 to 80 mm | 192 elements on a 25 mm face, for chest wall, hip and line work |
 L10SH | $3,534 | Linear 7.5/10 MHz | 20 to 100 mm | 256 elements and 64 channels, with Needle Enhance on the puncture guides |
| D3Ultra | $2,976 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex and phased 90 to 300 mm, linear 20 to 100 mm | Three formats on 192 elements when the same probe also scans adults |
 D3L | $2,418 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex and phased 90 to 305 mm, linear 20 to 80 mm | Three formats with a 4,200 mAh battery and 3 hours of scanning |
 CD2 | $2,697 | Linear 7.5/10 MHz, phased 2.2/3.6 MHz | Linear 20 to 100 mm, phased 90 to 190 mm | A sector face for the heart and a linear face for lines, at 150 g |
Against the known brands
Suresult vs Clarius L15 HD3, Butterfly iQ3 and GE Vscan Air CL for neonatology
Swipe to see all columns →
| Suresult | Clarius L15 HD3 | Papillon iQ3 | GE Vscan Air CL | |
|---|---|---|---|---|
| Probe formats | Micro-convex, linear, convex and phased faces across the range; the D2LM and E11 are the micro-convex options | A linear scanner, published at 5 to 15 MHz with 7 cm of depth | One semiconductor probe; no micro-convex head offered | A curved and a linear array; no micro-convex head offered |
| Micro-convex newborn head | Yes: the E11 at R13 and the D2LM at R20, 88 degrees | Not offered in the L15 HD3 | Not offered | Not offered |
| Device price | $2,418 for the D2LM and $1,767 for the E11, published on the product pages | $3,795 for the scanner | $3,899 for the probe | À partir de 1 499,99 € |
| Software fee | None. The app, its measurements and DICOM export ship with the scanner | $695 a year for Essentials, or $2,500 once, or $1,785 for three years | $299 a year for Core, $420 a year for Advanced, or $1,500 once for five years | Digital Tools sold separately as a 1-year or 3-year subscription; public estimates put it at $300 to $600 a year |
| Software cost over five years | $0 | $3,475 at $695 a year | $1,495 at $299 a year, or $1,500 paid once | $1,500 to $3,000 on those public estimates |
| Plateformes | iOS, Android and Windows on every model on this page | iOS et Android | iOS et Android | iOS et Android |
| Landed cost | Duties and shipping included in the checkout price, delivered in 1 to 7 days | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- Two faces in one body: the D2LM pairs a 5/7 MHz micro-convex head with a 10/12 MHz linear head.
- A micro-convex head that fits a newborn: the E11 presents an R13 face on a 103 g scanner.
- No software fee.Color Doppler, M-mode, measurements and DICOM export ship with every scanner on this page.
- Puncture guides on every model on this page, with Needle Enhance added on the L10SH and the D3Ultra.
- iOS, Android and Windows on every model on this page, so the app runs on the tablet already at the cot side.
- The checkout price is the landed price, with duties and shipping included and delivery in 1 to 7 days.
- Real infant footage on this page, including a Graf-method hip plane captured on a Suresult handheld.
- Documentation published for FDA 510(k), ISO 13485, EU MDR (CE), TGA, ANVISA and Health Canada.
The five-year math
Clarius publishes $695 a year for its Essentials membership, which reaches $3,475 by year five before the scanner itself is counted. Butterfly publishes $299 a year for Core, or $1,500 once for five years. Suresult scanners carry no membership.
D2LM, paid onceClarius L15 HD3: scanner + membership= $3,475 in fees alone by year five
Three models, one decision
Not sure which model fits your cases?
One conversation gets a direct recommendation: the right Suresult probe, or a straight “neither.”
Les meilleurs échographes portables pour la meilleure imagerie néonatale sur le lieu de soins
L'accent est mis sur la détection précoce, des interventions plus rapides et moins de perturbations pour les nouveau-nés vulnérables.
D3Ultra
D3Ultra Échographe portable polyvalent à phase linéaire convexe
Fréquence : Sonde convexe / phasée 3,2/5,0 MHz Sonde linéaire 7,5/10 MHz
Profondeur de balayage : Linéaire : 20-100mm, Convexe & Phasé : 90-300mm
Néonatologie
buy scanner
D3Pro
D3Pro Dual-Head 3-in-1 Wireless Ultrasound Scanner
Fréquence : Sonde convexe / phasée 3,2/5,0MHz, sonde linéaire 7,5/10MHz
Profondeur de balayage : Sonde convexe / phasée : 90-305mm, Sonde linéaire : 20-80mm
Néonatologie
buy scanner
D3L
D3L Sonde de diagnostic à ultrasons 128 éléments, Convexe Linéaire Phasé 3 Modes
Fréquence : Sonde convexe / phasée 3,2/5,0 MHz Sonde linéaire 7,5/10 MHz
Profondeur de balayage : Sonde convexe / phasée : 90-305mm, Sonde linéaire : 20-80mm
Néonatologie
buy scanner
Ce qu'il faut prendre en compte avant d'acheter un échographe portatif pour les nouveau-nés
Choisissez l'appareil idéal pour les prématurés et les nouveau-nés en soins intensifs avec une sonde à haute fréquence et des diagnostics à accès rapide.
Before you buy
Ce qu'il faut vérifier avant d'acheter
What is the best portable ultrasound for a NICU?
The Suresult D2LM is the only Suresult handheld carrying both a 5/7 MHz micro-convex head and a 10/12 MHz linear head in one body. Units that need the smallest face choose the E11 instead.
Which probe format do you need for neonatal ultrasound?
A newborn exam needs two formats. A 10 to 14 MHz linear head reads the chest wall, hip and vessels. A micro-convex head running 5 to 11 MHz reaches windows a flat head cannot sit on.
What is a micro-convex probe, and why does it matter for newborns?
A micro-convex probe has a small curved face, quoted as a radius. The Suresult E11 uses R13 and the D2LM uses R20, which is what lets either sit between small ribs.
Can a handheld ultrasound image a newborn's lung?
Yes. The pleural line and the vertical artifacts below it are superficial findings, well inside the 20 to 80 mm range of the Suresult L14 linear head.
Does lung ultrasound predict the need for surfactant?
A 2015 study of 130 neonates on CPAP found a lung ultrasonography score predicted surfactant need with an area under the curve of 0.93 below 34 weeks' gestation.
Can a handheld find a pneumothorax in a decompensating newborn?
In a 2016 study of 42 suddenly decompensating infants, lung ultrasound identified pneumothorax with 100% sensitivity and 100% specificity, against 84% and 56% for clinical evaluation.
Does ultrasound help place an umbilical venous catheter?
A 2022 randomized trial of 53 neonates found tip malposition in 42.3% of ultrasound-guided umbilical venous catheters, against 74% with the standard insertion method.
What frequency should a neonatal probe run at?
Superficial newborn work sits at 10 MHz and above, which is why the L14 runs 10/14 MHz and the D2LM linear head runs 10/12 MHz. Deeper windows drop to 5 to 8 MHz.
How much does a neonatal ultrasound probe cost?
The Suresult E11 is $1,767 and the D2LM is $2,418, software included. Clarius publishes $3,795 for the L15 HD3 and Butterfly publishes $3,899 for the iQ3.
Is there a subscription on a Suresult scanner?
No. Color Doppler, M-mode, measurements, puncture guides and DICOM export are included with the scanner. Clarius publishes $695 a year for Essentials and Butterfly publishes $299 a year for Core.
Does the app export DICOM?
Yes. Every scanner on this page saves stills and cine loops to the tablet. The app exports DICOM, JPEG, PNG or MP4 to local storage, with no membership required.
Can the same probe scan an infant hip?
Yes. The atlas on this page shows a Graf-method coronal hip plane captured on a Suresult D3 handheld at 60 mm depth with a 10 MHz harmonic linear head.
Can a handheld replace the cart scanner in a newborn unit?
No. A handheld covers focused questions: lung pattern, hip screening, line position and gross cardiac assessment. Detailed cranial studies and full quantitative echocardiography stay on a cart system.
Which Suresult model suits a neonatal unit, a mixed pediatric clinic or a general ward?
A neonatal unit buying one scanner takes the D2LM. The smallest windows take the E11. A unit that scans adults as well takes the D3Ultra or the D3L.
Sonde linéaire (7-13 MHz)
Indispensable pour scanner les organes superficiels comme les poumons ou pour guider l'accès vasculaire chez les nouveau-nés.
Sonde micro-convexe (5-7 MHz)
Offre un faible encombrement et une profondeur de pénétration idéale, parfaite pour l'imagerie néonatale abdominale et crânienne.
Sonde à réseau phasé (2-5 MHz)
Idéal pour une évaluation cardiaque rapide au chevet du patient, y compris la détection d'un épanchement péricardique ou l'évaluation de la fonction cardiaque.
Doppler avec PW/CW
Garantit des mesures précises du débit dans les vaisseaux néonataux - idéal pour les évaluations de l'artère cérébrale ou du canal artériel.
Mode de visualisation de l'aiguille
Permet une mise en place sûre et précise de la ligne avec un traumatisme minimal des vaisseaux fragiles.
Présélection de l'auto-optimisation
Idéal pour obtenir une image claire sans avoir à régler manuellement le gain ou la profondeur - vital lorsque le temps est compté.
Partage sécurisé des données
Pour collaborer avec des spécialistes hors site sans sortir le bébé de l'environnement de l'unité de soins intensifs néonatals.
Logiciel libre,
Scans illimités
Les échographes portatifs de Suresult sont fournis avec un logiciel puissant qui vous offre des fonctions illimitées sans frais supplémentaires. Profitez gratuitement de DICOM et du doppler à ondes pulsées, ainsi que d'une interface conviviale sur iOS, Android et Windows - vous pouvez ainsi vous concentrer sur la prestation de soins de qualité supérieure sans frais de logiciel.
Compatible avec toutes les plates-formes, à vie Mises à jour gratuites
Capturez les moindres détails, guidez avec précision et partagez avec facilité
Améliorez votre flux de travail en échographie grâce à notre solution tout-en-un. Faites l'expérience de la précision, de la simplicité et de l'efficacité à chaque examen.
Plus de 17 préréglages spécialisés
Sonde convexe / phasée
Sonde linéaire
27 Des mesures automatisées pour des diagnostics précis
Simplifiez votre travail grâce à un ensemble complet d'outils permettant des évaluations rapides et en temps réel.
Mode B
- Longueur, surface/circonférence, angle, tracé, distance
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
Mode B+M
- Fréquence cardiaque, temps, distance
- Diamètre interne du ventricule gauche (LVIDd, LVIDs)
- Fraction d'éjection (FE), volume systolique (SV)
Mode B+PW
- Vitesse, fréquence cardiaque, rapport S/D, profondeur
- Mesure automatique du débit des cuves
- Vitesse systolique maximale (PS), vitesse de fin de diastole (ED)
- Vitesse maximale moyennée dans le temps (TAMAX), vitesse moyenne moyennée dans le temps (TAMEAN)
- Indice de pulsatilité (IP), indice de résistivité (IR)
- Diamètre de la cuve (DIAM), débit (FL)
Cine Loop
Enregistrez jusqu'à 1000 images (≈165 secondes) de mouvement continu pour capturer chaque détail subtil.
Fonction d'assistance à la crevaison
Appréciez la précision dans le plan et guides hors plan pour renforcer votre confiance lors des interventions.
Exportations de fichiers flexibles
Enregistrez et partagez vos numérisations sans effort dans JPEG, MP4, PNG ou DICOM et s'intègrent parfaitement à votre flux de travail.
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- No required software subscription — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
FAQ
L'échographie manuelle Suresult peut-elle être utilisée sur des nourrissons de poids extrêmement faible à la naissance ?
Oui. Nos sondes linéaires à haute fréquence sont capables d'imager des nouveau-nés fragiles et de faible masse corporelle. Vous pouvez également choisir des modèles avec un encombrement réduit pour un balayage encore plus ciblé.
Quelle est l'efficacité de l'échographie portable pour l'imagerie pulmonaire néonatale ?
L'échographie pulmonaire avec les appareils Suresult peut vous aider à identifier le SDR, le TTN et le pneumothorax avec une grande sensibilité, ce qui facilite les décisions thérapeutiques telles que l'administration de surfactant. Veillez simplement à ajuster la profondeur de l'appareil en fonction de la taille du patient.
Can I perform functional echocardiography with Suresult handheld devices?
Oui. Grâce à la sonde à réseau phasé et aux fonctions Doppler, vous pouvez procéder à une évaluation complète du débit du canal artériel, de la fonction ventriculaire et de l'épanchement péricardique. Vous disposerez également d'outils calibrés pour mesurer la fonction cardiaque.
Les échographies Suresult permettent-elles de guider l'aiguille pour la mise en place de la ligne ?
Yes. With linear probes and built-in needle guidance, you can easily use it for central and peripheral line placement in neonates and reduce the number of attempts.
Comment puis-je stocker et partager des images en toute sécurité ?
Tous les scans sont stockés directement sur votre appareil iOS ou Android connecté via un Wi-Fi sécurisé, dans un format prêt pour le DME. À partir de là, vous pouvez facilement les exporter vers des PACS, des DICOM ou des systèmes en nuage.
Les ultrasons Suresult sont-ils faciles à nettoyer et à désinfecter dans les unités de soins intensifs néonatals ?
Oui. Tous les dispositifs Suresult sont fabriqués avec des matériaux de haute qualité, ont un design compact et des surfaces lisses et scellées. Vous pouvez les désinfecter rapidement entre deux patients à l'aide de n'importe quelle lingette médicale standard.
