Aesthetic ultrasound for facial injectors, from 10 to 24 MHz
Seven facial and skin windows captured on Suresult linear probes, covering vessel Doppler, caliper measurement and skin-layer depth. Published prices, software included, and no subscription.
Every scan on this page was recorded on this Suresult hardware family, by clinicians who bought it and by a clinical trainer who scans with it. Each clip is trimmed to the scan itself. ·Trusted by 8,717 clinicians →
Risposta rapida
An aesthetic ultrasound machine is a high-frequency linear scanner that shows facial vessels, filler deposits and skin layers before an injector places a needle.
- Suresult covers the face with three linear frequency bands: 18/24 MHz, 16/20 MHz and 10/14 MHz.
- Color and pulsed-wave Doppler put a waveform on a facial vessel before any product goes in.
- Depth settings start at 10 mm on the L24Pro and L20Pro, so the dermis and the injection plane stay at the top of the image.
- Every Suresult linear model records cine loops of up to 1,000 frames for the patient file.
The capture atlas
Seven real facial and skin windows, captured on Suresult linear probes
Unedited clinical captures · select any image to enlarge
Facial and superficial soft tissue on the L142 windows
Superficial soft-tissue planes on the L14
The tissue layers separate cleanly at 14 MHz over 40 mm of depth. Reading which plane a cannula sits in starts with layers this distinct.
captured by a buyer on an L14 at 14.0 MHz, 40 mm depth, gain 91 dB, dynamic range 70

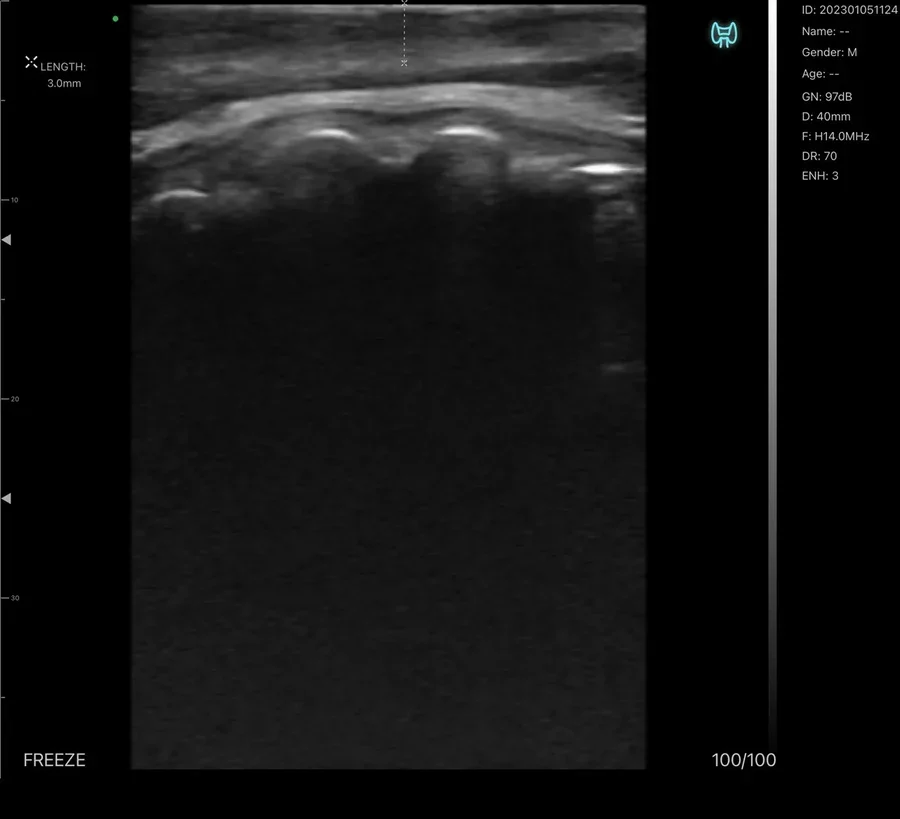

Nasal contour measured at 14 MHz
Calipers put 3.0 mm on the soft tissue over the nasal framework. A recorded figure is what makes a follow-up scan comparable.
captured by a buyer on an L14 at 14.0 MHz, 40 mm depth, caliper length 3.0 mmFacial vessels and superficial structures on the L143 windows

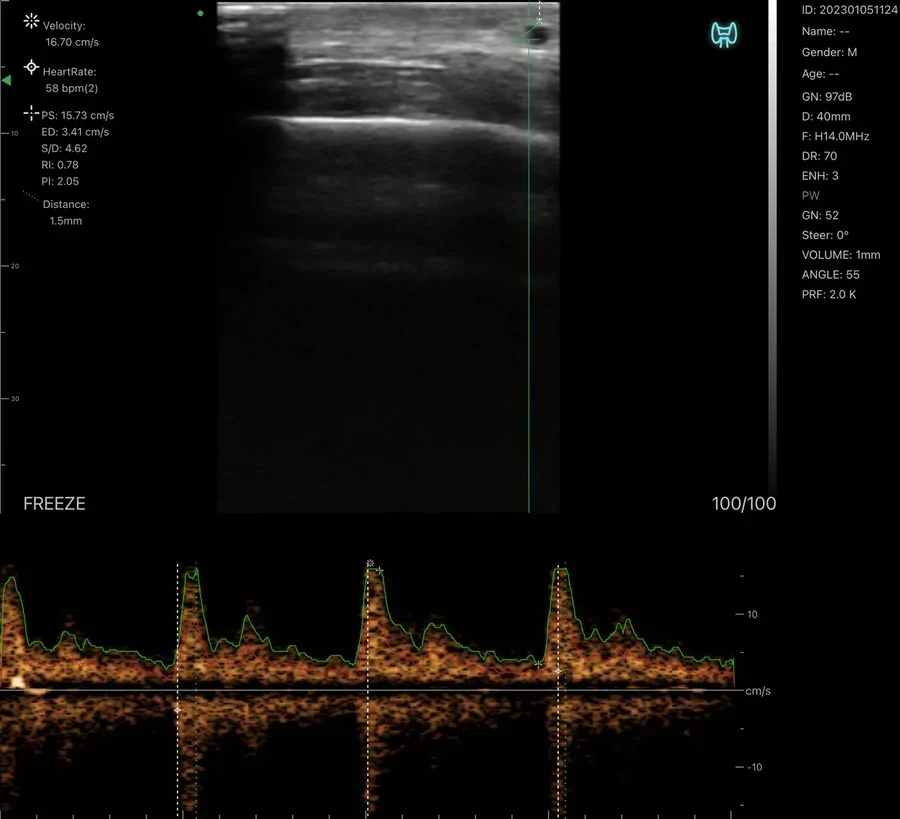

Pulsed-wave trace on a superficial facial vessel
The spectrum reads a peak systolic velocity of 15.73 cm/s and a resistive index of 0.78. An arterial waveform confirms what the color box only suggested.
captured by a buyer on an L14 at 14.0 MHz, sample volume 1 mm, angle 55 degrees, PRF 2.0 kHz

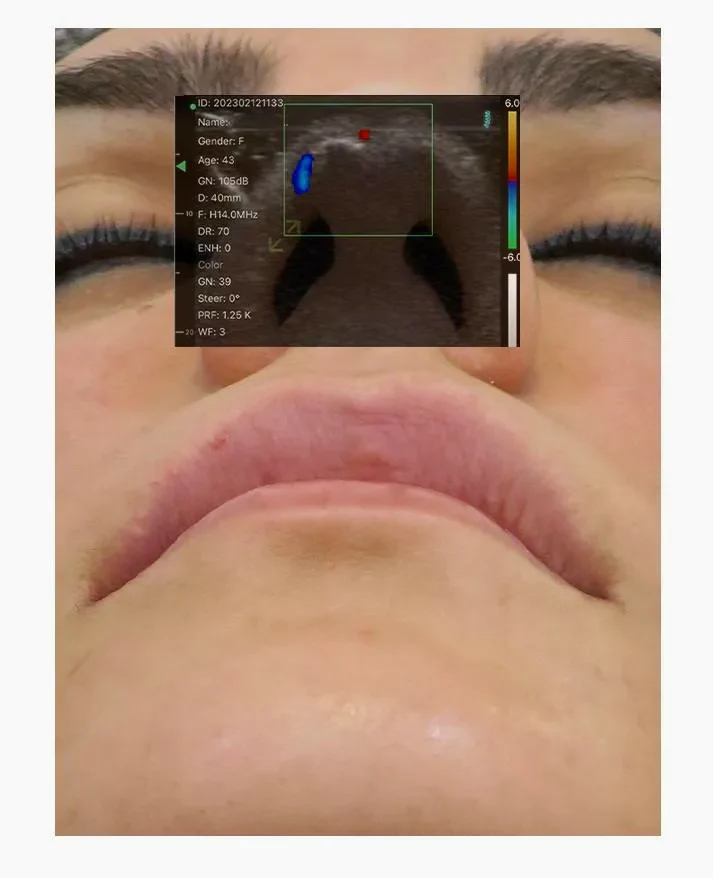

Doppler overlay on the treatment photo
The buyer composited the scan over the face it came from, with flow marked on the nasal dorsum. The record carries both the anatomy and the region it belongs to.
captured by a buyer on an L14 at 14.0 MHz, 40 mm depth, color gain 39, PRF 1.25 kHz

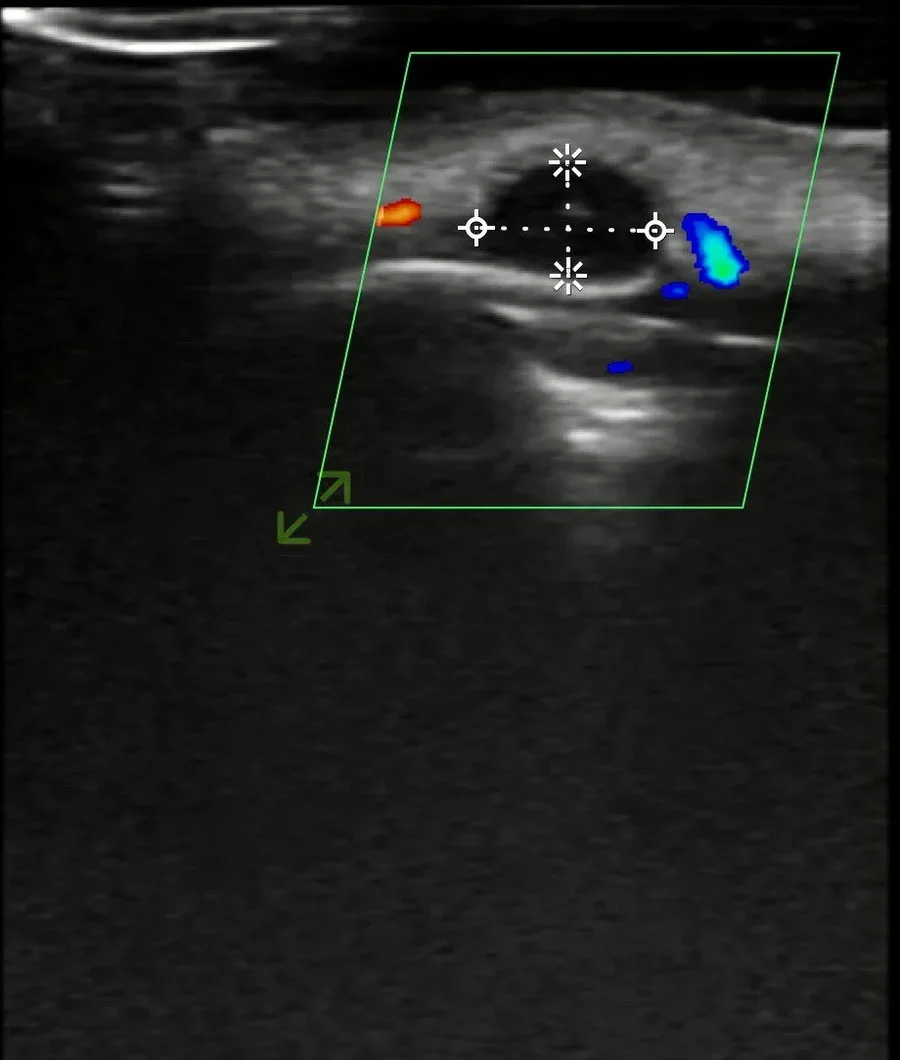

Anechoic superficial structure measured with flow at its edge
Calipers cross an anechoic superficial structure while color marks vessels at its margin. An injector needs the outline and the nearby flow in the same frame.
captured by a buyer on an L14; the library records 14.0 MHz for this frame, which is cropped to the image area and carries no on-screen headerSkin layers and cutaneous vessels on the L20Pro2 windows

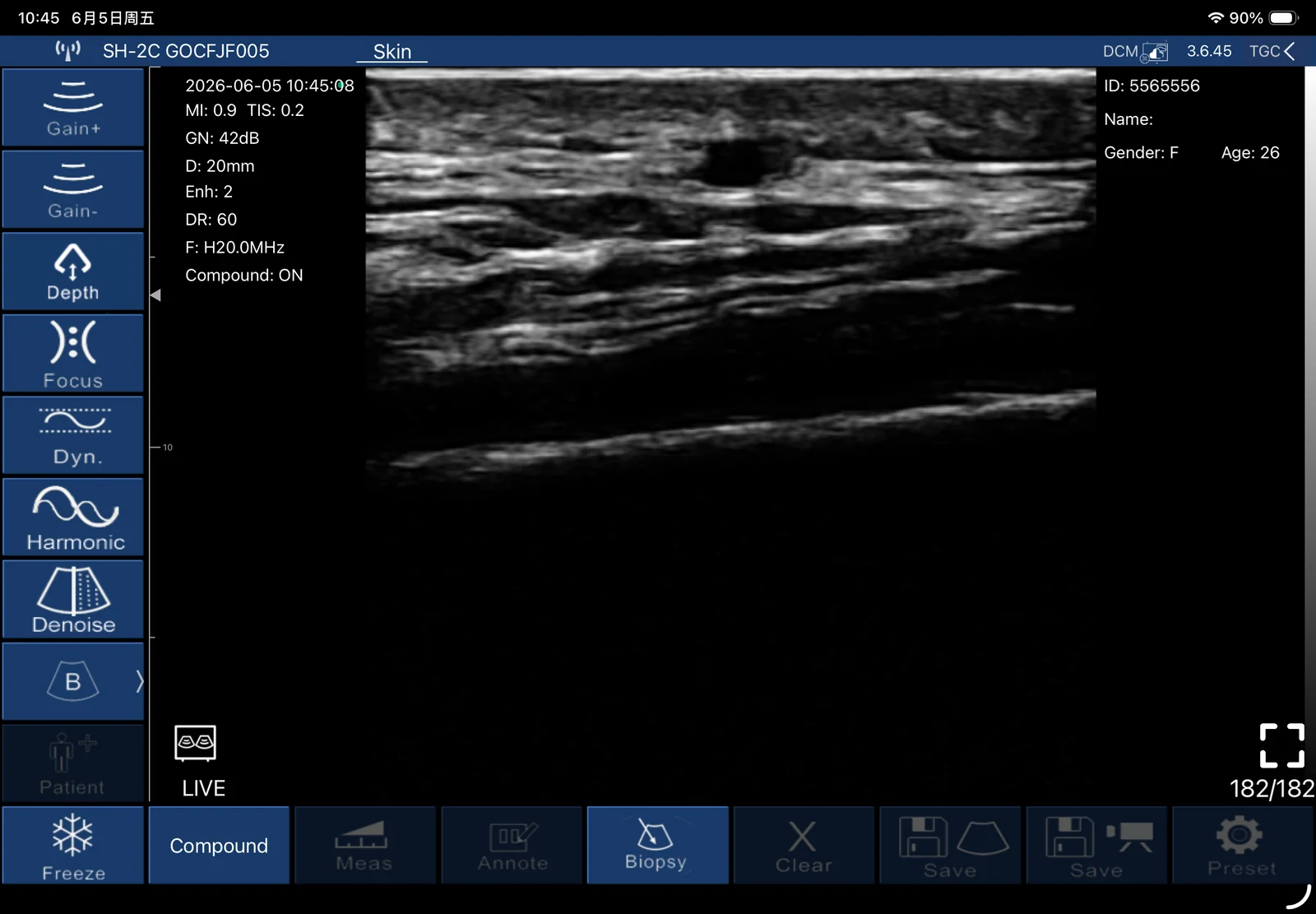

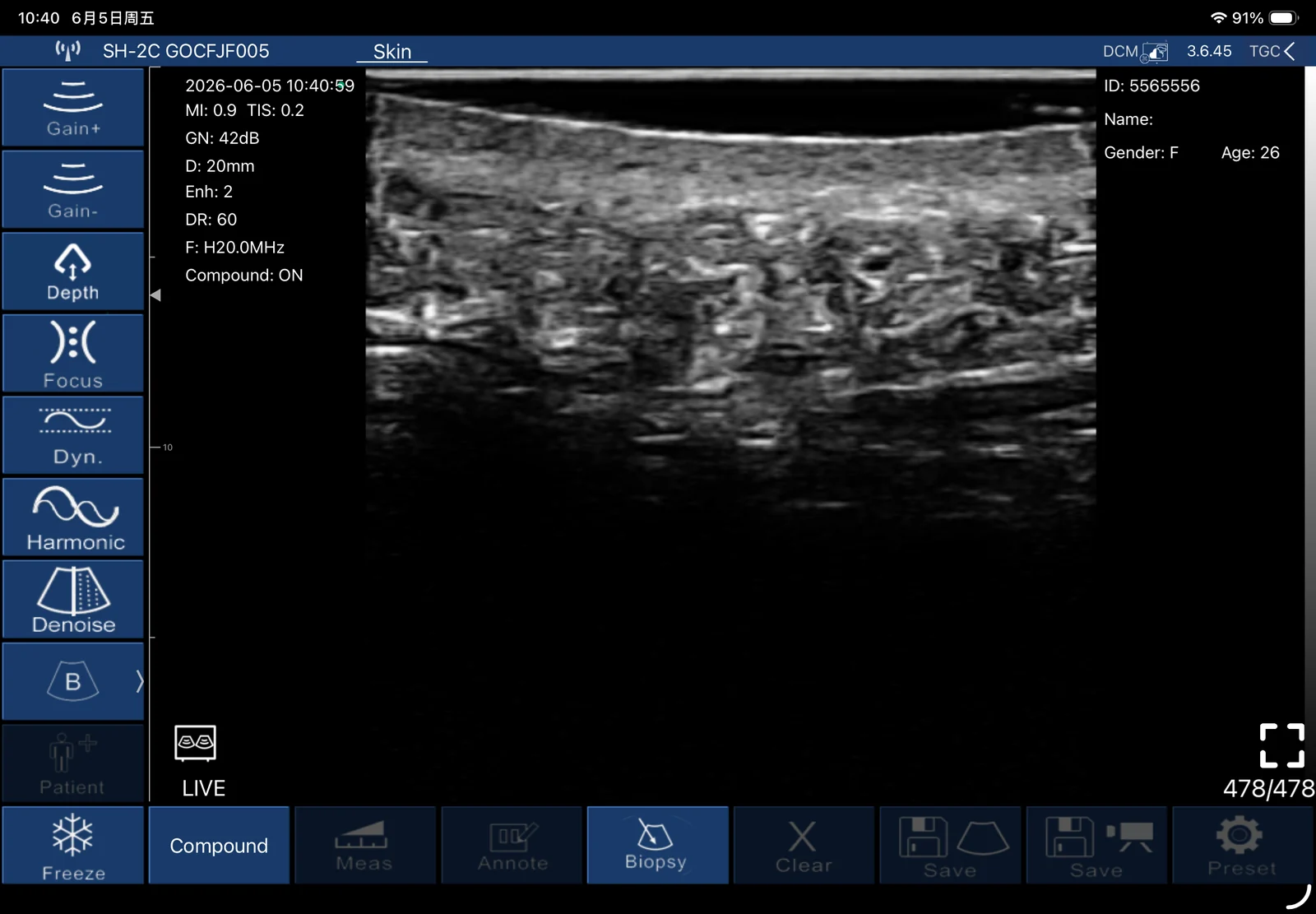

Epidermis to hypodermis on the L20Pro
At 20 MHz over 20 mm of depth the dermis and the fat layer below it read as separate bands. This is the view that sets a treatment depth in millimeters.
Suresult clinical demo capture on an L20Pro at 20.0 MHz, 20 mm depth, gain 42 dB, compound imaging on

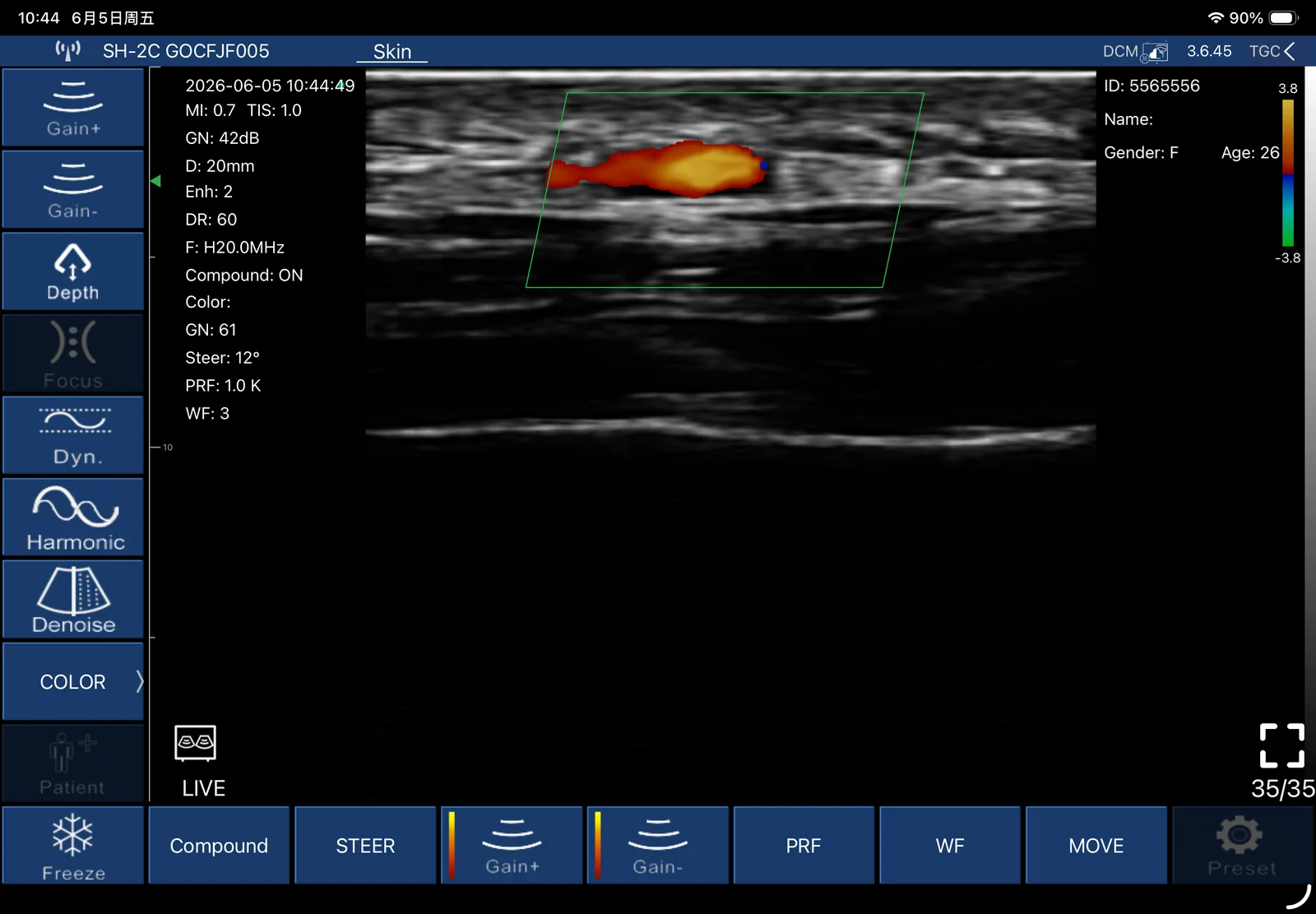

Superficial cutaneous vessel in long axis
Color fills a vessel inside the dermal plane at 20 MHz with the box steered 12 degrees. Steering is what recovers a flow signal from a vessel running parallel to the skin.
Suresult clinical demo capture on an L20Pro at 20.0 MHz, 20 mm depth, color gain 61, PRF 1.0 kHz, steer 12 degrees
Select a card to switch capture
Technique basics
How the exam comes together, probe to report

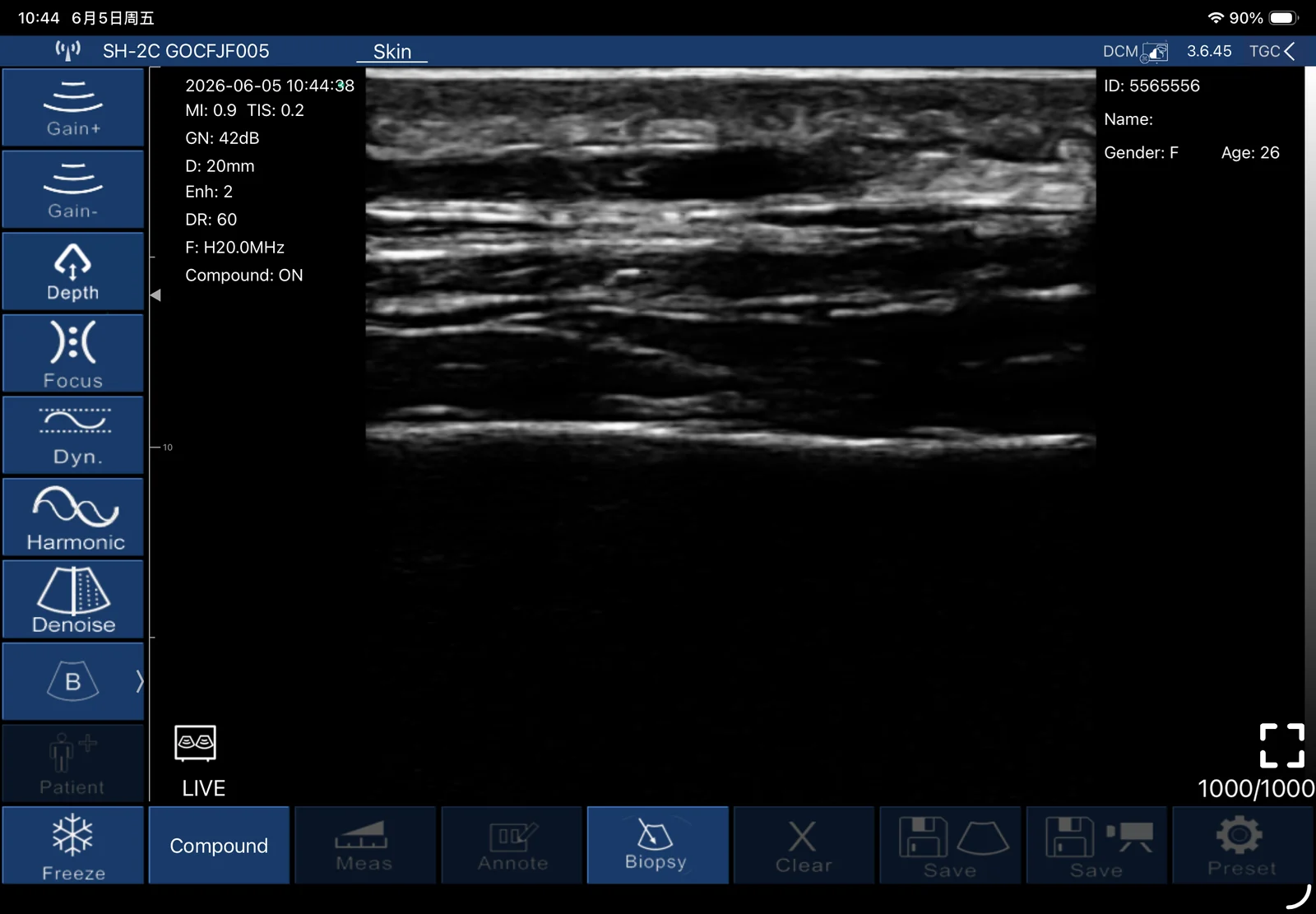

Pick the frequency the plane needs.The L24Pro holds 18/24 MHz for lip and nasal planes that sit in the first centimeter. The L20Pro keeps 16/20 MHz when the same scan has to reach 40 mm.
Frame shown: an L20Pro capture at 20 MHz

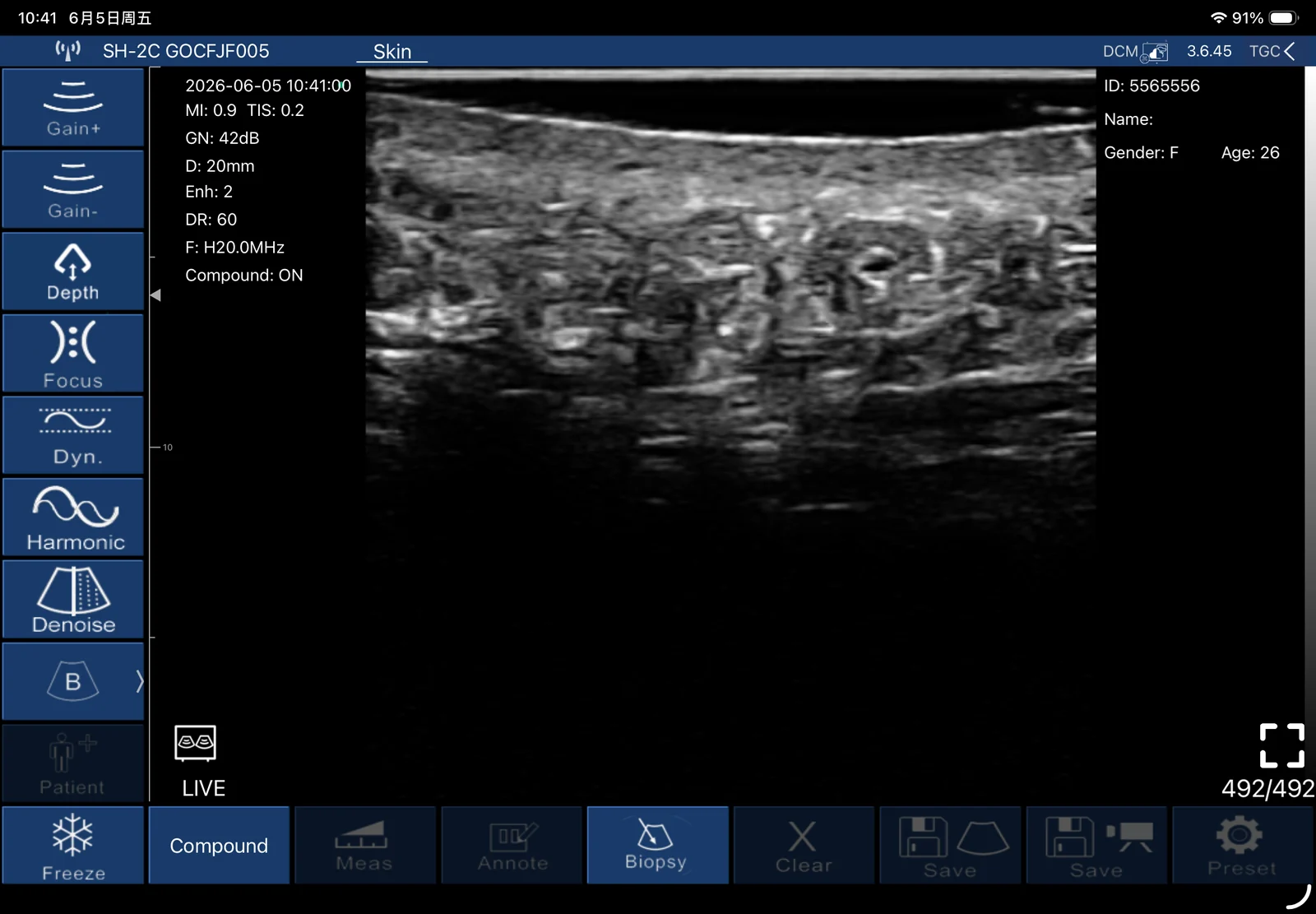

Set depth to 10 mm or 20 mm and fill the screen with skin.Shallow depth puts the dermis across the top third of the image, where the resolution is highest. Compound imaging on the Suresult app cleans up the fat septae underneath.
D: 20 mm on the header

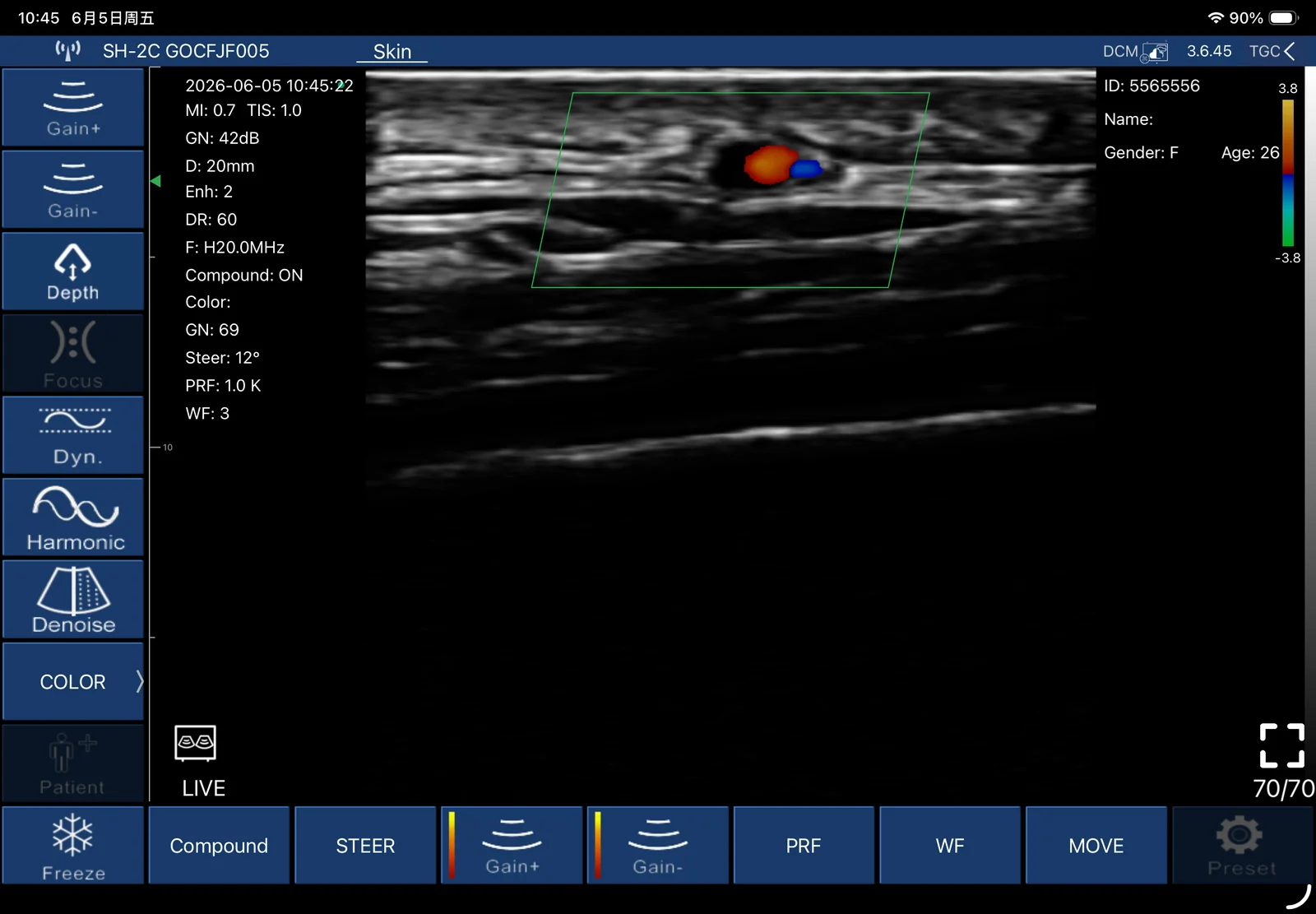

Map the vessel with color, then confirm it with pulsed-wave Doppler.A steered color box finds flow in a vessel that runs parallel to the skin. Pulsed-wave Doppler puts a velocity and a resistive index on what the color found.
PRF 1.0 to 1.25 kHz

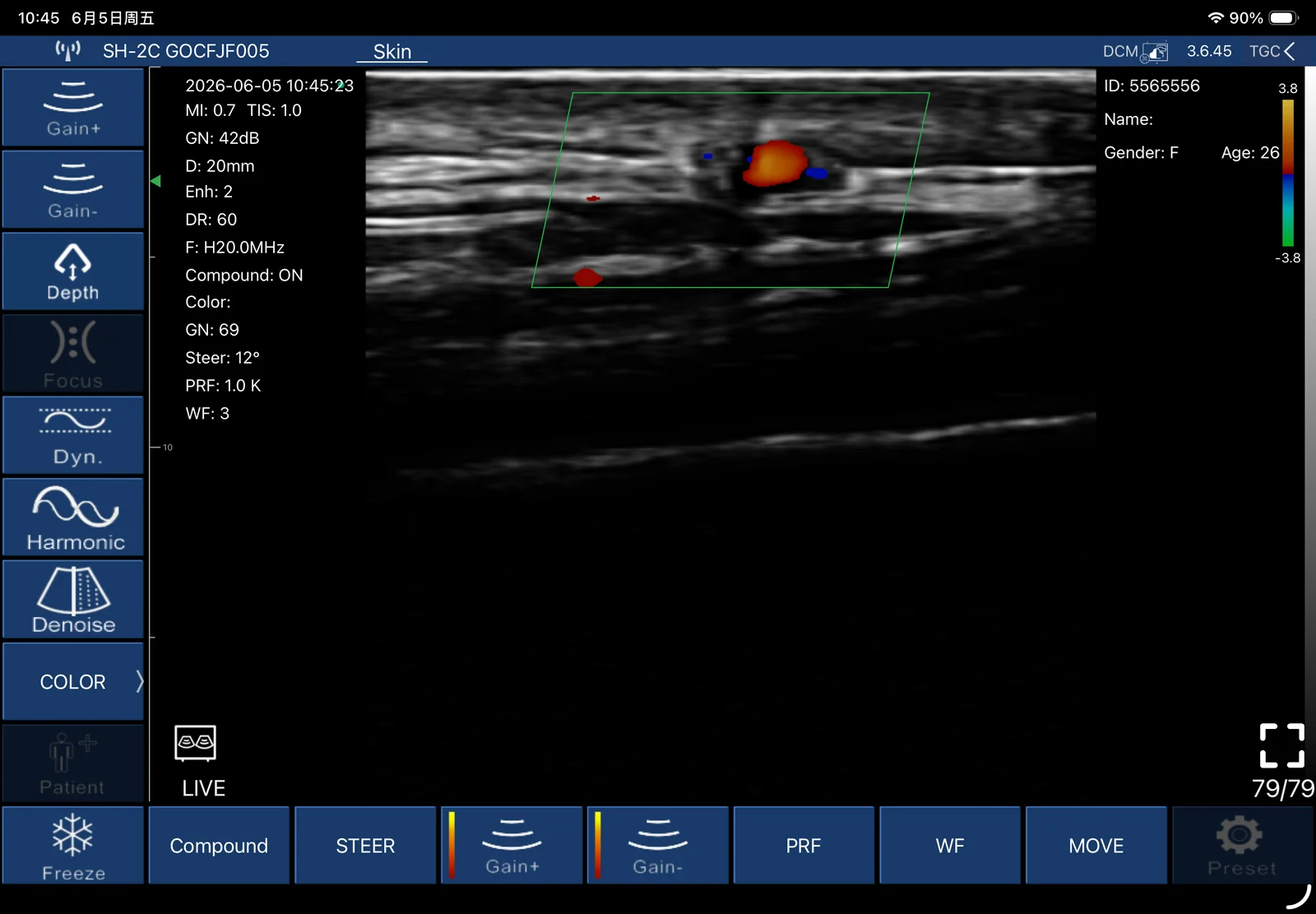

Measure and save before the first injection.Calipers put a millimeter figure on skin thickness or on a deposit, and the app stores it on the frame. Files export as DICOM, JPEG, PNG or MP4 for the patient record.
DICOM and MP4 export
What the research says
The evidence, three studies checked
- Facial arteries sit about three millimeters under the skin.
Ultrasound in 41 healthy volunteers measured the supratrochlear artery at a mean depth of 3.34 mm and the supraorbital artery at 3.54 mm. The authors rejected the idea that injecting beside a vertical glabellar line is safe because the artery runs deep to the crease.
Cotofana et al., Aesthet Surg J 2020 - High-frequency ultrasound told filler materials apart.
Among 94 patients scanned in the nasolabial groove, high-frequency ultrasound identified hyaluronic acid in 35 cases and polyacrylamide in 34. The authors concluded that high-frequency ultrasound has identification significance for filling materials in that area.
Jiang et al., Aesthetic Plast Surg 2022 - Ultrasound guidance cut the hyaluronidase dose.
A review of 96 articles on filler vascular occlusion reported that ultrasound guidance reduced the required hyaluronidase dose by up to tenfold. The same review put early-stage ischemia as reversible in up to 80% of cases when treatment starts within four to six hours.
Madero-Pérez et al., Aesthetic Plast Surg 2026
Pick your model
Pick the model that fits your day
MOST CHOSEN
Injectors working the nose and lipsL24Pro
Injectors working the nose and lipsL24ProThe L24Pro runs 18/24 MHz over a 256-element linear head with depth settings from 10 mm to 25 mm. That band resolves the planes an injector treats in the first centimeter of tissue.
18/24 MHz, face first
$4,185 L24Pro · 18/24 MHz 256-Element AestheBuy nowView L24Pro →
One scanner for aesthetics and skinL20ProThe L20Pro holds 16/20 MHz and adds depth settings to 40 mm, which covers facial planes and general cutaneous work. Every capture in the skin group of this atlas came off this model.
16/20 MHz, skin and face
$3,720 L20Pro · 16/20 MHz High-Frequency LinBuy nowView L20Pro →
Aesthetic work plus deeper scanningL14ProThe L14Pro runs 10/14 MHz with depth settings of 20, 40, 60 and 80 mm on a 256-element head. The facial captures in this atlas were made at 14 MHz on the L14 line.
up to 80 mm, widest reach
$3,441 L14Pro · 10/14 MHz 256-Element LinearBuy nowView L14Pro →Scanner comparison
Six Suresult linear models for aesthetic work, compared
Swipe to see all columns →
| Modello | Prezzo | Frequenza | Profondità | Il meglio per |
|---|---|---|---|---|
| L24Pro | $4,185 | 18/24 MHz | 10/15/20/25 mm | Face-first filler planes, 256 elements |
 L24 | $3,441 | 18/24 MHz | 10/15/20/25 mm | The same 18/24 MHz band on a 192-element head |
| L20Pro | $3,720 | 16/20 MHz | 10/20/30/40 mm | Facial planes plus skin and superficial vessels |
 L20 | $2,790 | 16/20 MHz | 10/20/30/40 mm | 16/20 MHz on a 192-element head, 147 g |
| L14Pro | $3,441 | 10/14 MHz | 20/40/60/80 mm | Facial soft tissue plus deeper superficial work |
 L14 | $2,139 | 10/14 MHz | 20-80 mm | The model behind the facial captures on this page |
Against the known brands
Suresult vs Clarius L20 HD3, Butterfly iQ3 and GE Vscan Air SL for aesthetic clinics
Swipe to see all columns →
| Risultato | Clarius L20 HD3 | Farfalla iQ3 | GE Vscan Air SL | |
|---|---|---|---|---|
| Superficial imaging | 18/24 MHz on the L24Pro and 16/20 MHz on the L20Pro, 256 elements, depth from 10 mm | 8-20 MHz with 4 cm maximum depth on the Clarius product page | 1-12 MHz semiconductor array; the Small Organ preset is listed to 6 cm | Linear transducer listed at 3-12 MHz, up to 8 cm |
| Included imaging tools | Color, power and pulsed-wave Doppler plus needle guides on every linear model listed here | Clarius lists specialty software, updates and voice controls inside the Essentials membership | Butterfly splits features between its Core and Advanced technology tiers | GE lists its add-on software for Vscan Air as Digital Tools |
| Device price | $4,185 for the L24Pro, published on the product page | $5,395 published | $3,899 published | Starting at $4,999 published |
| Software fees | None; measurements, needle guides and DICOM export are included | Essentials membership listed at $695 a year, or $2,500 one time | Core $299 a year, Advanced $420 a year, or $1,500 for five years | Digital Tools for Vscan Air is sold as a separate software package from the scanner |
| Landed cost | Suresult's shipping and tax policy covers shipping, customs clearance, duties and applicable taxes; delivery is 1-7 or 3-10 business days by region | US list price; duties and shipping sit outside the listed figure | US list price; duties and shipping sit outside the listed figure | US list price; purchase terms are regional |
| Documents published | FDA 510(k), EU MDR (CE), Health Canada and ISO 13485 in the Suresult library | The Clarius L20 HD3 product page is the source used here | Butterfly pricing and specification pages are the source used here | GE specification and Digital Tools pages are the source used here |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- Seven facial and skin captures on this page come off Suresult linear probes and are published unedited.
- Suresult publishes linear models from 10 MHz to 24 MHz, so the frequency can match the plane being treated.
- Color and pulsed-wave Doppler ship on every Suresult linear model on this page, with in-plane and out-of-plane needle guides included.
- No subscription is required; measurements and DICOM export come with the scanner.
- The checkout price is the landed price, with shipping, customs clearance, duties and applicable taxes covered by Suresult's published shipping and tax policy.
- Suresult lists delivery at 1-7 business days after shipment for Europe, North America and Oceania, and 3-10 business days for Asia, Africa and South America.
- Cine loops of up to 1,000 frames record a full scan pass for the patient file.
- Certificates are published: FDA 510(k), EU MDR (CE), Health Canada and ISO 13485.
The five-year math
Clarius lists the L20 HD3 at $5,395 and its Essentials membership at $695 a year, which reaches $3,475 in membership by year five. Suresult scanners carry no subscription.
L24Pro, paid onceClarius L20 HD3: scanner + membership= $3,475 in fees alone by year five
Three models, one decision
Not sure which model fits your cases?
One conversation gets a direct recommendation: the right Suresult probe, or a straight “neither.”
Aesthetic workflow use cases
Cosa possono fare le cliniche estetiche con Suresult
Suresult helps aesthetic professionals add imaging to planning, consultation and documentation workflows.
- Prima di pianificare il trattamento, si proceda alla mappatura delle arterie e delle vene facciali mediante Doppler.
- Si prega di esaminare il piano di riempimento, la profondità e i tessuti molli superficiali circostanti.
- Valutate la presenza di noduli, vecchi segni di riempimento o anomalie dei tessuti molli quando un caso richiede un esame più approfondito.
- Confronti le immagini e i filmati durante le visite di controllo e i colloqui con i pazienti.
Ideale per: cliniche di medicina estetica, studi dermatologici, studi di chirurgia plastica e centri di formazione che desiderano disporre di immagini che documentino chiaramente i risultati prima e dopo il trattamento.
Why clinics choose Suresult
Perché le cliniche scelgono Suresult per gli ultrasuoni estetici
Suresult combina imaging superficiale ad alta frequenza, Doppler, un flusso di lavoro wireless, documentazione locale e l'assenza di abbonamenti software obbligatori.
Migliorate la consulenza estetica grazie all'imaging ad alta frequenza
Utilizzate l'imaging superficiale ad alta definizione, il Doppler a colori, il Doppler di potenza e i referti esportabili per supportare la mappatura facciale, la pianificazione del trattamento e la documentazione di follow-up.
Evidence and inspection path
Know what to look for before you choose
- Use image examples to inspect vessel signal, superficial tissue layers and filler-plane visibility.
- Use the scanner fit map to match frequency and depth to the facial region you scan most often.
- Use exportable images and cine loops for consultation notes, training review and follow-up comparison.
Clinical reading path
Peer-reviewed context for aesthetic ultrasound
External literature on Doppler vessel mapping, filler-plane review and facial anatomy education—useful background before choosing a scanner.
Scegliete in base al flusso di lavoro estetico, non solo alla frequenza della sonda
Utilizzate l'imaging ad alta frequenza e il Doppler per facilitare la mappatura dei vasi sanguigni del viso, la verifica dei livelli di riempimento, la valutazione della pelle e dei tessuti molli e una pianificazione più accurata dei trattamenti estetici.
L20Pro
L20Pro 16/20 MHz: ecografo lineare ad alta frequenza per trattamenti estetici, della pelle e del sistema muscolo-scheletrico superficiale
Frequenza: 16/20 MHz
Profondità di scansione: 10/20/30/40 mm
Estetica
buy scanner
L24Pro
Sonda ecografica estetica L24Pro da 18/24 MHz a 256 elementi per filler
Frequenza: 18/24 MHz
Profondità di scansione: 10/15/20/25 mm
Estetica
buy scanner
L14Pro
Sonda a ultrasuoni lineare L14Pro da 10/14 MHz a 256 elementi per l'apparato muscolo-scheletrico
Frequenza: 10/14 MHz
Profondità di scansione: 20/40/60/80 mm
Estetica
buy scanner
Cosa verificare prima di acquistare un ecografo per uso estetico
Prima di scegliere un dispositivo, valuti attentamente la frequenza, la profondità, la funzione Doppler, la documentazione, l'accesso al software e il flusso di lavoro in clinica.
Before you buy
Cosa controllare prima dell'acquisto
What is an aesthetic ultrasound machine?
An aesthetic ultrasound machine is a high-frequency linear scanner that images facial vessels, filler deposits and skin layers. Aesthetic clinics use it to plan an injection and to document the result.
Which Suresult model suits facial filler work?
The Suresult L24Pro is the face-first model at 18/24 MHz, with depth settings of 10, 15, 20 and 25 mm. Its 256-element linear head keeps the dermis and the injection plane at the top of the image.
What frequency does facial ultrasound need?
Ultrasound measured the supratrochlear artery at 3.34 mm below the skin, which is where 18 to 24 MHz resolves best. A 16/20 MHz model such as the Suresult L20Pro adds reach to 40 mm when the scan goes deeper.
How deep are the arteries an injector has to avoid?
Ultrasound in 41 volunteers measured the supratrochlear artery at a mean depth of 3.34 mm and the supraorbital artery at 3.54 mm. Those depths sit inside the range a 24 MHz linear probe images clearly.
Can a handheld scanner see hyaluronic acid filler?
A study of 94 patients scanned in the nasolabial groove identified hyaluronic acid in 35 cases with high-frequency ultrasound. Suresult L24Pro, L20Pro and L14Pro scanners cover 10 to 24 MHz for that kind of superficial imaging.
Do Suresult linear scanners have Doppler for vessel mapping?
Suresult L24Pro, L20Pro and L14Pro scanners carry color Doppler, power Doppler and pulsed-wave Doppler. The atlas on this page includes a pulsed-wave trace with a resistive index of 0.78 on a facial vessel.
How much does an aesthetic ultrasound machine cost?
A Suresult aesthetic linear model costs $2,139 for the L14 and $4,185 for the L24Pro, software included. Clarius lists the L20 HD3 at $5,395 and Butterfly lists the iQ3 at $3,899.
What is the five-year cost against Clarius?
Clarius lists the L20 HD3 at $5,395 and its Essentials membership at $695 a year, which is $3,475 in membership by year five. Suresult scanners carry no subscription.
Can a Suresult scanner document before-and-after for patient records?
Every Suresult linear model saves cine loops of up to 1,000 frames and exports as DICOM, JPEG, PNG or MP4. Measurements are stored on the frame, so a follow-up scan can be compared.
Is a handheld enough for an aesthetic clinic, or is a cart system needed?
A handheld linear probe covers facial vessel mapping, filler-plane review and superficial soft-tissue measurement. A cart system remains the choice for whole-body imaging or for a dedicated ultrasound department.
Which model fits a clinic that also scans musculoskeletal cases?
The Suresult L20Pro at 16/20 MHz reaches 40 mm, which covers facial work plus tendons and small joints. The L14Pro reaches 80 mm when the same clinic scans deeper muscle.
Are Suresult scanners the same as an at-home ultrasound facial device?
Suresult scanners are diagnostic imaging probes for clinicians, not home beauty appliances. A home device applies energy to tissue, while a diagnostic probe produces an image a clinician reads.
Which platforms run the Suresult scanner software?
Suresult linear scanners run on iOS, Android and Windows over a built-in dual-band Wi-Fi link. The Suresult app is included with the scanner and carries no subscription.
Does a Suresult linear probe show a needle during a filler or hyaluronidase injection?
Suresult L24Pro, L20Pro and L14Pro scanners include in-plane and out-of-plane needle guides plus needle enhancement. The setting is selected in the Suresult app before the pass begins.
Alta frequenza e risoluzione
L'ecografia estetica trae spesso vantaggio dall'imaging lineare ad alta frequenza. Il modello Suresult L24 raggiunge i 18/24 MHz per l'anatomia facciale superficiale, mentre il modello L20 offre 16/20 MHz con una copertura di profondità più ampia, compresa tra 10 e 40 mm.
Visualizzazione dell'ago
Una sonda che cattura il movimento dinamico dell'ago per un posizionamento preciso del filler e per trattamenti mirati come le iniezioni intralesionali.
Analisi del flusso Doppler
Il Doppler a colori e il Doppler a potenza aiutano a identificare le strutture vascolari visibili durante la pianificazione del trattamento e i controlli di follow-up mirati.
Impronta piccola
Viso compatto per manovrare le aree delicate del viso senza compromettere la qualità della scansione.
Integrazione di app e documentazione
Salvare, annotare e confrontare le scansioni all'interno delle sue cartelle cliniche, ideale per monitorare i risultati e coinvolgere i clienti.
Software gratuito,
Scansioni illimitate
Gli ultrasuoni portatili Suresult sono dotati di un potente software che le offre funzioni illimitate senza costi aggiuntivi. Può usufruire gratuitamente di DICOM e doppler a onde pulsate, oltre a un'interfaccia facile da usare su iOS, Android e Windows, in modo da potersi concentrare sull'erogazione di cure di alta qualità senza dover pagare alcun software.
Compatibile con tutte le piattaforme, a vita Aggiornamenti gratuiti
Cattura ogni dettaglio, guida con precisione e condivide con facilità.
Migliori il suo flusso di lavoro ecografico con la nostra soluzione all-in-one. Sperimenti precisione, semplicità ed efficienza in ogni scansione.
17+ Preset specializzati
Sonda convessa / fasata
Sonda lineare
5 modalità di scansione
27 Misurazioni automatizzate per una diagnostica precisa
Semplifica il suo lavoro con un set completo di strumenti per valutazioni rapide e in tempo reale.
Modalità B
- Lunghezza, area/circonferenza, angolo, traccia, distanza
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
Modalità B+M
- Frequenza cardiaca, tempo, distanza
- Diametro interno del ventricolo sinistro (LVIDd, LVIDs)
- Frazione di eiezione (EF), volume della corsa (SV)
Modalità B+PW
- Velocità, frequenza cardiaca, rapporto S/D, profondità
- Misurazione automatica del flusso del serbatoio
- Velocità sistolica di picco (PS), Velocità diastolica finale (ED)
- Velocità massima mediata nel tempo (TAMAX), Velocità media mediata nel tempo (TAMEAN)
- Indice di pulsatilità (PI), Indice resistivo (RI)
- Diametro del vaso (DIAM), flusso (FL)
Loop Cine
Registra fino a 1000 fotogrammi (≈165 secondi) di movimento continuo per catturare ogni minimo dettaglio.
Funzione di assistenza alla perforazione
Godetevi la precisione in piano e guide fuori piano per aumentare la sua fiducia durante gli interventi.
Esportazioni di file flessibili
Salvi e condivida le sue scansioni senza sforzo in JPEG, MP4, PNG o DICOM formati, integrandosi perfettamente con il suo flusso di lavoro.
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- No required software subscription — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
FAQ
Which Suresult scanner should a face-first aesthetic clinic start with?
Start with the L24 Series when shallow facial anatomy, vessel mapping, filler-plane review and follow-up documentation are the daily priorities. Choose L24 Standard for the lower entry price or L24Pro for the higher-spec Pro platform.

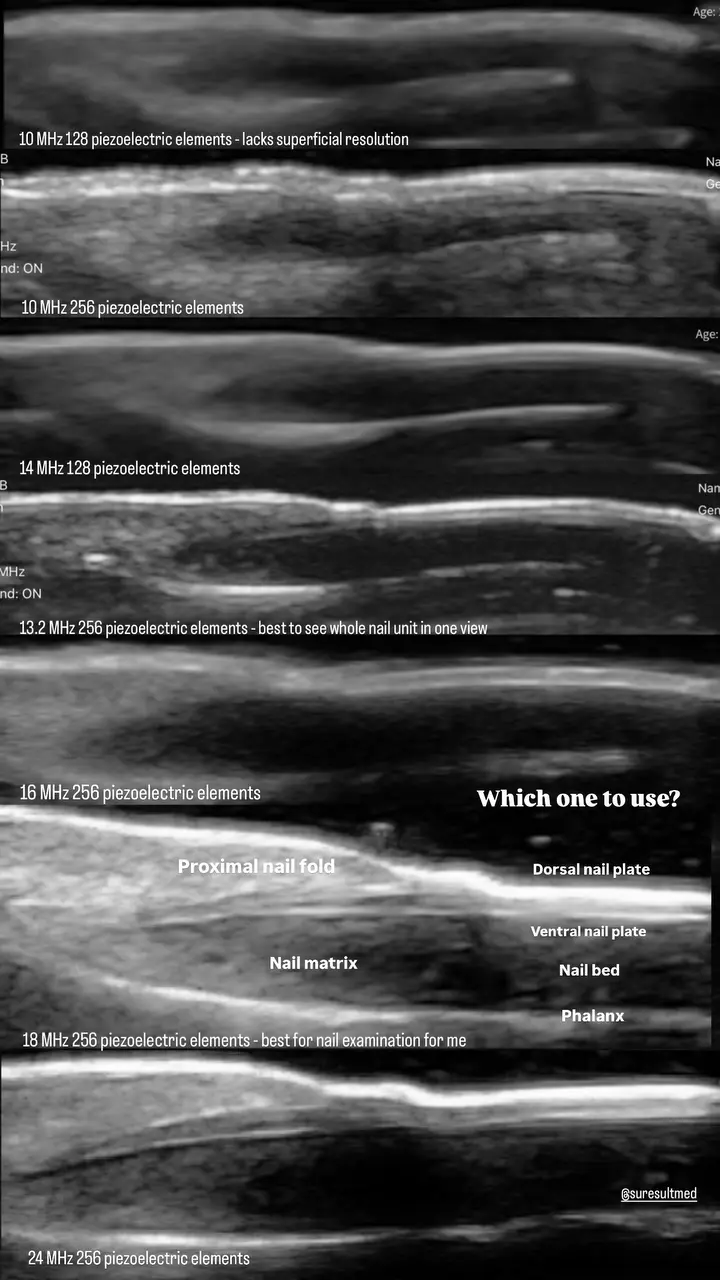

Why does 18/24 MHz matter for facial aesthetics?
Higher-frequency linear imaging helps show superficial structures at shallow depth. L24 is built around 18/24 MHz imaging and 10-25 mm depth; L20 uses 16/20 MHz with 10-40 mm depth when a broader clinic workflow matters more than the most shallow facial detail.
How do I choose between L24, L20, L14 and Pro versions?
Choose the series first: L24 for face-first superficial imaging, L20 for broader depth and mixed aesthetics or dermatology use, and L14 for deeper superficial or broader linear work. Then choose Standard for lower entry price or Pro for 256 elements, 64 channels, 4400 mAh battery and about 4 hours of scanning.

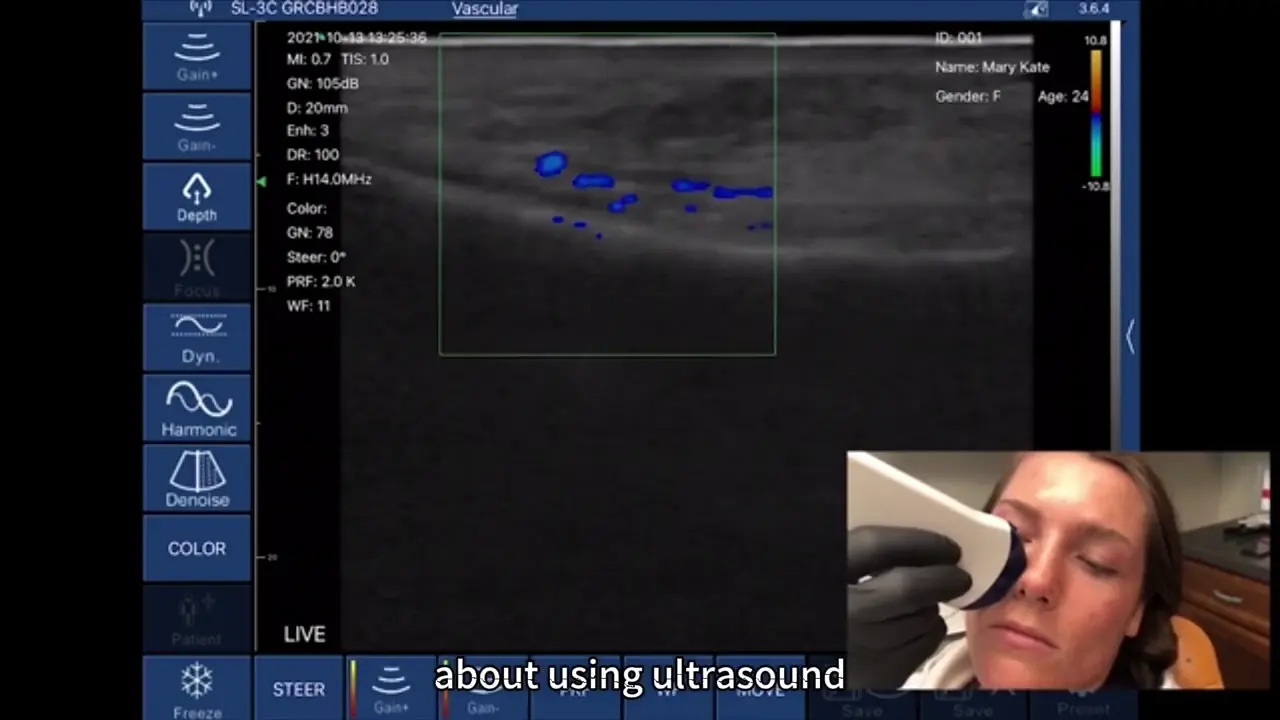

What role does Doppler play in aesthetic ultrasound?
Color and power Doppler can help identify visible vascular structures and flow signal during planning or concern-driven follow-up. It supports clinical judgment, training and documentation; it is not a guarantee against complications.
Can ultrasound help review old filler and document follow-up?
Ultrasound can support review of filler location, surrounding soft tissue and follow-up comparison when image quality, filler behavior and operator training are appropriate. Suresult scanners can also capture still images and cine loops for consultation records where supported.
Does Suresult require a software subscription for aesthetic ultrasound?
No required software subscription is positioned as a Suresult ownership advantage. Aesthetic clinics can use local records and export workflows where supported by the scanner and app, keeping software access more predictable after purchase.
