Handheld ultrasound for primary care, proven on real clinic scans
Liver to carotid: eight primary care windows captured by buyers on Suresult handhelds, with a hydronephrosis, a gallbladder and a lung B-line study on screen. Entry to a convex probe starts at $1,581, and the three-format D3Ultra behind most of this atlas is $2,976.
Every scan on this page was recorded on this Suresult hardware family, by clinicians who bought it and by a clinical trainer who scans with it. Each clip is trimmed to the scan itself. ·Trusted by 8,717 clinicians →
Risposta rapida
A handheld ultrasound for primary care is a wireless probe that pairs with a phone or tablet and answers focused questions inside the consultation. In a general practice the questions are usually abdominal, renal, bladder, lung and neck, so the probe format matters more than the brand.
- A convex head at 3.2 or 5.0 MHz reaches 300 mm on the C5SH and the D3Ultra, which covers a large liver and a full bladder.
- The D3Ultra carries convex, linear and phased heads in one 263 g probe, so abdomen, neck and lung run on the same device.
- Color Doppler, M-mode and pulsed-wave Doppler are on every model here except the entry C5B, and DICOM export is on all eight.
- One app runs on iOS, Android e Windows, so a clinic tablet and a personal phone both work as the screen.
The capture atlas
Eight real primary care windows, seven captured by buyers and one by a clinician who bought his Suresult probe before partnering on teaching videos
Unedited clinical captures · select any image to enlarge
Addome2 windows

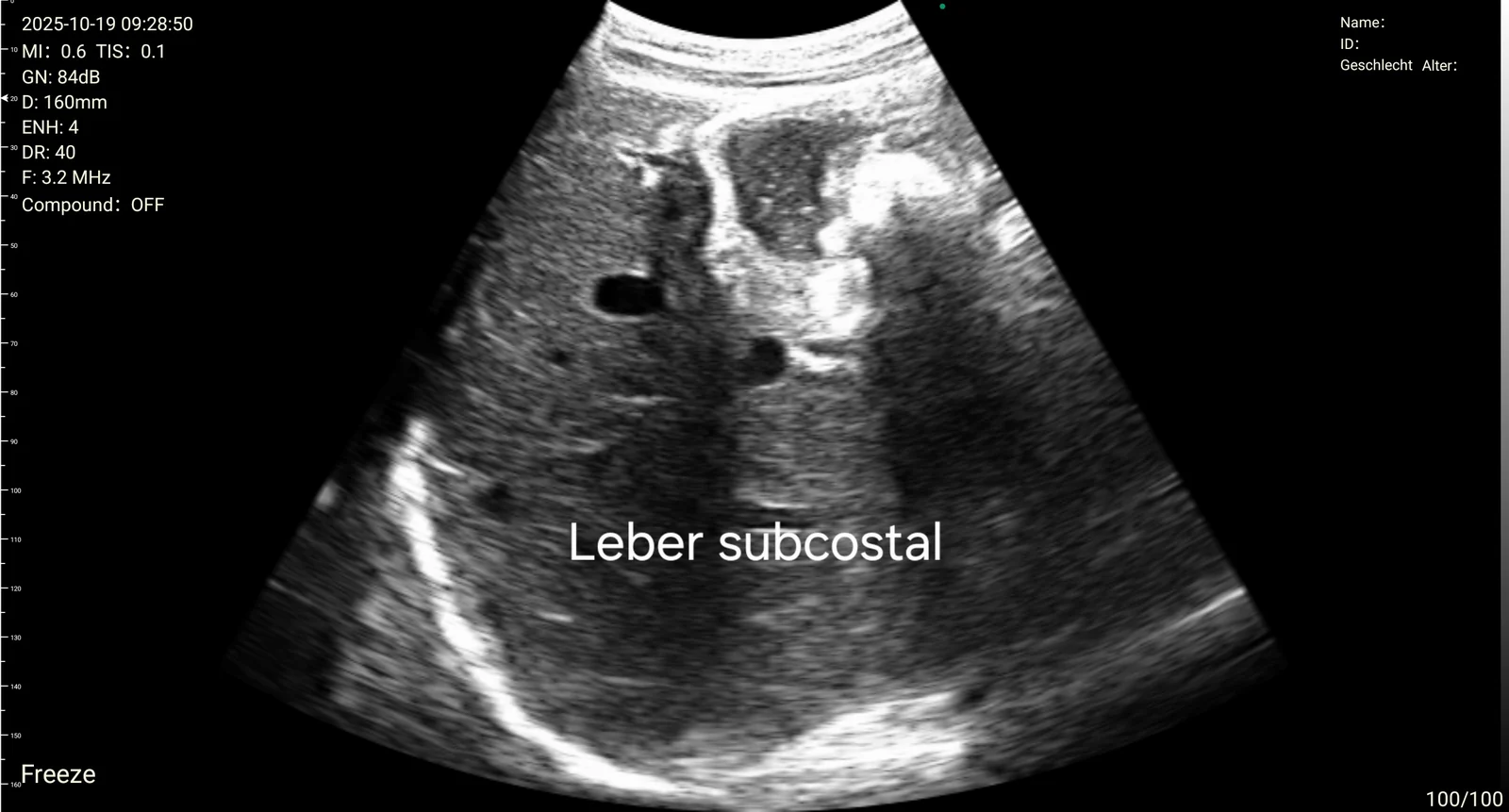

Subcostal liver on the D3Ultra
The subcostal sweep a primary care clinician reaches for first, with parenchyma and the hepatic vessels in one plane. A German buyer labeled it Leber subcostal on his own screen.
captured on a D3Ultra at 16 cm depth, 3.2 MHz, gain 84 dB, 19 October 2025
Gallbladder long axis on the D3Ultra
An anechoic gallbladder lumen through the liver window, the view that settles right upper quadrant pain in the room. No wall thickening or stone is present in this frame.
captured on a D3Ultra at 16 cm depth, 3.2 MHz, gain 81 dB, submitted by Stefan GoepfertKidney and bladder2 windows

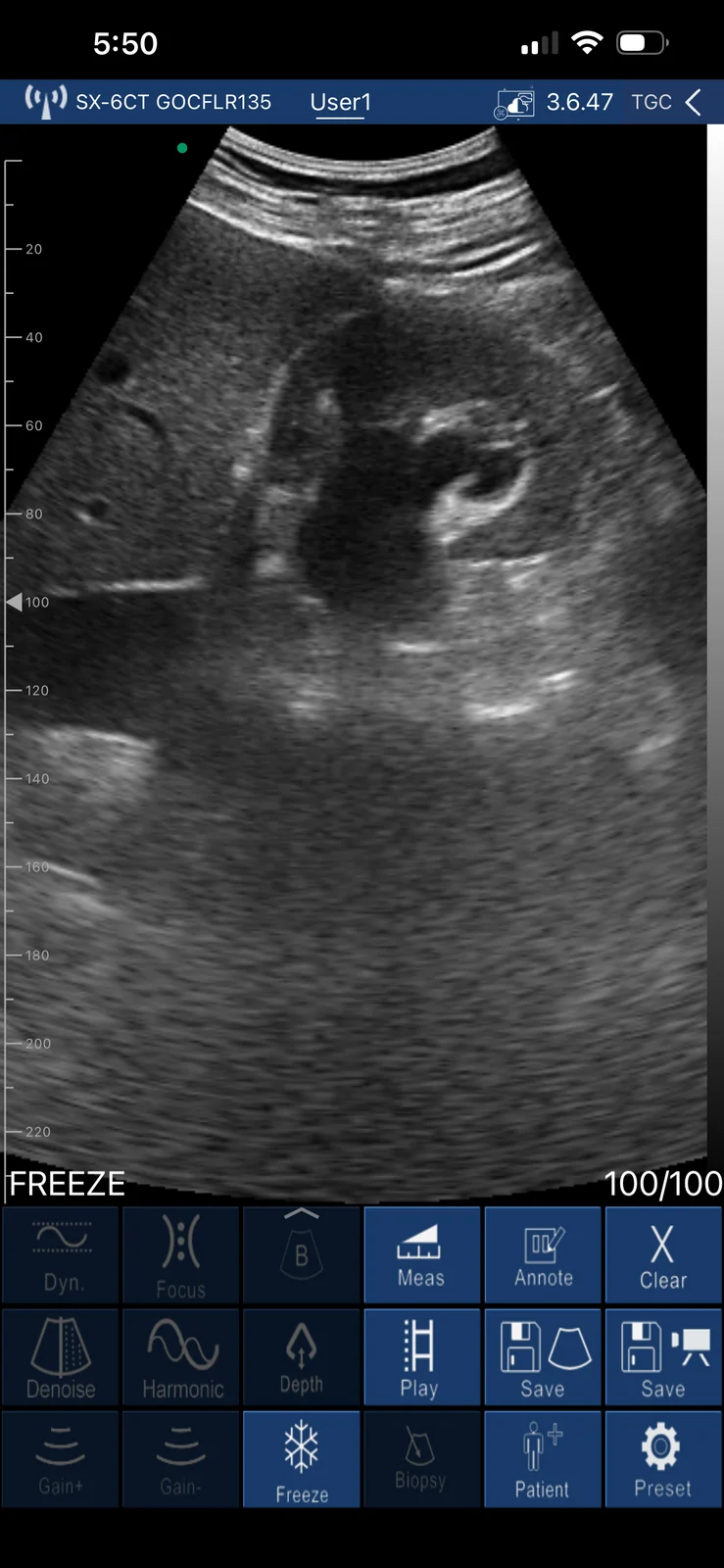

Moderate right hydronephrosis on the D3Ultra
A dilated renal pelvis and calyceal system in a longitudinal right kidney view. The buyer's case note records an obstructing stone confirmed after this scan.
captured on a D3Ultra and saved from the app; the depth scale runs to 22 cm, probe label SX-6CT, app version 3.6.47

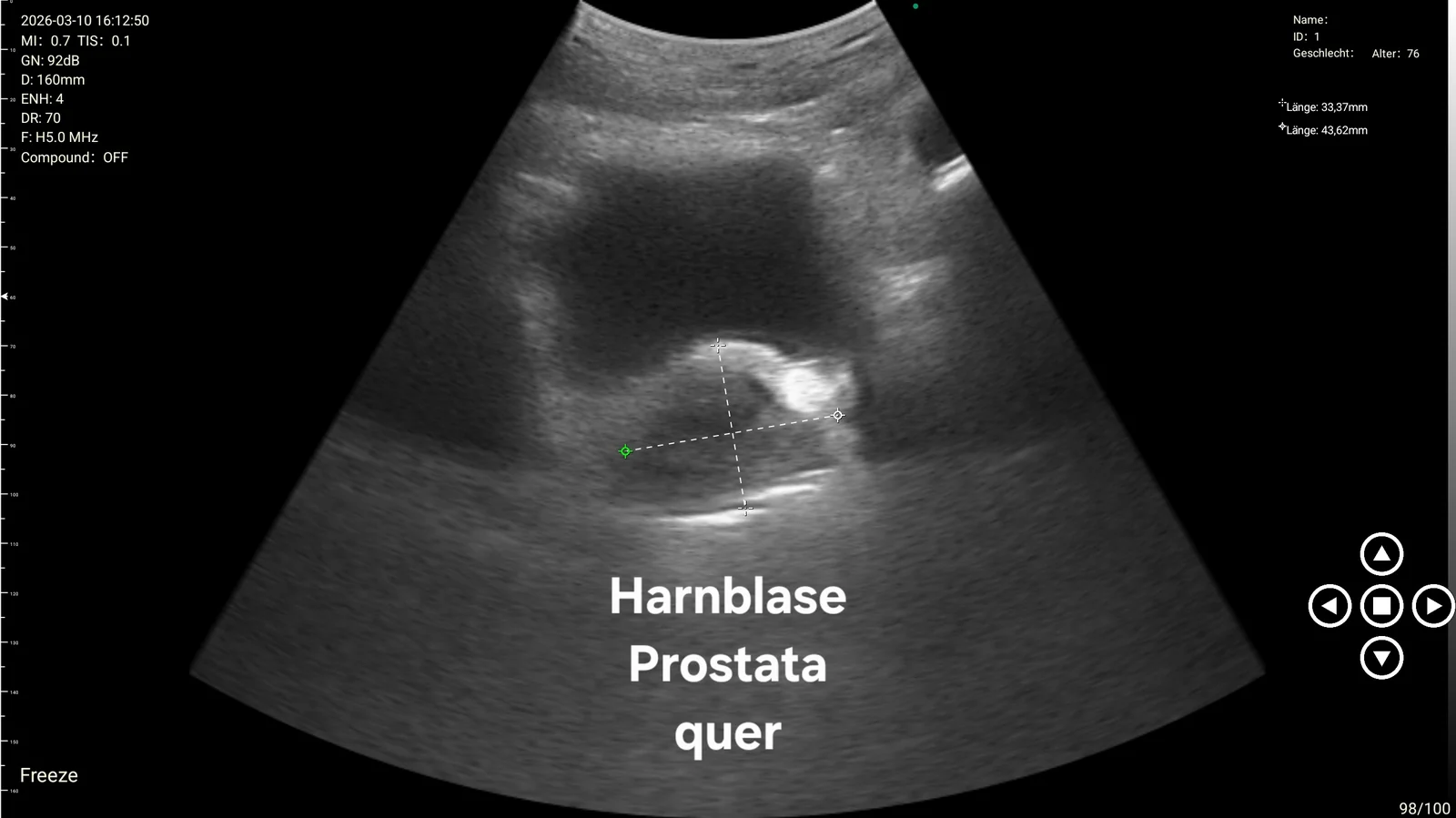

Bladder and prostate transverse on the D3Ultra
A filled bladder with the prostate below it, the prostate measured on screen at 33.4 mm by 43.6 mm. This is the view behind a retention or nocturia question in the office.
captured on a D3Ultra at 16 cm depth, harmonic 5.0 MHz, gain 92 dB, 10 March 2026Chest2 windows

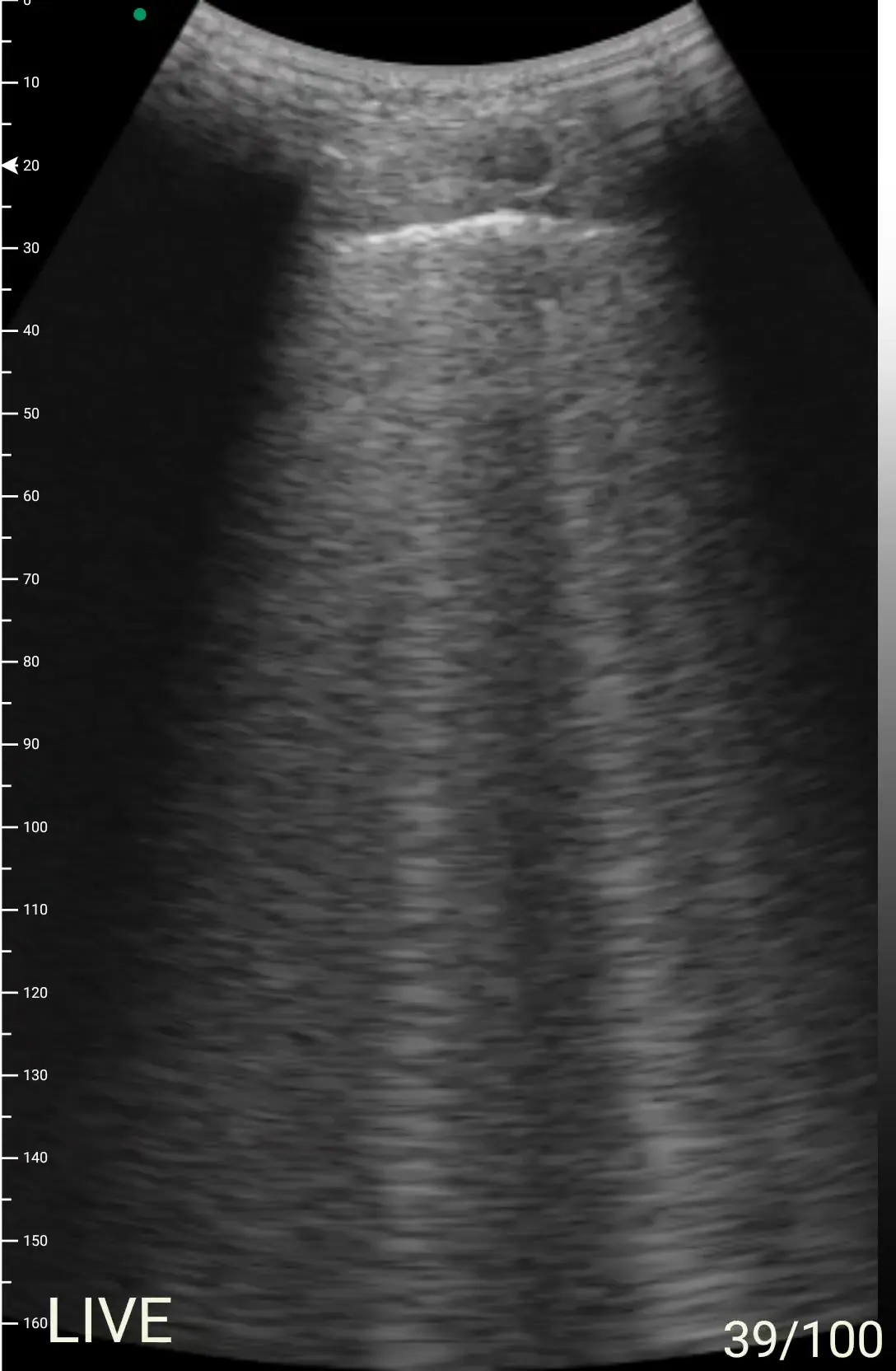

Diffuse lung B-lines on the D3Ultra
Vertical artifacts rising from the pleural line and running to depth in acute pulmonary edema. The buyer's note records dyspnea and hypoxemia that settled after urgent dialysis.
an 8-second cine loop on a D3Ultra, submitted with the case note

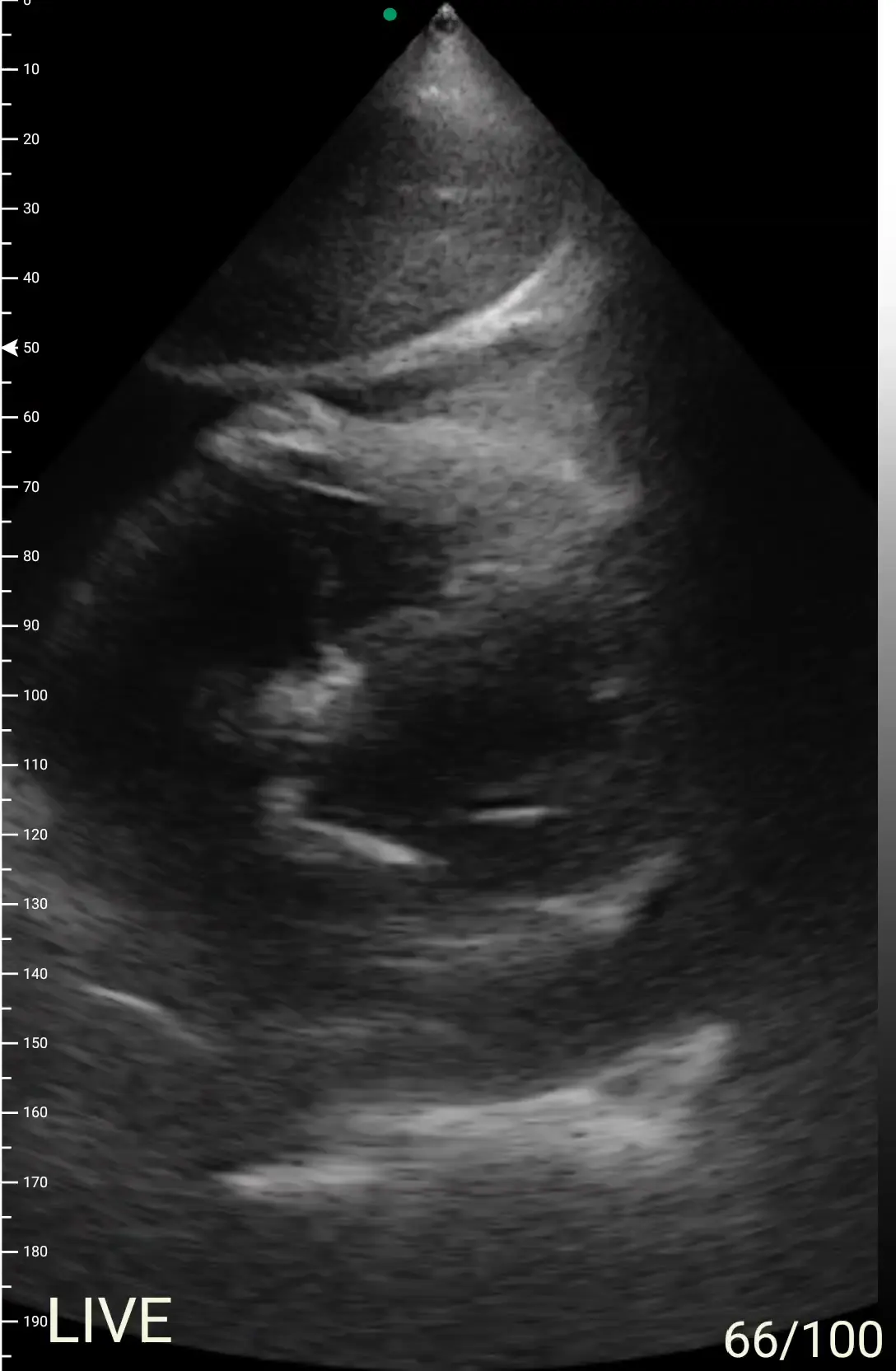

Pericardial effusion on the D3Ultra
An anechoic rim of fluid around the heart, found incidentally in a dialysis patient. This is the finding that most changes what happens next in a primary care room.
a 7-second cine loop on a D3Ultra, submitted with the case noteNeck and vessels2 windows

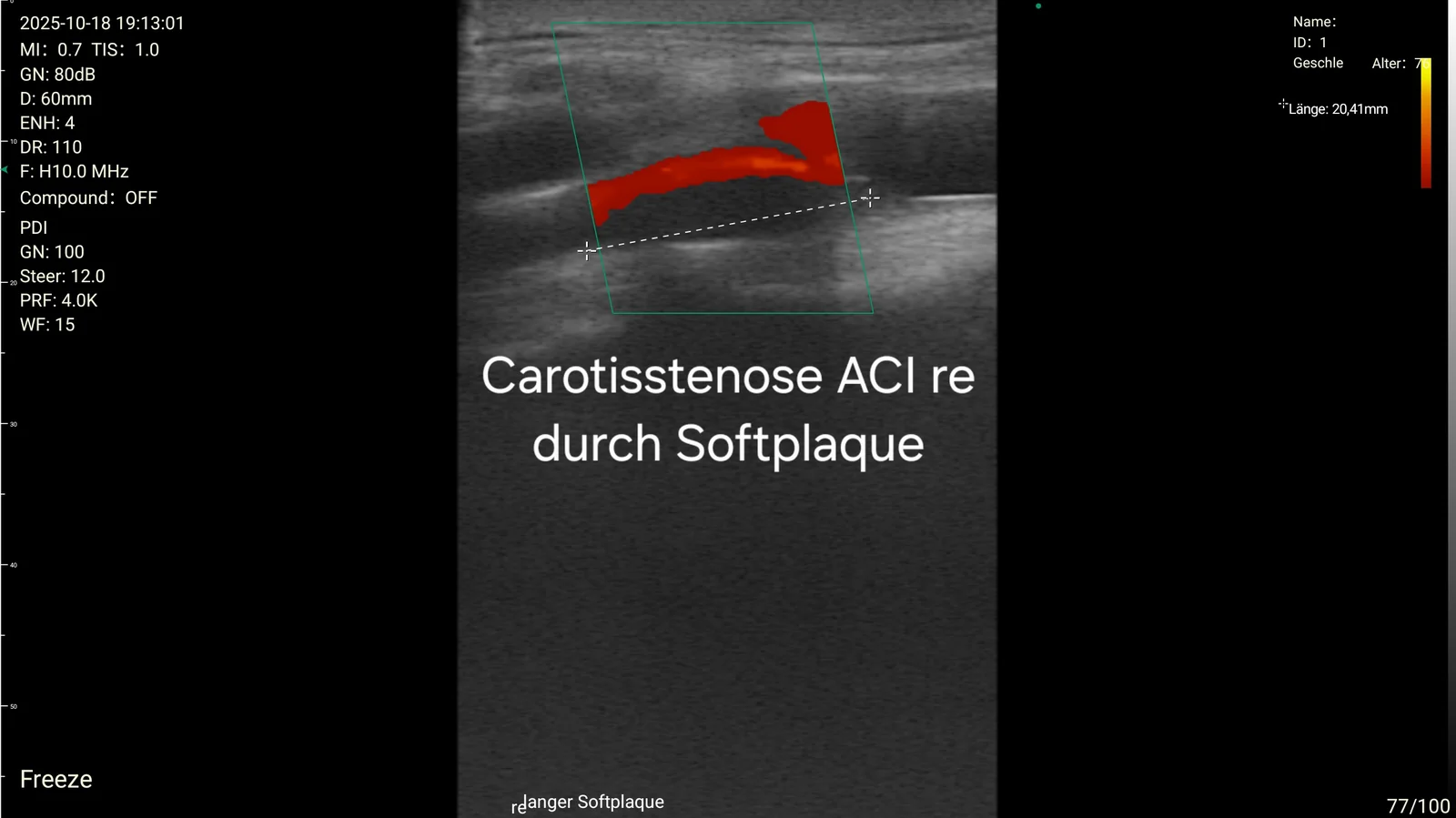

Carotid soft plaque on the D3Ultra
Power Doppler fills the internal carotid lumen and stops where soft plaque narrows it, measured at 20.4 mm of plaque length. The linear head does this at the same visit as the abdomen.
captured on a D3Ultra at 6 cm depth, harmonic 10.0 MHz, PDI at PRF 4.0 kHz, 18 October 2025

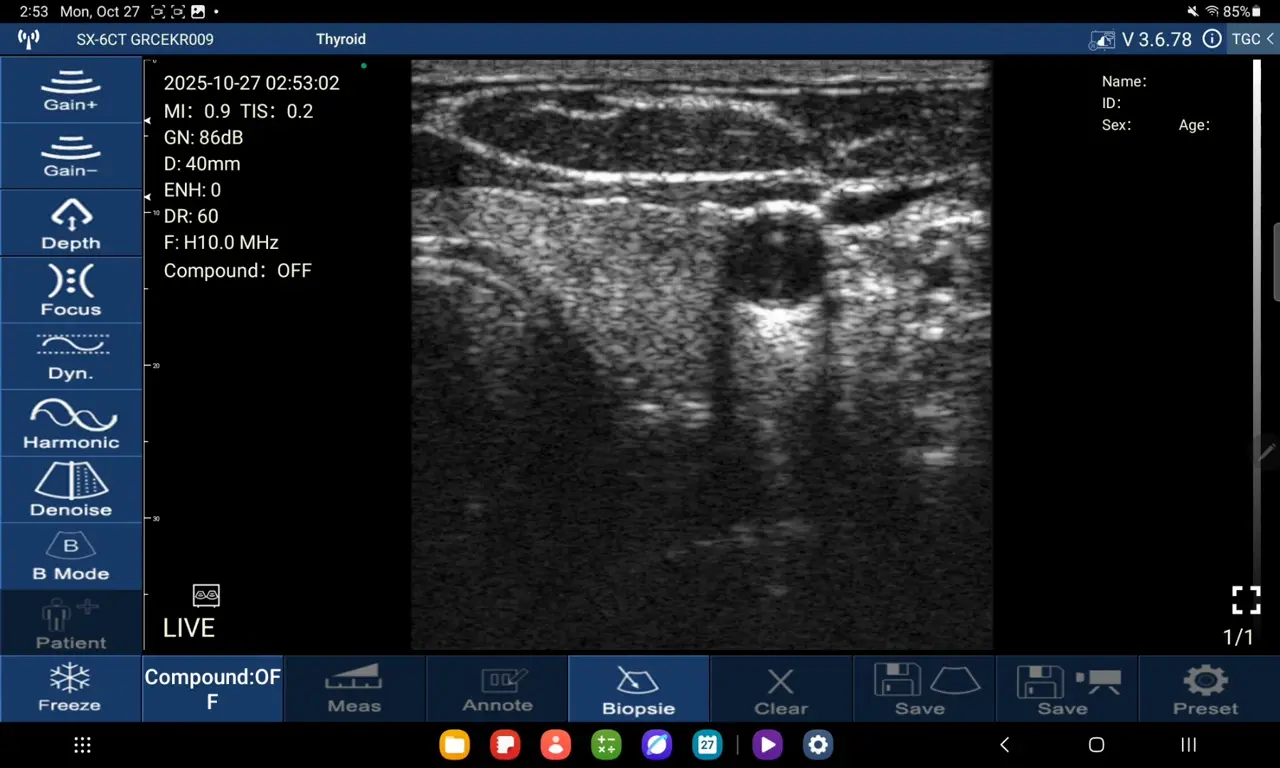

Thyroid nodule survey on the D3Ultra
A transverse anterior neck scan working through the thyroid lobes and a hypoechoic nodule, with the full app interface on screen. A palpable neck lump is a standing primary care referral question.
a scan clip recorded on a D3Ultra by Brandon Ramakko, who bought the probe himself and discloses Suresult sponsorship of his teaching videos; harmonic 10.0 MHz, 40 mm depth, gain 86 dB, Thyroid preset, 27 October 2025
Select a card to switch capture
Technique basics
How the exam comes together, probe to report
- Pick the probe format before the brand.
A convex head at 3.2 or 5.0 MHz answers the abdominal, renal and bladder questions that fill a primary care list. A linear head at 7.5 or 10 MHz handles the neck, the vessels and soft tissue.
Convex 90 to 300 mm, linear 20 to 100 mm
Load the preset, then set depth once.Select the exam preset in the app and start deep, then bring depth up until the organ fills the fan. The buyer captures on this page sit at 160 mm for abdomen and 60 mm for the carotid.
D: 160 mm on the liver and bladder headers
Measure on screen while the patient is there.Calipers sit in the app beside the image on a frozen frame. The prostate in the bladder capture in the atlas was measured on screen at 33.4 mm by 43.6 mm without leaving the exam room.
Calipers on the frozen frame

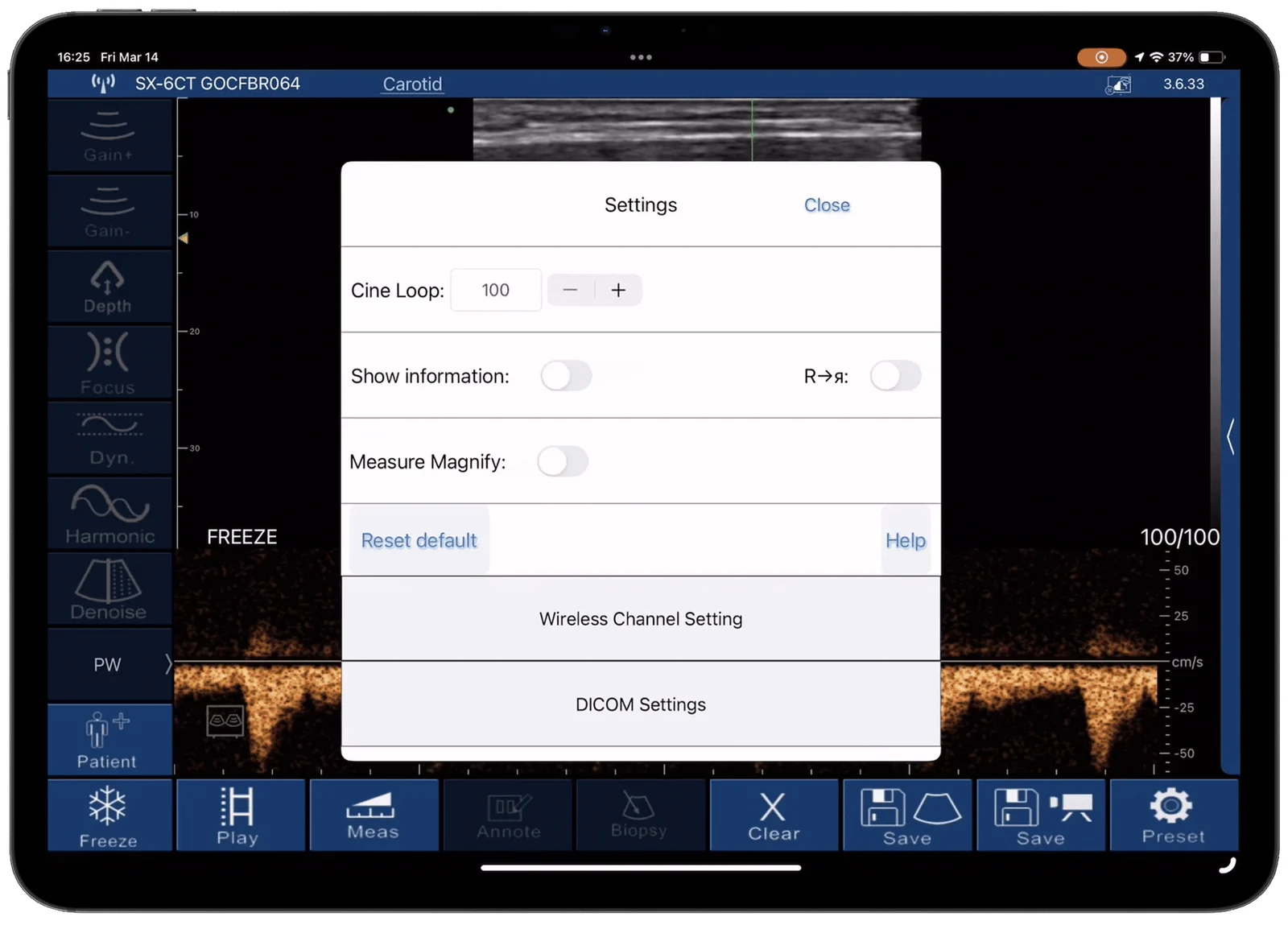

Save the frame into the record.Every scanner here saves stills and cine loops locally and exports JPEG, MP4, PNG or DICOM. A referral letter can carry the image that prompted it.
JPEG · MP4 · PNG · DICOM
What the research says
The evidence, three studies checked
- Office ultrasound changed the diagnosis in half of patients.
Across 574 patients scanned by 20 general practitioners, point-of-care ultrasound changed the diagnosis for 49.4% and cut intended referrals to secondary care from 49.2% to 25.6%.
Aakjær Andersen et al., BMJ Open 2020 - Non-expert physicians agreed with experts on ejection fraction.
Across 42 studies and 6,598 patients, physicians without cardiac ultrasound expertise agreed with experts at kappa 0.72, rising to 0.84 on the same device.
Allimant et al., Fam Pract 2025 - Lung ultrasound found pneumonia at high sensitivity outside radiology.
In 14 of 17 studies of lung ultrasound by emergency physicians, internal medicine physicians and intensivists, sensitivity for pneumonia was at least 0.91.
Strøm et al., BMJ Open 2020
Pick your model
Pick the model that fits your day
MOST CHOSEN
One scanner for the whole clinic dayD3Ultra
One scanner for the whole clinic dayD3UltraThe D3Ultra carries convex, linear and phased heads in a single 263 g probe with 192 elements and 64 channels. Most captures in the atlas above came off this model.
single 263 g probe, 192 elements
$2,976 D3Ultra · Convex Linear Phased MultipuBuy nowVisualizza D3Ultra →
Abdomen, kidney and bladder most of the listC5SHThe C5SH is a convex-only probe with 192 elements and 64 channels. Its fan reaches 300 mm, which is enough for a large liver, a hydronephrotic kidney and a filled bladder.
reaches 300 mm, convex only
$2,139 C5SH · 64 Channels High-Res Convex Buy nowView C5SH →
Long sessions away from a chargerD3ProThe D3Pro pairs the same three probe formats with a 4,200 mAh battery. Suresult rates it at 3 hours of continuous scanning per charge.
4,200 mAh battery, three formats
$2,697 D3Pro · Dual-Head 3-in-1 Wireless UlBuy nowView D3Pro →Scanner comparison
Eight Suresult handhelds for primary care, compared
Swipe to see all columns →
| Modello | Prezzo | Frequenza | Profondità | Il meglio per |
|---|---|---|---|---|
| D3Ultra | $2,976 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex 90 to 300 mm; linear 20 to 100 mm | One probe for abdomen, neck, lung and vessels at 263 g |
| D3Pro | $2,697 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex 90 to 305 mm; linear 20 to 80 mm | Three formats with a 4,200 mAh battery and 3 hours of scanning |
 D3L | $2,418 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex 90 to 305 mm; linear 20 to 80 mm | The widest fan here: 70 degree convex and 80 degree phased sector |
 D3 | $2,232 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex 90 to 305 mm; linear 20 to 100 mm | Entry three-format probe at 150 g, with cable or Wi-Fi connection |
| C5SH | $2,139 | Convex 3.2/5.0 MHz | 90 to 300 mm | Focused abdominal, renal and bladder scanning with 64 channels |
 C5SH-Pro | $4,185 | Convex 3.2/5.0 MHz | 90 to 300 mm | 256 elements on the convex fan for the finest abdominal detail here |
 L10H | $2,325 | Linear 7.5/10 MHz | 20 to 100 mm | Neck, vessels and soft tissue, with 5 hours of scanning per charge |
 C5B | $1,581 | Convex 3.2/5.0 MHz | 90 to 305 mm | Entry convex probe with B-mode and power Doppler at 80 elements |
Against the known brands
Suresult vs Clarius C3 HD3, Butterfly iQ3 and GE Vscan Air CL for primary care
Swipe to see all columns →
| Risultato | Clarius C3 HD3 | Farfalla iQ3 | GE Vscan Air CL | |
|---|---|---|---|---|
| Imaging | Convex, linear and phased formats across the D3 family; 192 elements and 64 channels on the D3Ultra | Convex array, 192 elements, 2-6 MHz | Single array, 1-12 MHz | Curved 2-5 MHz plus linear array in one probe |
| Primary care coverage | Abdomen, kidney, bladder, lung, neck and vessels on the D3Ultra; the C5SH covers the convex half alone | A 2-6 MHz convex array; higher-frequency neck and vessel work needs a second Clarius scanner such as the L15 HD3 | One array across presets, published at 20+ exam presets | Curved and linear in one housing; a sector view needs the SL probe |
| Device price | $2,139 for the C5SH and $2,976 for the D3Ultra, published | $3,795 published | $3,899 published | Starting at $4,999 published |
| Costo del software | None; the app, Doppler, measurements and DICOM export are included | Clarius Essentials membership at $695 a year, $1,785 for three years, or $2,500 one time | Membership at $299 a year for Core or $420 a year for Advanced, or $1,500 one time for five years | Digital and AI tools are managed as subscriptions that renew automatically |
| Piattaforme | iOS, Android and Windows on every model in the table | iOS e Android | iOS e Android | iOS e Android |
| Landed cost | Duties and shipping included in the checkout price, delivered in 1 to 7 days | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- Eight primary care windows on this page come from clinicians who bought the hardware, liver to carotid.
- The D3Ultra puts convex, linear and phased heads in one 263 g sonda.
- Convex depth reaches 300 mm on the C5SH and the D3Ultra, enough for a large liver or a filled bladder.
- On-screen measurements are on all eight models, and color Doppler, M-mode and pulsed-wave Doppler are on every model except the entry C5B.
- Every scanner exports JPEG, MP4, PNG and DICOM straight from the app.
- There is no software subscription on any Suresult scanner.
- The L10H scans for cinque ore per charge, which covers a full clinic day.
- The checkout price is the landed price, with duties and shipping included and delivery in 1 to 7 days.
The five-year math
Clarius publishes the C3 HD3 at $3,795. On the annual Essentials plan at $695 a year that is $3,475 in fees by year five. Clarius also publishes $1,785 for three years and $2,500 one time. Butterfly publishes $3,899 for the iQ3, with membership at $299 or $420 a year and a $1,500 one-time option covering five years. Suresult scanners carry no software subscription, so the D3Ultra price is the five-year price.
D3Ultra, paid onceClarius C3 HD3: scanner + membership= $3,475 in fees alone by year five
Three models, one decision
Not sure which model fits your cases?
One conversation gets a direct recommendation: the right Suresult probe, or a straight “neither.”
I migliori ultrasuoni palmari per una diagnosi veloce e sicura
Focalizzati sul miglioramento del processo decisionale in tempo reale, i dispositivi palmari Suresult offrono immagini di livello ospedaliero in un formato portatile.
D3Ultra
Ultrasuoni palmari multifunzionali lineari sfasati convessi D3Ultra
Frequenza: Sonda convessa / fasata 3.2/5.0MHz Sonda lineare 7.5/10MHz
Profondità di scansione: Lineare: 20-100 mm, convesso e sfasato: 90-300 mm
Cure primarie
buy scanner
D3Pro
D3Pro Dual-Head 3-in-1 Wireless Ultrasound Scanner
Frequenza: Sonda convessa / fasata 3.2/5.0MHz, sonda lineare 7.5/10MHz
Profondità di scansione: Sonda convessa / fasata: 90-305 mm, Sonda lineare: 20-80 mm
Cure primarie
buy scanner
D3L
Sonda diagnostica a ultrasuoni D3L 128 elementi, lineare convessa fasata 3 modalità
Frequenza: Sonda convessa / fasata 3.2/5.0MHz Sonda lineare 7.5/10MHz
Profondità di scansione: Sonda convessa / fasata: 90-305 mm, Sonda lineare: 20-80 mm
Cure primarie
buy scanner
Cosa considerare prima di acquistare un ecografo portatile per l'assistenza primaria
Scelga il dispositivo ideale per le valutazioni di tutto il corpo con sonde ad alta risoluzione, multifrequenza e profondità di imaging.
Before you buy
Cosa controllare prima dell'acquisto
What is the best handheld ultrasound for primary care?
The Suresult D3Ultra is the strongest fit for a general practice that scans abdomen, kidney, bladder, lung and neck. It carries convex, linear and phased heads in one 263 g probe. A clinic whose list is mostly abdominal can take the convex-only C5SH instead.
Which probe format does a primary care clinic actually need?
A convex head is the first requirement, because it reaches the liver, kidneys and bladder. A linear head at 7.5 or 10 MHz is the second, for the neck, vessels and soft tissue. The Suresult D3 family puts both heads in a single housing, so no second purchase is needed.
How long does a point-of-care scan take in a consultation?
In a study of 20 general practitioners scanning 574 patients, the median point-of-care scan took 5 minutes. Cardiac point-of-care scans in a 2025 review took a median of 8 minutes. Both fit inside a normal appointment.
Can a handheld ultrasound assess the bladder in the office?
A handheld convex probe assesses the bladder in the office. The atlas on this page shows a filled bladder with the prostate below it, scanned on a D3Ultra at 16 cm depth. The prostate was measured on screen at 33.4 mm by 43.6 mm. A convex head at 3.2 or 5.0 MHz reaches the bladder in almost every adult.
Can a family physician read lung ultrasound?
A 2020 review of 17 studies covered lung ultrasound performed by emergency physicians, internal medicine physicians and intensivists, not by radiologists. Sensitivity for pneumonia was at least 0.91 in 14 of those studies. A separate 2019 review of general practice reported competence in some focused scans after only a few hours of training. B-lines and pleural effusion are the two findings most used in office practice.
How much does a handheld ultrasound for primary care cost?
The Suresult C5B convex probe is the entry price at $1,581, and the three-format D3Ultra is $2,976. Clarius publishes $3,795 for the C3 HD3, Butterfly publishes $3,899 for the iQ3, and GE publishes a starting price of $4,999 for the Vscan Air CL.
Does a primary care handheld need a software subscription?
Suresult scanners carry no software subscription, so the app, Doppler, measurements and DICOM export come with the purchase. Clarius publishes an Essentials membership at $695 a year, $1,785 for three years, or $2,500 one time. Butterfly publishes membership plans at $299 and $420 a year, with a $1,500 one-time option covering five years.
Can one probe cover abdomen, lung and neck?
One Suresult D3-family probe covers all three regions from a single housing. Its convex head runs 90 to 300 mm for the abdomen, and its phased head images lung and heart. The linear head at 7.5 or 10 MHz covers the neck and vessels. Every buyer capture in this atlas came off that family.
How much training does a general practitioner need to start?
A 2019 systematic review of point-of-care ultrasound in general practice found training programs from 2 to 320 hours. It reported that competence in some focused scans was attained with only a few hours. The same review found focused scans more accurate than comprehensive or screening scans.
Does an office scanner replace the radiology referral?
An office scanner does not replace the radiology referral; it changes which patients need one. In the 574-patient general practice study, intended referrals to secondary care fell from 49.2% to 25.6% after the scan. A focused answer in the room is not a formal radiology report.
Which Suresult model suits a solo practice on a tight budget?
The Suresult C5B at $1,581 is the entry convex probe, with B-mode and power Doppler on 80 elements. The C5SH at $2,139 adds 192 elements, 64 channels and full color Doppler. The C5B reaches 305 mm of depth and the C5SH reaches 300 mm.
Does the app run on an iPhone or an Android tablet?
The Suresult app runs on iOS, Android and Windows. Every scanner in the table above lists those three platforms and connects over dual-band Wi-Fi. The buyer captures on this page were saved from phone and tablet screens.
Can scans go into the patient record?
Every Suresult model here stores stills and cine loops locally and exports JPEG, MP4, PNG or DICOM from the app. Cine loops save at 100, 200, 500 or 1,000 frames. A referral letter can carry the image that prompted it.
Which model has the longest battery for a full clinic day?
The Suresult L10H has the longest battery here, a 5,600 mAh cell rated at 5 hours of continuous scanning. It is a linear-only probe for the neck, vessels and soft tissue. Among the three-format probes, the D3Pro and the D3L carry 4,200 mAh batteries rated at 3 hours.
Sonda ad arco curvo (2-5 MHz)
Per l'imaging degli organi addominali, della pelvi, degli spazi retroperitoneali e degli organi più profondi come la cistifellea, i reni e il fegato.
Sonda ad arco lineare (5-13 MHz)
Imaging ad alta risoluzione dei tessuti molli, delle strutture vascolari, dei problemi muscolo-scheletrici e degli organi superficiali come la tiroide, le articolazioni e i noduli superficiali.
Sonda ad arco di fase (2-5 MHz)
Ottimo per l'eco point-of-care, l'effusione pericardica, l'ecografia polmonare e la scansione intercostale.
Doppler con capacità PW/CW
Visualizza il flusso sanguigno e valuta la perfusione in tempo reale. Utile anche per studi vascolari, valutazione della TVP e valutazione dell'arteria renale.
Assistenza alla perforazione
Migliora l'accuratezza e la sicurezza delle procedure guidate come le iniezioni articolari, il drenaggio di ascessi e l'aspirazione di fluidi in ufficio.
Preset d'esame incorporati
Intuitive preset exam modes (e.g., FAST exam, thyroid, bladder) for scanning different body parts with a minimal learning curve and better scanning workflows.
Durata della batteria estesa
At least 2 hours of battery life with quick charge to support full-day clinics without disruption.
Software gratuito,
Scansioni illimitate
Gli ultrasuoni portatili Suresult sono dotati di un potente software che le offre funzioni illimitate senza costi aggiuntivi. Può usufruire gratuitamente di DICOM e doppler a onde pulsate, oltre a un'interfaccia facile da usare su iOS, Android e Windows, in modo da potersi concentrare sull'erogazione di cure di alta qualità senza dover pagare alcun software.
Compatibile con tutte le piattaforme, a vita Aggiornamenti gratuiti
Cattura ogni dettaglio, guida con precisione e condivide con facilità.
Migliori il suo flusso di lavoro ecografico con la nostra soluzione all-in-one. Sperimenti precisione, semplicità ed efficienza in ogni scansione.
17+ Preset specializzati
Sonda convessa / fasata
Sonda lineare
5 modalità di scansione
27 Misurazioni automatizzate per una diagnostica precisa
Semplifica il suo lavoro con un set completo di strumenti per valutazioni rapide e in tempo reale.
Modalità B
- Lunghezza, area/circonferenza, angolo, traccia, distanza
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
Modalità B+M
- Frequenza cardiaca, tempo, distanza
- Diametro interno del ventricolo sinistro (LVIDd, LVIDs)
- Frazione di eiezione (EF), volume della corsa (SV)
Modalità B+PW
- Velocità, frequenza cardiaca, rapporto S/D, profondità
- Misurazione automatica del flusso del serbatoio
- Velocità sistolica di picco (PS), Velocità diastolica finale (ED)
- Velocità massima mediata nel tempo (TAMAX), Velocità media mediata nel tempo (TAMEAN)
- Indice di pulsatilità (PI), Indice resistivo (RI)
- Diametro del vaso (DIAM), flusso (FL)
Loop Cine
Registra fino a 1000 fotogrammi (≈165 secondi) di movimento continuo per catturare ogni minimo dettaglio.
Funzione di assistenza alla perforazione
Godetevi la precisione in piano e guide fuori piano per aumentare la sua fiducia durante gli interventi.
Esportazioni di file flessibili
Salvi e condivida le sue scansioni senza sforzo in JPEG, MP4, PNG o DICOM formati, integrandosi perfettamente con il suo flusso di lavoro.
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- No required software subscription — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
FAQ
Posso utilizzare gli ultrasuoni Suresult con una formazione minima?
Sì! La maggior parte degli operatori sanitari di base che hanno già familiarità con gli ultrasuoni troveranno l'interfaccia di Suresult intuitiva e potranno iniziare subito la scansione.
Per i nuovi utenti, un corso POCUS di base è solitamente sufficiente per iniziare a eseguire gli esami primari. In seguito, si possono costruire gradualmente le competenze attraverso le linee guida radiologiche e l'apprendimento basato sui casi.
Le immagini sono sufficientemente buone da potervi fare affidamento per le decisioni cliniche?
Absolutely. Suresult delivers hospital-grade clarity, with each model equipped with 128/192 elements and over 32 channels. Multi-frequency probes and versatile arrays ensure excellent detail at both superficial and deeper levels. B-mode, Doppler, and tissue harmonic imaging combine to offer dependable results for confident decision-making.
Posso fatturare gli ultrasuoni nell'assistenza primaria?
Dipende dalla sua regione. In molti Paesi e Stati Uniti, alcuni esami diagnostici ad ultrasuoni, come le valutazioni dei tessuti molli, dell'addome o dei vasi, sono rimborsabili con codici CPT specifici. Raccomandiamo di verificare con le autorità di fatturazione locali o con il suo assicuratore le opzioni di copertura e i requisiti di documentazione adeguati per il rimborso.
Qual è la durata della batteria dei dispositivi portatili Suresult?
A seconda del modello, si aspetti da 1,5 a 3 ore di scansione continua per carica completa. Questo è in genere sufficiente per una sessione clinica completa o per più incontri con i pazienti. I dispositivi supportano anche la ricarica rapida, consentendo di ricaricare durante le pause e di estendere l'utilizzo durante le giornate lavorative più lunghe o più impegnative.
Posso integrare le immagini nel mio EMR?
Yes, Suresult devices store all images and video clips locally on your connected mobile device in DICOM format, with annotations. You can easily transfer these scans to PACS systems, or sync with EMRs via email or automatic exports through your clinic's internal software for seamless documentation.
