Handheld ultrasound for remote medicine: eight windows on one probe
Eight windows on this page were captured by D3Ultra owners, from lung B-lines to a right internal carotid artery in power Doppler. Every model publishes its price, includes its software and carries no subscription.
Every scan on this page comes from a buyer of this hardware family ·Trusted by 8,717 clinicians →
簡単な回答
A handheld ultrasound for remote medicine is a battery-powered wireless probe that scans lung, abdomen, kidney, bladder and vessels where no cart scanner exists.
- The D3Ultra carries convex, linear and phased formats in one 263 g body, so chest, abdomen and vessels are covered without swapping devices.
- Scans and cine loops save to local storage on the connected iOS, Android or Windows device.
- The D3Pro and the D3L each run a 4200 mAh battery for 3 hours of continuous scanning.
- Every Suresult scanner on this page exports JPEG, MP4, PNG and DICOM from that local storage.
The capture atlas
Eight windows a remote clinic actually needs, all captured on a D3Ultra
Unedited clinical captures · select any image to enlarge
Chest2 windows

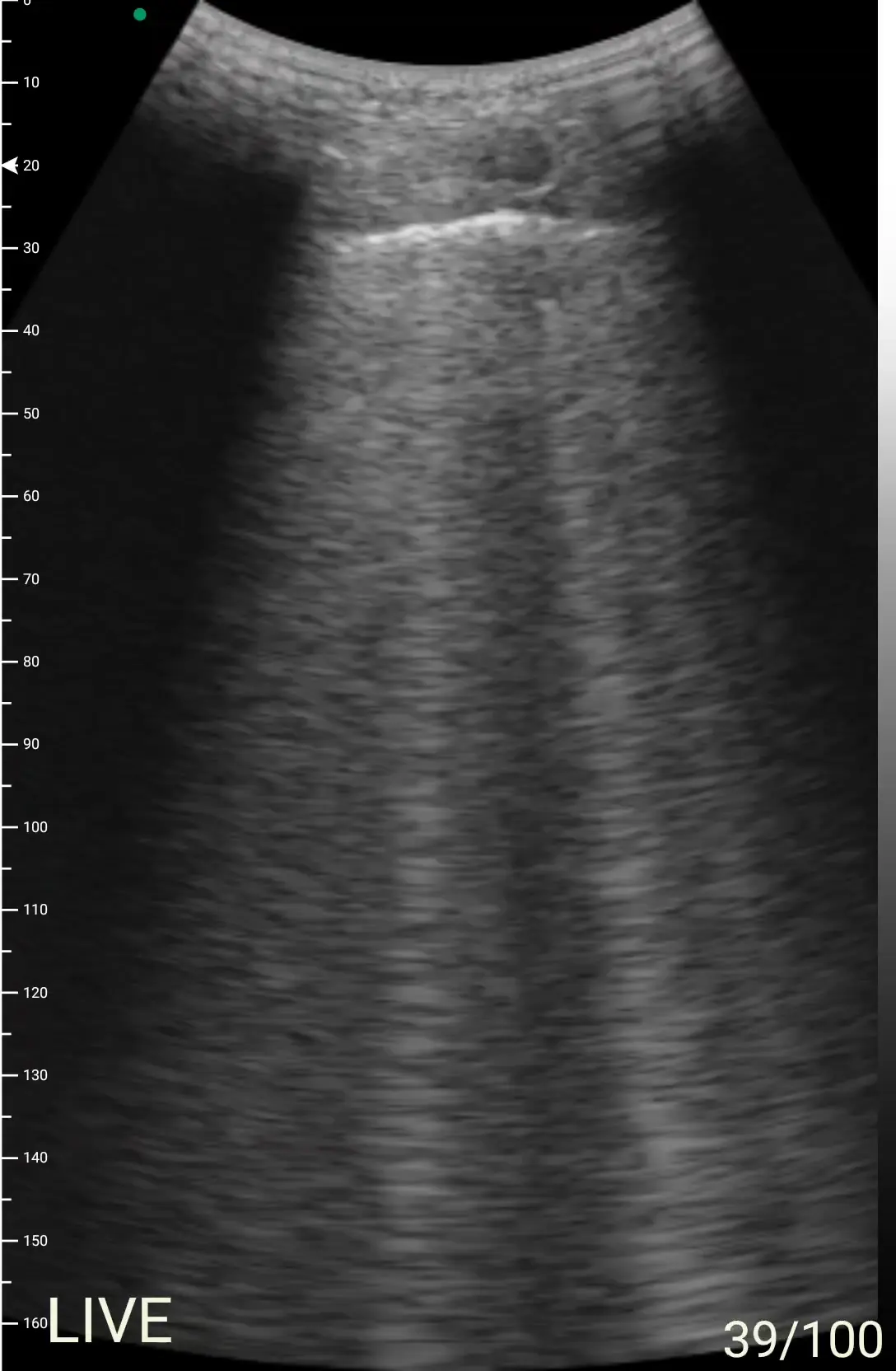

Lung B-lines on the D3Ultra
Vertical B-lines running from the pleural line in a patient with acute pulmonary edema. Lung water is the fastest answer a handheld gives to breathlessness far from a chest X-ray.
captured live on a D3Ultra in a nephrology unit, saved as a cine clip

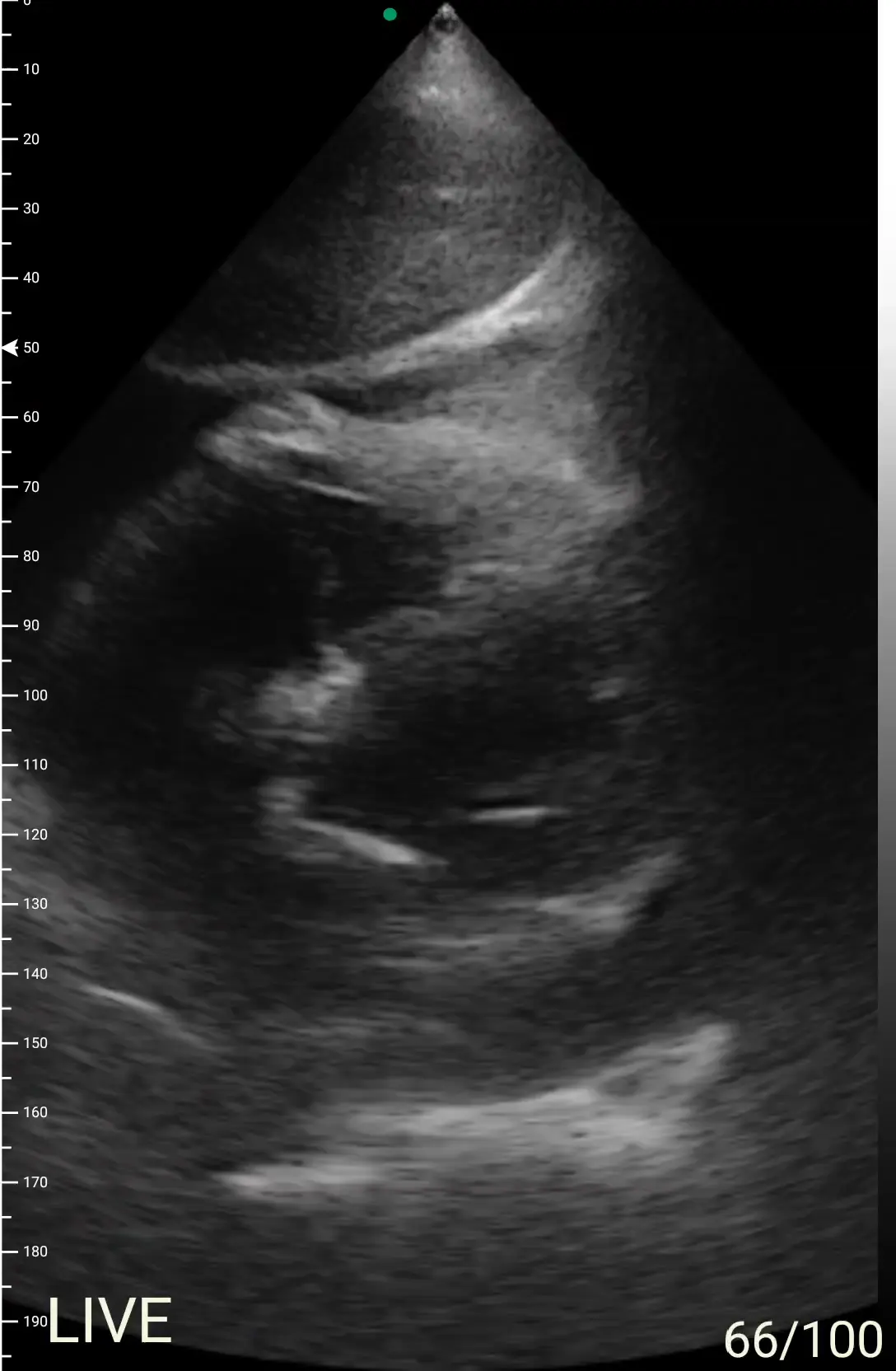

Pericardial effusion on the D3Ultra
A large collection of fluid around the heart in a dialysis patient, seen on the phased format. This is the finding that most often turns a remote consultation into an evacuation.
captured live on a D3Ultra in a nephrology unit, saved as a cine clip腹部2 windows

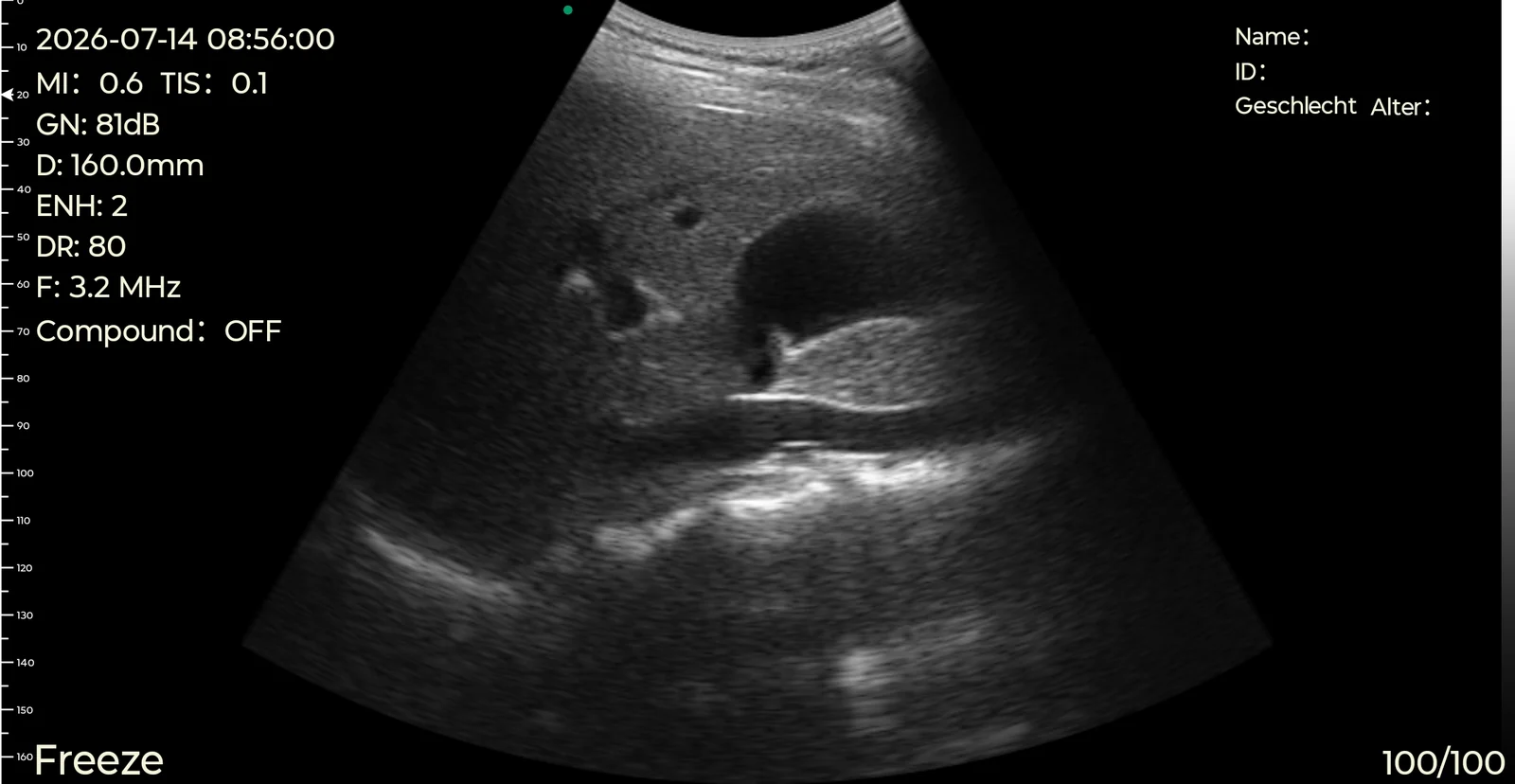

Gallbladder in a liver window on the D3Ultra
The gallbladder sits against liver parenchyma with the portal structures beside it. Right upper quadrant pain is one of the highest-yield questions in an off-site clinic.
captured on a D3Ultra at 160 mm depth, 3.2 MHz, GN 81 dB, DR 80, frozen at frame 100 of 100

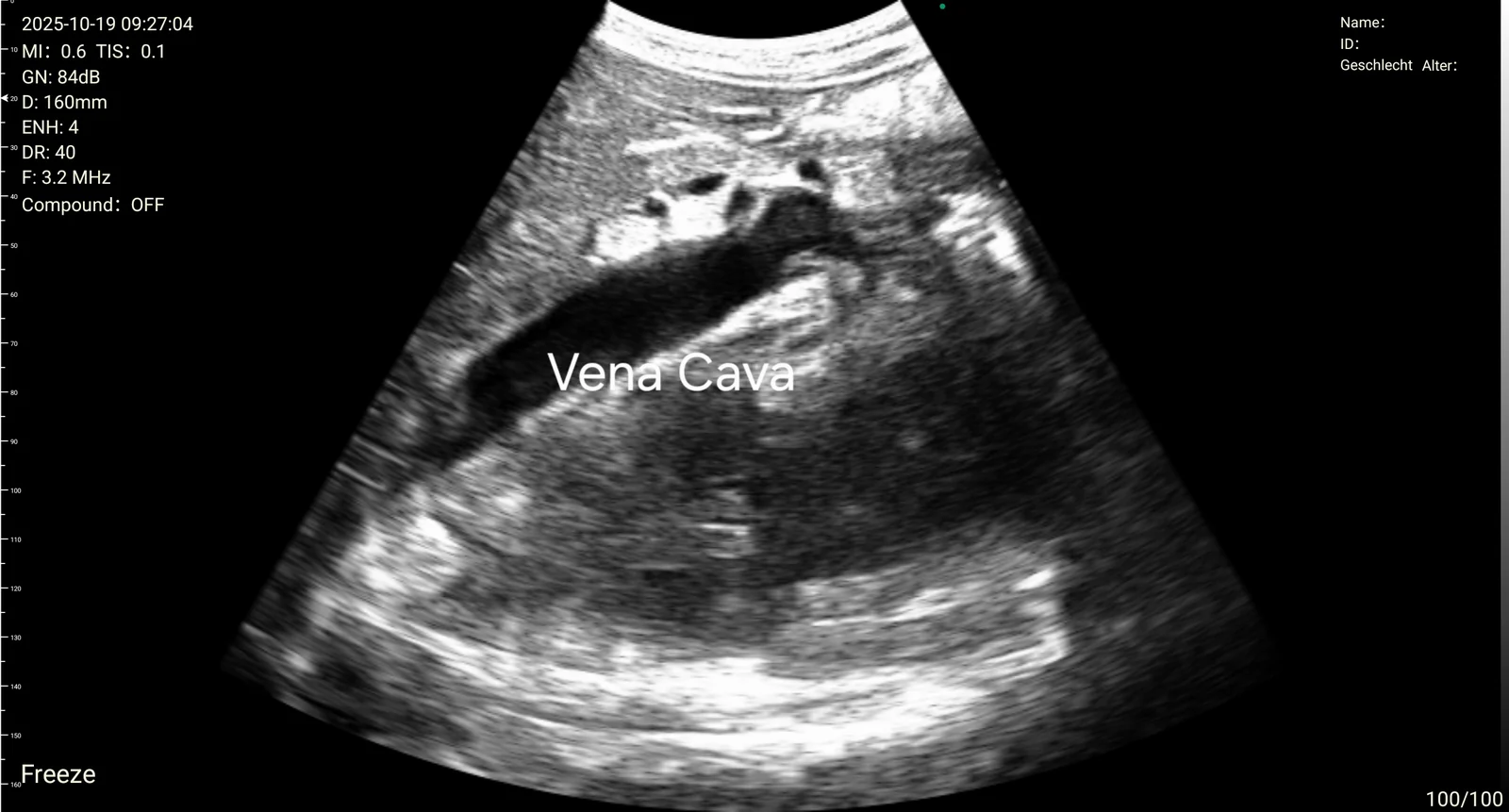

Inferior vena cava on the D3Ultra
The cava runs long axis beneath the liver, labeled on screen by the buyer who scanned it. Caval size reads volume status before fluids are given.
captured on a D3Ultra at 160 mm depth, 3.2 MHz, GN 84 dB, DR 40, on-screen label Vena CavaRenal and pelvic2 windows

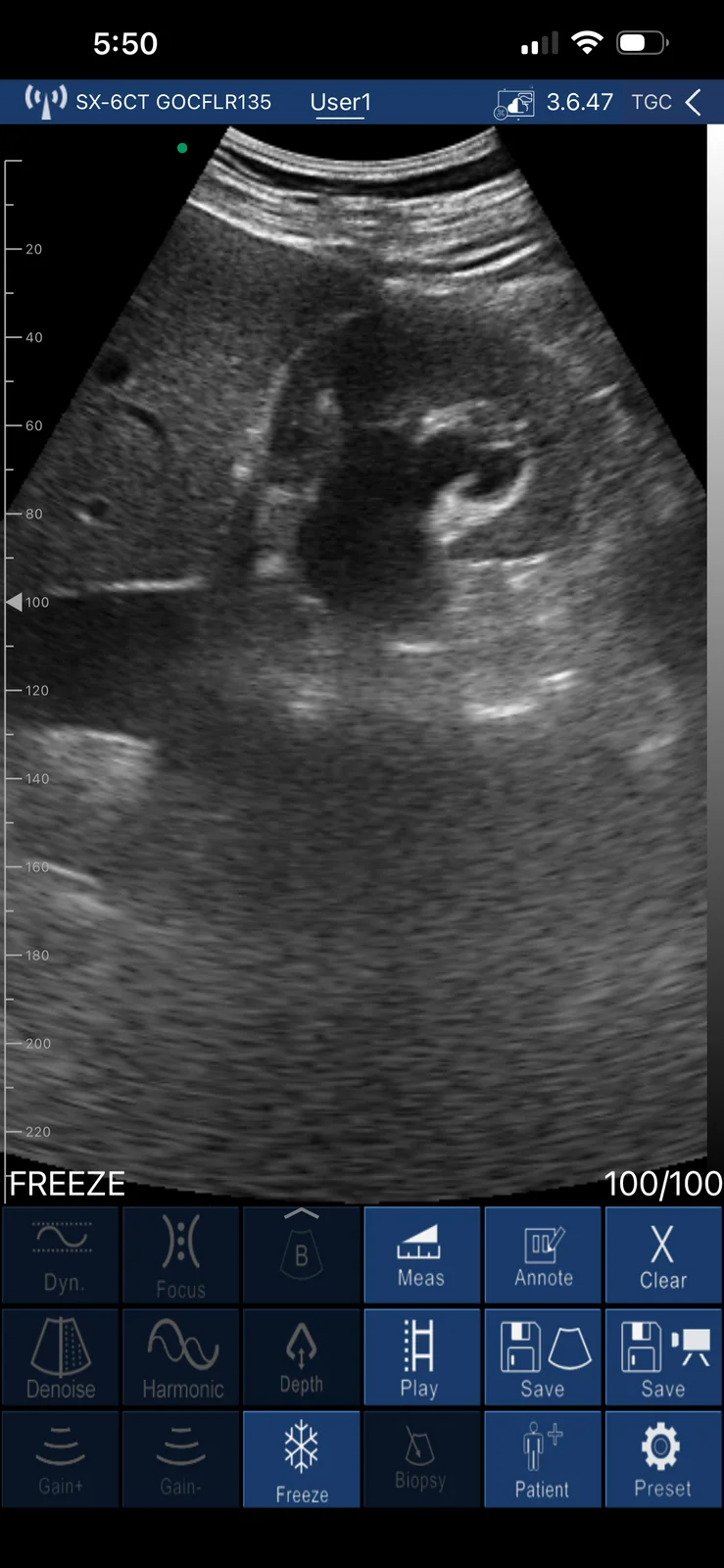

Right kidney at 220 mm on the D3Ultra
The convex format reaches the whole kidney on one screen, with a dilated central collecting system visible against the surrounding parenchyma. Obstruction is a common remote presentation.
captured on a D3Ultra with the depth scale running to 220 mm, frozen at frame 100 of 100

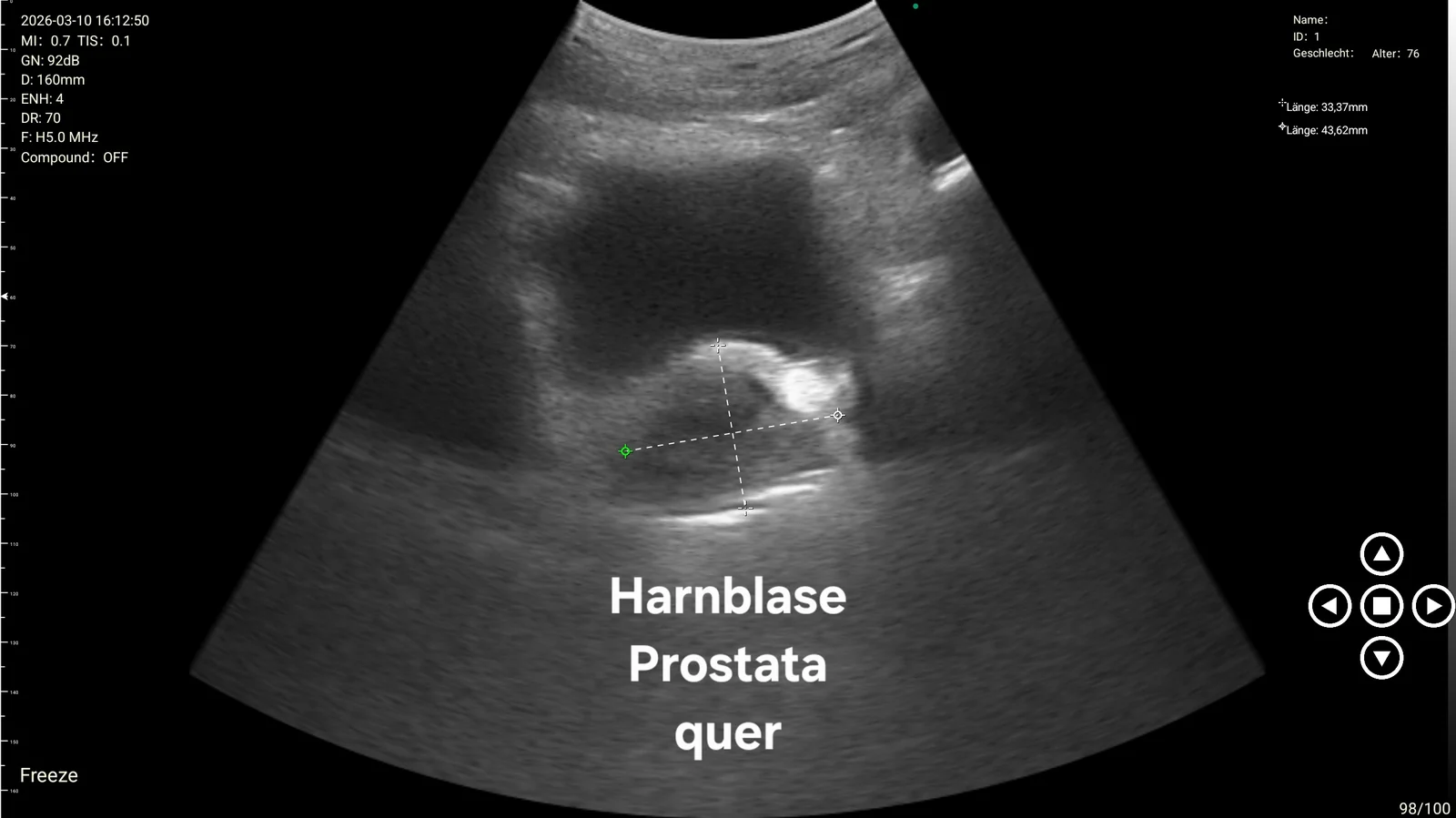

Bladder and prostate, transverse, on the D3Ultra
A full bladder with the prostate behind it, measured on screen at 33.37 mm and 43.62 mm. Retention and catheter position are answered without moving the patient.
captured on a D3Ultra at 160 mm depth, harmonic 5.0 MHz, GN 92 dB, on-screen label Harnblase Prostata querVessels and nerve2 windows

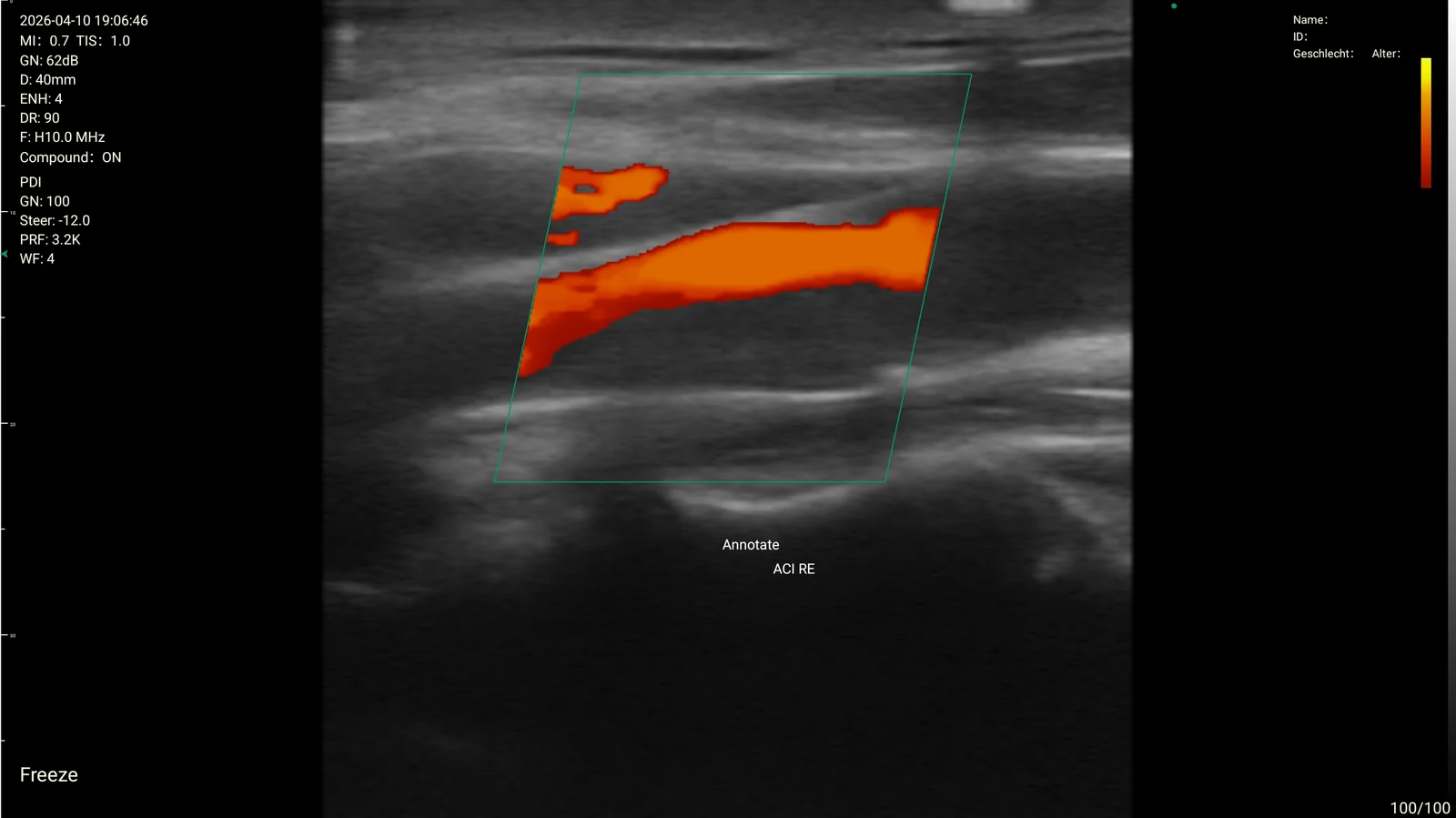

Right internal carotid artery, power Doppler, on the D3Ultra
Power Doppler fills the internal carotid lumen inside a steered box on the linear format. The same probe that reached 220 mm now works at 40 mm.
captured on a D3Ultra at 40 mm depth, harmonic 10.0 MHz, PDI gain 100, PRF 3.2 kHz, on-screen label ACI RE

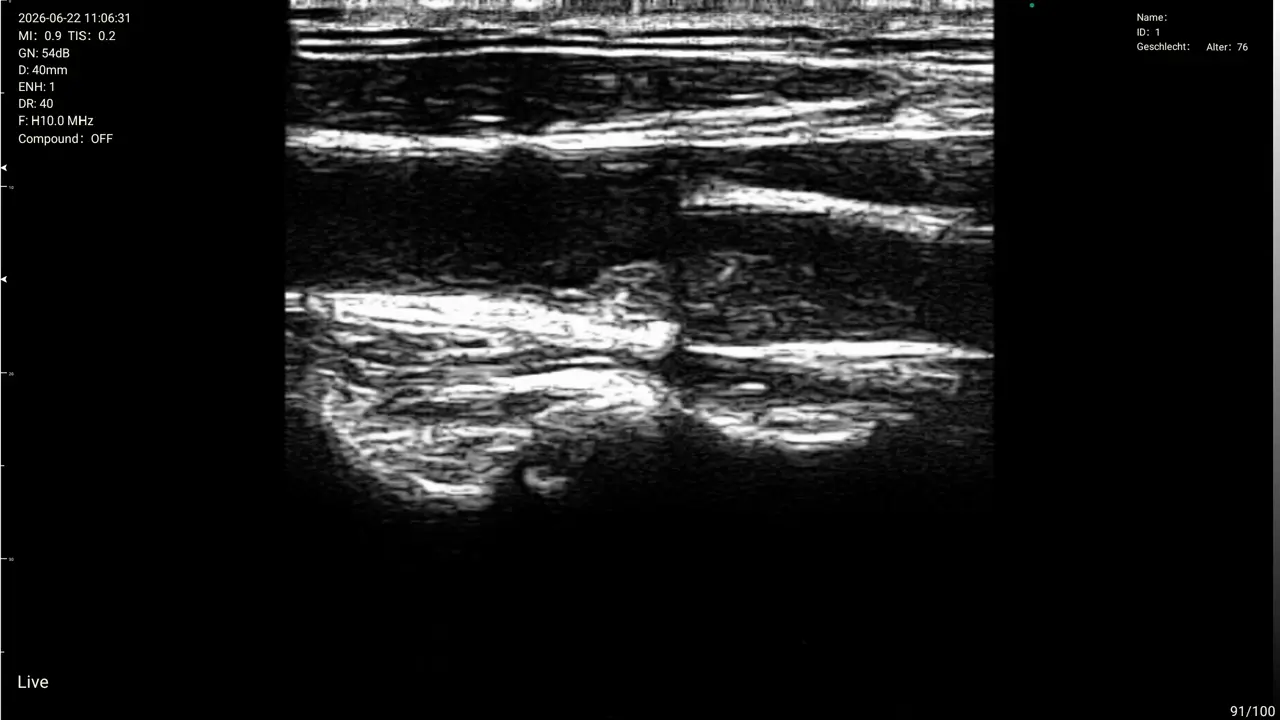

Interscalene brachial plexus on the D3Ultra
The plexus roots sit between the scalene muscles as the operator sweeps the neck. Regional anesthesia is how a remote clinician treats a fracture without an anesthetist.
captured live on a D3Ultra by a German practice, saved as a cine clipSelect a card to switch capture
Technique basics
How the exam comes together, probe to report

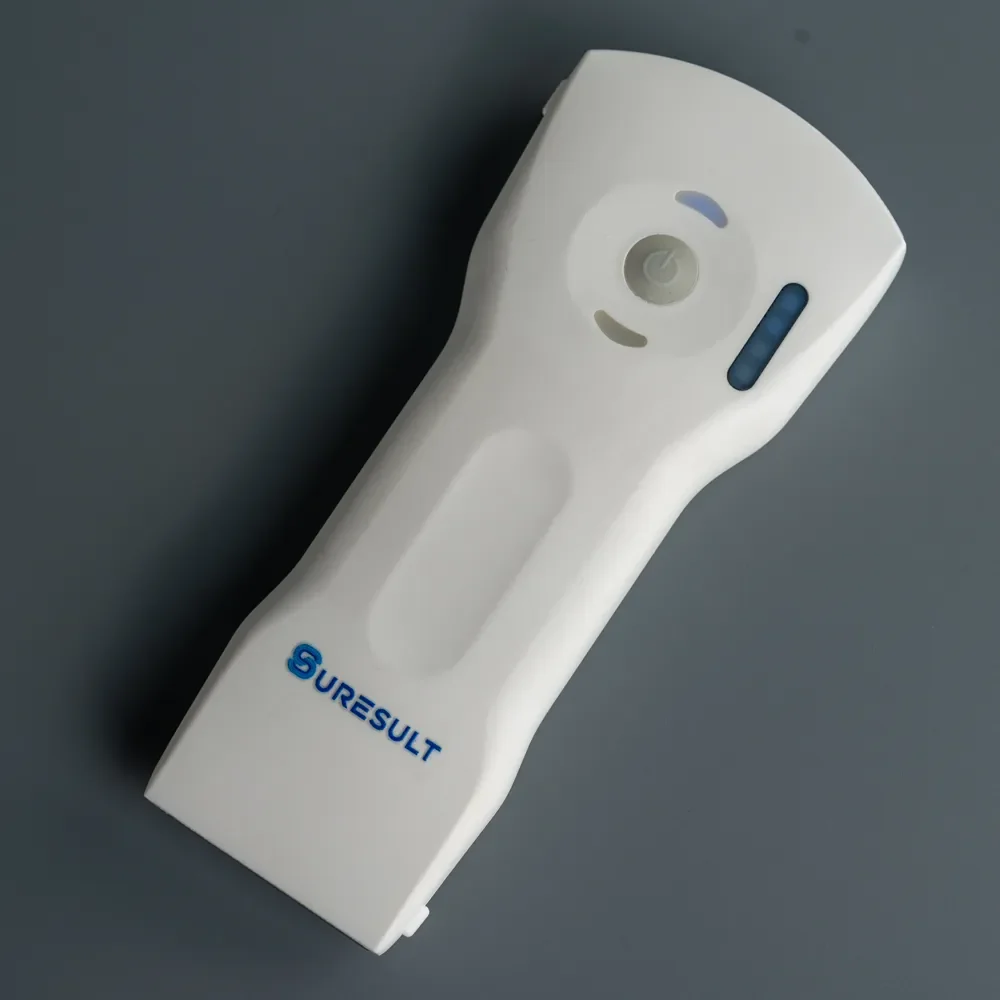

Charge once, then work from the battery.The scanner has no console and no mains cable during use. The D3Pro and the D3L hold 4200 mAh for 3 hours of continuous scanning, and both charge wirelessly.
4200 mAh · 3 hours · wireless charging

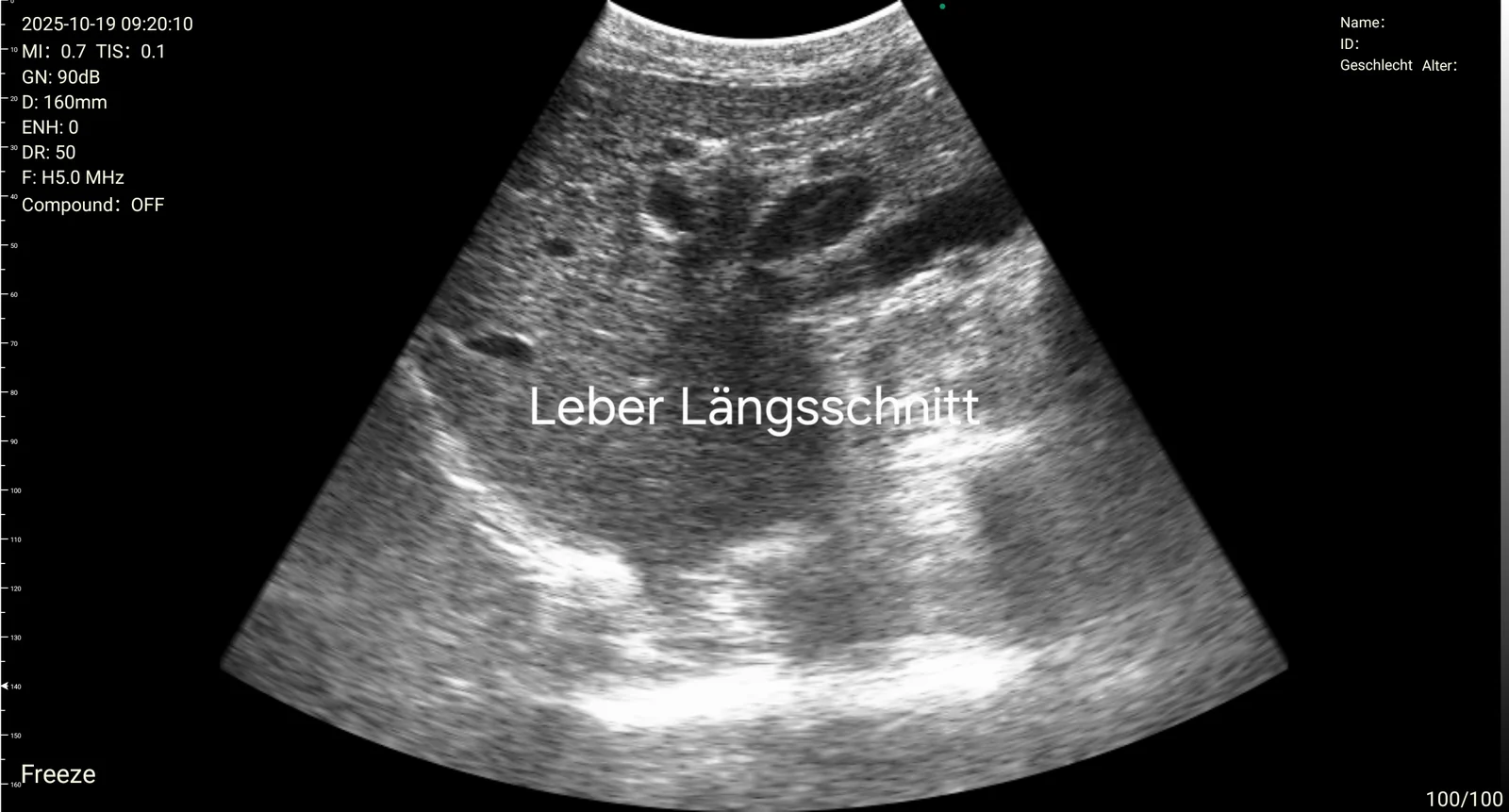

Set depth and frequency before gain.The header carries depth, frequency, gain and dynamic range on every frame. A liver sweep starts at 160 mm on 5.0 MHz harmonic, then gain comes down until the parenchyma reads evenly.
D: 160 mm · F: H5.0 MHz · GN 90 dB

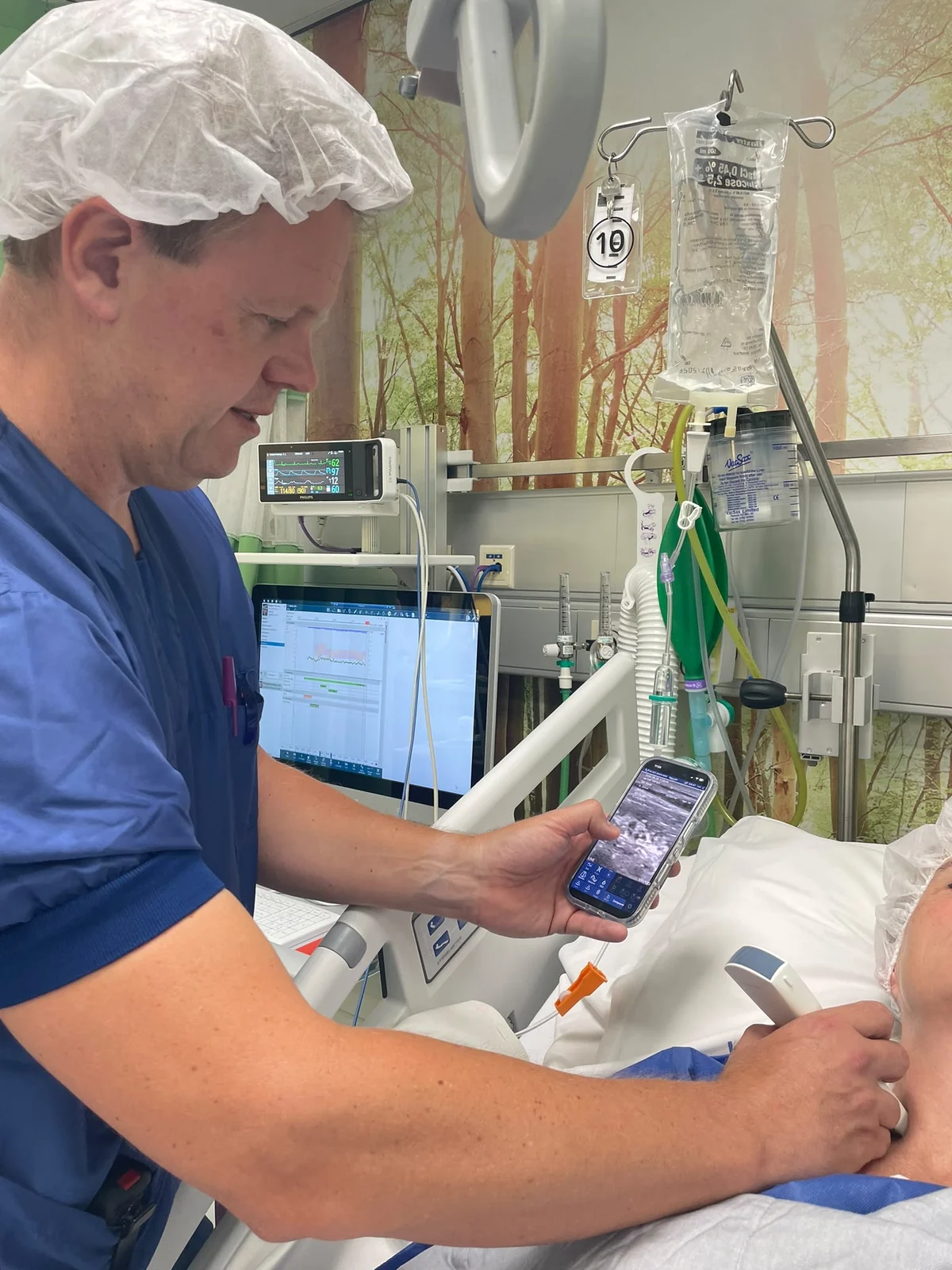

Scan on the phone already in the pocket.The probe creates its own Wi-Fi hotspot and connects to an iOS, Android or Windows device, so the screen is hardware the clinician already carries. Nothing else has to be flown in.
iOS · Android · Windows

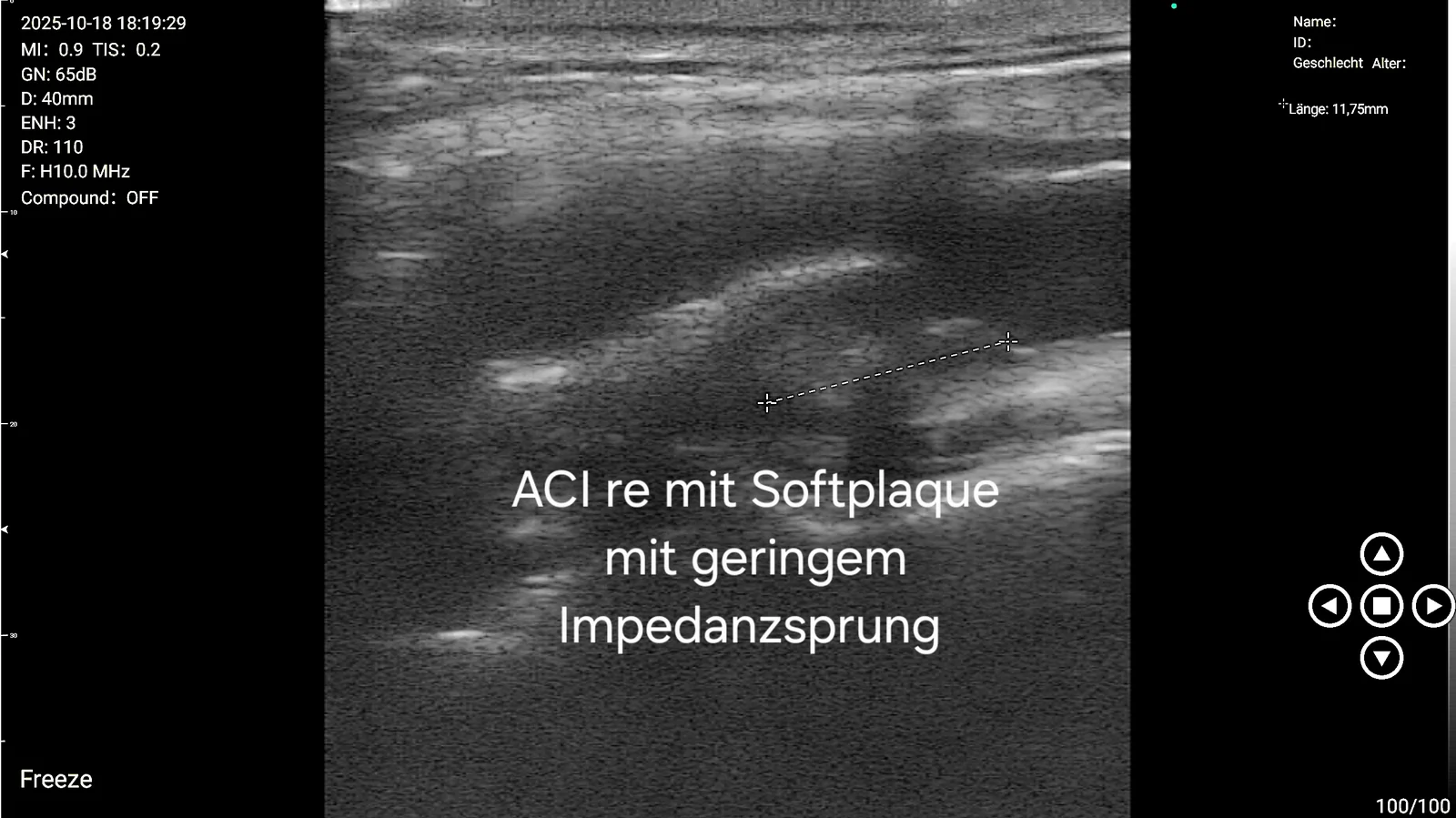

Measure and save before the patient leaves.Calipers, annotation and freeze sit on the scanning screen, and the study exports as JPEG, MP4, PNG or DICOM from local storage. The capture beside this step measures a right internal carotid soft plaque at 11.75 mm.
cine 100 to 1000 frames · JPEG, MP4, PNG, DICOM
What the research says
The evidence, three studies checked
- Handheld ultrasound changed treatment in half of rural outpatient cases.
Across 427 handheld point-of-care examinations in rural Brandenburg, the scan affected patient management in 80.4% of physician cases and contributed to treatment decisions in 49.5%.
Lo et al., Ultraschall Med 2022 - In a disaster field clinic, handheld scans drove seven of every ten care decisions.
At a Port-au-Prince field clinic three weeks after the 2010 Haiti earthquake, 51 handheld ultrasound scans on 50 patients influenced patient care decisions in 70% of scans.
Shorter & Macias, Prehosp Disaster Med 2012 - Remote expert mentoring did not improve novice scanning performance.
In a randomized trial of 37 inexperienced military and emergency service responders, telementoring produced no significant difference in clinical performance between mentored and unmentored operators.
Chen et al., Isr Med Assoc J 2022
Pick your model
Pick the model that fits your day
MOST CHOSEN
A rural clinic with no cart scannerD3Ultra
A rural clinic with no cart scannerD3UltraThe D3Ultra carries convex, linear and phased formats in one probe, so chest, abdomen and vessels are covered by a single purchase. Its 192-element, 64-channel front end drives the 90 to 300 mm convex and phased depths.
three formats, one probe, one probe
$2,976 D3Ultra · Convex Linear Phased MultipuBuy nowD3Ultraを見る
Long field days away from mains powerD3プロThe D3Pro runs a 4200 mAh battery for 3 hours of continuous scanning at 257 g. It carries the same three formats with 192 elements and 32 channels, and reaches 305 mm on convex and phased.
3-hour battery, battery
$2,697 D3Pro · Dual-Head 3-in-1 Wireless UlBuy nowView D3Pro →
A mobile team that needs the widest sectorD3LThe D3L holds all three formats with 128 elements and 32 channels, and opens the widest phased sector among the D3 models at 80 degrees. Its 4200 mAh battery also runs 3 hours.
80 degree sector, 128 elements
$2,418 D3L · Ultrasound Diagnostic Probe Buy nowView D3L →スキャナーの比較
Six Suresult handhelds for remote and mobile care, compared
Swipe to see all columns →
| モデル | 価格 | 頻度 | 深さ | 最適 |
|---|---|---|---|---|
| D3Ultra | $2,976 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex and phased 90–300 mm; linear 20/40/60/100 mm | Three formats on 192 elements and 64 channels |
| D3プロ | $2,697 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex and phased 90/160/220/305 mm; linear 20/40/60/80 mm | 3 hours of scanning on 4200 mAh |
| D3L | $2,418 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex and phased 90/160/220/305 mm; linear 20/40/60/80 mm | 80 degree phased sector on 128 elements |
 D3 | $2,232 | Convex 3.2/5.0, linear 7.5/10, phased 3.2/5.0 MHz | Convex and phased 90/160/220/305 mm; linear 20/40/60/100 mm | 150 g, with a cable connection option |
 シーディーツー | $2,697 | Phased 2.2/3.6 and linear 7.5/10 MHz | Phased 90–190 mm; linear 20/40/60/100 mm | Echo windows plus vascular access at 150 g |
 C5SH | $2,139 | Convex 3.2/5.0 MHz | Convex 90–300 mm | Abdominal depth only, on 64 channels |
Against the known brands
Suresult vs Clarius PAL HD3, Butterfly iQ3 and GE Vscan Air CL for remote medicine
Swipe to see all columns →
| スレ | クラリアスPAL HD3 | バタフライiQ3 | GE Vscan Air CL | |
|---|---|---|---|---|
| Formats in one probe | Convex, linear and phased on the D3 models; phased plus linear on the CD2 | Phased and linear dual array | Single semiconductor array | Curved and linear dual array |
| Weight in a field kit | 150 g on the D3, CD2 and C5SH | 307 g | 300 g | 205 g |
| Scan time between charges | 3 hours on the D3Pro and D3L, on a 4200 mAh battery | Scan time published at about 60 minutes | Battery life published at up to 2 hours | 50 minutes of continuous scan time published |
| Device price | Published on every product page; the D3Ultra is $2,976 | $5,395 published | $3,899 published | Starting at $4,999 published |
| Software fee after purchase | None; the software ships with the scanner | Essentials membership published at $695 a year, or $2,500 one time | Plans published at $299 a year Core, $420 a year Advanced, or $1,500 for five years of Advanced | Digital Tools sold as a separate suite |
| 保管と輸出 | Local storage on the connected device, exporting JPEG, MP4, PNG and DICOM | Cloud exam management is a membership feature | Plan tiers govern which tools and archives are available | Gallery and remote sharing sit in the separately added Digital Tools suite |
| Display devices supported | iOS, Android and Windows are all listed | iOS and Android listed | iOS and Android listed | iOS and Android listed |
| Landed cost | Duties and shipping inside the checkout price; 1 to 7 days to Europe, North America and Oceania | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US | US list price; duties and shipping extra outside the US |
| Regulatory registrations | FDA 510(k) · ISO 13485 · EU MDR (CE) · TGA · ANVISA · Health Canada | FDA 510(k) | FDA 510(k) | FDA 510(k) |
Where Suresult wins
- Eight windows on this page were captured by D3Ultra owners, from lung B-lines to a right internal carotid artery in power Doppler.
- Every Suresult scanner here stores scans and cine loops locally on the connected phone, tablet or laptop.
- The software ships with the scanner, so no annual membership is needed to keep imaging.
- Color Doppler, pulsed-wave Doppler, M-mode, needle guides and DICOM export are on every model listed.
- The D3Pro and the D3L each run 3時間 of continuous scanning on a 4200 mAh battery.
- The D3Pro, D3L and D3 reach 305 mm on convex and phased, deep enough for abdominal and cardiac windows.
- Suresult supports Windows as well as iOS and Android, so a field laptop can be the screen.
- Duties and shipping sit inside the checkout price, with delivery in 1 to 7 days to Europe, North America and Oceania.
The five-year math
Clarius publishes its Essentials membership at $695 a year, which reaches $3,475 by year five on top of the $5,395 scanner. Butterfly publishes $299 a year for Core and $420 a year for Advanced. Suresult includes the software with the scanner.
D3Ultra, paid onceClarius PAL HD3: scanner + membership= $3,475 in fees alone by year five
Three models, one decision
Not sure which model fits your cases?
One conversation gets a direct recommendation: the right Suresult probe, or a straight “neither.”
現場対応ポータブル超音波装置のトップ・チョイス
遠隔診療のための信頼性の高いポータブル画像処理-明瞭性、スピード、そして完全なコントロールをあなたの手に。
D3Ultra
D3Ultra凸型リニアフェーズド多目的ハンドヘルド超音波
頻度： コンベックス/フェーズドプローブ 3.2/5.0MHz リニアプローブ 7.5/10MHz
スキャンの深さ リニア：20-100mm、コンベックス＆フェーズド：90-300mm
遠隔医療
buy scanner
D3プロ
D3Pro Dual-Head 3-in-1 Wireless Ultrasound Scanner
頻度： コンベックス/フェーズドプローブ3.2/5.0MHz、リニアプローブ7.5/10MHz
スキャンの深さ コンベックス/フェーズドプローブ：90-305mm、リニアプローブ：20-80mm
遠隔医療
buy scanner
D3L
D3L 超音波診断の調査 128 の要素、凸の線形段階的な 3 モード
頻度： コンベックス/フェーズドプローブ 3.2/5.0MHz リニアプローブ 7.5/10MHz
スキャンの深さ コンベックス/フェーズドプローブ：90-305mm、リニアプローブ：20-80mm
遠隔医療
buy scanner
遠隔地用のハンドヘルド超音波を購入する前に考慮すべきこと
幅広い周波数に対応し、耐久性に優れた独立動作で、地方、モバイル、フィールドでの使用に最適なデバイスをお選びください。
Before you buy
購入前のチェックポイント
What is the best handheld ultrasound for remote medicine?
The Suresult D3Ultra is the strongest single choice for remote work, because convex, linear and phased formats sit in one probe. A clinic that owns one scanner can then cover chest, abdomen, kidney, bladder and vessels. For long days away from power, the D3Pro runs 3 hours on a 4200 mAh battery.
Does a handheld ultrasound need an internet connection to work?
No. The Suresult probe creates its own Wi-Fi hotspot and connects directly to a phone, tablet or Windows laptop, independent of hospital or clinic networks. Every scan saves to local storage on that device, and DICOM files export later.
How much does a handheld ultrasound for remote medicine cost?
Suresult publishes a price on every product page: $2,139 for the convex-only C5SH and $2,976 for the three-format D3Ultra. Competing handhelds publish $3,899 for the Butterfly iQ3, $5,395 for the Clarius PAL HD3 and from $4,999 for the GE Vscan Air CL.
Is there a subscription fee after buying a Suresult scanner?
No. The imaging software, measurements, needle guides and DICOM export ship with the scanner. Clarius publishes its Essentials membership at $695 a year, and Butterfly publishes plans at $299 and $420 a year.
How long does the battery last between charges?
The D3Pro and the D3L each hold 4200 mAh and list 3 hours of continuous scanning. The D3Ultra holds 2800 mAh for 2 hours, and the 150 g D3 and CD2 list 1.5 hours. All of them charge wirelessly.
Can one handheld probe cover lung, abdomen and the heart?
Yes. The D3Ultra, D3Pro, D3L and D3 each carry convex, linear and phased formats in one device. Buyer captures on the D3Ultra show lung B-lines, a pericardial effusion, a gallbladder, the vena cava, a kidney and a bladder.
Does a handheld ultrasound actually change decisions in a rural clinic?
A 2022 study of 427 handheld point-of-care examinations in rural Brandenburg reported an effect on patient management in 80.4% of physician cases. The same study reported a contribution to treatment decisions in 49.5% of cases.
Is a handheld enough in a disaster or field clinic?
In a Port-au-Prince field clinic after the 2010 Haiti earthquake, 51 handheld scans on 50 patients influenced care decisions in 70% of scans. The authors reported the highest yield for abdominal and pregnancy scanning.
Do I need a remote expert guiding the scan?
No. A trained operator scans without a remote mentor. A randomized trial of 37 inexperienced military and emergency responders found no significant performance difference between telementored and unmentored operators. The paper reported that telementoring may instead reduce operator stress.
How deep will a handheld scan on a large adult?
The D3Pro, D3L and D3 list 305 mm on convex and phased, and the D3Ultra lists 300 mm. That range covers a deep liver, a kidney and a subcostal cardiac window on most adults.
Which mobile devices work with a Suresult scanner?
Every model on this page lists iOS, Android and Windows. Windows support matters in remote work, because a field laptop can be the screen when no compatible phone is in the kit.
What formats does a Suresult scanner export?
Every model on this page exports JPEG, MP4, PNG and DICOM, with a cine buffer of 100, 200, 500 or 1000 frames. A 1000-frame loop is enough to hand a remote consultant real footage rather than a description.

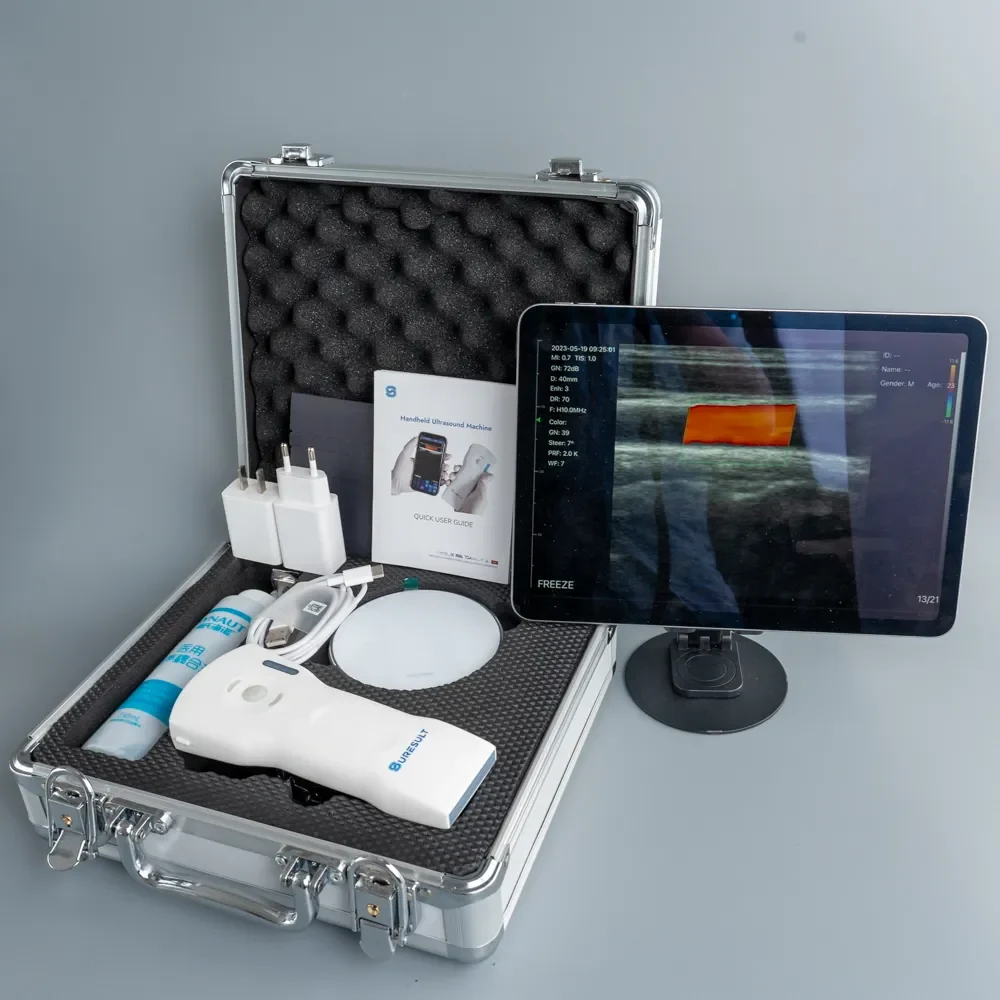

What arrives in the box for a mission or a mobile clinic?
The D3Ultra ships in a lockable metal case with a local mains plug, a wireless charger, a warranty card and a quick user manual. Duties and shipping are inside the checkout price, with delivery in 1 to 7 days to Europe, North America and Oceania.
Which model suits a solo clinician, a mobile team or a spare kit?
A solo clinician who owns one scanner should take the D3Ultra. A mobile team scanning all day should take the D3Pro for the 3-hour battery. A vehicle or backpack spare should take the 150 g D3, which accepts a cable as well as Wi-Fi.
コンベックス・アレイ・プローブ (2.5-5 MHz)
プライマリ・ケアや現場診断での腹部および一般的なスキャン用。
リニアアレイプローブ (7-12 MHz)
バスキュラーアクセス、MSK検査、外傷や緊急治療における軟部組織の可視化に。
フェーズドアレイプローブ (2-5 MHz)
プレホスピタルや災害対応に重要な心臓・胸部撮影用。
PW/CWモード付きドップラー
外傷や血管の症例における信頼性の高い血流分析に。
パンクアシスト
リソースの限られた環境での膿瘍ドレナージやバスキュラーアクセスなどのガイド付き手技に。
複数フォーマットでの画像共有機能
Image archiving in both DICOM-friendly and standard (JPG, MP4) formats to share scans for consultations.
長持ちするバッテリー
+2時間の連続スキャン時間により、オフグリッド環境での1日分のスキャンが可能。
耐落下・IP67以上
過酷な現場での取り扱いや偶発的な水濡れにも耐えられます。
フリーソフト、
無制限スキャン
Suresultのハンドヘルド超音波診断装置には、追加費用なしで無制限の機能を提供する強力なソフトウェアが付属しています。無料のDICOMとパルス波ドップラーに加え、iOS、Android、Windowsのユーザーフレンドリーなインターフェースをお楽しみください。
フルプラットフォーム対応、ライフタイム 無料アップグレード
細部まで撮影、正確にガイド、簡単に共有
オールインワンソリューションで超音波検査のワークフローを改善します。すべてのスキャンで、正確さ、シンプルさ、効率性を実感してください。
17以上の専門プリセット
コンベックス / フェーズドプローブ
リニアプローブ
27 精密診断のための自動測定
迅速でリアルタイムな評価のためのツール一式で作業を簡素化します。
Bモード
- 長さ、面積/円周、角度、トレース、距離
- Depth and angle readouts for needle and injection guidance
- Obstetric biometrics (gestational age, EFW) when your caseload needs them
B+Mモード
- 心拍数、時間、距離
- 左室内径（LVIDd、LVIDs）
- 駆出率（EF）、ストローク量（SV）
B+PWモード
- 速度、心拍数、S/D比、深度
- 自動容器流量測定
- 収縮期ピーク速度(PS)、拡張末期速度(ED)
- 時間平均最大速度(TAMAX)、時間平均平均平均速度(TAMEAN)
- 脈動指数（PI）、抵抗指数（RI）
- 容器直径（DIAM）、流量（FL）
シネループ
最大記録 1000フレーム（≒165秒） 微妙なディテールまでとらえる連続的な動き。
パンクアシスト機能
正確にお楽しみください 面内 そして 面外ガイド 介入時の自信を高めるために
柔軟なファイルエクスポート
でスキャンしたデータを簡単に保存、共有できます。 JPEG、MP4、PNG、またはDICOM フォーマットで、ワークフローとシームレスに統合できます。
Expert Guidance
Talk to a Scanner Specialist
Tell Suresult about your daily workflow and get a personal scanner recommendation with an all-inclusive quote.
- Free scanner-fit consultation — probes, frequency and depth matched to your procedures
- All-inclusive quote — shipping, customs clearance and applicable taxes covered
- Fast delivery — ships within 24 hours, 1–7 days door to door
- ソフトウェアのサブスクリプションは不要です — iOS, Android and Windows apps included
- 30-day returns and 24/7 support
Live chat opens right here — no forms, no waiting.
よくあるご質問
インターネットなしでSuresultハンドヘルド超音波検査を使用できますか？
Suresultハンドヘルドデバイスは完全にオフラインで動作します。画像のスキャン、保存、レビューにインターネット接続は必要ありません。安全な内蔵Wi-Fi信号により、プローブはお使いの携帯電話やタブレットに簡単に接続できます。
遠隔コンサルティングでスキャンを共有するにはどうすればよいですか？
Suresultデバイスで撮影されたすべてのスキャンは、DICOMとJPEG/MP4の両方のフォーマットで保存され、モバイルデバイス上で任意の注釈を付けることができます。電子メール、病院PACS、クラウドプラットフォーム、または遠隔専門家によるレビューのための遠隔医療ソフトウェアを介して簡単にメディアを共有することができます。
ローカル・ストレージはHIPAAに準拠し、安全ですか？
Suresultはサードパーティのクラウドサーバーに依存していないため、エクスポートを選択しない限り、すべての患者データは接続されたモバイルデバイスに安全に保存されます。これにより、HIPAA規制を完全に遵守し、不正アクセスやデータ漏洩のリスクを最小限に抑えます。
How long does a full charge last on a Suresult ultrasound?
ほとんどのSuresultハンドヘルドは、フル充電で1.5～3時間の連続使用が可能です。これは通常、移動診療や学校訪問を含む忙しい診療をこなすのに十分な時間です。
Suresultのポータブル超音波は、過酷な現場での使用に耐えられますか？
もちろんです。Suresultのデバイスは、頑丈な医療グレードの筐体と、水しぶきやほこりから保護するIP67（またはそれ以上）の等級で、厳しい環境向けに作られています。また、輸送時の安全性を高めるため、ロック可能な金属製キャリーケースに入っています。
Suresultデバイスを使用した現地スタッフのトレーニング方法を教えてください。
基本的なPOCUSトレーニングを受けた臨床医であれば、誰でも自信をもってスキャンを始めることができます。初めての方でも、数時間の実習で十分慣れていただけます。オプションのオンボーディング・ビデオやクリニカル・ガイドもご利用いただけますので、チーム内での標準化にお役立てください。
